Summary of Contents for Zio WLB5254USB

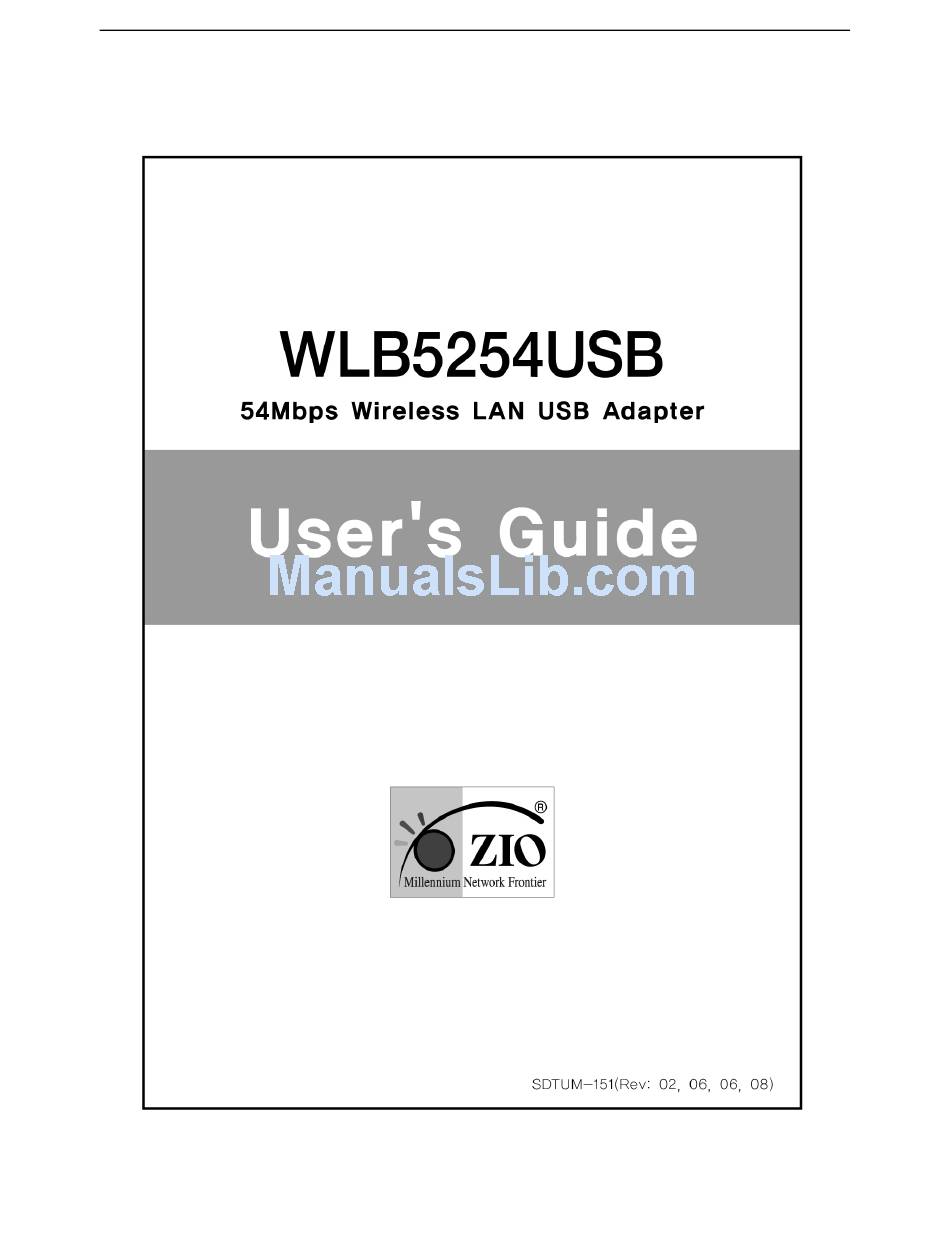

- Page 1 WLB5254USB User manual Page 1 of 18...
-
Page 2: Table Of Contents
WLB5254USB User manual Chapter 1 Introduction ..............3 1.1 Welcome..................3 1.2 About This Guide................3 1.3 Copyright statement ...............3 1.4 Contents of Package ...............3 1.5 Before you begin ................4 Chapter 2 Designing Your Wireless Network ........4 Chapter 3 Install Wireless Adapter ............ 5 3.1 Install Driver and Utility ..............5... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Welcome ZIO WLB5254USB Wireless USB Adapter is a powerful 32-bit USB Adapter that installs quickly and easily into PCs. The Adapter can be used in Ad-Hoc mode to connect directly with other cards for peer-to-peer file sharing or in Infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home network. -
Page 4: Before You Begin
WLB5254USB User manual 1.5 Before you begin You must have at least the following: A laptop computer/desktop PC with an available USB port At least a 300MHz processor and 32MB of memory Windows 98SE, ME, 2000, XP A CD-ROM Drive USB controller properly installed and working in the laptop computer A 802.11g or 802.11b Access Point (for infrastructure Mode) or another... -
Page 5: Chapter 3 Install Wireless Adapter
WLB5254USB User manual Chapter 3 Install Wireless Adapter 3.1 Install Driver and Utility Insert the Driver and Utility CD-ROM into the CD-ROM driver. The Wizard should run automatically, and Figure 3-1 should appear. If it dose not, click the Start button and choose Run. In the field that appears, enter D:\autorun.exe (if ‘’D’’... - Page 6 WLB5254USB User manual Figure 3-2 Follow the Install Shield Wizard steps and click “Finish” when done. Figure 3-3 Now restart your PC or notebook. Page 6 of 18...
-
Page 7: Install Adapter
WLB5254USB User manual 3.2 Install Adapter Power on your PC, let the operating system boot up completely and log in as needed. Hold the adapter and insert it into a USB slot. Figure 3-4 You have now completed the driver and hardware installation for the Adapter. - Page 8 WLB5254USB User manual Figure 3-5 Click the “Available Network” tab then click the Refresh button to search for available wireless networks. Figure 3-6 To connect to one of the networks on the list, select the wireless network, and click “Add to Profile” button.
-
Page 9: Chapter 4 Using The Wireless Client Configuration Utility
WLB5254USB User manual Chapter Using Wireless Client Configuration Utility Use the Wireless Client Configuration Utility to check the link information, search for available wireless networks, or create profiles that hold different configuration settings. You can double-click the icon on your system desktop start it. - Page 10 WLB5254USB User manual Figure 4-2 Figure 4-3 Status: The status of the wireless network connection. SSID: The unique name of the wireless network. Type: The mode of the wireless network currently in use. Page 10 of 18...
-
Page 11: Profile And Available Network
WLB5254USB User manual BSSID: The MAC address of the wireless network’s access point. Security: The status of the encryption security feature. Speed: The data transfer rate of the current connection. Channel: The channel to which the wireless network devices are set. - Page 12 WLB5254USB User manual Figure 4-5 The section of the window displays the Available Networks. Highlight the network to which you wish to connect. Click on the “Add to Profile” button. Figure 4-6 Choose the Authorization modes and Encryption modes in the drop-down box.
-
Page 13: Advanced
WLB5254USB User manual Passphrase field. If the wireless network uses a WEP key, enter the WEP key in the Key field. Click the “OK” button to complete the network connection and return to the Site Survey screen, or click the Cancel button the cancel the network connection and return to the Site Survey screen. - Page 14 WLB5254USB User manual Figure 4-8 Choose a mode and click the “Next” button. Figure 4-9 The Security screen will appear. Choose the Authentication Mode and Encryption Method from the drop-down menu. To use WEP encryption (recommended to increase network security), select 64 bits or 128 bits WEP from the drop-down menu, and enter either a Passphrase or WEP key.
-
Page 15: Chapter 5 Troubleshooting
WLB5254USB User manual Figure 4-10 The Protocol screen will appear. Select do not change settings, then, click Next button. The Complete Screen will appear. Click Finish button. You have successfully created a connection profile. Chapter 5 Troubleshooting This chapter provides solutions to problems that may occur during the installation and operation of the Wireless USB Adapter. - Page 16 WLB5254USB User manual driver. If the Adapter does not function after attempting the above steps, remove the adapter and do the following: Uninstall the driver software from your PC. Restart your PC and repeat the hardware and software installation as specified in this User Guide.
-
Page 17: Appendix A Specifications
WLB5254USB User manual APPENDIX A Specifications Standards: IEEE 802.11g, IEEE 802.11b Modulation: 802.11b: CCK (11 Mbps), DQPSK (2 Mbps), DBPSK (1Mbps); 802.11g: OFDM Channels: 11 Channels (USA) 13 Channels (Europe) Network Protocol: TCP/IP, IPX, NDIS 4, NDIS 5, NDIS 5.1, NetBEUI... -
Page 18: Fcc Compliance Statement
WLB5254USB User manual FCC Compliance Statement CAUTION: Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
