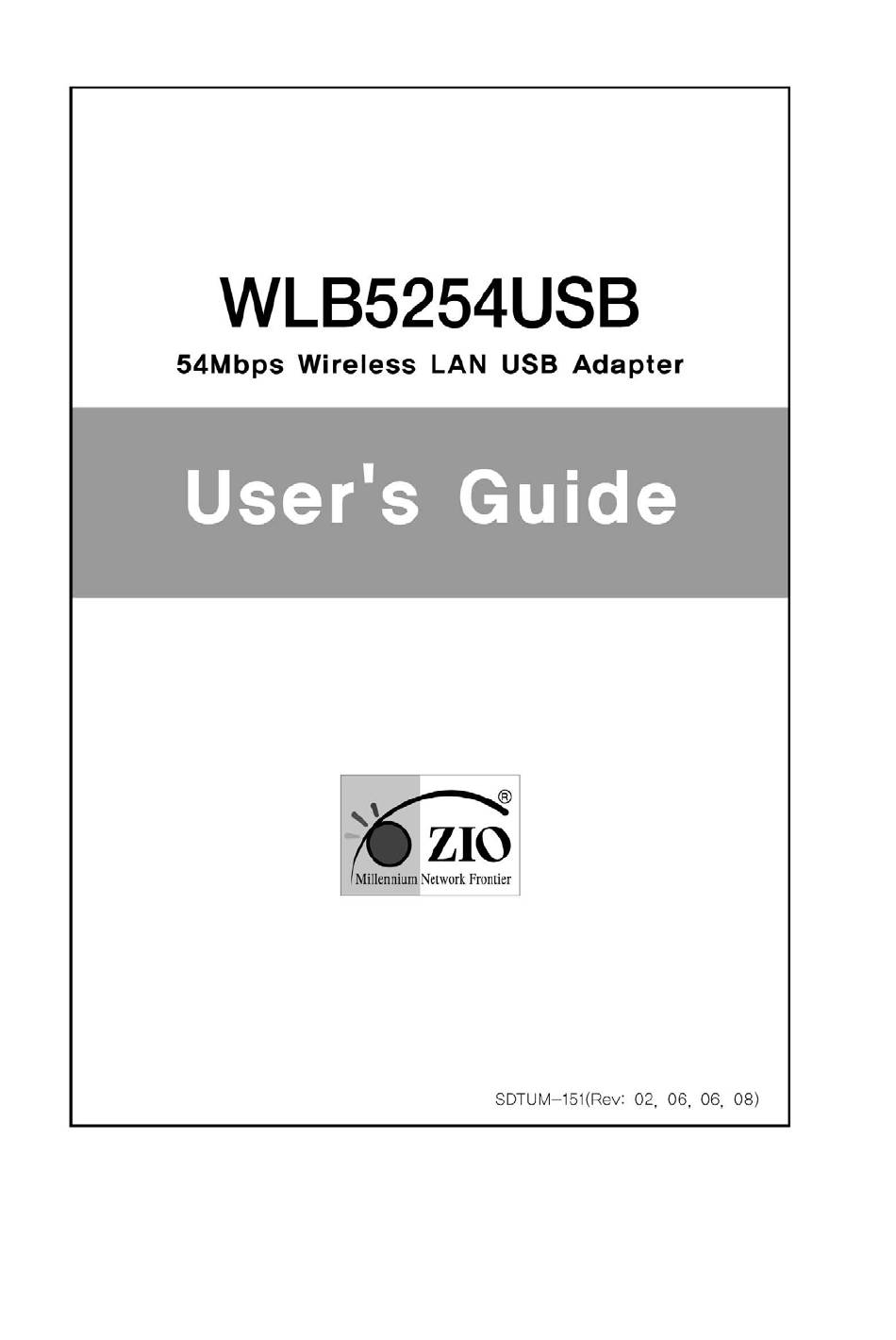

Zio WLB5254USB User Manual

54mbps wireless lan usb adapter
Hide thumbs Also See for WLB5254USB:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WLB5254USB and is the answer not in the manual?

Questions and answers

Related Manuals for Zio WLB5254USB

Summary of Contents for Zio WLB5254USB

  • Page 2 COPYRIGHT Copyright ©2005/2006 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with...

  • Page 3: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

  • Page 5: Table Of Contents

    CONTENTS 1 Introduction .................................6 1.1 Features ................................6 1.2 Specifications ..............................7 1.3 Package Contents .............................8 2 Installation Procedure..............................10 3 Configuration Utility ..............................14 3.1 Site Survey ..............................17 3.2 Profile................................18 3.3 Link Status..............................27 3.4 Statistics .................................28 3.5 Advance................................28 3.6 About ................................31 3.7 Turbo Mode ..............................32 4 Troubleshooting.................................33...

  • Page 6: Introduction

    Furthermore, this adaptor supports WPA2 function, WPA2 provides a stronger encryption mechanism through AES (Advanced Encryption Standard), which is a requirement for some corporate and government users. WLB5254USB is cost-effective, together with the versatile features; it is the best solution for you to build your wireless network. 1.1 Features Complies with the IEEE 802.11b and IEEE 802.11g 2.4GHz (DSSS) standards.

  • Page 7: Specifications

    1.2 Specifications Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11b/g Bus Type: USB 2.0 Type A Frequency Band: 2.4000 ~ 2.4835GHz (Industrial Scientific Medical Band) Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) ,BPSK, QPSK, CCK (11b) Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback Securities: 64/128-bit WEP Data Encryption, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x) Note: WPA2 is only enabled in Windows 2000/XP/2003 Server.

  • Page 8: Package Contents

    1.3 Package Contents Before you begin the installation, please check the items of your package. The package should include the following items: ․ ․ ․ One USB Adaptor One Cradle type USB 2.0 Extension Cable One CD (Driver/User’s Guide) If any of the nabove items is missing, contact your supplier as soon as possible.

  • Page 10: Installation Procedure

    2 Installation Procedure Before you proceed with the installation, please notice following descriptions. Note1: Please do not install the adaptor into your computer before installing the software program from the CD. Note2: The following installation was operated under Windows XP. (Procedures are similar for Windows 98SE/Me/2000/2003 Server.) Note3: If you have installed the Turbo Wireless LAN USB Adaptor driver &...
  • Page 11 2. Click “Yes” to process the installation if you accept the license agreement. 3. In Windows XP, there is a “Windows Zero Configuration Tool” for you to setup the wireless adaptor. You can choose to configure the adaptor through the Windows Zero Configuration Tool or the Ralink Configuration Tool for the adaptor.
  • Page 12 4. If you need the adaptor to operate with better performance, please choose the “Optimize for performance” to enable the Tx Burst mode. Or you can choose “Optimize for Wi-Fi mode” to let the adaptor run in standard wireless network. 5.
  • Page 13 6. Please click “Finish” to complete the installation.

  • Page 14: Configuration Utility

    3 Configuration Utility The Ralink Configuration Utility is a powerful application that helps you configure the USB adaptor and monitor the link status and the statistics during the communication process. When the adaptor is installed, the configuration utility will be displayed automatically. This adaptor will auto connect to wireless device which has better signal strength and no wireless security setting.
  • Page 15 In Windows XP, there is a “Windows Zero Configuration Tool” for you to setup wireless clients. If you want to switch to use Ralink configuration utility, please follow one of the ways as below. First Way Right click the icon in the system tray and select “Use RaConfig as Configuration utility”. Second Way A.
  • Page 16 C. Uncheck “Use Windows to configure my wireless network settings” to enable the utility for the adaptor. Note: If “Wireless Zero Configuration” is enabled, you can only configure the advance setting or check the link status and statistics from the configuration utility of the adaptor.

  • Page 17: Site Survey

    3.1 Site Survey When you open the Ralink Configuration Utility, the system will scan all the channels to find all the access points/stations within the accessible range of your adaptor and automatically connect to the wireless device with the highest signal strength. From the “Site Survey”, all the networks nearby will be listed. You can change the connection to another networks or add one of the networks to your own Parameter Available Description This list shows all available wireless networks within range...

  • Page 18: Profile

    3.2 Profile The “Profiles List” is for you to manage the networks you connect to frequently. You are able to Add/Delete/Edit/Activate a profile. Parameter Profiles List Description The profiles list display all the profiles and the relative settings of the profiles including Profile Name, SSID, Channel, etc. This sign indicates the activated profile is been connecting.

  • Page 19: Configure The Profile

    3.2.1 Configure the Profile 3.2.1.1 Configuration Parameter Profile Name Description Define a recognizable profile name for you to identify the different networks. SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs.
  • Page 20 PSM (Power Saving Mode) – Enable the adaptor in the power saving mode when it is idle. Network Type Infrastructure – This operation mode requires the presence of an 802.11 Access Point. All communication is done via the Access Point or Router. Ad-Hoc –...

  • Page 21: Authentication And Security

    Parameter Description RTS Threshold Minimum packet size required for an RTS (Request To Send). For packets smaller than this threshold, an RTS is not sent and the packet is transmitted directly to the wireless network. Select a setting within a range of 0 to 2347 bytes.
  • Page 22 Parameter Description Authentication Type LEAP – LEAP is a pre-EAP, Cisco-proprietary protocol, with many of the features of EAP protocols. Cisco controls the ability of other vendors to implement this protocol, so it should be selected for use only when limited vendor choice for client, access-point, and server products is not a concern.
  • Page 23 Parameter Description Encryption Mode None – Disable the encryption mode. WEP – Enable the WEP Data Encryption. When the item is selected, you have to continue setting the WEP Encryption keys. TKIP – TKIP (Temporal Key Integrity Protocol) changes the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security.
  • Page 24 The IEEE 802.1X specification describes a protocol that can be used for authenticating both clients and servers on a network. The authentication algorithms and methods are those provided by the Extensible Authentication Protocol (EAP), a method of authentication that has been in use for a number of years on networks that provide Point-to-Point Protocol (PPP) support as many internet service providers and enterprises do.

  • Page 25: 802.1X Setting-Certification

    3.2.1.3 802.1x Setting-Certification Parameter Description Authentication Type The EAP authentication protocols this adaptor has supported are included as follows. This setting has to be consistent with the wireless APs or Routers that the adaptor intends to connect. PEAP &TTLS – PEAP and TTLS are similar and easier than TLS in that they specify a stand-alone authentication protocol be used within an encrypted tunnel.
  • Page 26 Identity This is the protected user EAP Identity used for authentication. The identity specified may contain up to 63 ASCII characters, is case sensitive and takes the form of a Network Access Identifier, consisting of <name of the user>@<user’s home realm>. The user’s home realm is optional and indicates the routing domain.

  • Page 27: Link Status

    Server name must match When selected, the server name must match exactly the server exactly name found on the certificate. Domain name must end in specified name When selected, the server name field identifies a domain. The certificate must use a server name belonging to this domain or to one of its sub-domains (e.g.

  • Page 28: Statistics

    If you want to know the signal strength in the unit of dBm, select this check box. Signal Strength This bar shows the signal strength level. The higher percentage shown in the bar, the more radio signal been received by the adaptor. This indicator helps to find the proper position of the wireless device for quality network operation.
  • Page 29 Parameter Description Wireless Mode 802.11 B/G mix – If you have a mix of 802.11b and 802.11g wireless stations in your network, it is recommended to set the adaptor to this mode. This mode is also the default setting. 802.11 B only – This adaptor can be compatible with both 802.11g and 802.11b wireless stations.
  • Page 30 automatically. The higher data rate you designated in the network, the shorter distance is allowed between the adaptor and the wireless stations. When the wireless mode is “802.11 B only”, the maximum data rate is 11Mbps (11b) so that there are only “Auto/1/2/5.5/11Mbps” options you can select.

  • Page 31: About

    Non-Serving Channel Measurements The Cisco AP can perform monitoring measurements through the CCX-compliant clients on the non-serving channels when this parameter is enabled. It limits the channel measurement time. The default value is 250 Limit xxx milliseconds (0-2000) milliseconds. 3.6 About By choosing this option, you can click the hyperlink to connect the website for the information of the wireless chipset vendor and review basic information about the Utility such as the Driver, Utility and EEPROM Version.

  • Page 32: Turbo Mode

    3.7 Turbo Mode This adaptor supports specific ways to increase the data transfer rate at a time; compress the data and decrease the waiting time to send the next data to the Routers or APs, this feature (known as Turbo Mode) enables higher throughput than IEEE 802.11g standard (Up to 54Mbps).

  • Page 33: Troubleshooting

    4 Troubleshooting This chapter provides solutions to problems usually encountered during the installation and operation of the adapter. 1. What is the IEEE 802.11g standard? 802.11g is the new IEEE standard for high-speed wireless LAN communications that provides for up to 54 Mbps data rate in the 2.4 GHz band.
  • Page 34 6. What is BSS ID？ A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with the same BSS ID. 7. What is WEP？ WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared key algorithm, as described in the IEEE 802 .11 standard.
