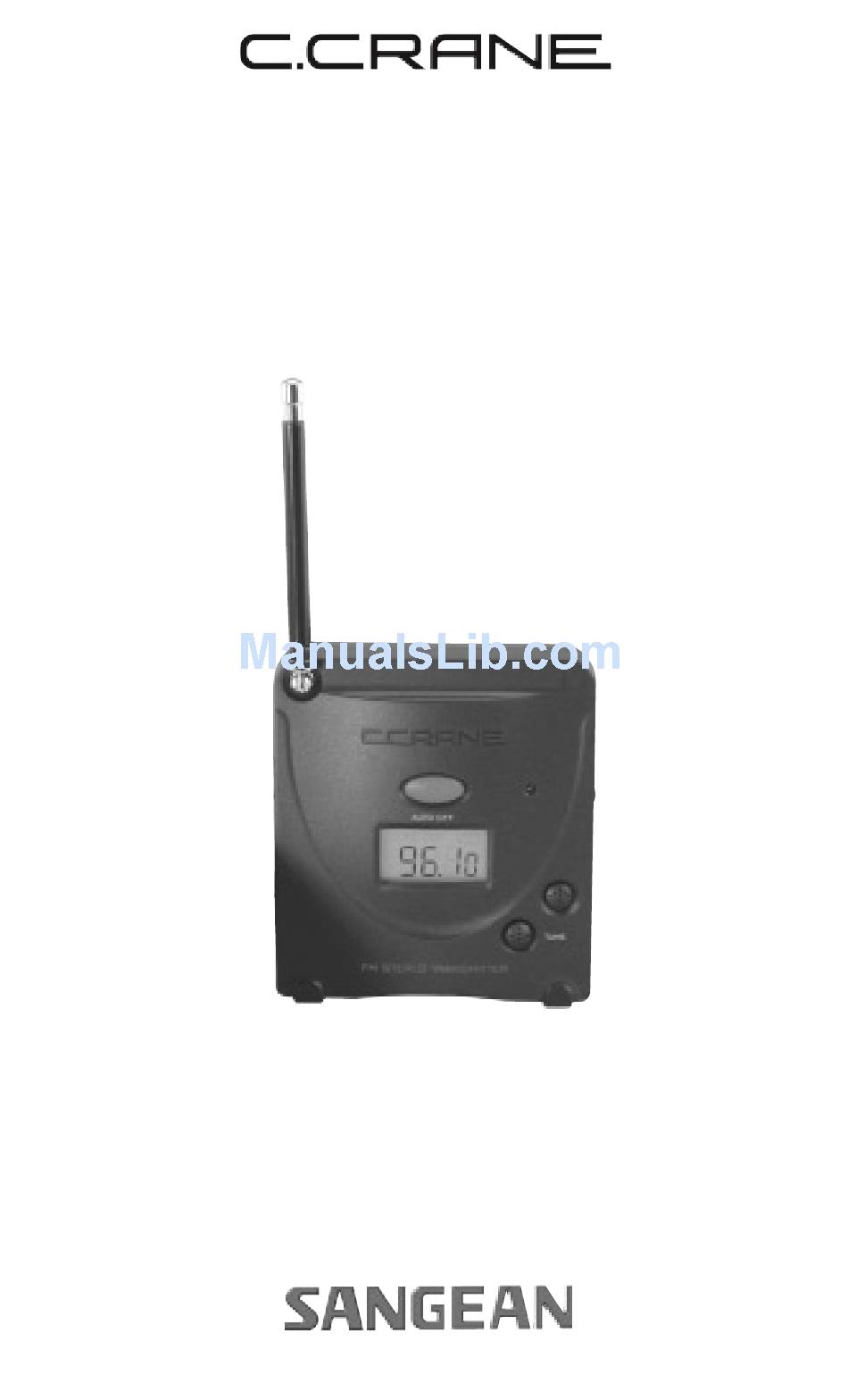

Page 1: Operating Instructions
F F M M T T r r a a n n s s m m i i t t t t e e r r Operating Instructions PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE. Custom Manufactured By... -
Page 2: Before Use
Before Use Please read IMPORTANT SAFETY INSTRUCTIONS on pages 13 - 14 before use. It is important to read and understand all instructions. For your future reference: Serial No. Date of purchase found inside battery compartment) Name and address of dealer Included Accessories: AC Adapter Item Code: FMA... -
Page 3: Table Of Contents
Table of Contents Introduction ............... 4 Audio Sources ..............4 Location of Controls ............. 6 Connection to Power ............. 7 Battery Installation ............7 Tuning ................8 Tips to Make It Work Better ..........9 Troubleshooting Guide ..........10 Safety Instructions ............13 Service Information ............ -
Page 4: Introduction
FM band frequency coverage, with stability and superb audio quality. Purpose The FM Transmitter is designed to transmit any audio to any FM Receiver. You can transmit satellite audio to any receiver or car stereo, transmit Internet audio from your computer to your portable radio, and also transmit audio from your MP3 player to your home stereo or car. - Page 5 From a portable radio to a pocket radio: Connect the plug that is attached to the FM Transmitter to the Line Out or headphone jack of your radio. Tune your pocket radio to the transmitting frequency.
-
Page 6: Location Of Controls
Location of Controls Control Identification 1) Power Button/Timer 5) Frequency Display 2) Audio Input Indicator 6) DC Input Jack 3) Input Level Control 7) Telescopic Antenna 4) Up/Down Tuning Page 6 FM Transmitter... -
Page 7: Connection To Power
Connection to Power The FM Transmitter will operate on the included AC adapter. It will also operate on the included (2) “AA” size Alkaline batteries. Battery Installation 1) Open the cover by pushing down on the textured tab firmly and pushing the cover off toward the side of the unit, the same direction the textured arrow is pointing. -
Page 8: Tuning
Tuning To transmit audio from the FM Transmitter, you need to find a clear FM frequency that is not being broadcast on and free from interference. 1) Start with a radio and scan through the entire FM band (using a digital radio, will be easiest). -
Page 9: Tips To Make It Work Better
Tips To Make It Work Better Location Optimum placement for the FM Transmitter is away from other electronic devices. The higher the transmitter is located the better. Keep metal objects away from the telescopic antenna (meaning not touching or within 2” of the antenna). The transmitter can be helped by placing it on something that will act as a ground plane like a metal filing cabinet or a refrigerator. -
Page 10: Troubleshooting Guide
Trouble Shooting Guide Audio is distorted: Try adjusting the input level on the side of the FM Transmitter. If that doesn’t help, try adjusting the volume of your audio source. No Audio: 1) Verify the power on the FM Transmitter, your audio source and your receiver is on. - Page 11 Location / Frequency Log If you use the FM Transmitter in multiple locations, this log will help you remember the different frequency settings. Location Frequency FM Transmitter Page 11...
- Page 12 Notes Page 12 FM Transmitter...
-
Page 13: Safety Instructions
The transmitter may fall, causing serious personal injury and or damage to the transmitter may result. Heat: Never put the FM Transmitter in direct sunlight in an unven- tilated area or behind glass such as a car's interior. The transmitter should be kept away from heat sources such as radiators, heat registers, stoves, or other appliances that produce heat. - Page 14 Never attempt to service the FM Transmitter yourself. Removing the cover may expose you to dangerous voltage levels and will void the warranty. Refer all servicing to authorized service personnel.
-
Page 15: Service Information
BACK. NO USER-SERVICE- operating and maintenance ABLE PARTS INSIDE. REFER instructions are included in the SERVICING TO QUALIFIED literature accompanying this PERSONNEL product. Service Information If your unit requires service call C. Crane Company at 1-800-522-8863. FM Transmitter Page 15... - Page 16 Model: FM TRANSMITTER THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
