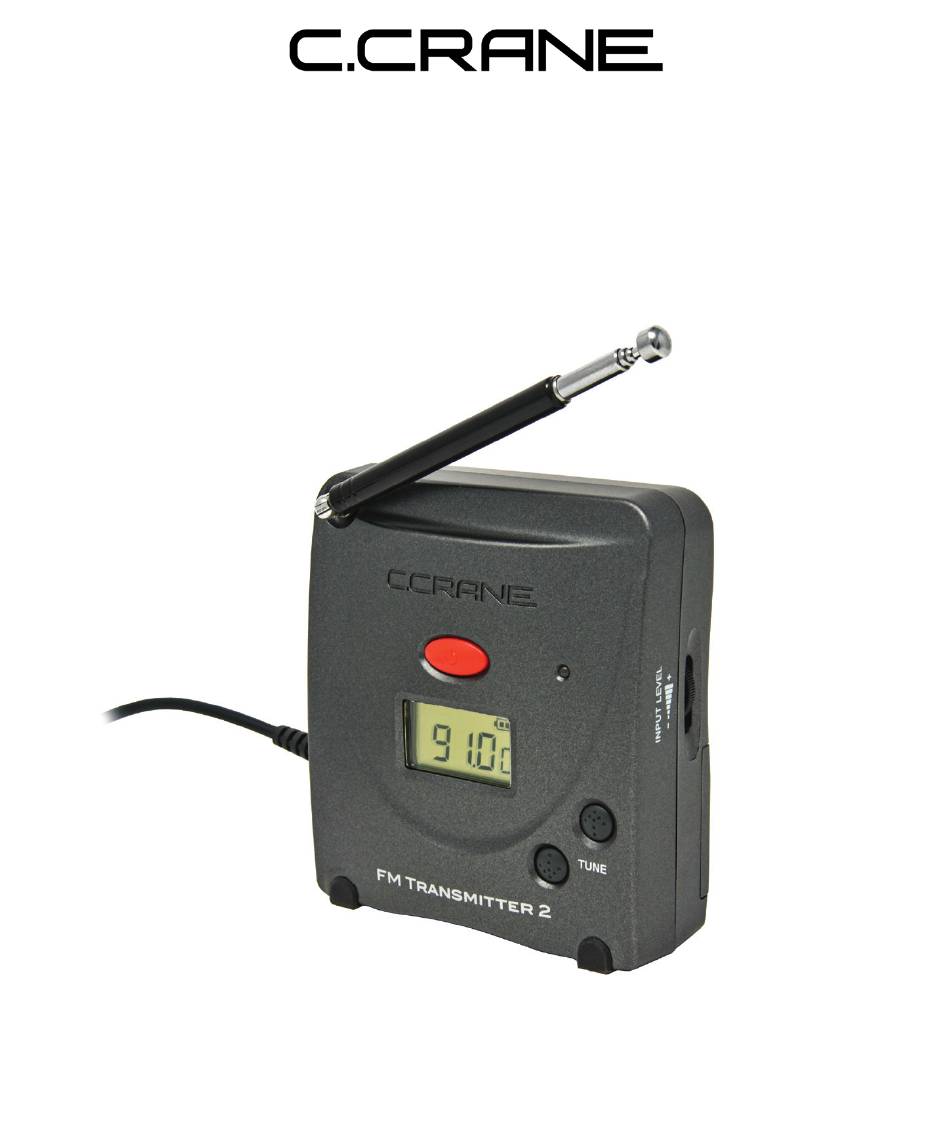

- Page 1 FM T RANSMITTER OPERATING INSTRUCTIONS PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Introduction/Owners Record
Introduction/Owners Record Thank you for purchasing the FM Transmitter 2. It transmits high-fidelity audio from any audio source such as a mobile phone, computer, television, powered microphone, smartspeaker to any nearby FM radio. Superior engineering and construction techniques were used to bring you the highest quality FM transmitter possible. -
Page 3: Safety Instructions
Heed Warnings: All warnings on this appliance and all operating instructions should be followed. Water and Moisture: The FM Transmitter 2 should not be used near water. Do not use near a bathtub, washbowl, laundry tub, kitchen sink, wet basement, swimming pool, etc. - Page 4 Heat: Never put the FM Transmitter 2 in direct sunlight or behind glass such as a car’s interior. The transmitter should be kept away from heat sources such as radiators, heat registers, stoves, or other appliances that produce heat.
-
Page 5: Table Of Contents
The box should contain the FM Transmitter, AC Adapter, patchcord for use with RCA Line Out, this manual and a warranty card. If anything is missing or damaged, please contact C. Crane immediately. We recommend that you keep the box in the unlikely event that your radio needs servicing. -
Page 6: Location Of Controls
Control Identification 1.) Power Button/Timer 6.) Up/Down Tuning 2.) Audio Input Indicator 7.) Frequency Display 3.) Input Level Control 8.) DC Input Jack 4.) Battery Strength Meter 9.) Telescopic Antenna 5.) 1/8” (3.5mm) Audio Input Cable FM Transmitter 2 Page 7... -
Page 7: Connection To Power
Connection to Power The FM Transmitter 2 will operate on the included AC Adapter. It will also operate on two “AA” size Alkaline batteries (optional). Battery Installation 1. Open the cover by pushing down on the textured tab firmly and pushing the cover off toward the side of the unit, the same direction the textured arrow is pointing. -
Page 8: Tuning
Tuning To transmit audio from the FM Transmitter 2, it is best to find a clear FM frequency that is not being broadcast on and is free from interference. 1. To find an unused frequency in your area, you can go to www.radio locator.com, click on “find vacant channels”... -
Page 9: Tips To Make It Work Better
Range is subject to many variables, including obstructions such as walls and FM signal overload in your area. The range of the FM Transmitter 2 is between 30 and 75 feet, line of sight with no obstructions. Vehicle FM radios may recieve further distances than a portable FM radio. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Audio is distorted: Try adjusting the Input Level Control on the side of the FM Transmitter 2 (see page 7, #3). If that doesn’t help, try adjusting the volume of your audio source. No Audio: 1). Verify that the power on the FM Transmitter 2, your audio source, and your receiver are on. -
Page 11: Service Information
“FM Transmitter 2” to see what others have done. The output power of the FM Transmitter 2 is set to the maximum limit specified by the FCC. Most of our customers achieve 40 – 60 feet depending on their situation. -
Page 12: Specifications
BATTERY LIFE: A fresh set of 2 “AA” alkaline batteries lasts 120+ hours. DIMENSIONS: 3” W x 3.5” H x 1” D. WEIGHT: 5.8 oz. without batteries. Note: Specifications are subject to change without notice. FM Transmitter 2 Page 13... - Page 13 Model: FM TRANSMITTER 2 - Patent #US D483,024 S THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
