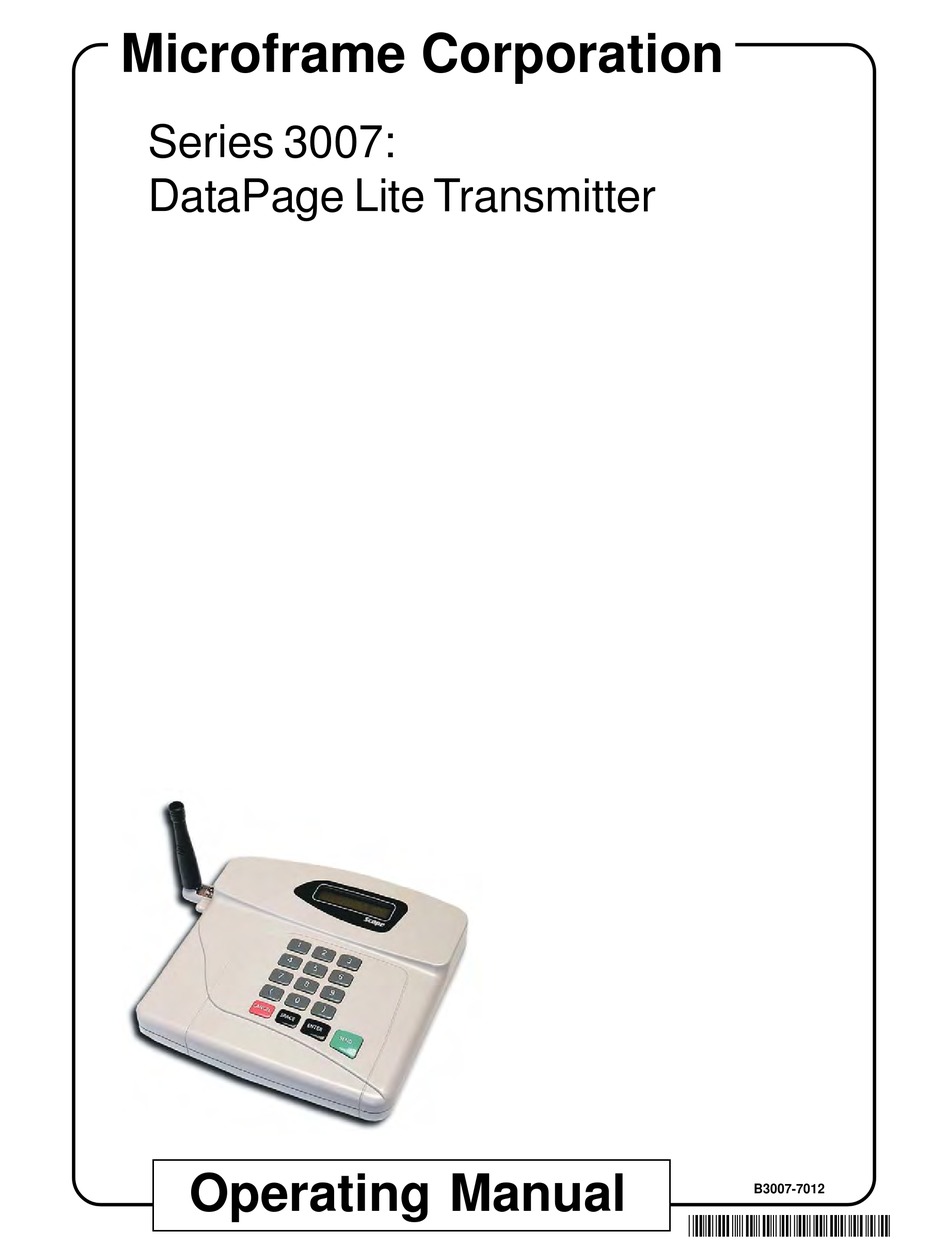

- Page 1 Microframe Corporation Series 3007: DataPage Lite Transmitter Operating Manual B3007-7012 *B3007-7012*...
- Page 2 SERIES 3007 DATAPAGE LITE TRANSMITTER INSTALLATION & SPECIFICATION GUIDE ITEM NO: A3007-7012 REVISION DATE: 07/02 Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
- Page 3 3. Return the system insured and prepaid press written approval of the president of since we are not responsible for shipping dam- Microframe Corporation. As used herein: ages and losses on returned Units. 1. Life support devices or systems are de-...
-
Page 4: Table Of Contents
TABLE OF CONTENTS DATAPAGE LITE SPECIFICATIONS ......6 1 INSTALLATION PROCEDURES ......7 1.1 CONNECTING THE ANTENNA .......7 1.2 CONNECTING POWER SUPPLY ....7 1.3 PRECAUTIONS ..........7 2 OPERATION ............8 2.1 SENDING A BASIC PAGE .......8 2.2 SENDING A GROUP PAGE ......8 2.3 PAGER TURN-OFF FROM BASE ....8 2.4 TURNING OFF ALL PAGERS ......8 3 SYSTEM OVERVIEW ..........9 3.1 DESCRIPTION ..........9... -
Page 5: Datapage Lite Specifications
Series 3007 - DataPage Lite Transmitter Microframe Corporation DATAPAGE LITE SPECIFICATIONS On-Premise Paging Features The DataPage Lite Transmitter can send a 12-digit numeric message code to any of 9,999 different pagers. Since you own the transmitter(s) and receivers, you can enjoy unlimited paging with no monthly service fee. -
Page 6: Installation Procedures
Microframe Corporation Series 3007 - DataPage Lite Transmitter 1 INSTALLATION PROCEDURES The flashing cursor invites you to enter a 1.1 CONNECTING THE ANTENNA pager number (this can be any number between Connect the 90 degree antenna to the BNC 1 and 9,999) after which you must press SEND connector located at the side of the transmitter. -
Page 7: Operation
Series 3007 - DataPage Lite Transmitter Microframe Corporation 2 OPERATION 2.1 SENDING A BASIC PAGE In the most basic use of the transmitter, simply type the pager number and then press “SEND.” This will cause the pager with the corresponding number to vibrate. -
Page 8: System Overview
Microframe Corporation Series 3007 - DataPage Lite Transmitter 3 SYSTEM OVERVIEW Do NOT subject this equipment to: 3.1 DESCRIPTION Mechanical shock The Datapage Lite is a desktop transmitter Excessive humidity or moisture that can be used to transmit numeric messages... -
Page 9: Geo Pulsar User Guide
Series 3007 - DataPage Lite Transmitter Microframe Corporation 5 GEO PULSAR USER GUIDE 5.1 TURNING ON THE PAGER 5.7 MANUAL PAGER TURN-OFF Hold down the “LARGE BLACK BUTTON” until the pager comes on. Press the “RIGHT ARROW BUTTON.” The words “PGR OFF” will appear on the LCD screen. -
Page 10: Mini Dipole Antenna Mounting
Microframe Corporation Series 3007 - DataPage Lite Transmitter MINI DIPOLE ANTENNA MOUNTING Optional Range Extender For optimum operation, the dipole radiators must be positioned vertically, with the "E" symbol facing downwards towards the ground. Avoid mounting the dipole on or near to any metal girders, pilars or other metallic obstructions. - Page 11 Series 3007 - DataPage Lite Transmitter Microframe Corporation Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
