Summary of Contents for Microframe Corporation 3061 Series

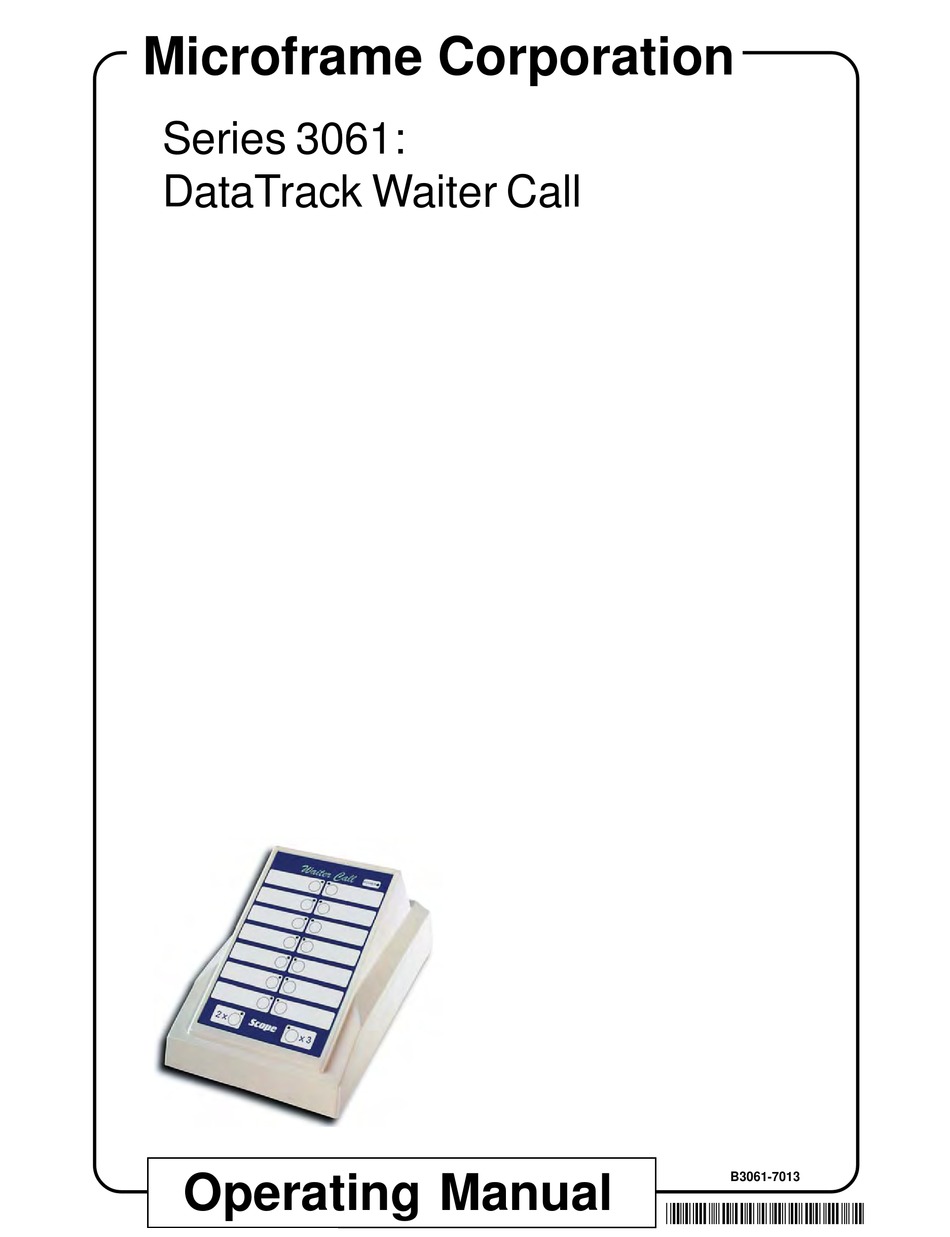

- Page 1 Microframe Corporation Series 3061: DataTrack Waiter Call B3061-7013 Operating Manual *B3061-7013*...
- Page 2 SERIES 3061 DATATRACK WAITER CALL TRANSMITTER INSTALLATION & SPECIFICATION GUIDE ITEM NO: A3061-7013 REVISION DATE: 08/05 Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
- Page 3 (1) year from the date of purchase. Microframe Corporation will repair or replace any defective unit. Obvious abuse or Life Support Policy...
-
Page 4: Table Of Contents
TABLE OF CONTENTS DATATRACK SPECIFICATIONS .......6 1 INSTALLATION PROCEDURES ......7 1.1 DESK MOUNTED UNITS ........7 1.2 WALL MOUNTED UNITS .........7 1.3 POP-OUT FACEPLATE ........8 1.4 PRECAUTIONARY STEPS ......8 2 OPERATION ............9 2.1 PRE-OPERATION ...........9 2.2 SENDING A PAGE ..........9 2.3 THE 2x AND 3x BUTTONS ......9 2.4 SENDING MULTIPLE PAGES ......9 2.5 TURNING OFF ALL PAGERS ......9 3 SYSTEM OVERVIEW ..........10... -
Page 5: Datatrack Specifications
Series 3061 - DataTrack Waiter Call Microframe Corporation DATATRACK SPECIFICATIONS Remote Display Features The DataTrack Transmitter features individual call but- tons that can transmit to any of 14 on-site pagers. When a call button is pressed, a red light will appear in the corner of the button pressed to confirm a page was sent. -
Page 6: Installation Procedures
Microframe Corporation Series 3061 - DataTrack Waiter Call 1 INSTALLATION PROCEDURES Ensure that a minimum of 8 inches beneath 1.1 DESK MOUNTED UNITS the intended location is left clear for the an- Fit the right angle antenna to the BNC tenna, and check that the power cable, when connector at the rear of the unit. -
Page 7: Pop-Out Faceplate
Series 3061 - DataTrack Waiter Call Microframe Corporation 1.3 POP-OUT FACEPLATE Diagram 2: Desk Mounted DataTrack The Datatrack faceplate comes preinstalled with adhesive mounting tape on the inside edge of the panel. This allows the panel to be popped out and rotated 180 degrees for wall installa- tions. -
Page 8: Operation
Microframe Corporation Series 3061 - DataTrack Waiter Call 2 OPERATION 2.1 PRE-OPERATION 2.4 SENDING MULTIPLE PAGES Prior to operation, check that the Waiter In the event that you wish to send multiple Call keypad unit has its antenna correctly fitted... -
Page 9: System Overview
Series 3061 - DataTrack Waiter Call Microframe Corporation 3 SYSTEM OVERVIEW Excessive humidity or moisture 3.1 DESCRIPTION Extremes of temperature The Scope DataTrack Waiter Call is a desk- Corrosive liquids top or wall mount radio transcoder that can be used to transmit numeric and multi-call/pulsed... -
Page 10: Pocket Pager User Guide
Microframe Corporation Series 3061 - DataTrack Waiter Call 4 POCKET PAGER USER GUIDE 4.1 TURNING ON THE PAGER Hold down the “LARGE GRAY BUTTON” until the pager comes on. 4.2 RECEIVING A PAGE The Pocket Pager will start to vibrate or tone when it is paged. -
Page 11: Mini Dipole Antenna Mounting
Series 3061 - DataTrack Waiter Call Microframe Corporation MINI DIPOLE ANTENNA MOUNTING Optional Range Extender For optimum operation, the dipole radiators must be positioned vertically, with the "E" symbol facing downwards toward the ground. Avoid mounting the dipole on or near to any metal girders, pillars or other metallic obstructions. -
Page 12: Troubleshooting Chart
Microframe Corporation Series 3061 - DataTrack Waiter Call TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSE CURE The power light doesn't come No power to unit. Check that the DC power adapter is connected to unit. Verify that outlet transformer is plugged in to has power. - Page 13 Series 3061 - DataTrack Waiter Call Microframe Corporation Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
