  • Page 1 PC1000RMKII Instruction manual...
  • Page 3 PC1000RMKII Instruction manual PC1000RMKII Manual...
  • Page 4: Media Player

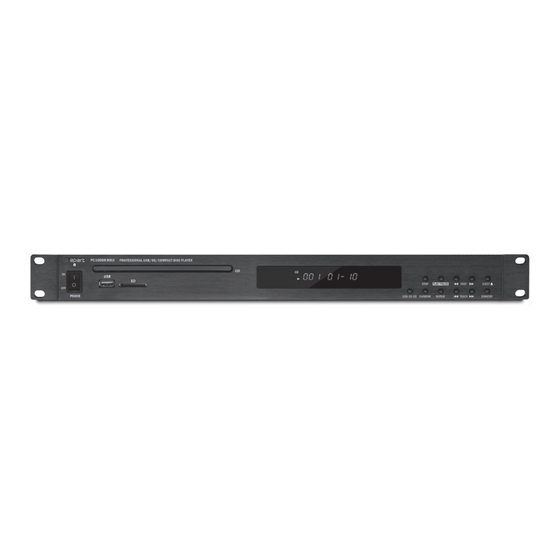

    MEDIA PLAYER Features The Apart PC1000RMKII is a professional multisource CD/USB/SD card music player, equipped with balanced and unbalanced analog outputs, coaxial and optical digital outputs and a RS232 port for use in automated systems. The maximum analog output level can be preset at the back to match the output level of other audio sources, such as tuners and other media players.
  • Page 5: Front Panel

    PC1000RMKII Instruction manual Front panel 18 17 16 15 12 11 10 9 1. Power led: this led lights up red when in standby, and becomes blue when the unit is powered on. 2. CD drawer. 3. Infrared eye and display, showing playback status, tracknumber and time information.
  • Page 6 MEDIA PLAYER 10. Next track button: push to move to the next track. 11. Previous track button: push to move to the beginning of the current track or the previous track. 12. Repeat button: push to switch between repeat-1 (repeat one track) or repeat all.
  • Page 7: Rear Panel

    PC1000RMKII Instruction manual Rear panel 1. Right channel balanced output. The maximum level can be set with level knob 4. 2. Left channel balanced output. The maximum level can be set with level knob 4. 3. Unbalanced output on cinch connectors.
  • Page 8 MEDIA PLAYER 10. IR in. Infrared command input on stereo minijack. Connect a suitable infrared eye here. Please note that the front IR eye will be disabled when a jack is inserted here. 11. RS232 port for external control on SUB D9 connector. For control purposes only.
  • Page 9 PC1000RMKII Instruction manual RS232 communication Communication with PC1000RMKII via RS232 is done with simple ASCII commands. The port settings are: 38400 baudrate, 8 databits, no parity, handshake off. These parameters cannot be changed. The physical connection is made with a straight through...
  • Page 10 Unknown characters in your terminal communication program usually indicate that the baudrate is incorrect. Below is a table with the list of commands recognized by PC1000RMKII and some examples of the replies sent by the PC1000RMKII.
  • Page 11 PC1000RMKII Instruction manual RS232 COMMANDS COMMAND (DESCRIPTION) REPLY PLAY PC1000R--> Play PAUSE PC1000R--> Pause STOP PC1000R--> Stop EJECT PC1000R--> Eject Command SKIP+ (go to next track) PC1000R--> Skip Next SKIP- (go to previous track) PC1000R--> Skip Back FAST+ (fast forward search, send PC1000R-->...
  • Page 12 MEDIA PLAYER REPEAT 1 PC1000R--> Repeat 1 REPEAT ALL PC1000R--> Repeat All REPEAT OFF PC1000R--> Repeat Off STATUS (displays the status of the PC1000R--> Device: CD Player PC1000R) PC1000R--> MP3: 030 PC1000R--> Status: Play PC1000R--> Time: 03:18 Important notice: always allow the unit to acclimatize during at least one hour.
  • Page 13: Technical Specifications

    PC1000RMKII Instruction manual Technical Specifications CD PLAYER Compatible media Audio CD, CDR, CDRW, DVD, DVDR, DVDRW Audio format Audio CD 16 bit PCM, MP3 32-320 kbps and variable bitrate, WMA. ID3 tags are not supported. Maximum number of files on the media = 4095. File name recognition is limited to 8 characters.
  • Page 14 MEDIA PLAYER <0.05% Frequency range 20Hz - 20KHz Power supply 230 VAC 50-60Hz max 30VA Fuse rating 500mAT / 250V Dimensions 430 (482) x 305 (315) x 44 mm Net weight 4.5Kg Shipping weight 5.5Kg Accessories supplied Mains power cable, IR remote control unit RS232 port Standard RS232 port on DB9...
  • Page 15: Important Safety Instructions

    PC1000RMKII Instruction manual Important safety instructions Please check the carton for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton. Read all documentation before operating your equipment.
  • Page 16 MEDIA PLAYER Power down & disconnect units from mains voltage before making connections. Do not use the unit near stoves, heat registers, radiators, or other heat producing devices. Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages.
  • Page 17 PC1000RMKII Instruction manual Notes...
  • Page 18 MEDIA PLAYER...
  • Page 20 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
