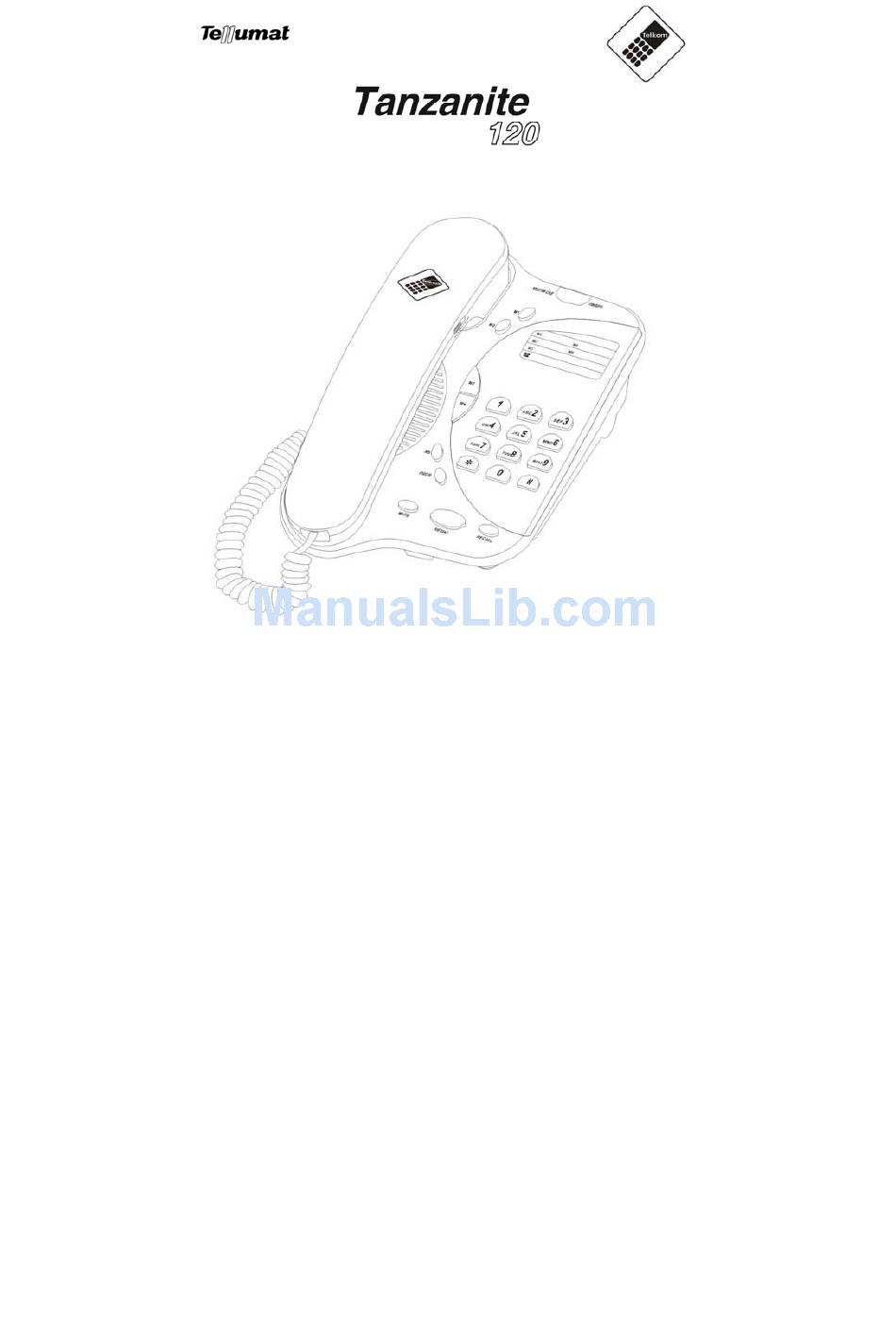

- Page 1 TELEPHONE WITH KEY LOCK USER MANUAL 862-02754...

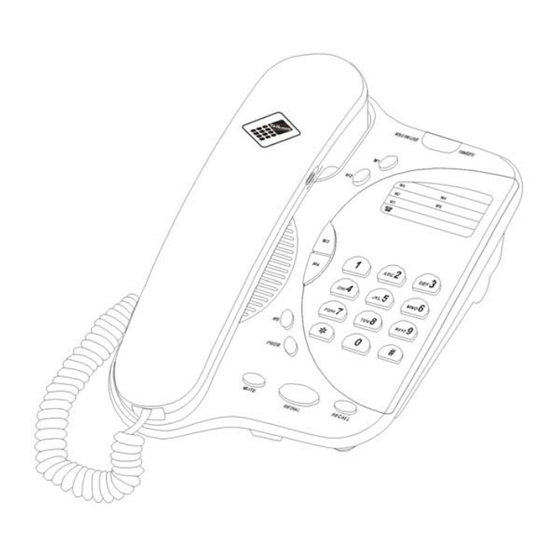

- Page 2 Do not allow magnetic objects to come into contact with the telephone receiver. Do not use strong or abrasive cleaning agents to clean the telephone. Use a soft damp cloth to clean the telephone. TANZANITE 120 TELEPHONE WITH KEY LOCK Figure 1: Phone Front View - 2 -...
- Page 3 TANZANITE 120 TELEPHONE WITH KEY LOCK Figure 2: Phone Base The Tanzanite 120 telephone with its high-tech design and modular handset and cord, offers a range of advanced technological features. The Speed Dial facility allows you to store up to 5 telephone numbers (of up to 16 digits each).
- Page 4 EQUIPMENT SUPPLIED One Tanzanite 120 Phone One Tanzanite 120 Handset One Line cord One Handset Curly Cord 2 x Keys - Keylock Comprehensive User Guide INSTALLING THE TELEPHONE To connect the telephone line Plug one end of the line cord into the LINE jack on the telephone and the other end into the wall socket (you will hear a click when the plug is inserted correctly).
- Page 5 FEATURES MUTE Pressing the MUTE key during a call will disconnect the microphone, allowing you to have a private conversation without the other party hearing you. When the mute facility is activated, a beep tone is heard in the receiver. Pressing MUTE again (or any other button on the keypad) reconnects the microphone allowing you to resume your telephone conversation.
- Page 6 If the number you have dialed is busy or does not exist, you will hear a repeated tone (engaged) or a long continuous tone (number unobtainable). To make calls from a telephone connected to a PABX, consult your system manual. (See Section 10) SPEED DIAL The Speed Dial facility allows you to store up to 5 telephone numbers (of up to 16 digits each).
- Page 7 REDIAL BUTTON Press the REDIAL button in normal mode will automatically redial he last number dialed via the keypad (up to 32 digits). Lift the handset Listen for dial tone Press REDIAL REDIAL 10. PARALLEL WORKING If the telephone is connected in parallel (two or more telephones on the same PABX/exchange line) and one of the other telephones is used simultaneously, correct operation cannot be guaranteed.
- Page 8 13. TROUBLESHOOTING CHECKLIST After following the procedures in this manual, if you experience problems with the operation of your telephone, refer to the checklist below. Problem Action Refer to No Dial tone Check that the telephone line cord is Section 2 connected to the line jack on the phone and the wall socket The telephone rings...
