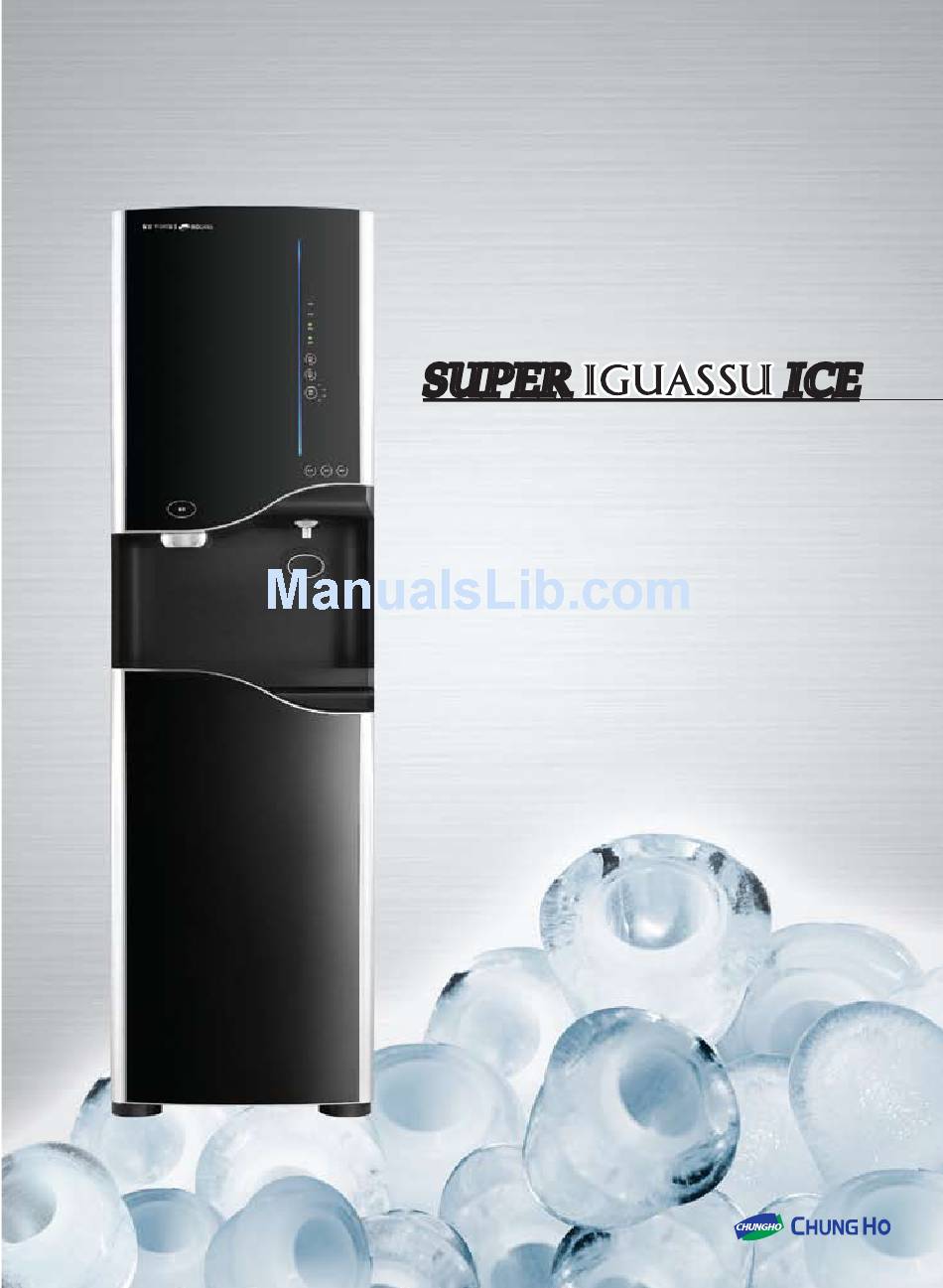

ChungHo
SUPER
SUPER
- Read instruction manual thoroughly before
using the product
- Product appearance, specification, and etc
are subject to change without prior notice
if necessary for improving product performance
- Design and color of the actual product may
differ from the pictures in this booklet
ICE
ICE
User's Manual
Advertisement
Table of Contents

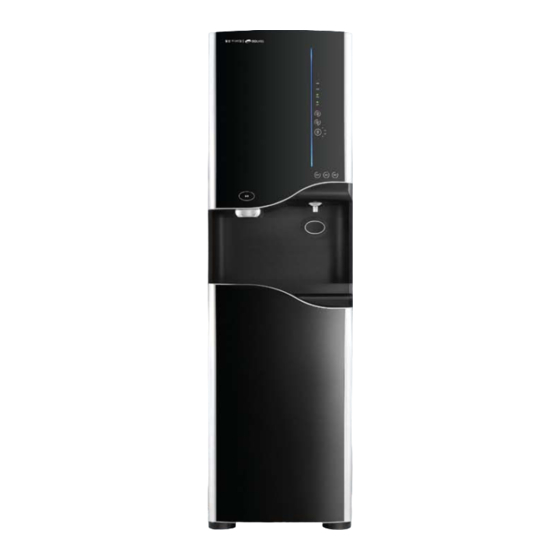

Related Manuals for Chungho Super Iguassu ice
Summary of Contents for Chungho Super Iguassu ice
- Page 1 ChungHo SUPER SUPER User’s Manual - Read instruction manual thoroughly before using the product - Product appearance, specification, and etc are subject to change without prior notice if necessary for improving product performance - Design and color of the actual product may differ from the pictures in this booklet...
-
Page 2: Table Of Contents
Ice-Maker, “SUPER IGUASSU ICE”. Enjoy the water and ice produced by ChungHo Nais’ SUPER IGUASSU ICE. SUPER IGUASSU ICE is designed and manufactured according to standard specification, and is produced with a 95% quality assurance on all integrated components. -
Page 3: Product Features
Water purification system providing an integrated ice making function Super Iguassu Ice is designed for both convenience and practicality, as it utilizes compact ice making system, designed to obtain cold water for the production of lice. With an ice making mechanism featuring an ice tray, which utilizes the freezing point method as well as reverse osmotic water purification. - Page 4 1. Product Features 4 H2O(Ambient water/Cold water/Hot water/Ice) 1 product! With improved convenience, the Iguassu ice offers more production and supply power by providing purified ambient water, cold water, hot water, and ice from the same product. System Display functions and safety reinforcement The safety features have been enhanced in order to prevent various problems.
- Page 5 SUPER IGUASSU ICE SUPER IGUASSU ICE 2. Safety Precaution Cautions are divided into 2 categories: 'Warnings' 'Precautions’ WARNING ASSOCIATED WITH THE POSSIBILITY FOR SERIOUS INJURY OR DEATH. Do not use multiple electrical When the power cord has been damaged, exchange...
- Page 6 2. Safety Precaution CAUTION IN ORDER TO AVOID INJURY, PROPERTY DAMAGE, AND REDUCED PRODUCT PERFORMANCE. To dispense ice, place container close to the ice Hot water is extremely hot. dispenser hole, touch the ICE Always use containers touch sensor button, and such as cups during hot attempt to keep ice from being scattered on the floor.
-
Page 7: Safety Precautions
SUPER IGUASSU ICE SUPER IGUASSU ICE 2. Safety Precaution Do not remove the power This product is for AC cord by pulling it out of the 110V/60Hz, 220V/50Hz, wall. Always remove it by 240V/50Hz, and 220V/60Hz grasping the power plug. -
Page 8: System Component Identification
3. System Component Identification USB Port Light Detection Sensor Full Ice Display Full Water Display LOCK/ICE Touch Sensor Button HOT/ECONO Touch Sensor Button COST. Touch Sensor Button HOT Water Dispenser Touch Sensor Buttton COLD Water Dispenser Touch Sensor Button Hot Water Tank AMBIENT Water Dispenser Touch Sensor Button ICE Dispenser Touch Sensor Button Power Cord... - Page 9 4 4 . . I I n n s s t t a a l l l l a a t t i i o o n n P P r r e e c c a a u u t t i i o o n n s s Our company's technician will perform the installation.
-
Page 10: Installation Precautions
4. Installation Precautions When connecting tubing hose, take care so that the tubing hose is not be bent or pressed down by heavy objects, etc. If tubing hose is blocked, water does not ow smoothly and may cause malfunction of the product. Adjust the hose so that the water discharged from the drainage hose may not splash onto the product's surroundings. - Page 11 5 5 . . I I n n s s t t a a l l l l a a t t i i o o n n M M e e t t h h o o d d Install the product on a level surface.(Change product level using the product leg adjustment and confirm the level surface a level.) Close off the water supply valve as supplied to each household.
-
Page 12: Usage
6. Usage 6-1. Display and System Function Settings (A) Diagnoses the system using ChungHo’s private PDA. USB Port Charges the power of cell phones and etc. (max. 30 min. recommended) Detects the intensity of light around the product (front and side) so that the hot water system may be automatically turned ON/OFF in transition Light Detection Sensor from light to dark.(When power save mode is... -
Page 13: Operational Beep
SUPER IGUASSU ICE SUPER IGUASSU ICE 6. Usage 6-3. Operation Beep A beep sounds following applied operations of the IGUASSU ICE. Division BEEP Remarks/occurrence During power ON Ding Dong Dang Occurrence one time During key input Ding~ Occurrence one time... -
Page 14: Cautions During Use
6. Usage (5) Hot(hot water) Operation Setting If hot water operation display LED(red) is turned on by continuously touching HOT/ECONO (hot water operation / power saving selection) touch sensor button for 2 seconds the hot water system will operate. (Hot water system is operated by a detection sensor which automatically detects the temperature inside of the hot water tank.) (6) Hot(hot water) Operation Release If the hot water operation display LED is turned o by touching HOT/ECONO(hot water... - Page 15 SUPER IGUASSU ICE SUPER IGUASSU ICE 6. Usage 6-5. Ice and Water Dispensing Method (1) Ice Dispensing Mode If ICE(ice dispense) touch sensor button is pressed, the door of the ice storage house is opened and ice comes out from the dispensing hole.
-
Page 16: Understanding Ice Making Process And Operation
6. Usage 6-7. Understanding the Ice Making Process and Operation The ice making system of the IGUASSU ICE automatically operates according to designed program settings after applying power to the product. If power is supplied to the product by inserting the power plug, then ice making automatically operates with out any manual setting. -
Page 17: Cautions During Use
SUPER IGUASSU ICE SUPER IGUASSU ICE 7. Cautions during Use (1) For safety reasons, insert the power plug into the power outlet 30 minutes after installation. (2) This product is for AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz only. Please connect to the proper power source. - Page 18 8 8 . . F F i i l l t t e e r r s s a a n n d d R R e e p p l l a a c c e e m m e e n n t t 8-1.
-
Page 19: Product Specifications
SUPER IGUASSU ICE SUPER IGUASSU ICE 9. Product Specification Product name IGUASSU ICE Model name CHP-5050S Rated voltage AC 110V/60Hz, 220V/50Hz, 240V/50Hz, and 220V/60Hz External dimension 14.71W x 17.91D X 56.06H (in) Rated consumed power 700W(hot water+ ice making) Hot water/Cold water... -
Page 20: Flow Diagram And Power Consumption
10. Flow Diagram and Pow er Consumption 10-1. Flow Diagram Water Level Sensor Ambient Water Tank Ice making unit Making Cold Water Tank Water Dispenser Hole Pump Automatic Source Water Ice Storage House Interruption Boost Valve Pump Ice Dispenser Water Tank Water Spout Drain Valve... - Page 21 11. W ait a minute! Check this before requesting A /S. Symptoms Checking points Solution Reference Insert the power plug into an When the display is Is the power plug AC 110V/60Hz, 220V/50Hz, not turned on. inserted properly? 240V/50Hz, or 220V/60Hz power outlet.
- Page 22 1 1 1 1 . . W W a a i i t t a a m m i i n n u u t t e e ! ! C C h h e e c c k k t t h h i i s s b b e e f f o o r r e e r r e e q q u u e e s s t t i i n n g g A A / / S S . . Symptoms Checking points Solution...
- Page 23 1 1 2 2 . . M M e e m m o o...
- Page 24 ChungHo Nais High Capacity Cold, Water puri er with SUPER IGUASSU ICE SUPER IGUASSU ICE 1240 N. Simon Circle Suite A-D, Anaheim CA 92806 Tel 888.758.1234 / Fax 714.630.0308 www.chunghousa.com info@chunghousa.com...
