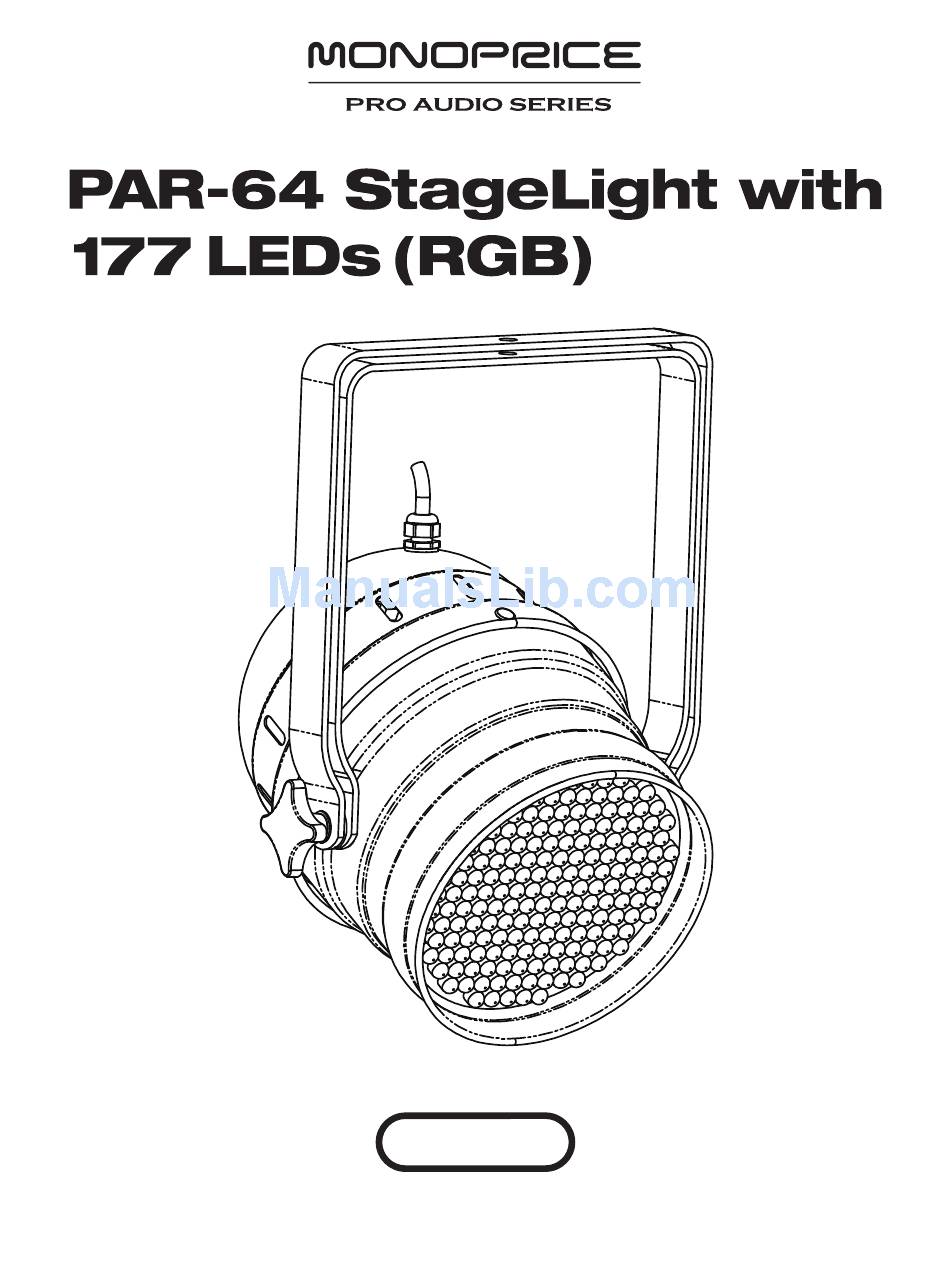

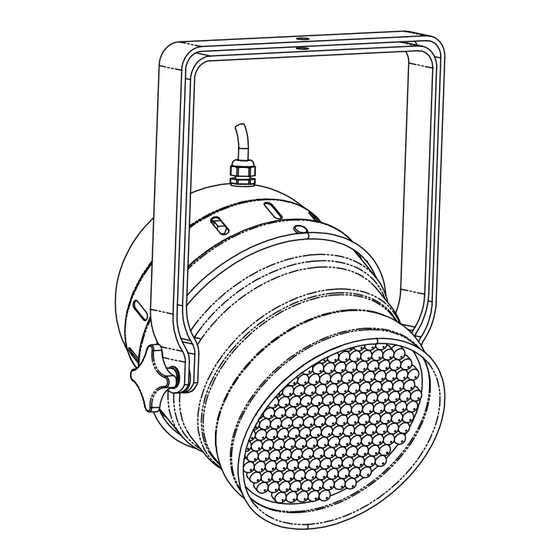

Par-64 stagelight with 177 leds (rgb) pro audio series

Advertisement

612720
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR-64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice PAR-64

  • Page 1 612720 USER’S MANUAL...
  • Page 2: Package Contents

    Introduction Thank you for purchasing this stage light from Monoprice! This light features an aluminum shell and 177 RGB LEDs. Each color can be independently dimmed, faded, and mixed. The light features built-in programs for dimming and strobe effect. Additionally, it supports standard DMX-512 control signals for use as part of a larger light production.
  • Page 3: Dmx Control

    DMX Control Channel Control Function Notes Priority Value General Dimming Must use this channel or 1 CH 0-255 0 ~ 100% dimming will not function Red Dimming 2 CH 0-255 0 ~ 100% Green Dimming 3 CH 0-255 0 ~ 100% Blue Dimming 4 CH 0-255...
  • Page 4: Menu Options

    Menu Options The menu contains the following options: addr: DMX mode (A001-A512) SouF: Voice-activated strobe mode SouA: Voice-activated non-strobe mode SP: Built-in program speed adjustment (SP00-SP15, SP00 is the fastest) Pr: Built-in program selection (Pr00-Pr15 ,16 programs in all) ASC: Seven color cycling (AS00-AS15 speed adjustable) FAdE: Gradual change mode (FA00-FA15 speed adjustable) FLAS: White color strobe (FL00-FL15 speed adjustable) rL: Red color brightness adjustment mode (r000-r255, r255 is the brightest)
  • Page 5: Menu Operation

    Menu Operation To illustrate the methods used to manipulate the menu options, we will take as an example selecting one of the sixteen programs to execute: 1. Press the MENU button. 2. Use the UP and DOWN buttons to scroll through the menu options until "Pr--" is displayed.
  • Page 6 3-pin XLR to 5-pin DMX Conversion While most DMX compatible equipment uses 3-pin XLR connectors, some devices use the official 5-pin DMX connector. To make a 3-pin to 5-pin converter simply make a cable with a 3-pin XLR connector on one end and a 5-pin DMX connector on the other. Connect the pins as follows: 3-pin XLR to 5-pin DMX Adapter Signal...
  • Page 7: Troubleshooting

    If you experience other problems with this light and cannot solve them on your own, please contact Monoprice Technical Support for assistance. Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting or product recommendations.
  • Page 8: Specifications

    Specifications Input Voltage: 100 ~ 264 VAC, 47 ~ 63 Hz Output Voltage: 12 VDC Maximum Power Consumption: 18 watts Lamp Type: 10mm High Brightness LED, Red x60, Green x60, Blue x57 Control Mode: Stand Alone, DMX-512, Master/Slave Channels: 6 Color Effect: RGB mixing Function Effects: Dimmer, Strobe, Gradual Change, Sound Activated Beam Angle: 25°...
