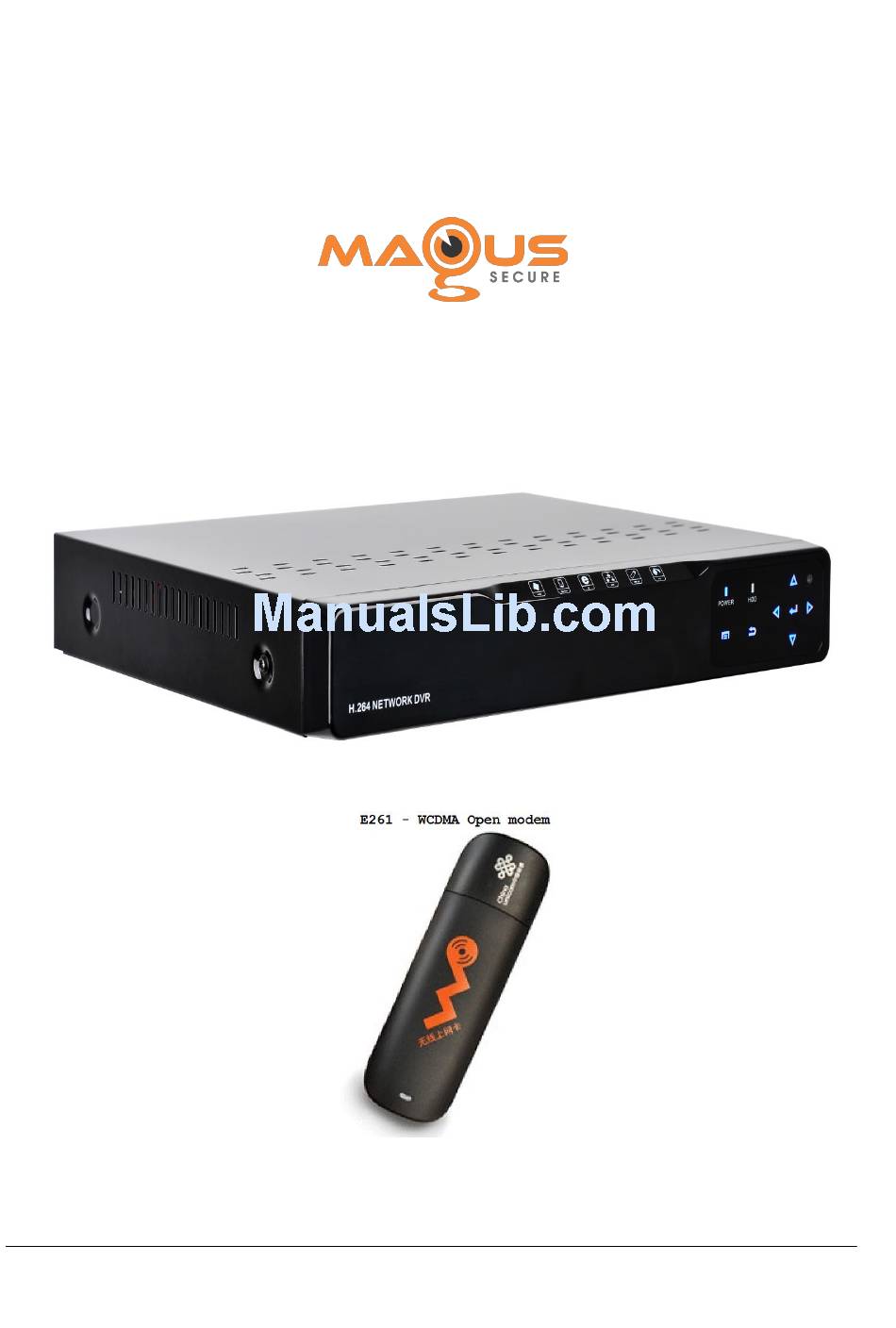

- Page 1 Data Card (16) Series DVR USER MANUAL...
-
Page 2: Table Of Contents
MAGUS 16 SERIES DVR USER MANUAL Contents Chapter One Product Description ....................3 1.1 General ..........................3 1.2 Technical Parameters ......................3 Chapter Two Structure Appearance Description ................3 2.1 Panel Description ....................... 3 2.2 Product Interface Description .................... 4 2.3 Remote Control Description .................... -
Page 3: Chapter One Product Description
MAGUS 16 SERIES DVR USER MANUAL Chapter one Product Description General This equipment is designed specifically for the field of a number of digital security surveillance products, which uses an Embedded Processor Init (MPU) and operating systems, combined with the field of the latest IT technologies, such as video and audio encode/decode, high-capacity hard disk recorder, TCP / IP network technology, firmware in FLASH, making system operation more stable. -
Page 4: Chapter Two Structure Appearance Description
MAGUS 16 SERIES DVR USER MANUAL Chapter Two: Structure Appearance Description Panel Description Keys Identifier Features Power indicator The DVR is powered when the power indicator lights up POWER HDD LED REC lamp flashes when the hard disk working Status indicator... - Page 5 MAGUS 16 SERIES DVR USER MANUAL 8 channel DVR Rear Panel Description： AUDIO OUT：Audio Output Connector AUDIO IN：Audio Input Connecor VIDEO IN：Video Input Connector NET：RJ-45 Standard Network Connector VIDEO OUT：Video Output Connector RS-485：485 Pan/Tile Device Connector USB：Standard USB Connector DC12V：12V(DC) Power Connector VGA：Video Output Connector(Optional)
-
Page 6: Remote Control Description
MAGUS 16 SERIES DVR USER MANUAL Remote Control Description Note:Many devices in near space,remote control should select a device according to device number.So each device needs a unique device number,unless remote control may operate devices with the same number. Chapter Three: Description of Operation System 3.1 Turn on / off... -
Page 7: Exit Menu Mode
MAGUS 16 SERIES DVR USER MANUAL interface. 【Video / REC】 shortcut keys to enter manually recording interface. 【PTZ】 shortcut keys into PTZ control interface. Description: Default password is empty, click "enter" can into menu directly. 3.3.2 composition of the menu Menu component units mainly in the following categories: （1）... -
Page 8: Main Menu Introduction
MAGUS 16 SERIES DVR USER MANUAL Main Menu Introduction Press MENU key or the right mouse button pop-up the main menu, main menu consists of the following three components Preview mode: in the menu column, select the corresponding screen preview mode. -
Page 9: Manual Recording
MAGUS 16 SERIES DVR USER MANUAL Playback: Go into video playback interface, use up-down-left-right button or mouse to set the time period, click 【 】or left of mouse go into playback interface. Cancel : back to previous menu 3.5.2 Article playback tools Select the playback file or playback by time, it will enter the video playback interface. -
Page 10: Ptz Control
MAGUS 16 SERIES DVR USER MANUAL PTZ Control Click "PTZ control" in main menu interface for access to its settings interface Main operation of PTZ control include: directional control; horizontal sweep; zoom control; adjust the focal length; adjust aperture; PTZ speed. -
Page 11: System Setup
MAGUS 16 SERIES DVR USER MANUAL 3.8.3System Setup In the main menu interface, select "System Settings" to enter its sub-menu interface. Including: Miscellaneous,Encode setup,record setup,network setup,screen setup,video detection,PTZ set up,sensor setup. 3.8.3.1Miscellaneous Choose"system setup" DATE TIME：preview time show in DVR . After setting,click"refresh".Notice: Recording will stop during time change period. -
Page 12: Encode Setup
MAGUS 16 SERIES DVR USER MANUAL 3.8.3.2 Encode setup In the "system setup" menu, click "Encode setup " Channel ：chose the right CH you like by clicking the select box Stream： chose the right stream : "main stream" or "sub stream "... -
Page 13: Record Setup
MAGUS 16 SERIES DVR USER MANUAL 3.8.3.3Recode setup In the "system setup" menu, click "Record Setup " Channel ：chose the right CH as needed by clicking the inverted triangle Weekday : chose the right day as user's need, "ALL" means all days in a week. - Page 14 MAGUS 16 SERIES DVR USER MANUAL Gateway：need to set the gateway address to achieve communication between the different network segments. DNS address ：devices used PPPOE protocol to access network to gain a dynamic IP address HTTP port ：port number IE browser visit , default port is "80"...
-
Page 15: Screen Setup
MAGUS 16 SERIES DVR USER MANUAL : automatic analytical function of dynamic domain name, supported Magus free DDNS DDNS setting In the "network setup" menu, click " DDNS " ☑ ”means DDNS dynamic domain services start using ;“□”means not to start up。... -
Page 16: Motion Detection
MAGUS 16 SERIES DVR USER MANUAL After the page setup is completed, click '"OK " to save the changes ; click "cancel " , non-save but exit. 3.8.3.6 video detection video detection In the "system setup" menu, click " "... -
Page 17: Ptz Setup
MAGUS 16 SERIES DVR USER MANUAL Copy to ： select the target channel on the right of "copy to "button ,click "copy to" & ''ok " then system will set the current channel setup information’s to other target video channel. Click button "cancel", the setup information’s is non-saved but to exit. -
Page 18: Management Tools
MAGUS 16 SERIES DVR USER MANUAL ☑ “ ”start "e-mail" senting function, “□”shows close the function E-mail: Copy to setup: choose the target channel in the right select box, click" copy to" ,the setting information will be applied to other channel. -
Page 19: System Maintencance
MAGUS 16 SERIES DVR USER MANUAL In the " management tool", click "HDD management" ☑ “ ” early videos will be covered when the disk is full, “□"shows not cover. Overwrite: ☑ “ ” stands selected, “□” stands not selected, when click "f... -
Page 20: Hdd Information
MAGUS 16 SERIES DVR USER MANUAL In the " management tool", click"factory setting" Select the terms which need factory setting, click "OK"to save and exit or click "cancle" to exit without saving. Remarks: after factory setting, all the settings will be the initial one, please use carefully. - Page 21 MAGUS 16 SERIES DVR USER MANUAL In the main menu, click"system logout" User logout: uesd for exit users. After logout, if you want to use the device continue, it is necessary to relogin after logout. System reboot: It will reboot after "OK".
- Page 22 MAGUS 16 SERIES DVR USER MANUAL Recommended list USB modem # Huawei E270+ # ZTE MF110 (for Variant) # Huawei E1820 # ZTE MF112 # Huawei K3765 # ZTE K3806-Z (for Vodafone) # Huawei K4505 # ZTE MF638 # Huawei K4605 (for Vodafone)
- Page 23 MAGUS 16 SERIES DVR USER MANUAL Default Setting for various service provider (APN & Dial number) Sl.No. Service Provider Dialup Number User Name Password 4G Mobile Data Service Airtel 4G airtelgprs.com *99# None None 2G & 3G Mobile Data Service Airtel-3G airtelgprs.com...
- Page 24 MAGUS 16 SERIES DVR USER MANUAL Esee net operational description 1.DVR connect with network and insure it is running. 2.Setup the UPNP function from Router: this Router is TP-LINK, just find the UPNP out and setup. 1. Turn into DVR: click right button of mouse-setup-system setup-network setup,as below: IP Address：Default for：192.168.1.114（fill out according to your actual situation:1 segment:...
- Page 25 MAGUS 16 SERIES DVR USER MANUAL Click Tool- internet option- security-user defined safety level-enable all section related to Active x . Remark:if there is a remark showing (not safe),can ignore-then choose ok. Download and install the Active x. Before install,pls close all IE windows.
- Page 26 MAGUS 16 SERIES DVR USER MANUAL Preview mode：can click to choose the mode, or double click preview window to switchover into multi-channel mode. Disclaimers This series specifically meant for mobile network video transmission application. Always check the DVR with data card at the installation location of the DVR before buying data card.
