CYP DCT-3 Operation Manual

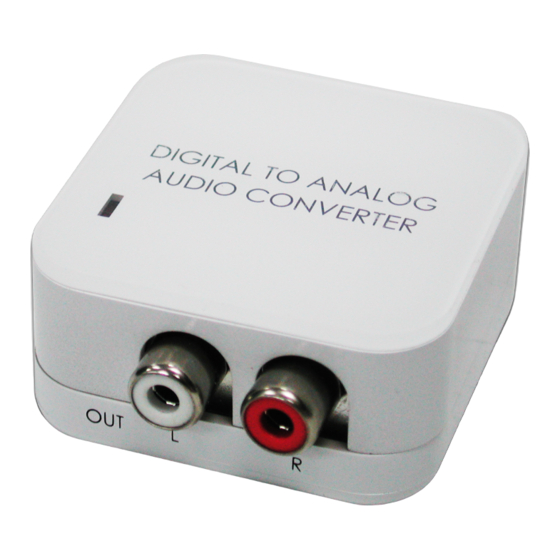

Coaxial/optical to r/l audio converter
Hide thumbs
Also See for DCT-3:
- Operation manual (12 pages) ,
- Operation manual (12 pages) ,
- Operation manual (8 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CYP DCT-3
Summary of Contents for CYP DCT-3
- Page 1 Coaxial/Optical to R/L audio Converter Operation Manual DCT-3...
- Page 3 TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................
- Page 4 1. Introduction The DCT-3 Coaxial/Optical to R/L audio converter is an easy to use product that converts Coaxial or Optical audio signals into R/L audio. Accepting digital audio signals from either Coaxial or Optical sources, this gadget features a well-designed switch that determines which digital input signal is active and thus converted into an analog audio signal (L/R).
-
Page 5: Operation Controls And Functions
3. Operation Controls and Functions 3.1 Front Panel OPTICAL DC 5V COAX 1 . Coaxial/Optical switcher: Moving the switch determines which input Audio source is active and will be converted to R/L audio. 2 . Power: Plug 5V DC power supply into the unit and connect the adaptor to AC wall outlet. -
Page 6: Connection And Installation
4. Connection and Installation LCD TV COAXIAL OPTICAL 5. Specifications Input Ports Coaxial and Optical Input Format SPDIF LPCM 2 CH, 24 bit Sample Frequency 32 KHz, 44.1 KHz, 48 KHz, 96 KHz Output Ports R/L stereo Output Level 2Vpp Output Impedance 100Ω... - Page 7 2008.1.11 MPM-DCT3...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
