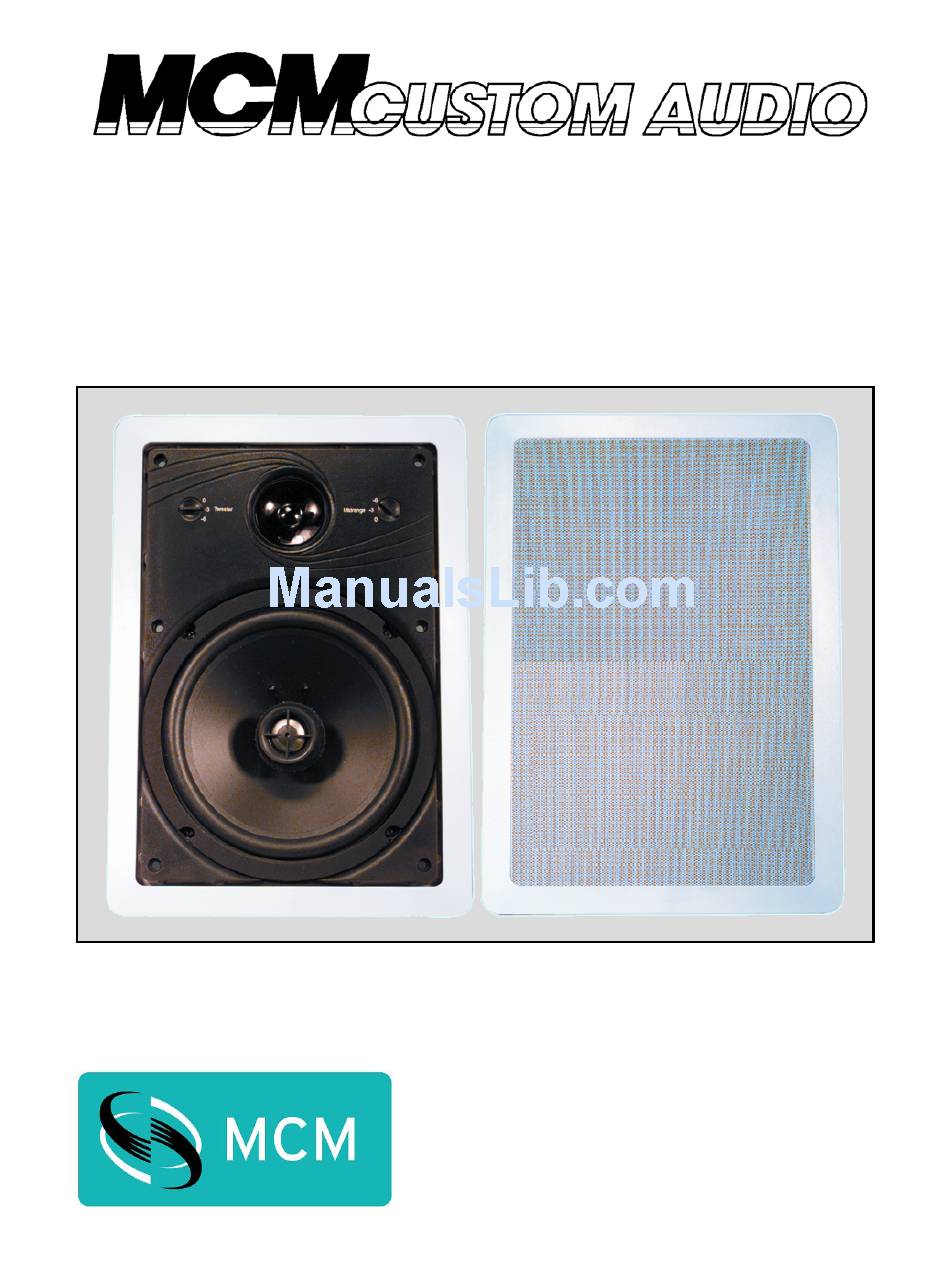

Page 1: Installation Manual
In-Wall Speaker Pair Installation Manual Model #50-6374 MCM Electronics 650 Congress Park Drive Centerville, Ohio 45459 www.electronics.com © 2007 MCM Electronics... -
Page 2: General Features
Introduction This series of MCM Custom Audio In-Wall balance of cost, features, performance Speakers is the culmination of: and appearance. • The most outstanding feature of this Years experience speaker system is the selectable mid and commercial and residential sound high frequency emphasis. -
Page 3: Installation
Careful consideration should be made when determining the desired location of the speaker pair. As this Model #50-6374 is referred to as an in-wall speaker, this is the intended mounting location. However, there is no electronic or physical reason these cannot be mounted in ceilings or other locations. - Page 4 Part 1 New Construction Installation 1. This initial step should be completed after all structure framing is completed, and prior to drywall installation. In this instance, a Pre-Construction Bracket Kit, such as MCM #50-6682A (sold separately) must be utilized. These brackets mount to wall studs, and in conjunction with drywall, provide a solid mounting base for the speaker.
- Page 5 Part 2 1. Locate the 12 long black machine screws included with each speaker pair. Six screws will be used with each speaker. 2. Remove the perforated metal grill from the front of each speaker to be installed. This is most easily accomplished by using one of the machine screws to poke through the mounting hole on the back of the speaker plate.
-
Page 6: Warranty
MCM Custom Audio products are warranted against manufacturer defects for a period of 12 months from the original date of purchase. This warranty is limited to manufacturer defects, in either materials or workmanship. MCM Electronics, or any other worldwide divisions of Premier Farnell PLC, are not responsible for any consequential or inconsequential damage to any other component, structure or the cost of installation or removal of said items.
