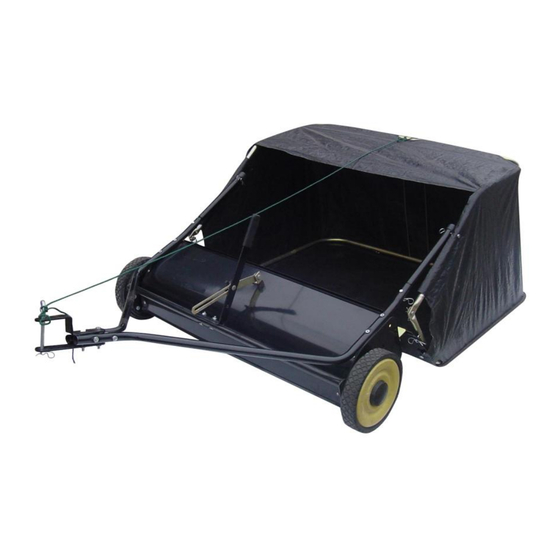

38” sweeper

Advertisement

38" Sweeper
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS
before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item# SP-38
11022010
