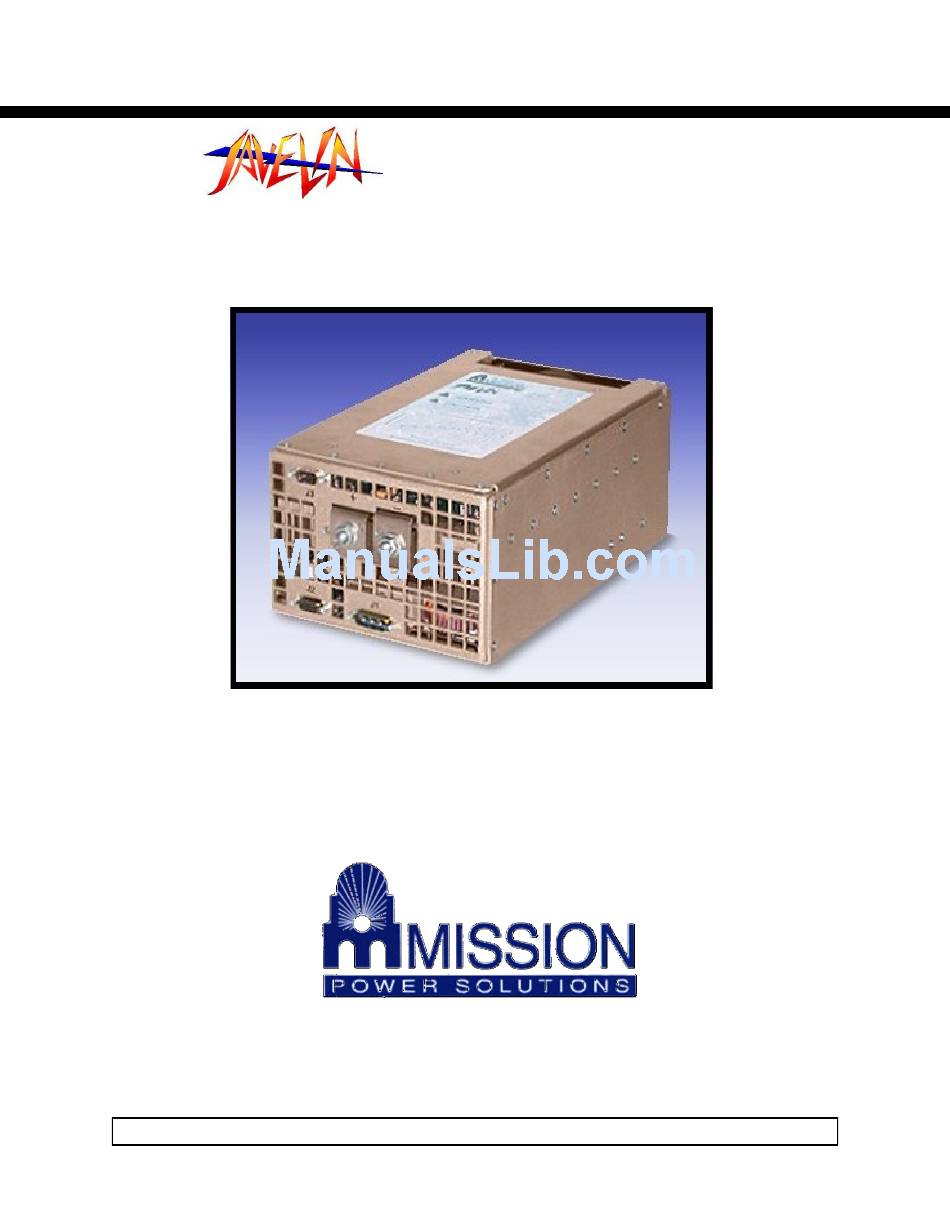

- Page 1 Javelin I & II Power Supply Operator’s Manual I & II Power Supply Power Factor Corrected AC-DC Switcher Operator’s Manual “Quick Install” Instructions www.mpwrs.com Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com Pg. 1...
- Page 2 Javelin I & II Power Supply Operator’s Manual Javelin I & II Power Supply Power Factor Corrected AC-DC Switcher Javelin I & II Power Supply “Quick Install” Instructions Mounting the Javelin Power Supply The Javelin can be mounted at either of two sides (top or bottom).
-
Page 3: Output Connections
Javelin I & II Power Supply Operator’s Manual Output Connections Installing ring lugs on output studs: When viewed from the rear, the left stud is Positive and the right stud is Return. Remove the nut and place .312” ID ring lug over output stud. -
Page 4: Standard Features
Technical Description The Javelin consists of a DC or off-line single phase power-factor-corrected front end, with an EMI filter, cool- ing fan (Javelin I), customer interface, associated housekeeping circuits, and a selection of Vicor’s DC-DC con- verters. Input DC or AC mains voltage is applied to a 3-pin power connector. The input current is passed through an EMI filter designed to meet conducted noise limit specification EN55022, level A and B. - Page 5 Javelin I & II Power Supply Operator’s Manual Voltage conversion is achieved by Vicor’s family of Zero-Current-Switching (ZCS) DC-DC converters. These are forward converters in which the main switching element switches at zero current. This patented topology has a number of unique attributes: low switching losses, high frequency operation (resulting in reduced size for magnetics and capacitors), excellent line and load regulation, wide output adjustment range, low EMI/RFI emission, and high efficiency.
- Page 6 Exces- sive cable inductance, coupled with large capacitive loading, can introduce instability in switching power supplies. This problem can be avoided with proper system design. Consult Mission Power So- lutions’ Engineering Department for assistance with applications Positive Return that use long cable lengths and excessive load capacitance.
- Page 7 Javelin I & II Power Supply Operator’s Manual Auxiliary Vcc +5V/0.3A (J2-5) The Vcc on J2-5 is an auxiliary 5V regulated power source. It is +5VDC 5% with respect to Signal Ground (J2-4 and J2-2) and can supply 300mA maximum. It is short-circuit proof, but if shorted, all outputs will be shut down through the Inhibit/Enable circuitry.
-
Page 8: Mechanical Considerations
Javelin I & II Power Supply Operator’s Manual Connecting Javelin I & II Power Supplies in Parallel To connect up to three Javelin Power Supplies in parallel, connect PR1 (J3-9) to corresponding PR1(s) (J3-9) and PR2 (J3-4) to corresponding PR2(s) (J3-4). Use 20-24 AWG twisted pair, shielded hook-up cable with the shield connected to each unit’s chassis ground (J3-9). - Page 9 Javelin I & II Power Supply Operator’s Manual Mechanical Drawing - Javelin I Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com Pg. 9...
- Page 10 Javelin I & II Power Supply Operator’s Manual Mechanical Drawing - Javelin II (page 1) Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com Pg. 10...
- Page 11 Javelin I & II Power Supply Operator’s Manual Mechanical Drawing - Javelin II (page 2) Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com Pg. 11...
-
Page 12: Specifications
Javelin I & II Power Supply Operator’s Manual Specifications (Typical at 25C, nominal line and 75% load, unless otherwise specified) General Number of Outputs 75% Efficiency Safety Approvals MIL-STD’s 461E; 704E; 810E; 1399 Maximum Output Power 800W, >104 VAC 1200W, >160 VAC 1800W, >212 VAC (Selected Output Voltages) - Page 13 Javelin I & II Power Supply Operator’s Manual Environmental 810E MIL-STD Storage Temperature C Grade 40C to 125C 40C to 125C T Grade 55C to 125C H Grade M Grade 65C to +125C Operating Temperature 20C to +55C C Grade, Full Power C Grade, Half Power 20C to +70C...
- Page 14 Javelin I & II Power Supply Operator’s Manual Maximum Output Power vs. Temperature 2000 1800 400W 1600 600W 800W 1400 1200W 1200 1600W 1000 1800W Temperature, Ambient (C) Graph 2. Maximum Output Power vs. Temperature Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com...
- Page 15 Javelin I & II Power Supply Operator’s Manual Notes Rev. 05/11/2012 Mission Power Solutions (760) 631-6846 sales@mpwrs.com Pg. 15...
