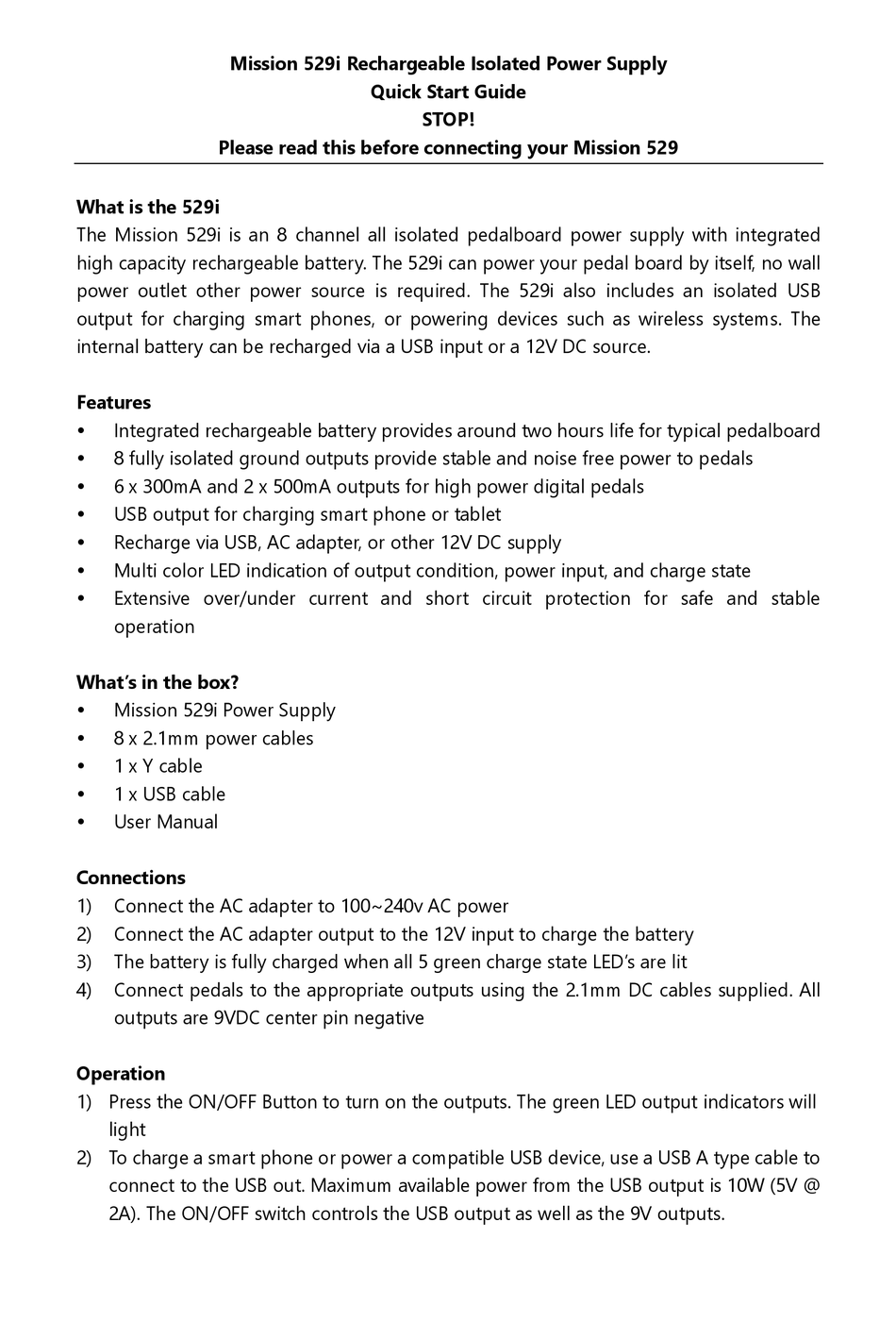

Mission 529i Rechargeable Isolated Power Supply
Please read this before connecting your Mission 529

What is the 529i

The Mission 529i is an 8 channel all isolated pedalboard power supply with integrated
high capacity rechargeable battery. The 529i can power your pedal board by itself, no wall
power outlet other power source is required. The 529i also includes an isolated USB
output for charging smart phones, or powering devices such as wireless systems. The
internal battery can be recharged via a USB input or a 12V DC source.

Features


Integrated rechargeable battery provides around two hours life for typical pedalboard

8 fully isolated ground outputs provide stable and noise free power to pedals

6 x 300mA and 2 x 500mA outputs for high power digital pedals

USB output for charging smart phone or tablet

Recharge via USB, AC adapter, or other 12V DC supply

Multi color LED indication of output condition, power input, and charge state

Extensive over/under current and short circuit protection for safe and stable

operation

What's in the box?

Mission 529i Power Supply

8 x 2.1mm power cables

1 x Y cable

1 x USB cable

User Manual

Connections

1) Connect the AC adapter to 100~240v AC power
2) Connect the AC adapter output to the 12V input to charge the battery
3) The battery is fully charged when all 5 green charge state LED's are lit
4) Connect pedals to the appropriate outputs using the 2.1mm DC cables supplied. All
outputs are 9VDC center pin negative
Operation
1) Press the ON/OFF Button to turn on the outputs. The green LED output indicators will
light
2) To charge a smart phone or power a compatible USB device, use a USB A type cable to
connect to the USB out. Maximum available power from the USB output is 10W (5V @
2A). The ON/OFF switch controls the USB output as well as the 9V outputs.
