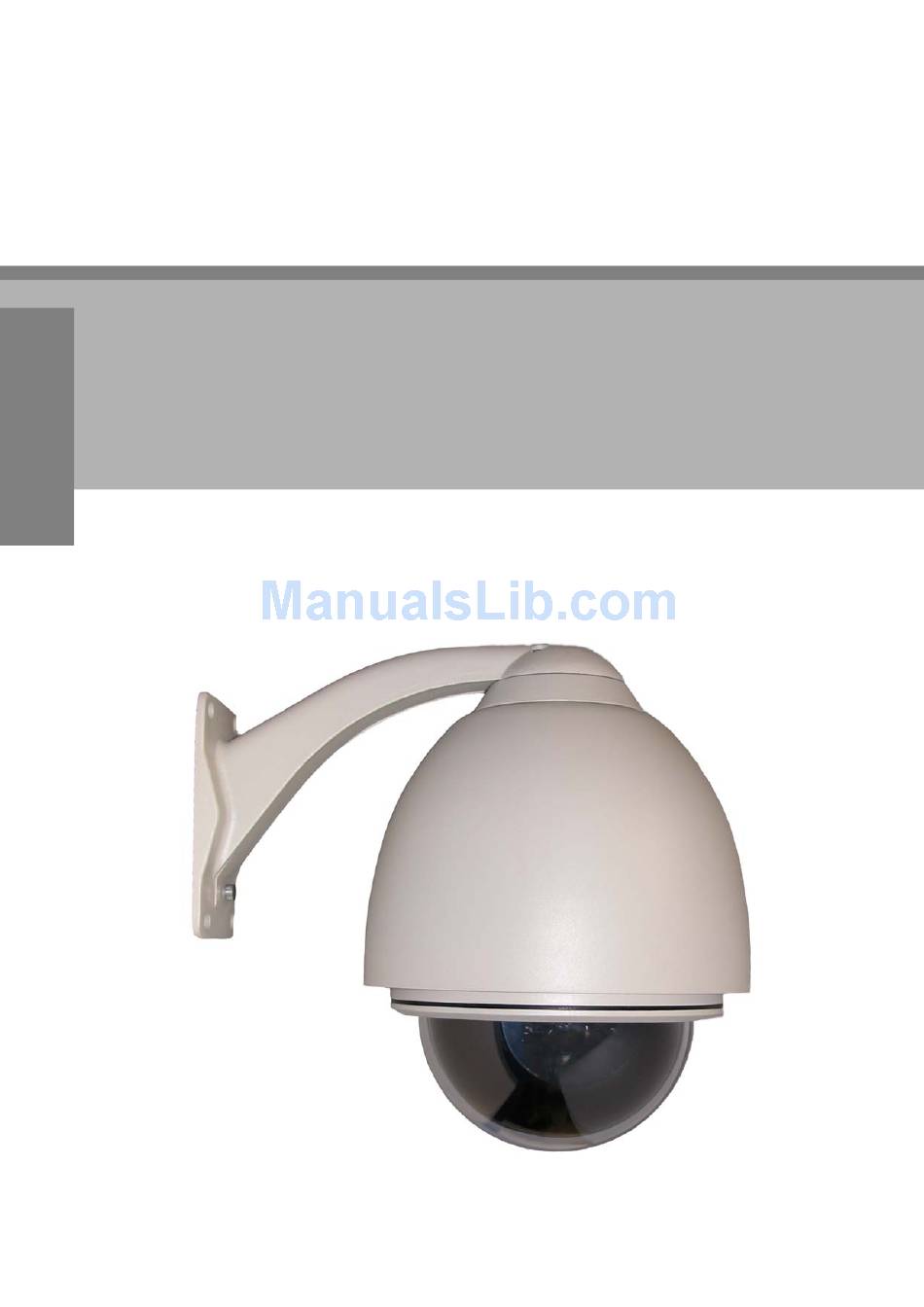

- Page 1 INSTRUCTION MANUAL Ver 1.0.2d Pan, Tilt and Zoom Dome Camera / ACD-1500...
-
Page 2: Table Of Contents
White Balance Mode Auto Cruise ○ On Screen Display Main Menu Focus Set Auto White Balance Auto Exposure Special Functions Motion Detection Function On Screen Display ○ Parts Description and Function ○ Product Specifications Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 3: Introduction
PTZ Control • RS-485 Communication, MAX 256 Multi-drop • Versatile Pelco-D and Pelco P Protocol • Variable Pan and Tilt Speed • 64 Programmable Presets • OSD Setup • 1 Programmable Cruise Sequence Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 4: Components
Allen Screws for mounting PTZ to Mount Power Supply 24v AC Power Supply Manual Manual for ACD-1500 Default Components Dome Camera and Housing Wall Mount Bracket Ceiling Mounting Bracket Accessories Manual ACD-1500 Manual Screws, Wrench and Power Supply Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 5: System Configuration
• Housing Protects Internal Components From the Elements • Acrylic Dome Protects PTZ Camera • Wiring Access Allows access to internal wiring • Built in Heaters Keeps lens clear in cold weather Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 6: Installation
4) Assemble and screw the Outdoor Housing Assembly on the Mount Bracket while routing the wiring from the camera through the neck of the bracket and out the access hole. Continue to page 8 Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 7: Ceiling Mount
3) Attach assembly to the PTZ camera using the included Allen Screws. Tighten setscrews. 4) Align the PTZ Assembly into the top of the ceiling mount. Turn clockwise to thread extension into mount. Tighten setscrews. Continue to Next Page Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 8: Final Assembly
6) Remove BLACK camera cover inside of housing. 7) Set DIP switches according to Protocol and Baud rate desired. (See page 9 for details) 8) Replace BLACK camera cover Polycarbonate dome cover. Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 9: Camera Address Setting
• Camera address is set to 1 as the factory default. • When a dip switch is ON, its bit logic is 1 • Dip Switch 9 and 10 are always set to OFF SW1:Address Setting (1~255) Value. Dipswitch Dipswitch Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 10: Camera Addressing
For an address of 157: Dip Switch #1 (value = 1), #3 (value = 4), #4 (value = 8), #5 (value = 16), #8 (value = 128) will be ON all others OFF Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 11: Protocol And Baud Rate Settings
Below is a table showing the proper settings of the 5 and 6 dip switch on SW2 for setting preferred baud rate. Selection Of Protocols Baud Rates Baud Rate 2400 4800 9600 19200 Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 12: Auto Scan
(On Screen Display). Function Action on Controller BLC ON Call preset 55 BLC OFF Set preset 55 ICR Shor: Function Action on Controller ICR ON Call preset 56 ICR OFF Set preset 56 Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 13: Digital Zoom
Presets must be in the sequence you would like them to scan starting with preset 1. To activate the Auto Cruise SET preset 51 Function Action on Controller ACTIVATE AUTO CRUISE Set preset 51 Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 14: Main Menu
MOTION DET Opens the Motion Detection Menu (see page ) F OSD DISP Opens the Function Display Menu (see page ) E SENSITIVE Not Used WDR SET Not Used EXIT Exits OSD Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 15: On Screen Display
On Screen Display On Screen Display (continued) Focus Set Menu: Focus Menu Auto White Balance (AWB) Menu: Auto White Balance Menu Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 16: Auto Exposure
On Screen Display On Screen Display (continued) Auto Exposure (AE) Menu: Auto Exposure Menu Special Functions (SPECIAL) Menu: Special Functions Menu Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 17: Motion Detection
On Screen Display On Screen Display (continued) Motion Detection (MOTION DET) Menu: Motion Detection Menu Function On Screen Display (F OSD) Menu: Function On Screen Display Menu Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 18: Parts Description And Function
BNC Connector for Video Out • Video out BNC connector Connect to units such as monitor, VCR and etc. RS-485 Communication Terminal • RS-485 Communication Screw Terminal Connector Signal + Input - Input Pan, Tilt and Zoom Dome Camera / ACD-1500... -
Page 19: Product Specifications
AC 24V / 1.25A 219∅ × 262(H) mm Dimension Weight Approx. 4Kg Operating Temp. 0°C ~ 40°C * Specification & design are subject to change without notice Ceiling Mount Wall Mount Dimensions Dimensions Pan, Tilt and Zoom Dome Camera / ACD-1500... - Page 20 Memo MEMO Pan, Tilt and Zoom Dome Camera / ACD-1500...
