Gas Cooktops
Installation Leafl et
Model No's

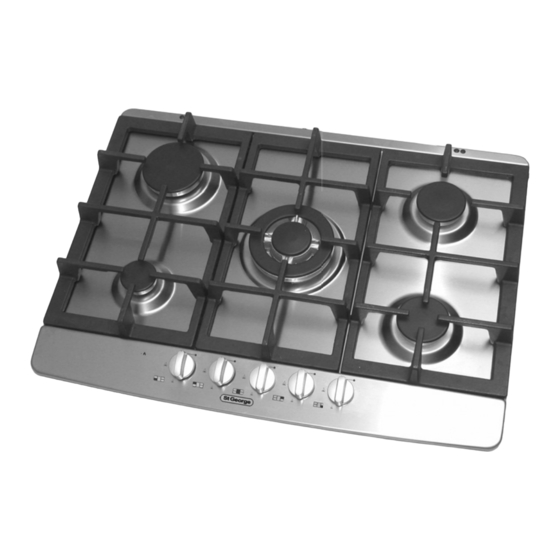

5567800 5 burner gas cooktop
5566800 4 burner gas cooktop
5567100 5 burner gas cooktop with fl ame failure
5566010 4 burner gas cooktop with fl ame failure
Safety Precautions
Before connecting to gas, ensure the cooktop is suited to the gas type required.
This cooktop shall not be installed on a boat or marine environment. This appliance shall not be
used as a space heater.
This appliance must be installed by a qualifi ed and competent person in accordance with the
gas installation code AS 5601, SAA Wiring Rules, as well as the requirements of all local statutory
and building authorities and regulations. The manufacturer does not accept any liability for any
damage or injury caused by improper installation.
Instruct The Customer
When satisfi ed that the cooktop has been installed and is operating correctly, instruct the
customer in its safe operation. Ensure the customer understands fully by having them operate the
cooktop.
This booklet must be left with the consumer.
Advertisement
Table of Contents
Related Manuals for St George 5567800
Summary of Contents for St George 5567800
-
Page 1: Gas Cooktops
Gas Cooktops Installation Leafl et Model No’s 5567800 5 burner gas cooktop 5566800 4 burner gas cooktop 5567100 5 burner gas cooktop with fl ame failure 5566010 4 burner gas cooktop with fl ame failure Safety Precautions Before connecting to gas, ensure the cooktop is suited to the gas type required. -
Page 2: Before Installation
Before Installation Ensure Suitability Of Location Before making any alterations to kitchen cabinetry, you should ensure that the proposed location for the cooktop is suitable: Electrical supply: there must be an earthed 240V 50 Hz 10Amp power socket within reach of the supplied electrical cable (approximately 850mm from the rear right of the cooktop). - Page 3 Before Installation Clearances Overhead Clearances • Rangehoods and overhead exhaust fans must be installed with at least the clearances recommended by the manufacturer’s instructions, but in all cases the clearance from the top of the highest burner to a rangehood must be at least 650mm, and to an exhaust fan must be at least 750mm.
-
Page 4: Installation Details
Installation Details Create Cutout In The Benchtop The required cutout dimensions are as shown in the diagramme, Ensure all cutouts are neat and square, and as close to the nominal dimensions as possible. A tolerance of around +/- 2mm is allowed for. We recommend sealing the cut edges of the benchwork with a moisture proof paint to prevent future deterioration to the benchtop material. -
Page 5: Connect The Gas
Installation Details Attach The Burner Head And Burner Cap Place the correct burner head on each burner, ensuring that each head is seated securely, and rotation is not possible. • When seating the small, medium and large burner heads ensure the hole near the outer edge of the burner head goes over the igniter electrode. -
Page 6: Make Electrical Connection
Ensure the burner head is sitting correctly with the electrode neatly within the hole near its circumference. If the cooktop fails to operate correctly, call St George Appliances or their appointed agent for service. Do not attempt to repair this situation yourself. -
Page 7: Gas Conversion
Gas Conversion Change The Injectors injector Ensure all gas is switched off and preferably disconnected from the appliance. Ensure electrical power has been disconnected. Remove the burner head and cap from each burner. Using a 7mm socket, undo the injector from each burner and replace the correctly rated injector as shown in the following table: Natural Gas ULPG... -
Page 8: Basic Servicing
All service work including parts replacement should only be carried out by authorised service agents. Only genuine St George Appliance parts should be used. St George Appliances 3-5 Birmingham Ave Chester Hill NSW 2162...
