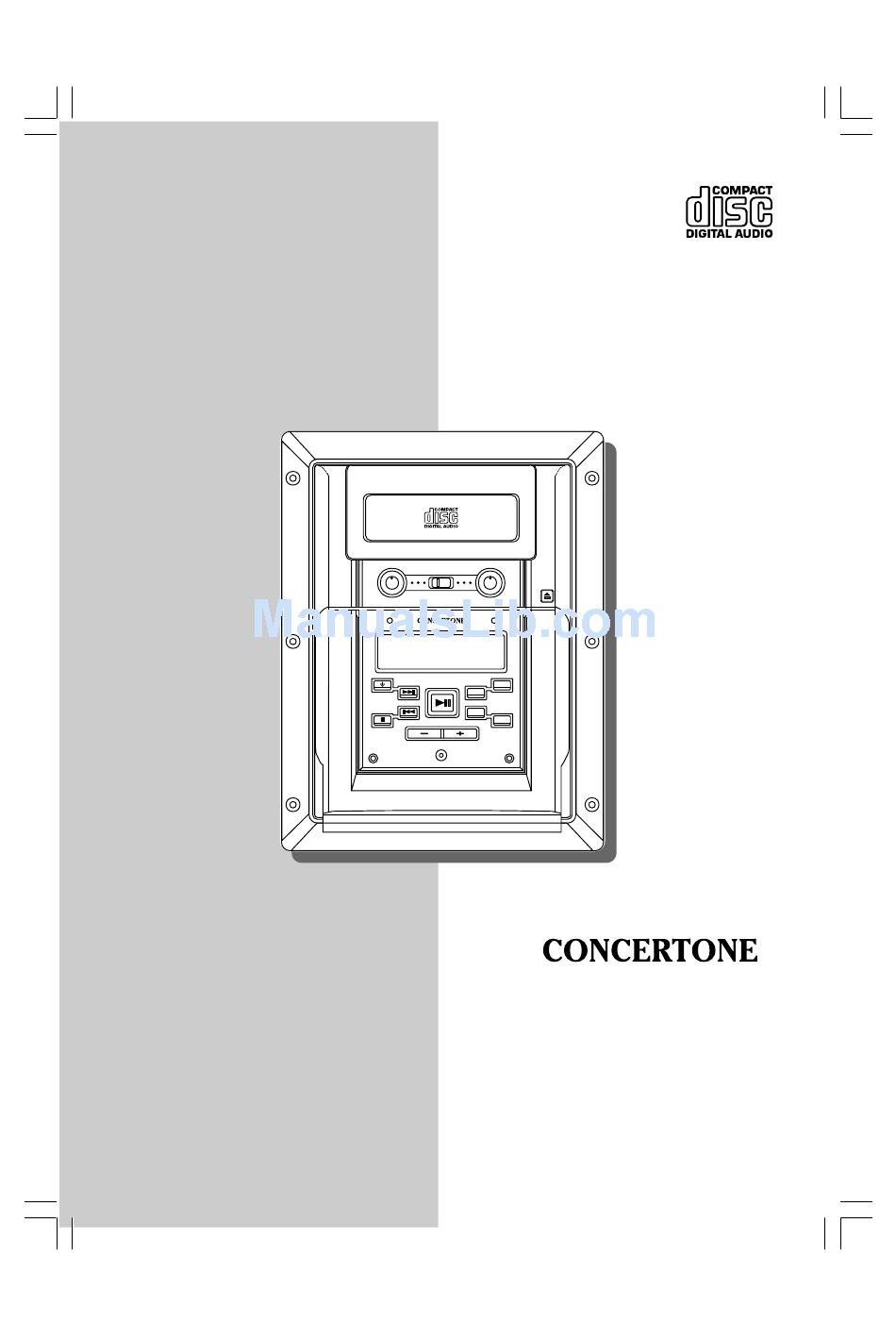

- Page 1 OPERATING INSTRUCTIONS COMPACT DISC STEREO RADIO SYSTEM...
-
Page 2: One (1) Year Limited Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY CONCERTONE warrants to the original retail purchaser of this radio that it or any part therein, under normal use and conditions, be proven defective in material or workmanship within 1 year from the date of original purchase, such defect/s will be repaired or replaced at CONCERTONE’S option without charge for parts and repair labor. -
Page 3: Names Of Controls
NAMES OF CONTROLS 1. Mounting hole 11. CD DOOR OPEN/CLOSE button 2. BASS control knob 12. X-BASS indicator 3. POWER indicator PLAY/PAUSE button 4. DISPLAY window MEMORY • CLOCK control TUNING/SKIP button 15. FUNCTION (CD/TUNER/AUX) button 6. POWER ON/OFF button 16. -
Page 4: Using The Remote Control Correctly
NAMES OF CONTROLS - REMOTE CONTROL 1. DISPLAY button 2. POWER ON/STANDBY button 3. FUNCTION (CD/TUNER/AUX) button 4. PRESET/REPEAT button STOP/BAND button TUNING/ SKIP buttons 7. MEMORY button 8. RANDOM button 9. SLEEP button 10. SNOOZE button PLAY/PAUSE button TUNING/ SKIP buttons 13. -
Page 5: Turning On The Unit
TURNING ON THE UNIT TO TURN ON THE UNIT TO TURN OFF THE UNIT Press the POWER ON/OFF button, the POWER Press the POWER ON/OFF button to STANDBY, ON indicator will light up. Select the desired the POWER ON indicator will turn off and the function and the corresponding function indicator clock display will be shown. -
Page 6: Timer Operation
TIMER OPERATION The power can be turned on automatically at a preset time so that you can wake up and listen to the CD or RADIO. Make sure the clock is correct before TIMER PLAY. Please refer to CLOCK setting procedure. -
Page 7: Listening To The Radio
LISTENING TO THE RADIO TUNING INTO A STATION MANUALLY 1. Press the FUNCTION button 3. Press the TUNING/ to TUNER. SKIP buttons to select a station. 2. Press the STOP/BAND button to select the desired band “AM” or “FM”. TO SEARCH FOR A STATION TO RECEIVE THE FM BROADCAST IN AUTOMATICALLY STEREO... -
Page 8: To Interrupt Playback
CD PLAYBACK 1. Press the FUNCTION button to 3. To start playing, press the PLAY/PAUSE button. 2. Press the CD OPEN/CLOSE button to open CD door. Place a disc in the CD tray with the label TO INTERRUPT PLAYBACK faceing front and then press the Press the PLAY/PAUSE button. - Page 9 PROGRAMMING TRACKS - in a CD stop mode (Up to a maximum of 20 tracks) 1. Press the MEM button. 3. Press the MEM button again. 2. Press the SKIP buttons to select 4. Repeat step 2 and 3 to program additional the desired tracks.
-
Page 10: Maintenance
INTRODUCTION PLAY - at CD stop mode and RANDOM PLAY - at CD play mode and CD CD play mode (for remote only) stop mode (for remote only) This function allows the first 10 seconds of each All the tracks on the disc can be played in random track of the disc to be played. -
Page 11: Specifications
SPECIFICATIONS TUNER SECTION Frequency range FM 87.5 -108 MHz AM 520 - 1,710 kHz (USA and Canada) Antenna External 75ohm automotive type antenna AMPLIFIER SECTION Power output 10% T.H.D. (A) 20W x 2 (Subwoofer) + 10W x 4 (B) 10W x 2 Power requirements 12/16 Volts DC COMPACT DISC PLAYER SECTION... -
Page 12: System Connections
SYSTEM CONNECTIONS CONNECTION DIAGRAM Make correct connections as illustrated in the connection diagram. From Antenna From TV or other AUX input jack SPEAKER CONNECTIONS Make sure you connect each lead to the correct terminal according to the colors of leads listed as illustrated in the diagram. Insulate the end of the unused lead with a piece of tape.
