Summary of Contents for Concertone RV2003H

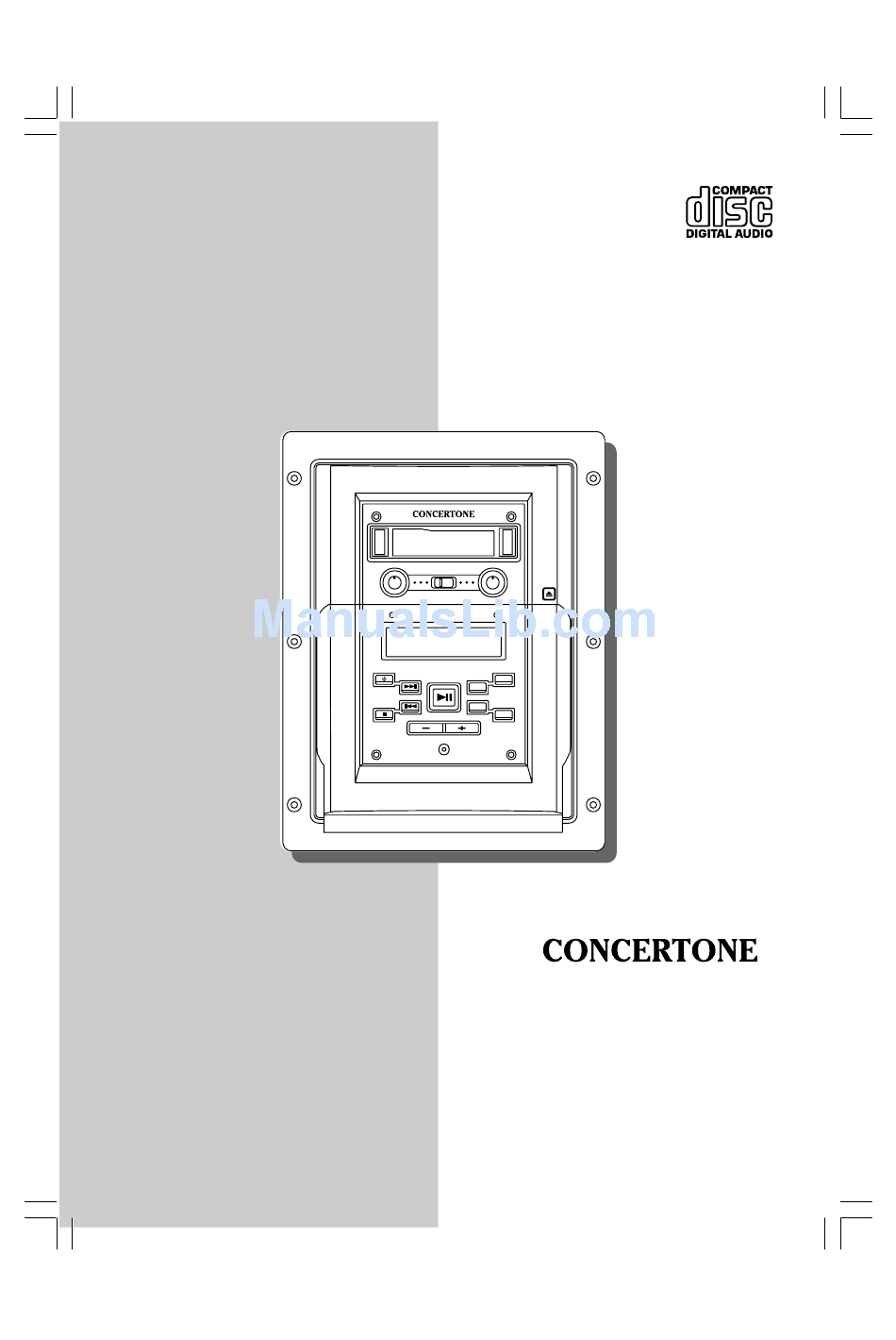

- Page 1 OPERATING INSTRUCTIONS COMPACT DISC STEREO RADIO SYSTEM...
-
Page 2: One (1) Year Limited Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY CONCERTONE warrants to the original retail purchaser of this radio that it or any part therein, under normal use and conditions, be proven defective in material or workmanship within 1 year from the date of original purchase, such defect/s will be repaired or replaced at CONCERTONE’S option without charge for parts and repair labor. -
Page 3: Names Of Controls
NAMES OF CONTROLS 1. Mounting screw hole 12. TREBLE control knob 2. Cassette compartment 13. CD DOOR OPEN/CLOSE button 3. BASS control knob 14. X-BASS indicator 4. POWER ON indicator PLAY/PAUSE button 5. LCD display MEMORY • CLOCK control TUNING/SKIP button 17. -
Page 4: Using The Remote Control Correctly
NAMES OF CONTROLS - REMOTE CONTROL 1. DISPLAY button 2. POWER button 3. FUNCTION (CD/TUNER/TAPE/AUX) button 4. PRESET/REPEAT button STOP/BAND button TUNING/ SKIP buttons 7. MEMORY button 8. RANDOM button 9. SLEEP button 10. SNOOZE button 11. PLAY/PAUSE button TUNING/ SKIP buttons 13. -
Page 5: Turning On The Unit
TURNING ON THE UNIT TO TURN ON THE UNIT TO TURN OFF THE UNIT Press the POWER ON/OFF button, the POWER Press the POWER ON/OFF button to STANDBY, ON indicator will light up. Select the desired the POWER ON indicator will turn off and the function and the corresponding function indicator clock display will be shown. -
Page 6: Timer Operation
TIMER OPERATION The power can be turned on automatically at a preset time so that you can wake up and listen to the TAPE, CD or RADIO. Make sure the clock is correct before TIMER PLAY. Please refer to CLOCK setting procedure. -
Page 7: Listening To The Radio
LISTENING TO THE RADIO TUNING INTO A STATION MANUALLY 1. Press the FUNCTION button 3. Press the TUNING/ to TUNER. SKIP buttons to select a station. 2. Press the STOP/BAND button to select the desired band . TO SEARCH FOR A STATION TO RECEIVE THE FM BROADCAST IN AUTOMATICALLY STEREO... -
Page 8: To Interrupt Playback
CD PLAYBACK 1. Press the FUNCTION button to 3. To start playing, press the PLAY/PAUSE button. 2. Press the CD OPEN/CLOSE button to open CD door. Place a disc in the CD tray with the label TO INTERRUPT PLAYBACK face front and then press the CD Press the PLAY/PAUSE button. - Page 9 PROGRAMMING TRACKS - in a CD stop mode (Up to a maximum of 20 tracks) 1. Press the MEM button. 3. Press the MEM button again. 2. Press the SKIP buttons to select 4. Repeat step 2 and 3 to program additional the desired tracks.
-
Page 10: Tape Playback
INTRODUCTION PLAY - at CD stop mode and RANDOM PLAY - at CD play mode and CD CD play mode (for remote only) stop mode (for remote only) This function allows the first 10 seconds of each All the tracks on the disc can be played in random track of the disc to be played. -
Page 11: Maintenance
MAINTENANCE CLEANING THE TAPE HEADS CLEAN CD Clean the head with a cotton bud slightly If the CD skips or will not play, the disc may need moistened with denatured alcohol. cleaning. Before playing, wipe the disc from the centre out with a cleaning cloth. After playing, store the disc in its case. -
Page 12: System Connections
SYSTEM CONNECTIONS CONNECTION DIAGRAM Make correct connections as illustrated in the connection diagram. From Antenna From TV or other AUX input SPEAKER CONNECTIONS Make sure you connect each lead to the correct terminal according to the colors of leads listed as illustrated in the diagram. Insulate the end of the unused lead with a piece of tape.
