This manual is made with 100% recycled paper.
DD68-00135A_EN_130604.indd 1
DD68-00135A_EN_130604.indd 1

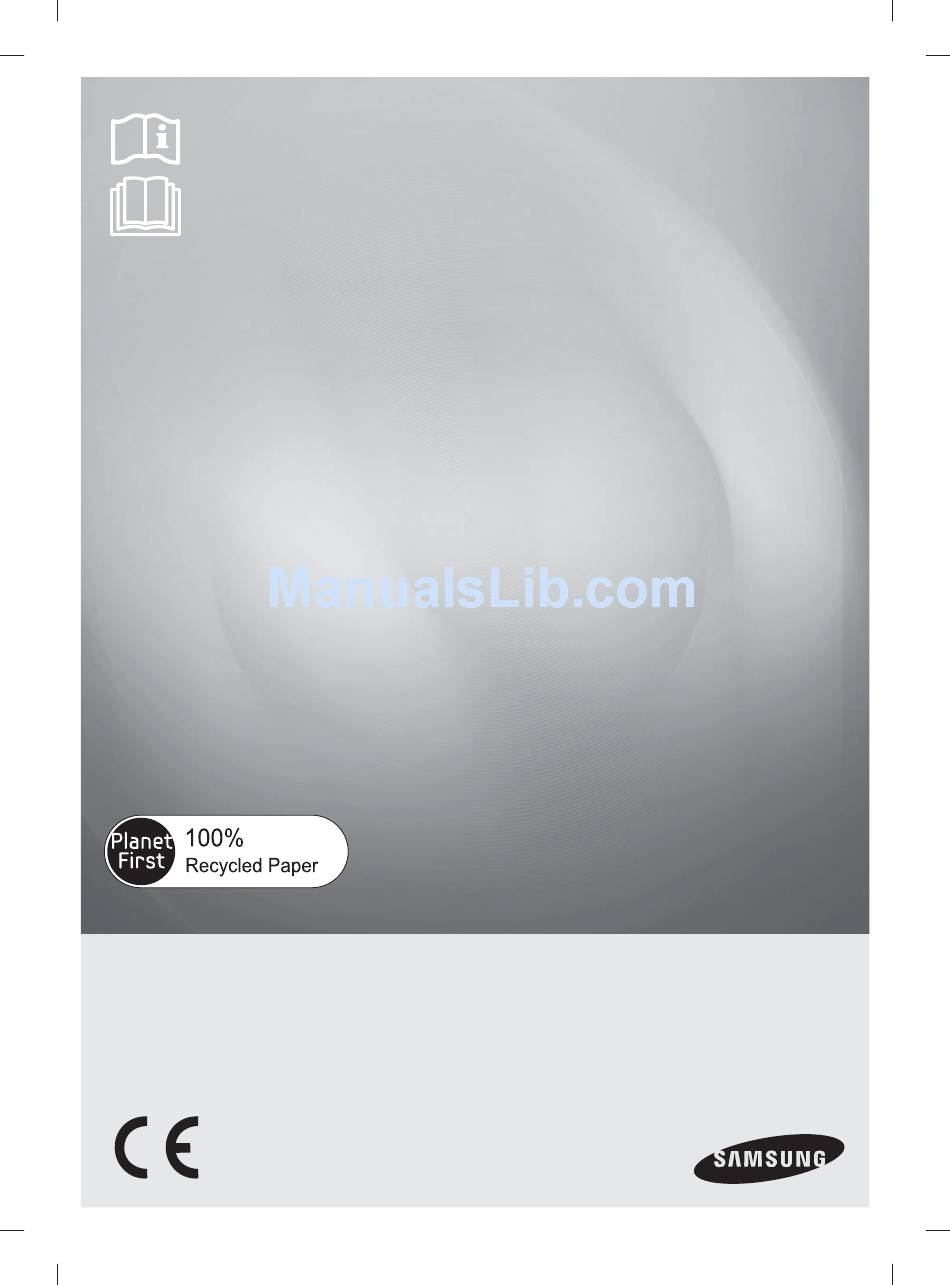

Dishwasher
user manual
imagine
the possibilities
Thank you for purchasing this Samsung
product. To receive a more complete
service, please register your product at
www.samsung.com/register
DW-UG97 Series
DW-UG92 Series
DW-UG72 Series
DW-UG62 Series
2013-06-07
2013-06-07
1:42:06
1:42:06

Advertisement

Table of Contents
loading

Related Manuals for Samsung DW-UG97 Series

Summary of Contents for Samsung DW-UG97 Series

  • Page 1 DW-UG62 Series Dishwasher user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register DD68-00135A_EN_130604.indd 1 DD68-00135A_EN_130604.indd 1 2013-06-07...
  • Page 2 2. 3-Tier Filtration System Your new Samsung dishwasher’s 3-tier fi ltration system fi lters every last bit of food from your dishes, cups, cooking utensils and cutlery. The advanced fi ltration system thoroughly fi lters out and collects all food remains so that you can rest assured knowing that your dishes will come out spotless.

  • Page 3: Safety Instructions

    Safety instructions Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher’s many benefi ts and features.
  • Page 4 Safety instructions Important safety precautions This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the fi...
  • Page 5 INSTRUCTIONS WHEN USING YOUR DISHWASHER This dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments such as: • Shops • Offi ces and showrooms and by residents in establishments such as: •...
  • Page 6 Safety instructions This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given WARNING supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 7 The integrated waterproof system off ers protection from water damage, provided the following conditions are met: CAUTION • The dishwasher is correctly installed and plumbed in. • The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.

  • Page 8: Table Of Contents

    Contents SETTING UP YOUR DISHWASHER TROUBLESHOOTING AND INFORMATION CODES Checking the parts and control panel Check these points if your dishwasher... Meeting the installation requirements Information codes BEFORE USING THE PRODUCT FOR THE FIRST TIME PROGRAMME CHART Using the sound on/off function Programme chart Using rinse aid APPENDIX...

  • Page 9: Checking The Parts And Control Panel

    When your dishwasher has been unpacked, make sure that you’ve received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service or your Samsung dealer.
  • Page 10 Setting up your dishwasher DW-UG97 DW-UG92, DW-UG72, DW-UG62 Setting up your dishwasher DD68-00135A_EN_130604.indd 10 DD68-00135A_EN_130604.indd 10 2013-06-07 2013-06-07 1:42:23 1:42:23...

  • Page 11: Meeting The Installation Requirements

    Power button Wash indicator Programme selection buttons Rinse indicator Half Load button Dry indicator Intensive Zone button Delay Start button (DW-UG97, DW-UG92, DW-UG72, DW-UG62) Child Lock indicator Sanitize/Child Lock button Rinse Refi ll indicator Multi Tabs button Delay Start indicator Start/Reset button Checking the accessories •...

  • Page 12: Water Supply

    Do not twist or bend the water supply hose connected to the Aqua-Stop. If the Aqua-Stop has been damaged, shut off the water taps and pull out the power plug right away. Once these steps have been taken, contact Samsung Customer Service or a qualifi ed technician. CAUTION...

  • Page 13: Before Using The Product For The First Time

    Before using the product for the fi rst time USING THE SOUND ON/OFF FUNCTION 1. While holding down the Delay Start and Half Load buttons, press the Power button to access the setting to activate/deactivate the Sound On/Off function. 2. Press the Sanitize button to activate or deactivate the Sound On/Off function.

  • Page 14: Loading Your Dishwasher

    Loading your dishwasher DISHWASHING GUIDELINES Follow these simple guidelines to get the best results and save energy. Before loading dishes Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks, paper napkins, etc. from your dishes. Food remains and waste can damage your dishes, make noise and even result CAUTION in a product malfunction.

  • Page 15: Loading Your Dishwasher

    Using the upper basket Use the upper basket for mainly small, light or delicate items such as cups, saucers, glasses, dessert bowls, etc. Adjusting the upper basket You can adjust the height of the upper basket for additional clearance for placing large items in either the upper or lower basket.

  • Page 16: Loading Your Dishwasher

    Loading your dishwasher Using the hinged spikes Foldable hinged spikes allow you to make room in the lower basket for large items. 1. Flatten the hinged spikes by pressing them down. Using the cutlery tray (DW-UG97, DW-UG92, DW-UG72) The cutlery tray inserts can be detached from the cutlery tray. For example, you can remove one side of the inserts to make room for larger items in the upper basket.

  • Page 17: Loading Your Dishwasher

    Using the cutlery basket (DW-UG62) The cutlery basket has cover so that each knife, spoon, or fork can be placed on individual stands to prevent chipping and discolouration. 1. Place the diff erent types of cutlery in the baskets as shown. For safety purposes, place knives in the knife rack.

  • Page 18: Using Detergent

    Loading your dishwasher Using the cup selves You can place cups, small items and long cooking utensils on the cup selves. This is also a very convenient way to wash wine glasses. Place wine glasses on the pegs of the cup selves. The cup selves can also be folded back when not in use.

  • Page 19: Loading Your Dishwasher

    4. For better cleaning result, especially if you have very dirt items, add small amount(about 8 g) of detergent on the door. That will act in prewash phase. Using multi tabs You can also use 2-in-1, 3-in-1, or 4-in-1 multi tabs. Multi tabs, depending on the type, combine dishwasher detergent with rinse aid and/or dishwasher salt.

  • Page 20: Operating Your Dishwasher

    Operating your dishwasher BASIC INSTRUCTIONS 1. Open the door. 2. Load the baskets. Do not overload the baskets. CAUTION 3. Make sure the spray arms are not obstructed. 4. Add the appropriate amount of dishwasher detergent into the dispenser and on the door (if required). 5.

  • Page 21: Changing A Programme

    Changing a programme If a programme has already started and you want to change it, follow the instructions below: If the detergent dispenser fl ap has been opened, do not change the programme. 1. Open the door to interrupt the programme. 2.

  • Page 22: Using Additional Functions

    Operating your dishwasher USING ADDITIONAL FUNCTIONS Intensive Zone Use this function for hard-to-clean, heavily soiled dishes, pot & pan, and dishes with heavy oil. Locate items above the Intensive zone spray disk(Refer to the “Checking the parts and control panel” section on page 9) and press the Intensive Zone button.

  • Page 23: Cleaning And Maintaining Your Dishwasher

    Cleaning and maintaining your dishwasher Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and prolongs its life. CLEANING THE EXTERIOR It’s best to clean spills on the exterior of your dishwasher as they occur. Use a soft, damp piece of cloth to gently wipe away spills and dust from the control panel. Do not use benzene, wax, thinner, chlorine bleach, or alcohol.

  • Page 24: Cleaning The Spray Arms

    Cleaning and maintaining your dishwasher 4. Disassemble the coarse fi lter and micro fi lter. 5. Remove any dirt or other remains from the fi lters and rinse them under running water. 6. Reassemble the fi lters in the reverse order of the dissasembly, replace the fi...

  • Page 25: Storing Your Dishwasher

    4. Remove the lower basket. 5. Firmly pull the lower spray arm upward at once to remove it. 6. Use a pointed object such as a toothpick to push out food particles in the spray arm’s jets. 7. Rinse thoroughly under running water. 8.

  • Page 26: Troubleshooting And Information Codes

    Troubleshooting and information codes CHECK THESE POINTS IF YOUR DISHWASHER... PROBLEM POSSIBLE CAUSE SOLUTION Check that the door is latched and The door is not closed completely. closed completely. Press the Start/ The Start/Reset button is not Reset button before closing the selected.
  • Page 27 PROBLEM POSSIBLE CAUSE SOLUTION The dishwasher beeps when the dispenser cover is opened and This is a normal operation. during the initial stage of draining the pump operation. Is too noisy. The dishwasher is not level. Ensure that the dishwasher is level. There is a ‘chopping’...
  • Page 28 For more information about the error codes, or if you are unable to resolve the problem using the suggested solution, refer to the back of this manual and contact your Samsung Customer Service centre. Troubleshooting and information codes DD68-00135A_EN_130604.indd 28...

  • Page 29: Programme Chart

    Programme chart PROGRAMME CHART Soil level Intensive 70 Auto 40-65 Express 65 Normal Quick 50 Delicate 40 Prewash Amount of Very light to Heavy Normal Normal Light Light Very light food remains Heavy Prewash  Prewash  Prewash  Prewash  Prewash ...

  • Page 30: Appendix

    Appendix DISPOSING THE DISHWASHER AND HELPING THE ENVIRONMENT Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe your local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source.
  • Page 31 For standard test The diagrams below show the proper way to load the baskets based on the Australian/New Zealand Standard (AS/NZS 2007.2 & 6400). • Washing capacity: 15 (DW-UG72 ) place settings • Test standard: AS/NZS 2007.2 & 6400 • Position of upper basket: Low •...
  • Page 32 +48 22 607-93-33 PORTUGAL 808 20-SAMSUNG(808 20 7267) www.samsung.com SLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com 0848 - SAMSUNG www.samsung.com/ch (German) SWITZERLAND (7267864, CHF 0.08/min) www.samsung.com/ch_fr (French)
