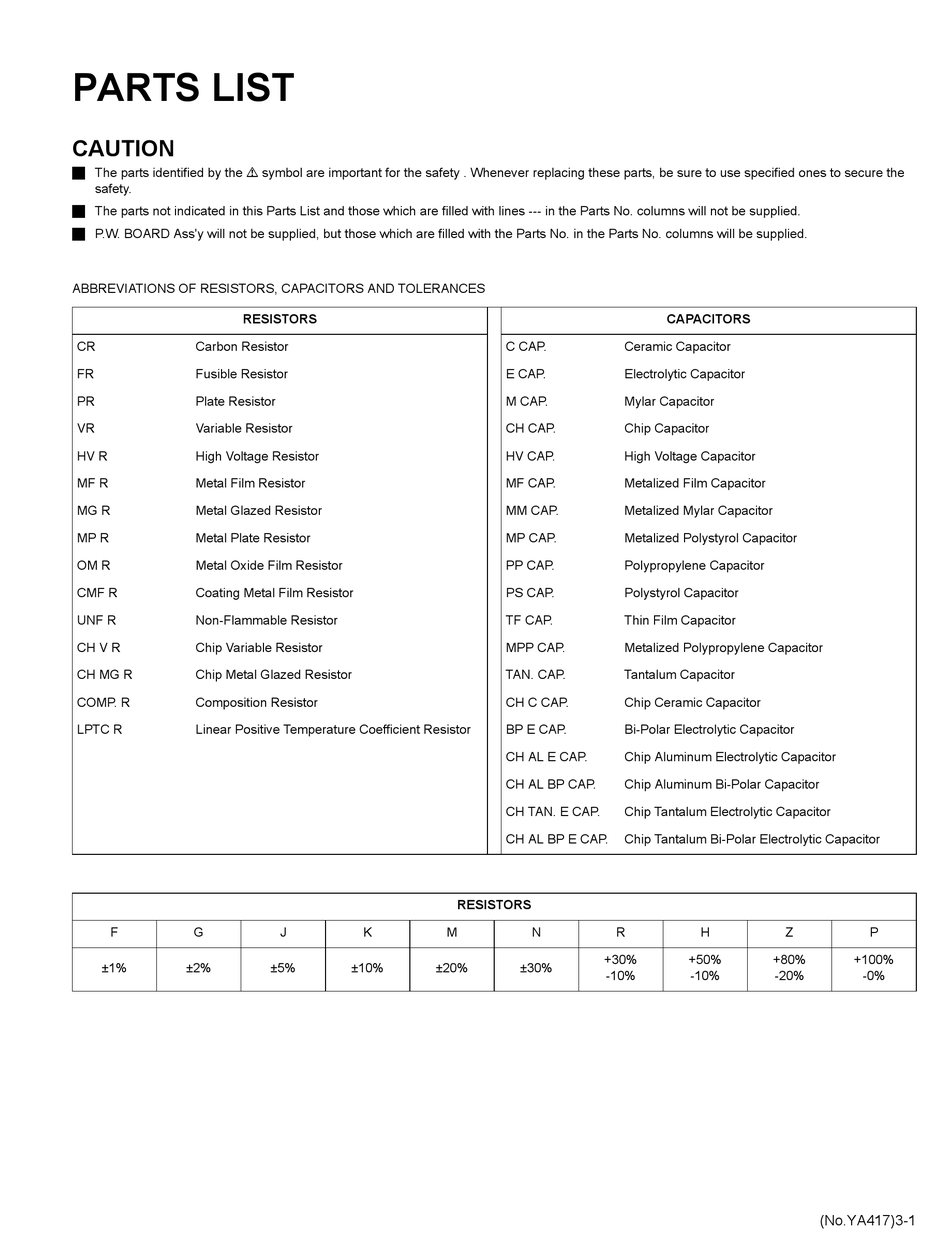

PARTS LIST

CAUTION
The parts identified by the
safety.
The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.
P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS
CR
Carbon Resistor
FR
Fusible Resistor
PR
Plate Resistor
VR
Variable Resistor
HV R
High Voltage Resistor
MF R
Metal Film Resistor
MG R
Metal Glazed Resistor
MP R
Metal Plate Resistor
OM R
Metal Oxide Film Resistor
CMF R
Coating Metal Film Resistor
UNF R
Non-Flammable Resistor
CH V R
Chip Variable Resistor
CH MG R
Chip Metal Glazed Resistor
COMP. R
Composition Resistor
LPTC R
Linear Positive Temperature Coefficient Resistor
F
G
±1%
±2%
symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the
J
K
±5%
±10%
±20%
C CAP.
Ceramic Capacitor
E CAP.
Electrolytic Capacitor
M CAP.
Mylar Capacitor
CH CAP.
Chip Capacitor
HV CAP.
High Voltage Capacitor
MF CAP.
Metalized Film Capacitor
MM CAP.
Metalized Mylar Capacitor
MP CAP.
Metalized Polystyrol Capacitor
PP CAP.
Polypropylene Capacitor
PS CAP.
Polystyrol Capacitor
TF CAP.
Thin Film Capacitor
MPP CAP.
Metalized Polypropylene Capacitor
TAN. CAP.
Tantalum Capacitor
CH C CAP.
Chip Ceramic Capacitor
BP E CAP.
Bi-Polar Electrolytic Capacitor
CH AL E CAP.
Chip Aluminum Electrolytic Capacitor
CH AL BP CAP.
Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP.
Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP.
Chip Tantalum Bi-Polar Electrolytic Capacitor
RESISTORS
M
N
R
+30%
±30%
-10%
CAPACITORS
H
Z
+50%
+80%
-10%
-20%
(No.YA417)3-1
P
+100%
-0%
