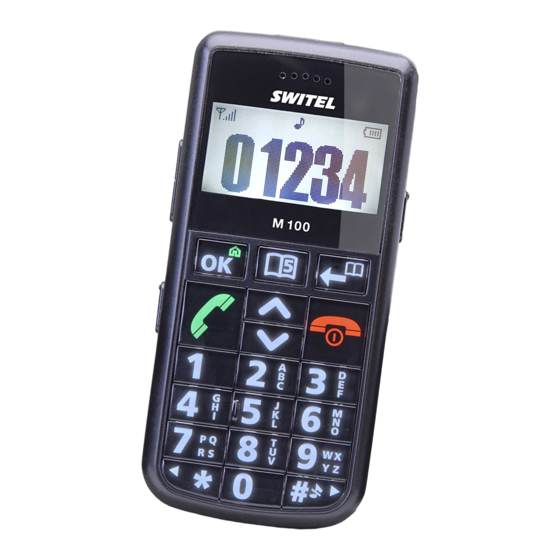

Mobile Phone M100
Operating Instructions
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for switel M100

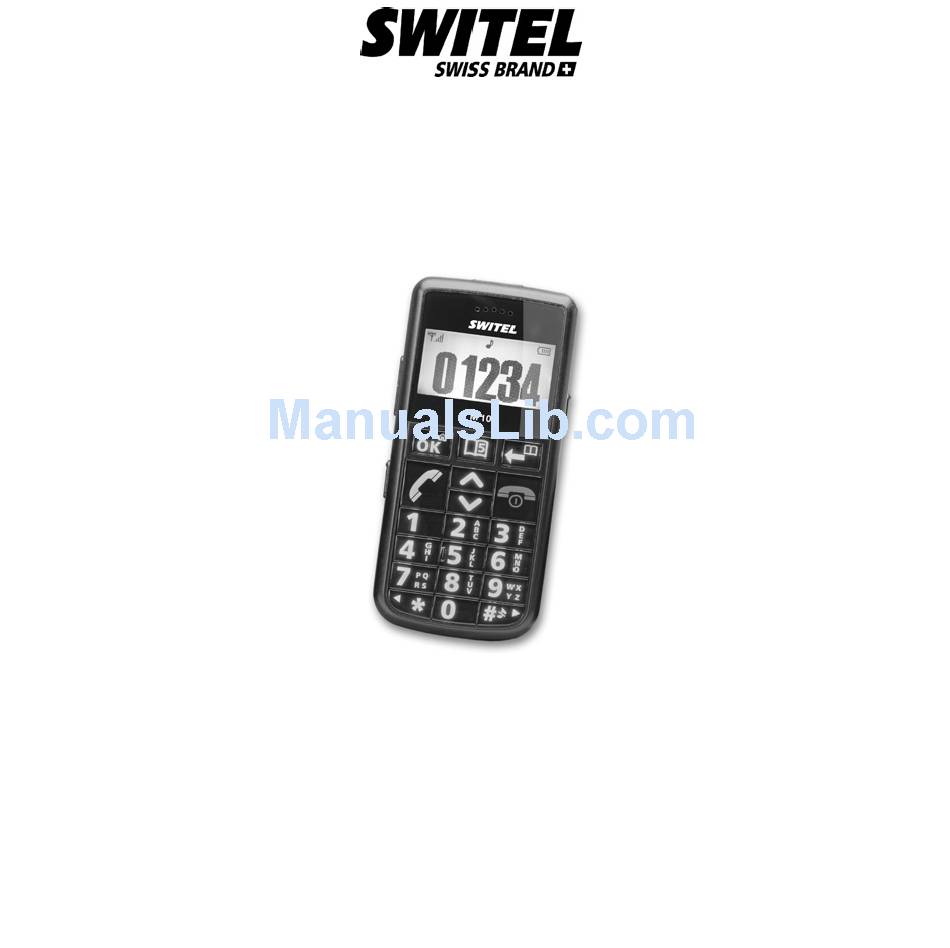

  • Page 1 Mobile Phone M100 Operating Instructions English...
  • Page 3: Table Of Contents

    Intended use ..... . Product safety Information ... . Your Mobile Phone .
  • Page 4: Intended Use

    Intended use This mobile phone is designed for use to a mobile phone network. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circum- stances open the device or complete any repair work yourself. Product safety Information Please read these simple guidelines.
  • Page 5 Do not recharge the phone without battery being installed. Charge the phone in well-ventilated environment and keep away from inflammable and high explosive articles. To avoid demagnetization, keep the handset away from magnetic substances, such as magnetic discs or credit cards. Keep the phone away from liquid.
  • Page 6 Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.
  • Page 7: Your Mobile Phone

    Your Mobile Phone Torch Earpiece Main Screen Love Key Menu key ESC key End Key Up/Down key Send key Keypad Keylock Slide button + / - key Torch Slide button SOS key Battery Cover Charging Interface Headset interface...
  • Page 8: Keys

    Keys Menu Key Dial or answer a call. In the standby mode, press the key to enter main menu. At the menu state, enter sub-menu or the interface of menu. ESC Key In the standby state, press the key to enter inbox. In the Functions list status, return to previous menu.
  • Page 9: Menu Icons/ Screen Icons

    Menu Icons/ Screen Icons Received signal strength Earphone New Short Message Alarm on International Roam Call divert (Changing by line) Battery power level Silence Vibration Battery The lithium battery of the mobile phone can be immediately used after unpacking. A new bat- tery performs best after performing a full charge/discharge 3 times.
  • Page 10 Removing the battery Ensure that your mobile phone is switched off. Remove the battery cover. Pull the battery up and remove it from the mobile phone. Charging the battery Your phone is powered by a rechargeable battery. Connect your travel adapter to the bottom of your mobile phone.
  • Page 11 SIM card Every mobile phone has a SIM card (Subscriber Identity Module). This is a micro-chip that holds your personal information such as names and phone numbers. Your phone won’t work without it. If you already have contacts on your SIM card, they can be transferred in most cases.
  • Page 12: Menu Tree

    Menu tree Phone Book Call Records Settings Incoming Calls Clock Settings Phone Book Outgoing Calls SOS Settings Love Number Message Missed Calls Phone Setting Write message Delete Call Settings Inbox Call Duration Network Settings FM Radio Outbox Security Alarm Drafts Factory Default Tools Voice Mail...
  • Page 13: Write Text

    Write Text Change input mode: press # key to change the input mode (Eng, Abc, abc, ABC, 123) ABC, Abc and abc input: press the number keys 2-9 to input letters. Input the characters followed the order of letters on the keys. Press the key once to input the first letter, press it twice to input the second one and so on.
  • Page 14: Adjusting Volume

    Making and receiving call Dialing a Number In standby mode, enter the telephone number and press the Send Key to dial. Press End key to end the call. Dialing a Number stored in Phonebook Searching desired number in Phonebook List: Input character contained in the initial letter of the desired name, and then press Up/Down Key to find out the desired.
  • Page 15 Sending text message Menu > Message > Write message Write text message. For more information on writing, refer to section “Writing text”. Send: press Menu key to do as follow. Select Send to send the message to one person; Select Send and Save to send and save it into Outbox; Select Send to Many to send it to more than one person, and select the names from the phone book list;...
  • Page 16: Sms Remote Control Function

    SMS Remote Control Function One may through another handset SMS remote control another mobile phone, be possible the remote control set Dial Love Number, remote control to establish one to seek help the number, the remote control increase the telephone number, the remote control establishment alarm clock which saves on the handset.
  • Page 17 Jack’ new entry is 13333333333. Setting Alarm Edit: AT+A:hh: mm: content: password [For example:] AT+A:06:30: Good Morning :1234 The alarm time is 6:30. The content is ”Good Morning”. Time Format must be 24-hour. The content: The character’s limit is 70. Note: The password default 1234, it can change in Menu >...
  • Page 18: Shortcut Key

    Shortcut Key Electric Torch Shortcut Key Press the Torch slide button up/down to switch on/off the electric torch. Key lock Shortcut Key Press the Key lock slide button up/down to switch on/off the lock key. Hearing aid Shortcut Key Press and hold the Key ”0” to switch on/off the Hearing aid function. The Hearing aid can be activated until you plug into headset.
  • Page 19 If the SOS number is dialed out, the phone will send message firstly. It will turn into calling link state after the message being sent out successfully or fail. The phone will turn into hand free mode if the call connected. If the SOS number.
  • Page 20 Function Description Selection Add new Add the new contacts to Menu→Phone Book→Phone Phone Book phone book Book→Create Edit Phone Book Edit phone book Menu→Phone Book→Phone Book→Search→Option→Edit Send Message Send text message to Menu→Message→Write mobile phone message→Option→Send Read Message View the received, sent, Menu→Message→In- save message box√Outbox√Drafts...
  • Page 21 Profiles Ring Tone, SMS Alert Tone, Menu→Profiles Alarm Tone, Alert Type, Ring Tone Volume, SMS Tone Volume, Power On Volume, Power Off Volume, Volume of Voice Calling Report, Key Volume, Vibration about different Personalize profiles Time and date Set date and time Menu→Settings→Clock Settings Date &...
  • Page 22: Care And Maintenance

    Care and Maintenance Battery and Charger Safety Only use batteries approved by the phone manufacturer. Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The charging time depends on the charger and the battery used.
  • Page 23 Phone Maintenance Your device is a product of superior design and chairmanship and should be treated with care. The suggestions below will help you protect your warranty coverage. Keep the phone and all the parts and accessories (for example, SIM card) out of the reach of small children.
  • Page 24: Troubleshooting

    Troubleshooting Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, Tel. 0900 00 1675 within Switzerland (Swisscom fees, via landline, at time of going to print: CHF 2.60/min). In the case of claims under the terms of guarantee, please contact your sales outlet.
  • Page 25 Cannot call in 1. Is the SIM card registered in the network? 2. Incoming call prohibited due to call charges not paid? 3. Is call diverting enabled? 4. Is the ”Bar incoming call” function in call barring enabled? PIN locked Input the PUK code supplied with the SIM card to unlock or contact the network operator.
  • Page 26: Technical Data

    73/23/EEC; EMC Directive 89/336/EEC and R&TTE Directive 1999/5/EC. It passed the subject tests by the authority concerned and is authorized to bear CE mark. To view the complete Declaration of Conformity, please refer to the free download available on our web site www.switel.com.
  • Page 27: Guarantee

    Guarantee equipment is produced and tested according to the latest production methods. The SWITEL implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system.
  • Page 28 TELGO AG Route d’Englisberg 11 CH-1763 Granges-Paccot Declare under our own responsibility that the product MODEL: M100 DESCRIPTION: Cordless DECT telephone Is in conformity with directives: R&TTE Directive (1999/5/EC) COMPLIANCE IS ACHIEVED BY CONFORMITY TO THE FOLLOWING: EN 60950-1, EN 301489-1, EN 301489-6, EN 301406...
