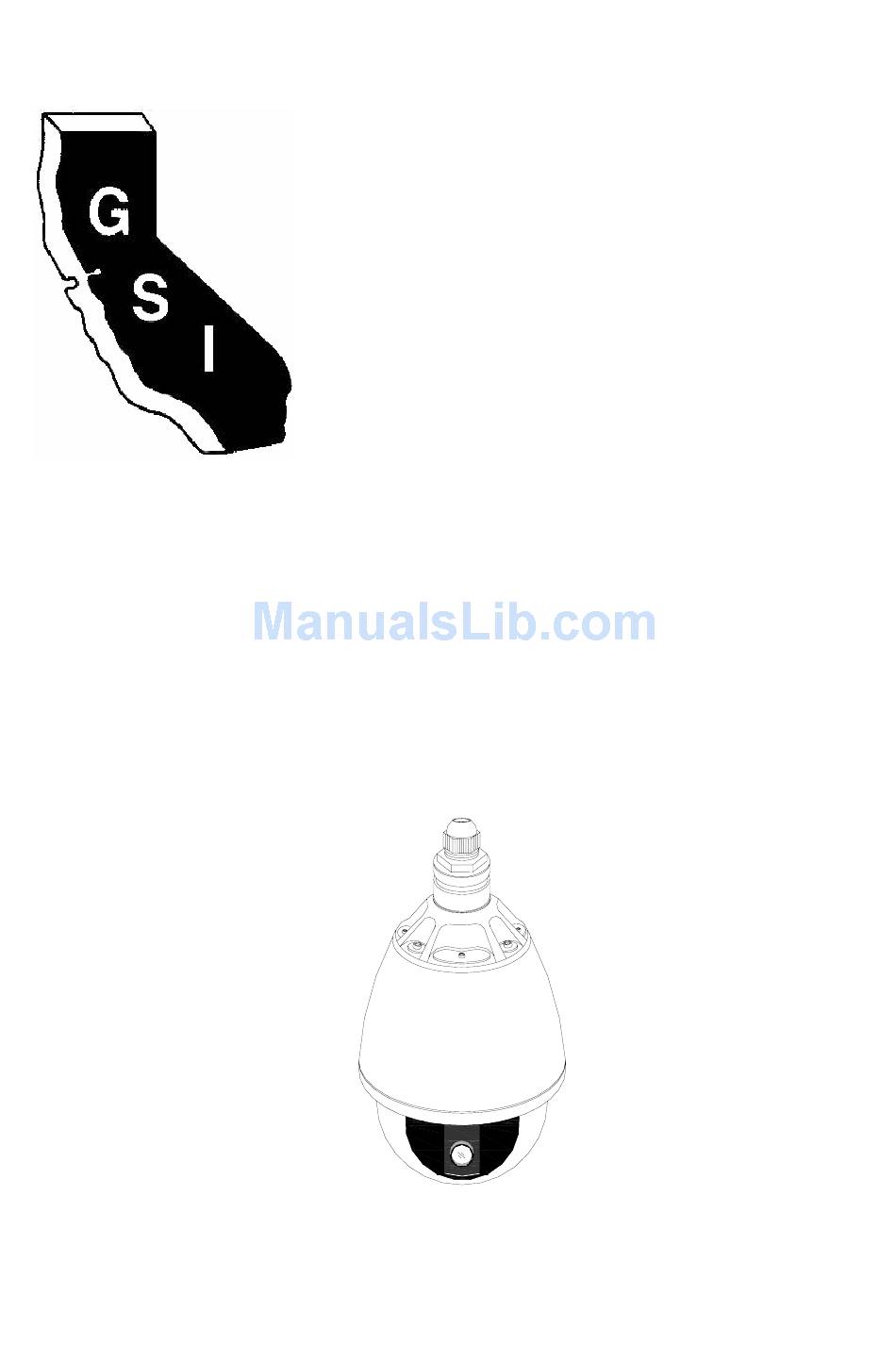

GOLDEN STATE INSTRUMENT CO. GS-PTZ-2210 GS-PTZ-1010 Outdoor PTZ Color Dome Camera User’s Manual Please read this manual carefully before operating the high speed integrated video camera. -
Page 2: Table Of Contents
LIST Precautions……………………………………………………………2 1.0 Installation…………………………………………………………4 1.1 Indoor type…………………………………………………………4 1.2 Indoor ceiling installation…………………………………………4 1.3 Indoor boom installation……………………………………………5 1.4 Indoor wall installation……………………………………………6 1.5 Indoor embedded installation………………………………………6 1.6 Accessories for indoor installation…………………………………7 2.0 Outdoor type…………………………………………………………8 2.1 Outdoor installation…………………………………………………8 2.2 Accessories of the outdoor installation………………………………12 3.0 Operation mode………………………………………………………14 3.1 Technical parameter…………………………………………………14 3.2 Connection method………………………………………………16... -
Page 3: Precautions
Precautions 1． Never disassemble the video camera without authorization. Never disassemble the screws or protection cover to avoid electrical shock.. No part inside the machine can be repaired by the users themselves. Related maintenance and repair work shall be carried out by qualified maintenance persons. - Page 4 If the spot light source such as shooting light forms a facula on the display screen, the CCD color filter of the camera may be fading. 7． Don't install the video camera upside down. This video camera is designed to be installed on the ceiling or wall. If installing the camera upside down, e.
-
Page 5: Installation
It may burn a shadow of the object on the screen of the CRT. Installation Indoor type Structure Indoor ceiling installation: (1)Use the dimension provided by the Note: If the ceiling installation is out manufacturer mark out the position of the line, drill the line holes on the of the 3 installation screws on the ceiling, but no hole is necessary if it ceiling as shown in the figure below. -
Page 6: Indoor Boom Installation
(3) Fix the base plate of the video (4) Install the spherical housing on the camera on the ceiling plate with base plate of the video camera 3 screws. according to the figure and then, push the decoration ring up into the slot. -
Page 7: Indoor Wall Installation
and wrench as shown in the following figure. Turn on the housing after the installation. The installation of the wall support of the indoor spherical (1) Fix the wall support to the fixity with screws. (2) Connect the bottom spherical device plate with the spherical flange with the 3 supplied screws according to the figure. -
Page 8: Accessories For Indoor Installation
(3)Install the embedded support into the installation holes and adjust the three pressing legs to fix the embedded support. (4)Install the decoration ring on the spherical device. decoration ring The selection of the accessories of the indoor installation Ceiling installation support Indoor wall installation support Telescopic embedded Extended support for... -
Page 9: Outdoor Type
Outdoor type Configuration 2.1 Outdoor installation Outdoor wall installation Outdoor power supply box (1)Connect the outdoor wall installation connection box to the fixity with screws and connect the wall support with hinges. (2)Connect the wall support and the outdoor spherical with the supplied M5 screws and wrench. - Page 10 Outdoor box without power supply (1) Connect the outdoor wall support to the fixity. (2)Connect the wall support and the outdoor spherical with the supplied M5 screws and wrench. Note: all the wires should reach at the connection box through the support. (3)Disassemble transparent case with the supplied wrench.
- Page 11 Outdoor suspension installation with power supply (1) Connect the outdoor wall connection box to the fixity with screws and connect the wall support with hinges. (2)Connect the wall support and the outdoor spherical with the supplied M5 screws and wrench. Note: all the wires should reach at the connection box through the support.
- Page 12 and install the transparent case. (4)Connect the wires according to the requirement. Outdoor pole installation with power supply box (1) Tighten the pole anchor ear with the fixity. Connect the power box with four screws and connect the wall support with hinges. (2)Connect the wall support and the outdoor spherical with the supplied M5 screws and wrench.
-
Page 13: Accessories Of The Outdoor Installation
(4)Connect the wires according to the requirement. Outdoor wall corner installation with power supply box (1)Connect the wall corner support with four screws. Connect the power supply box with four screws and connect the wall support with hinges. (2)Connect the wall support and the outdoor spherical with the supplied M5 screws and wrench. - Page 14 Power supply adaptor box + wall bracket Outdoor extended wall bracket Pole bracket Sunshield Wall corner bracket Wall bracket + power supply adaptor box 3 .0 Operation mode...
-
Page 15: Operation Mode
Operation mode This intelligent spherical video camera can be connected to keyboard or special control equipment via RS485. The process of up and down and left and right movement of the video camera, and the lens zooming can be remote controlled. - Page 16 weight: about 1.5kg (indoor) Dimension: φ135×190mm (H) (indoor) Outdoor power supply: AC24V indoor power supply: DC12V Operation temperature: -30 ℃ - +50 (outdoor) ℃ Power: about 10W + (20W heating) (outdoor) Dimension: φ200×310mm (H) (outdoor) Weight: about 3kg (outdoor) Note: the main difference between the indoor and outdoor spherical devices is the outdoor and heating power.
-
Page 17: Connection Method
Connection method Precautions The following connections should be carried out by qualified technical personnel or the installation personnel under the condition meeting the local regulations. 1. Video output 2.Green RS485A+ 3.Yellow RS485B- 4.AC24V power supply introduce blue AC24V N brown AC24V L 5. -
Page 18: Address Code Setting
Note: After the power supply is connected, the device can conduct the self-diagnosis (including shaking, pitching, zooming, and focusing, once each). The connection mode of indoor spherical device: 1. Video output 2.RS485 Communication line green+ 3. RS485 Communication line yellow- 4.DC12V introduce 5. -
Page 20: Protocol Code Setting
Note: the control line can be connected in parallel with several high speed spherical video cameras, but with the 10th place of the code dialing address of the furthest one at ON to connect one 120Ω compensation resistor. Thus, its control distance is far and also needs the operation mentioned above as shown in the right figure. -
Page 21: Indication Light Description
Note: After dialing the address or protocol code switch, re-power once again. Description of the indication light There is a red or green indication lights at the side of the protocol and address code dialing switch with the following function: red or green indication light: light-on indicates the power supply is on;... - Page 22 ( 2 ) Lens control (2.1) Function of magnification changing Changing the angle of the viewing field of the video camera (pulling nearer and pushing further to watch the picture): press [TELE] or [WIDE]. (2.2) Function of focusing In some special situations, if the user needs manual focusing (NEAR) or (FAR), change the focusing: press [CALL]+[59]+[ENTER], or move the handle to resume the automatic focusing.
- Page 23 (3.2)Using the pre-set points After setting the pre-set points, you can use the corresponding pre-set point. [CALL]+N+[ENTER]. The LCD displays: Call Number: N represents 1 to 80 natural number. (4)The additional function sheet No. of Pre-setting point Using pre-set point [PRESET]+[N]+[ENTER] [CALL]+[N]+[ENTER] pre-set...
- Page 24 (I) When the spherical device executes the function of “patrol inspection”, the default status is as follows: a. Automatically scan from pre-set point No. 1 to 16, one by one. If some points are not pre-set or canceled after pre-setting, they will not be scanned during the “patrol inspection”;...
- Page 25 (6.) Other functions * Pelco D 2400 , Pelco P 4800, Pelco P 9600 protocol Track setting : Set No. N track: [SHOT]+N+[ON] Display: Input Tour No : N N: track No. 1 -3 Display: Track = N1 Sum = N2 (N1: track No , N2: total pre-set points). Press [TELE] key, display: [No.:N3 Point: 001] Prompt to input the pre-set number of the first point in that track Press [TELE] key, display: [No.:N3 Speed: 001]...
- Page 26 ①Using the track ( Method 1 )： [CALL]+[53]+[ENTER] ②Using the track ( Method 2 ): Use No. n track: [SHOT]+N+ [ENTER] Display: Input Tour No : N N: number of track 1 - 3 ③ Line scan starting [CALL]+51+[ENTER] Press CALL, display: call number: press the figure keys 51 press directly ENTER to start the line scan request.
-
Page 27: Description Of Icons Of The Video Camera
Description of the icons of the video camera: Display description of the common icons on video camera: (The monitor can display the icon only when the DISPLAY option is in the state of ON) Focus control mode: the user can manually adjust the focus of the video camera. -
Page 28: Solution Of Common Failures
zero illumination status manually. Note: the displayed icon and function vary with the type of the video camera. Common failure and its solution Failure Cause Solution No action, and Check if there is power replace picture after Failure in engineering line eliminate powered Power line misconnected... -
Page 29: Connection Style Of Rs-485 Bus
4.3 The connection mode of bus RS485 and terminal resistor: When communication bus RS485 is connected in star line, connect an 120Ω resistor to the two loads at the farthest end. At that time, the input and output resistors are not so matched, nor meeting the operation requirement of RS485 industry standard, which can easily cause operation out of control. -
Page 30: Selection Of Code Dialing Switch
5.0 The installation of the video camera: This spherical device is mainly suitable for the products of integrated video camera of Sony, Hitachi, and LG manufacturers, which should be provided with TTL interface. Other interfaces are not valid. If other video cameras of other manufacturers, please contact us for custom-make for you.
