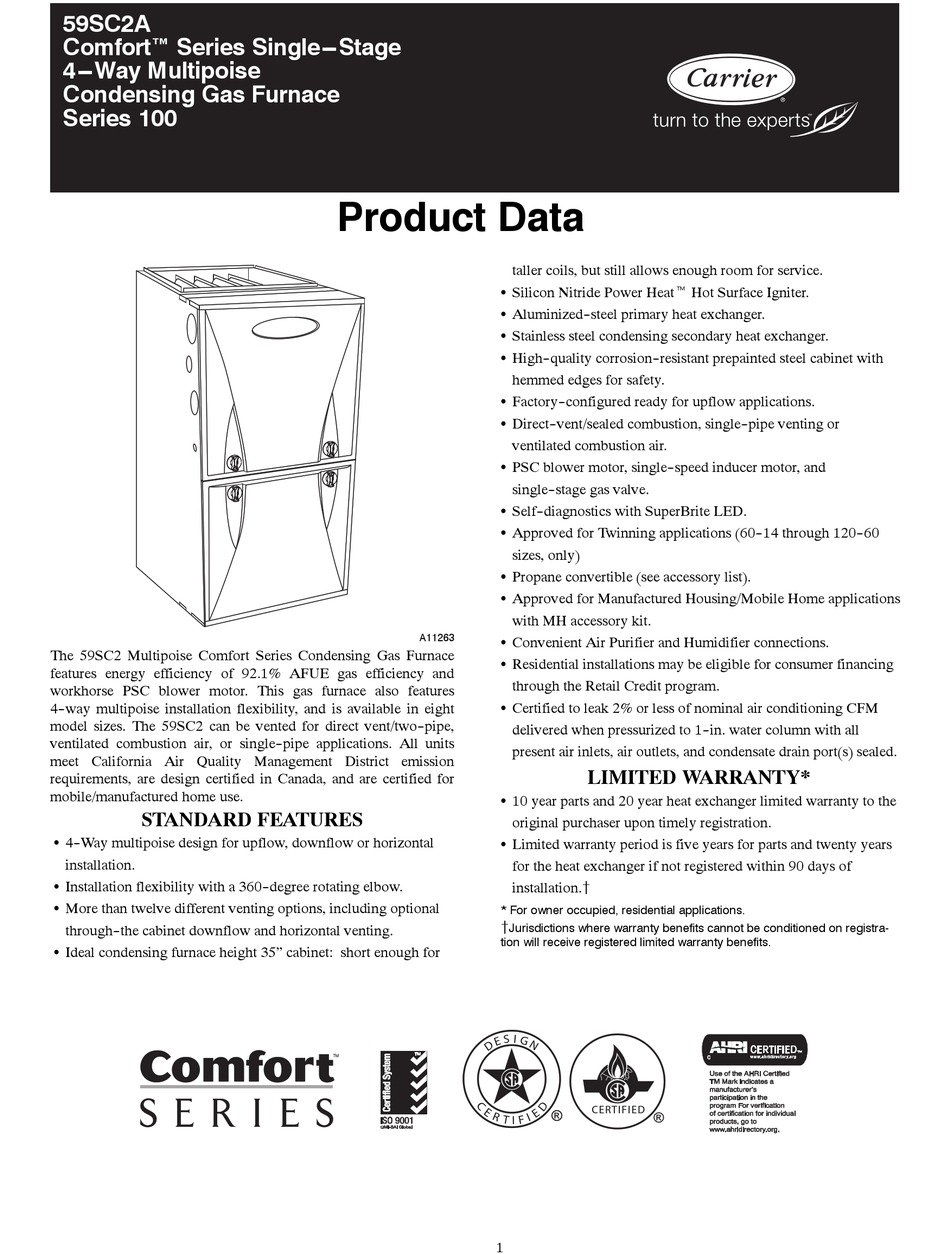

Carrier 59SC2A Product Data

59SC2A
Comfort™ Series Single---Stage
4---Way Multipoise
Condensing Gas Furnace
Series 100
The 59SC2 Multipoise Comfort Series Condensing Gas Furnace
features energy efficiency of 92.1% AFUE gas efficiency and
workhorse PSC blower motor. This gas furnace also features
4- -way multipoise installation flexibility, and is available in eight
model sizes. The 59SC2 can be vented for direct vent/two- -pipe,
ventilated combustion air, or single- -pipe applications. All units
meet California Air Quality Management District emission
requirements, are design certified in Canada, and are certified for
mobile/manufactured home use.
STANDARD FEATURES
S 4- -Way multipoise design for upflow, downflow or horizontal
installation.
S Installation flexibility with a 360- -degree rotating elbow.
S More than twelve different venting options, including optional
through- -the cabinet downflow and horizontal venting.
S Ideal condensing furnace height 35" cabinet: short enough for
Product Data
taller coils, but still allows enough room for service.
S Silicon Nitride Power Heatt Hot Surface Igniter.
S Aluminized- -steel primary heat exchanger.
S Stainless steel condensing secondary heat exchanger.
S High- -quality corrosion- -resistant prepainted steel cabinet with
hemmed edges for safety.
S Factory- -configured ready for upflow applications.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
S PSC blower motor, single- -speed inducer motor, and
single- -stage gas valve.
S Self- -diagnostics with SuperBrite LED.
S Approved for Twinning applications (60- -14 through 120- -60
sizes, only)
S Propane convertible (see accessory list).
S Approved for Manufactured Housing/Mobile Home applications
with MH accessory kit.

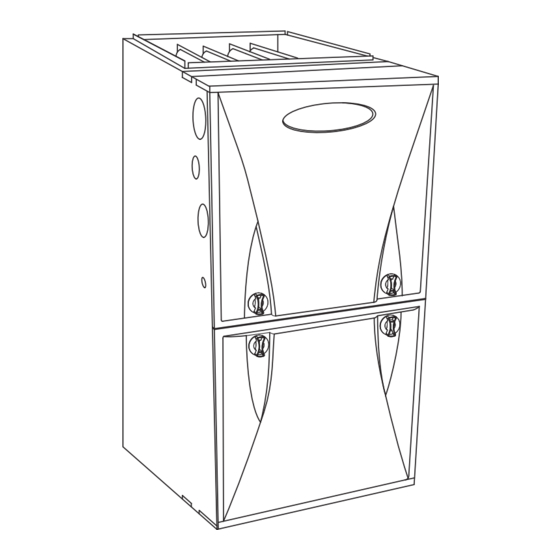

A11263
S Convenient Air Purifier and Humidifier connections.
S Residential installations may be eligible for consumer financing
through the Retail Credit program.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.
S 10 year parts and 20 year heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
Jurisdictions where warranty benefits cannot be conditioned on registra-
{
tion will receive registered limited warranty benefits.
1

LIMITED WARRANTY*

CERTIFIED
