Sledstart SS1000YAM Operation Manual

Two-way lcd remote start system
Hide thumbs Also See for SS1000YAM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Operations Manual
Model SS1000YAM
Two-way LCD Remote Start System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS1000YAM and is the answer not in the manual?

Questions and answers

Related Manuals for Sledstart SS1000YAM

Summary of Contents for Sledstart SS1000YAM

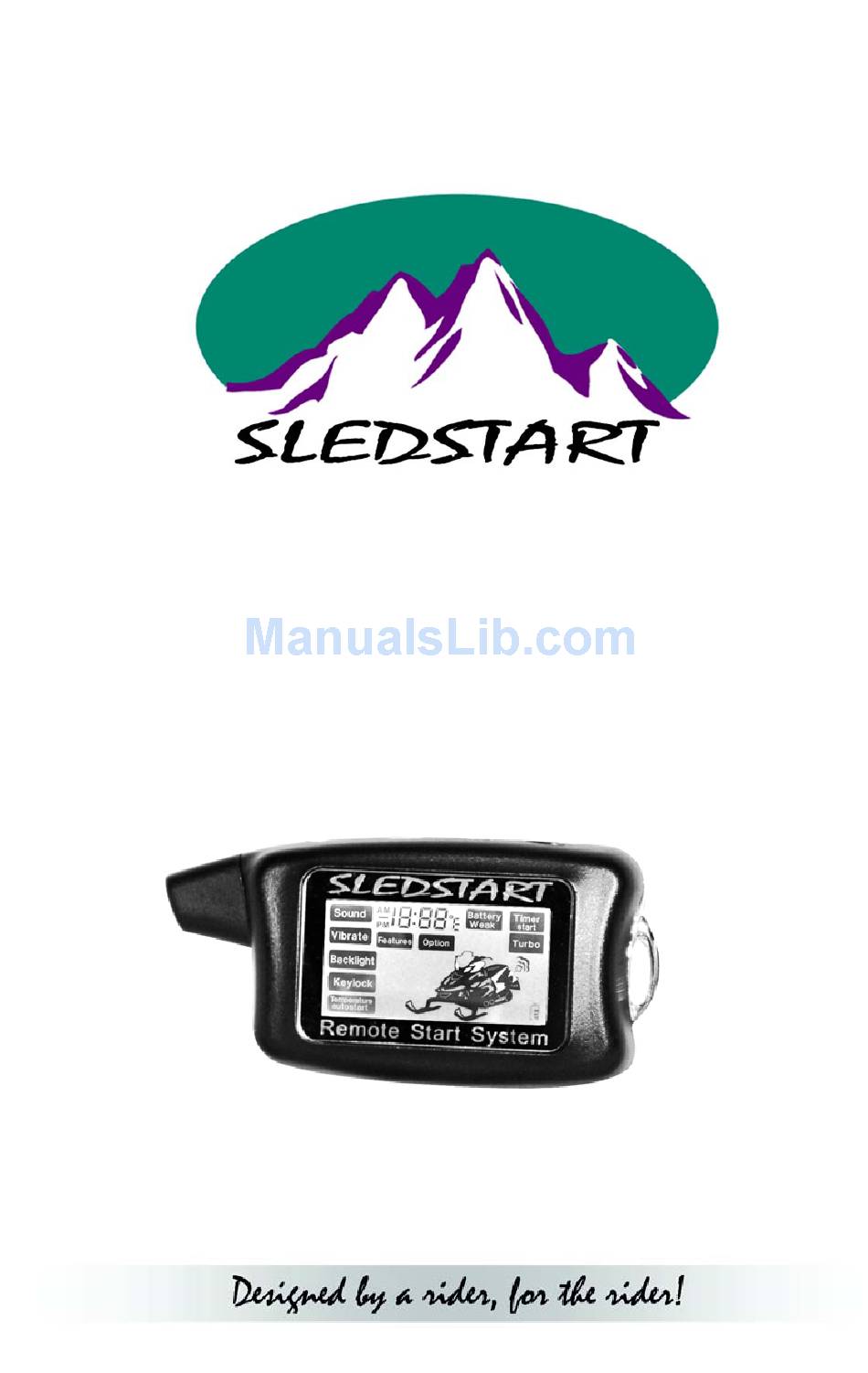

  • Page 1 Operations Manual Model SS1000YAM Two-way LCD Remote Start System...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Table of Contents Table of Contents Table of Contents .......... AFETY ARBON ONOXIDE ARNING ................3 NTRODUCTION ..............5 ACKAGE ONTENTS ................6 NSTALLATION ..12 ATCHING ETWEEN EMOTE ONTROLS ODULE ..........14 AFETY ESTING YSTEM ..............
  • Page 3 Copyright 2010 SledStart LLC All Rights Reserved Operations Manual Model SS1000YAM R1 Two-way LCD Remote Start System...

  • Page 4: Safety And Carbon Monoxide

    SledStart must be disabled using the by- pass toggle switch 1 - see picture 7 page 11. c) It is the users sole responsibility that any time SledStart is active the parking brake must be set. d) It is the users sole responsibility to properly store all remote trans- mitters out of the reach from children to assure that SledStart does not unintentionally remote start the snowmobile.
  • Page 5 OPERATION OF THE SLEDSTART MODULE IF THE PIN SWITCH OR TOGGLE SWITCH IS NOT INSTALLED, BYPASSED OR MALFUNCTIONING IS CON- TRARY TO ITS INTENDED MODE OF OPERATION.

  • Page 6: Ntroduction

    Control Module or ECM. This feature will stop the engine at a preset tem- perature if it has been idling too long. SledStart has a unique feature that will work along with the ECM to help protect from overheating. This is ex- plained in more detail later in this user manual.
  • Page 7 1) This device may not cause harmful interference 2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party respon- sible for compliance could void the user's authority to operate the device.

  • Page 8: Ackage Ontents

    ONTENTS ONTENTS ACKAGE ACKAGE ONTENTS ONTENTS Once you open the package you will find the following contents: • SledStart module with the pre-wired harness • One 2-way LCD Remote transmitter • One 1-way transmitter • One AAA 1.5V battery •...

  • Page 9: Nstallation

    5 as it will make installation easier and reduce risk of breaking the wires from the toggle switch. NOTE 2: The violet wire from the SledStart module is only used if you are running Rock's Warm Hands Controller or "YamaHeater". If you plug...
  • Page 10 7½-amp fuse for the “SIG” in your main fuse block, you must re- place this fuse to the 10-amp fuse supplied in your kit before installing the SledStart module. This is your taillight fuse. Since the taillights are all switching over to LED’s, the fuse value has decreased with some of the new model snowmobiles.
  • Page 11 SledStart harness with the matching male/female piggyback attached. In- sert the male connector from SledStart into the female connector on the key switch side of the snowmobile harness. Next plug the female con- nector from SledStart into the male connector on the snowmobile harness side.
  • Page 12 SledStart harness with the matching male/female piggyback attached. In- sert the male connector from SledStart into the female connector from the snowmobile. Next insert the female connector from SledStart into the male connector from the snowmobile.
  • Page 13 5/8" from the edge. For further detailed mounting information and detailed pictures for various models please visit our website at www.sledstart.com. Drill holes using a 3/16" drill bit. Using the two supplied #10 screws and matching Nylock nuts, attach the pin bracket to the snowmobile.
  • Page 14 Step 10. STEP 10 Using the included 14" heavy duty cable ties, mount the SledStart mod- ule to the snowmobile. It is always best to install the module in a dry lo- cation where it can sense the under hood temperatures when the Tem- perature Autostart feature is used.

  • Page 15: Ode Atching Etween

    Check for any possible areas where the wires or split loom can rub or chafe over time causing a short. Next install the 30 amp fuse in the red 12V wire from the SledStart mod- ule to the positive terminal of the battery.
  • Page 16 (see picture 7) and you have disconnected your battery ter- minals. You can also remove the main 30-amp fuse from the red 12-volt wire leading from the SledStart module. Please be safe. It is always good practice to disconnect your battery terminals when working your snow- mobile.

  • Page 17: Afety Esting He Ystem

    Press "S" again to shut the engine off. Next the ignition and the SledStart mod- ule will shut down along with three shut down tones from the LCD trans- mitter.
  • Page 18 NOTES ABOUT PROGRAMMING MODE ALL programming must be done with the 2-way LCD remote. The one way remote can not be used for programming. If no buttons are pressed for thirty seconds during programming mode, the system will exit programming. After selecting and confirming any setting with the "S"...
  • Page 19 F and -40 C to 2 C. Press "S" to confirm and activate Temperature Auto-Start mode. Temperature Auto-Start will run the snowmobile for the selected run time in Feature 1 of the Features and Options section, see chart page 17. The engine will restart each time the under-hood temperature reaches the user- selected temperature.
  • Page 20 During the first minute after activating any mode of remote starting (manual, temperature, timer) and the engine fails to start, or loses ignition, SledStart will make two more attempts to start the engine. If the snowmobile fails to start after 3 attempts SledStart shuts down.
  • Page 21 Options 2 through 5 can be used if you are running a fuel controller. If your running a fuel controller and the RPM cutoff is too low or too high, you can try options 2 through 5. Contact us at support@sledstart.com for further assistance.

  • Page 22: Peration

    During the first minute after activating any mode of remote starting (manual, temperature, timer) and the engine fails to start, or loses ignition, SledStart will make two more attempts to start the engine. If the snowmobile fails to start after 3 attempts SledStart shuts down.
  • Page 23 1 of the features and op- tions. See chart page 17. During any mode of Remote Start, SledStart will cut the ignition of the snowmobile if either the brake is applied or if the RPM's rise above pre- set threshold, not allowing the snowmobile to be driven.

  • Page 24: Torage

    During the first minute after activating any mode of remote starting (manual, temperature, timer) and the engine fails to start, or loses ignition, SledStart will make two more attempts to start the engine. If the snowmobile fails to start after 3 attempts SledStart shuts down.

  • Page 25: Roubleshooting

    Check clutch side pin switch for proper operation • Check the connector that plugs into the ignition (key switch) • Check that the LCD Remote is code matched to the SledStart module. See page 12 • Check for a weak or dead battery in the LCD remote •...

  • Page 26: Eference

    The connectors found on the top of the cylinder head are NOT the injectors. Those are the coils and although they look similar they are not the same connector and will not plug into the SledStart connec- tor. ALL Yamaha snowmobiles use the same injector connector. The con- nector on SledStart will fit your snowmobile - see picture 4 page 9.
