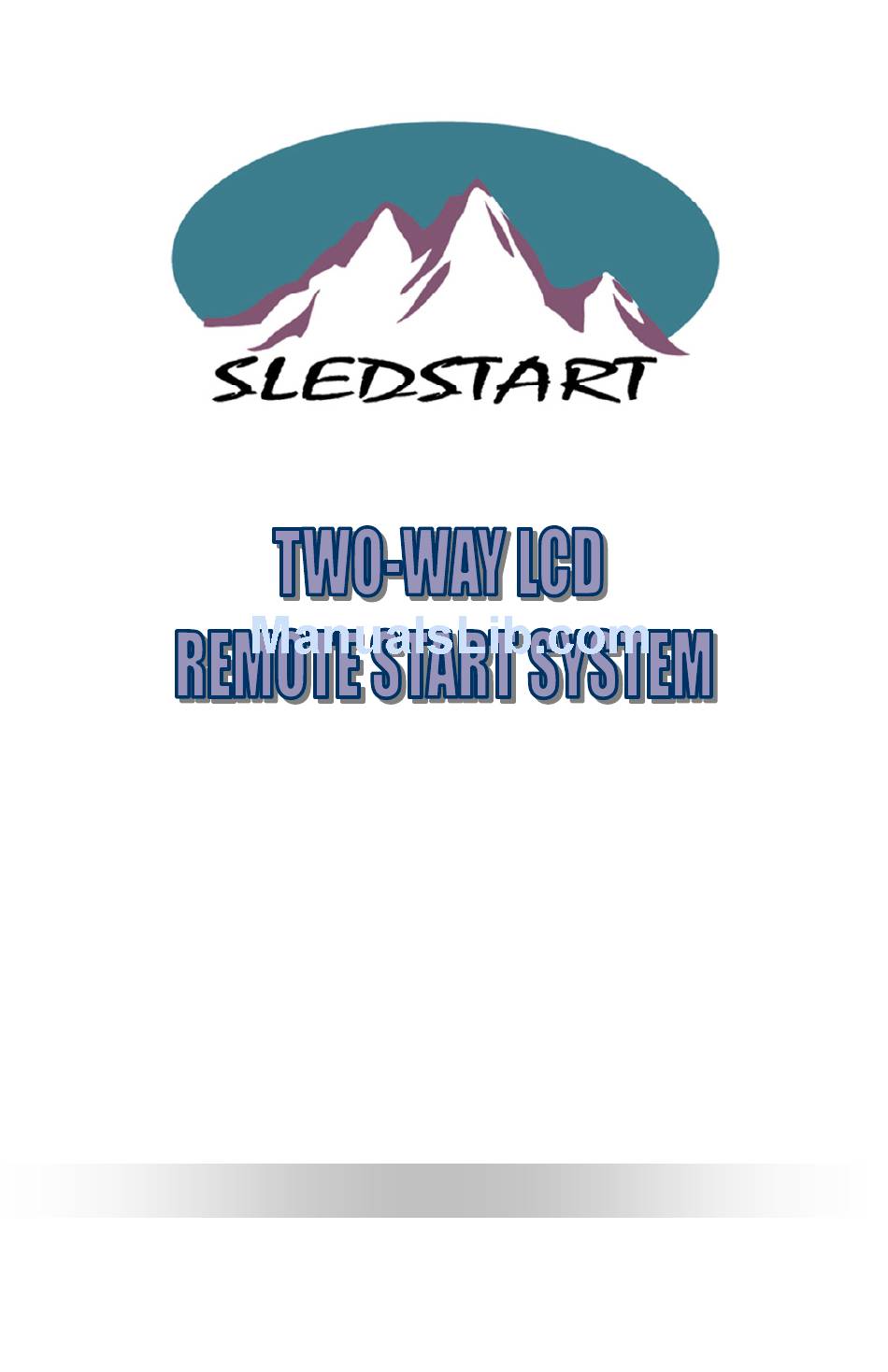

Sledstart SS1000YAM Installation Manual

Two-way lcd remote start system for yamaha snowmobiles
Hide thumbs Also See for SS1000YAM:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
I
M
NSTALLATION
ANUAL
Model SS1000YAM
For Yamaha Snowmobiles
Designed by a rider, for the rider!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS1000YAM and is the answer not in the manual?

Questions and answers

Related Manuals for Sledstart SS1000YAM

Summary of Contents for Sledstart SS1000YAM

  • Page 1 NSTALLATION ANUAL Model SS1000YAM For Yamaha Snowmobiles Designed by a rider, for the rider!

  • Page 2: Table Of Contents

    Table of Contents ........3 AFETY ARBON ONOXIDE ARNING ................5 NTRODUCTION ..............7 ACKAGE ONTENTS ................8 NSTALLATION ..............13 ATCHING ..........14 AFETY ESTING YSTEM .............. 15 ROGRAMMING ................20 PERATION ................22 TORAGE ..............23 ROUBLESHOOTING ................24 EFERENCE ..................
  • Page 3 Copyright 2009 SledStart LLC All Rights Reserved Operations Manual Model SS1000YAM Two-way LCD Remote Start System...

  • Page 4: Safety And Carbon Monoxide Warning

    SledStart must be disabled using the by- pass toggle switch. c) It is the users sole responsibility that any time SledStart is active the parking brake must be set. d) It is the users sole responsibility to properly store all remote trans- mitters out of the reach from children to assure that SledStart does not unintentionally remote start the snowmobile.
  • Page 5 OPERATION OF THE SLEDSTART MODULE IF THE PIN SWITCH OR TOGGLE SWITCH IS NOT INSTALLED, BYPASSED OR MALFUNCTIONING IS CON- TRARY TO ITS INTENDED MODE OF OPERATION.

  • Page 6: Ntroduction

    Control Module or ECM. This feature will stop the engine at a preset tem- perature if it has been idling too long. SledStart has a unique feature that will work along with the ECM to help protect from overheating. This is ex- plained in more detail later in this user manual.
  • Page 7 The SledStart Remote Starter System complies with part 15 of the FCC rules. Operation is subject to the two following conditions: 1) This device may not cause harmful interference 2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Ackage Ontents

    ACKAGE ACKAGE ACKAGE ONTENTS ONTENTS ONTENTS Once you open the package you will find the following contents: • SledStart module with the pre-wired harness • One 2-way LCD Remote transmitter • One 1-way transmitter • One AAA 1.5V battery •...

  • Page 9: Nstallation

    5 as it will make installation easier and reduce risk of breaking the wires from the toggle switch. NOTE 2: The violet wire from the SledStart module is only used if you are running Rock's Warm Hands Controller or "YamaHeater". If you plug...
  • Page 10 It is a good idea to insert the bolts back into the battery and be sure the positive and negative leads are pushed out away from the bat- tery. You will be adding the appropriate connectors from the SledStart mod- ule to these terminals later in this section.
  • Page 11 SledStart harness with the matching male/female piggyback attached. In- sert the male connector from SledStart into the female connector from the snowmobile. Next insert the female connector from SledStart into the male connector from the snowmobile.
  • Page 12 Lock the pin switch to the bracket using the two lock nuts. Attach the two gray/black wires (one from the SledStart module and one from the bypass toggle switch) with the female connector to the rear of the pin switch.
  • Page 13 STEP 10 Attach the red 12V lead from the SledStart module with the 30 amp fuse removed to the battery positive pole along with the factory ring connec- tor. Next install the Pink/white and Black wires from the SledStart module to the battery's negative pole along with the factory ring connector.

  • Page 14: Ode Atching

    To test, press the "X" button on the LCD remote. If the remote and SledStart module are matched you will hear a 3-note mu- sic tone along with the module temperature in Celsius on the LCD dis- play.

  • Page 15: Afety Esting He Ystem

    Press "S" again to shut the engine off. Next the ignition and the SledStart module will shut down along with three shut down tones from the LCD transmitter.

  • Page 16: Rogramming Ode

    ROGRAMMING This section will be divided into two parts and will guide you through the various settings the SledStart Remote Starter System offers. Part 1 will describe how to select either Sound or Vibrate for the LCD re- mote, LCD Backlight ON/OFF, using the Temperature/Auto Start feature, setting the engine crank time, selecting Fahrenheit or Celsius modes, and adjusting the clock.
  • Page 17 Sound - Press "S" to activate LCD sound. The icon will remain lit when sound is selected. Vibrate - Press "S" to activate LCD vibration instead of sound. The icon will remain lit when this option is selected. Backlight - Press "S" to activate LCD backlight. The icon will remain lit when this option is selected.
  • Page 18 During the first minute after activating any mode of remote starting (manual, temperature, timer) and the engine fails to start, or loses ignition, SledStart will make two more attempts to start the engine. If the snowmobile fails to start after 3 attempts SledStart shuts down.
  • Page 19 If this happens within the one-minute window of any remote start activation, ENGINE DAMAGE CAN OCCUR, as SledStart will attempt to restart engine during that first one minute. Please use caution and only use remote start modes on a cold en-...
  • Page 20 During the first minute after activating any mode of remote starting (manual, temperature, timer) and the engine fails to start, or loses ignition, SledStart will make two more attempts to start the engine. If the snowmobile fails to start after 3 attempts SledStart shuts down.

  • Page 21: Peration

    1 of the features and op- tions. See chart page 17. During any mode of Remote Start, SledStart will cut the ignition of the snowmobile if either the brake is applied or if the RPM's rise above pre- set threshold, not allowing the snowmobile to be driven.
  • Page 22 Timer Remote Start ALWAYS SET THE PARKING BRAKE WHEN USING ANY MODE OF REMOTE START To engage Timer Remote Start, press the "T" button. At this time, the icon will appear, followed by remotely starting the snowmobile and confirming with a three-note music tone and the exhaust cloud icon will run.

  • Page 23: Torage

    TORAGE TORAGE The SledStart module and LCD continuously communicate with each other. Like a car alarm, there is a constant small draw on the battery. If you do not ride your snowmobile regularly, this can result in a dead battery. It is recommend for any storage over seven days that either the main 30-amp fuse in the red 12-volt wire be removed or disconnect your battery.

  • Page 24: Roubleshooting

    Check clutch side pin switch for proper operation Check the connector that plugs into the ignition (key switch) Check that the LCD is code matched to the SledStart module. See page 13 Check for a weak or dead battery in the LCD remote...

  • Page 25: Eference

    R R R R R EFERENCE EFERENCE EFERENCE EFERENCE EFERENCE...

  • Page 26: Otes

    N N N N N OTES OTES OTES OTES OTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________...
