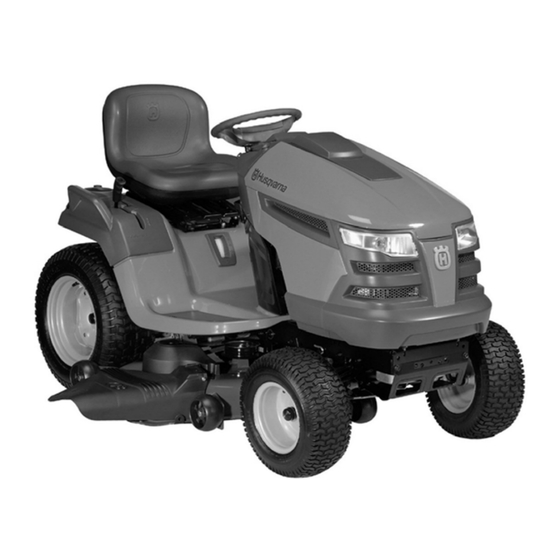

HUSQVARNA, JONSERED, POULAN, RALLYE, WEEDEATER & YARD PRO
READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE
104483
Subframe & Drive Mechanism
* ASSEMBLY
* OPERATION
OPERATING YOUR EQUIPMENT
OWNER'S MANUAL
700413-1 Subframe
700414-1 Compact Drive Mechanism
700415 Northeast Drive Mechanism
Berco
for
tractors
* REPAIR PARTS
* MAINTENANCE
CAUTION:
1
Model Number
G-09
Advertisement
Table of Contents
Related Manuals for Bercomac 700413-1
Summary of Contents for Bercomac 700413-1
- Page 1 OWNER’S MANUAL Model Number 700413-1 Subframe 700414-1 Compact Drive Mechanism 700415 Northeast Drive Mechanism Berco Subframe & Drive Mechanism HUSQVARNA, JONSERED, POULAN, RALLYE, WEEDEATER & YARD PRO tractors * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE...
- Page 2 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. Note: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured. Instructions for Obtaining Warranty Services: Contact dealer where equipment was purchased or any other BERCOMAC Service Dealer to arrange service at their dealership.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................. ASSEMBLY Step 1: Tractor Preparation ........................Step 2: Subframe Installation ......................... Step 3: Drive Mechanism Preparation ....................Step 4: Drive Mechanism Installation ..................... Step 5: Snowblower Installation ......................Rotary Broom Installation ......................Blade Installation ........................ -
Page 4: Introduction
INTRODUCTION INTRODUCTION TO THE PURCHASER This new attachment was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the tractor and attachment. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the tractor and attachments before operating. - Page 6 SAFETY PRECAUTIONS 4. Use only attachments approved manufacturer (such wheel chains, WHENEVER YOU SEE THIS SYMBOL counterweights, cabs). You must use 100 lbs. of rear counterweight for better traction and a greater stability at all times when using an attachment that is installed on the front of a tractor.
-
Page 7: Assembly
ASSEMBLY IMPORTANT: TORQUE ALL BOLTS ACCORDING TO TORQUE SPECIFICATION TABLE (SEE TABLE CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER PARTS BREAKDOWN SECTION FOR PARTS IDENTIFICATION. NOTE: This subframe was designed to fit various models of tractors. Make sure to follow the instructions that correspond to your tractor. -
Page 8: Step 2: Subframe Installation
ASSEMBLY STEP 2 SUBFRAME INSTALLATION: Install the brace pin (item 1) to the right support (item 2) with two carriage bolt 3/8’’ x 1’’ (item 3;heads outside) and 3/8" flange nuts. Tighten firmly. Generally, the brace pin must be over the lawnmower belt and at the same time, as low as possible. - Page 9 ASSEMBLY RIGHT SUPPORT: Install the right support (item 1) on the right side. The chart identifies the hardware according to the holes in the tractor’s frame. Even though some holes may not exist on certain models of tractors, use the maximum of holes possible to ensure the solidity of the kit.
- Page 10 ASSEMBLY LEFT SUPPORT AND HANDLE SUPPORT: Install the left support (item 1) and the handle support (item 17). Secure the brace pin (item 19) The chart identifies the hardware according to the holes in the tractor’s frame. Even though some holes may not exist on certain models of tractors, use the maximum of holes possible to ensure the solidity of the kit.
- Page 11 ASSEMBLY If necessary, slide the shim (item 20, previous page) between the tractor frame and the support, in line with hole (item 9 or item 11). (Make sure that the shim stays perpendicular with the top of the support). Slightly tighten the screws and bolts. Make sure that the brace pin stays straight and does not come into contact with any part of the tractor (ex: the engine belt when mower deck is in raised posi-...
- Page 12 ASSEMBLY TRACTORS WITH MANUAL CLUTCH ACTIVATED BY A CABLE: If it is not possible to put back in place the tractor’s belt guides, use the replacement belt guides supplied. Insert the collars (item 1) on the brace pin (item 4). Tighten slightly.
- Page 13 ASSEMBLY ASSEMBLY PIVOT SUPPORT: Turn the front wheels towards the right. Install the pivot support (item 1) between the two sup- ports and slide in place the pin (item 2) in the required holes. The other holes get the hooked end (5) of the pin.
-
Page 14: Step 3: Drive Mechanism Preparation
ASSEMBLY STEP 3 DRIVE MECHANISM PREPARATION: SUPPORTS-GENERAL INSTALLATION: Secure each support (See table) with two carriage bolts 3/8’’ x 3/4’’ (item 3) heads outside. Side Support Left 104345 (item 2) Right 104345 (no interference with mower deck) (Item 2) Right 104346 (104345 interferes with mower deck) (item 1) - Page 15 ASSEMBLY NOTE: NOTE: The drive mechanism must be straight, to 1) This drive mechanism may be mounted on tractors make sure the belt works well. with two types of clutch mechanisms. See the fol- lowing instructions for those that are appropriate for your tractor.
-
Page 16: Step 4: Drive Mechanism Installation
ASSEMBLY STEP 4 DRIVE MECHANISM INSTALLATION: NOTE: You must remove mower deck to install the drive mechanism. Install the drive mechanism (item 1) by hooking the front part of the drive frame (item 2) on the brace pin (item 3). Lift and attach the rear portion of the drive frame between the supports (items 4, 5 &... - Page 17 ASSEMBLY When the drive mechanism is disengaged, the belt guides (item 4) must push enough on the belt (item 3) so that the drive mechanism pulley does not turn. Tighten the collar screw and the nut tightly. NOTE: After installation, attach the cable to the frame with the new tie wrap supplied with this kit.
-
Page 18: Step 5: Snowblower Installation
ASSEMBLY STEP 5 WARNING SNOWBLOWER INSTALLATION: Refer to snowblower owner’s manual, parts breakdown TO PREVENT INJURIES: section for parts identification. Stop the motor. Apply parking brake. WARNING Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental FOR YOUR SECURITY: starting. - Page 19 ASSEMBLY VERIFY BELT ROUTING: -Lower the snowblower to the ground and let it run for a few seconds under supervision. -Disengage the snowblower and stop the engine. -Remove the belt guard. -Check the belts to make sure they are well inserted on the pulleys and have not flipped on their sides in the pulleys and that they do not touch the belt guides.
-
Page 20: Rotary Broom Installation
ASSEMBLY ROTARY BROOM INSTALLATION: WARNING Refer to rotary broom owner’s manual, parts breakdown section for parts identification. TO PREVENT INJURIES: Stop the motor. WARNING Apply parking brake. Remove the ignition key. Disconnect the wire from the spark plug(s) and FOR YOUR SECURITY: keep away from spark plug(s) to prevent accidental Read the Rotary Broom owner's manual for starting. - Page 21 ASSEMBLY VERIFY BELT ROUTING: -Lower the rotary broom to the ground and let it run for a few seconds under supervision. -Disengage the rotary broom and stop the engine. -Check the belts to make sure they are well inserted on the pulleys and have not flipped on their sides in the pulleys and that they do not touch the belt guides WARNING TO PREVENT INJURIES:...
-
Page 22: Blade Installation
ASSEMBLY BLADE INSTALLATION: Refer to blade owner’s manual, parts breakdown section for parts identification. WARNING FOR YOUR SECURITY: Read the Blade owner's manual for safety precautions and rules. Follow the assembly and operation instructions. Attach the blade to the subframe as shown. Make sure the blade is pushed in until locked into place by the springs (item 1). -
Page 23: Maintenance & Dismounting
MAINTENANCE & DISMOUNTING MAINTENANCE BELT REPLACEMENT Drive Mechanism Belt: a) Check mounting bolts at frequent intervals for Dismount the drive mechanism. proper tightness to be sure equipment is in safe Remove the bolt which retains the tension pulley. working condition. Replace the belt and re-install the tension pulley. -
Page 24: Compact Drive Mechanism
PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES DRIVE MECHANISM COMPACT 700414 MÉCANISME D’ENTRAINEMENT COMPACT 700414-1... - Page 25 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Drive frame Châssis d'entraînement 104343 2 Idler arm Bras de tension 104347 3 Cable holder Fixation du cable 104092 4 Support Support 104344 5 Support...
-
Page 26: Northeast Drive Mechanism
PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES NORTHEAST DRIVE MECHANISM 700415 MÉCANISME D’ENTRAINEMENT NORDET 700415... - Page 27 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Drive frame Châssis d'entraînement 104343 2 Idler arm Bras de tension 104347 3 Cable holder Fixation du câble 104092 4 Support Support 104344 5 Support...
-
Page 28: Subframe
PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES SUBFRAME / SOUS-CHÂSSIS... - Page 29 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Right support Support droit 104332 2 Lift arm Bras de relevage 104336 3 Left support Support gauche 104331 4 Brace pin Tige de renfort 104334 5 Link...
- Page 30 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 35 Spacer Espaceur 104091 36 Washer Rondelle 104122 37 Thread cutting screws 5/16" n.c. x 1" Vis a filetage coupante 5/16" n.c. x 1" 38 Carriage bolt 3/8"...
-
Page 31: Torque Specification Table
TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads. -
Page 32: Attachments
ATTACHMENTS SNOWBLOWER ROTARY TILLER #700312 #700255-40" #700374-44" Mounts to the rear of lawn, yard & UTILITY BLADE #700266 #700378-48" garden tractors 14 to 25 HP. Comes Fits on same subframe as rotary complete with drive & manual lift Mounts on the same subframe as the broom and utility blade.
