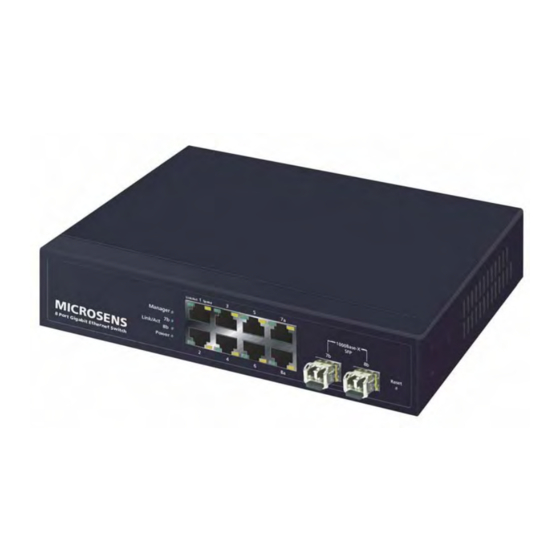

Microsens MS453522M User Manual

8 port gigabit ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

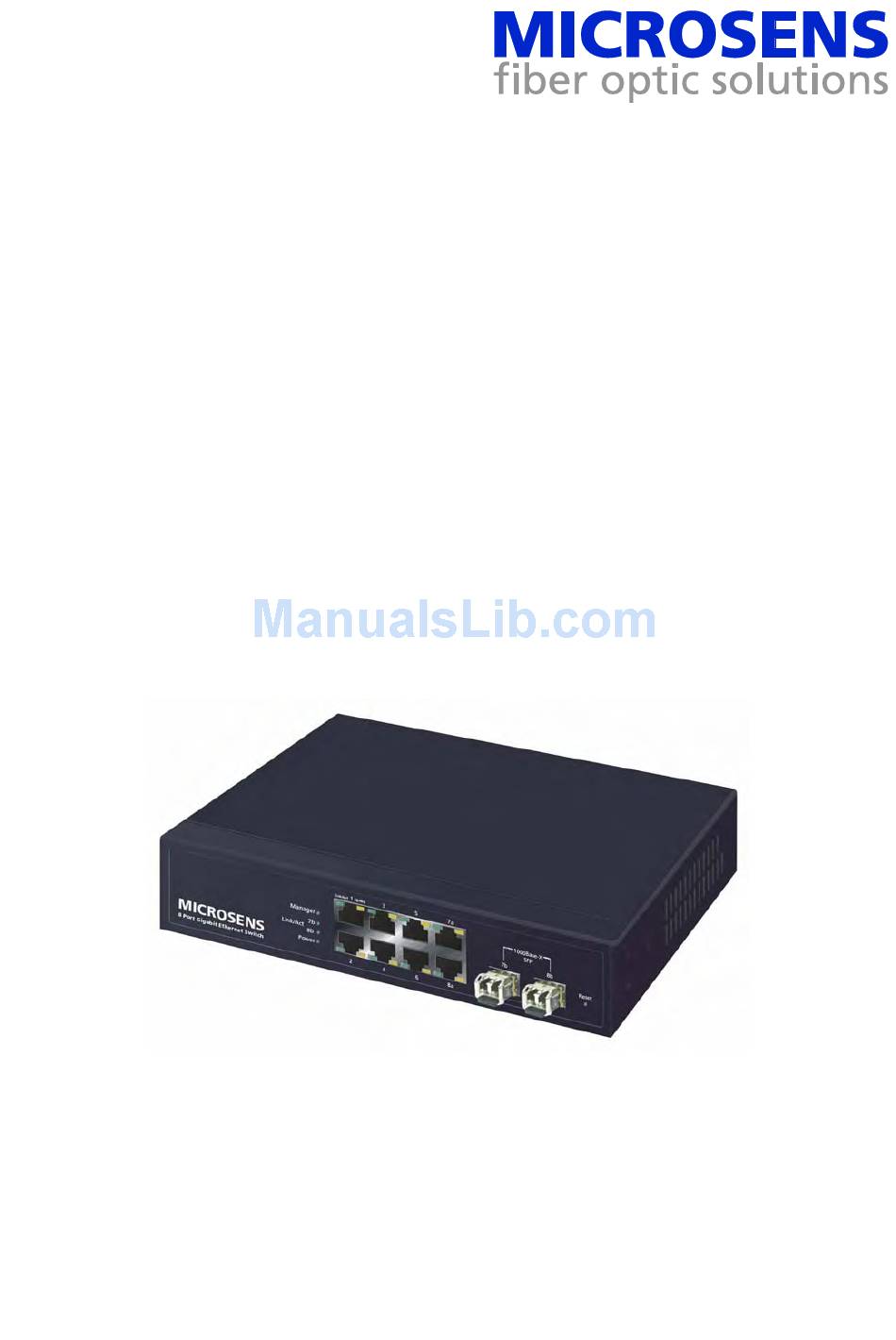

MS453522M
8 Port Gigabit Ethernet Switch
User's Manual
Release 2.14
Issue 12.2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS453522M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microsens MS453522M

Summary of Contents for Microsens MS453522M

  • Page 1 MS453522M 8 Port Gigabit Ethernet Switch User's Manual Release 2.14 Issue 12.2006...

  • Page 3: Table Of Contents

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Table of Contents ------------------------------------------------------------------------------------------------ AUTION --------------------------------------------------------------------- LECTRONIC MISSION OTICES CHAPTER 1. INTRODUCTION ------------------------------------------------------------------ 2 1-1. O ----------------------------------------- 2 VERVIEW OF IGABIT THERNET WITCH 1-2. C ---------------------------------------------------------------------------------------- 4 HECKLIST 1-3. F ----------------------------------------------------------------------------------------- 4 EATURES 1-4.
  • Page 4 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-3. M ------------------------------------------------------------------------------------------57 IRROR 3-4. B ------------------------------------------------------------------58 ANDWIDTH ANAGEMENT 3-5. Q ----------------------------------------------60 UALITY OF ERVICE ONFIGURATION 3-6. SNMP C -----------------------------------------------------------------------70 ONFIGURATION 3-7. IGMP S -------------------------------------------------------------------------------72 NOOPING 3-8. M ------------------------------------------------------------------------74 ACKET ENGTH 3-9. DHCP B ------------------------------------------------------------------------------------75 3-10.

  • Page 5: Caution

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.
  • Page 6 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 8 Port Gigabit Ethernet Switch through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many explanation in detail of hardware and software functions are shown as well as the examples of the operation for web-based interface and command-line interface (CLI).

  • Page 7: Chapter 1. Introduction

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 1. Introduction 1-1. Overview of 8 Port Gigabit Ethernet Switch 8-port Gigabit L2 Managed Switch, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch included 6-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch.
  • Page 8 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule. Spanning Tree: Support IEEE 802.1D, IEEE 802.1w (RSTP: Rapid Spanning Tree Protocol) standards.

  • Page 9: Checklist

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 1-2. Checklist Before you start installing the switch, verify that the package contains the following: ⎯ A set of 8 Port Gigabit Ethernet Switch ⎯ Modules (optional) ⎯ This User's Manual in CD-ROM ⎯...
  • Page 10 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • Supports 802.1Q VLAN • Supports user management and limits three users to login • Maximal packet length can be up to 9208 bytes for jumbo frame application • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed •...

  • Page 11: View Of 8 Port Gigabit Ethernet Switch

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 1-4. View of 8 Port Gigabit Ethernet Switch Fig. 1-1 Full View of 8 Port Gigabit Ethernet Switch 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 8 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional removable modules on the front panel of the switch.

  • Page 12: User Interfaces On The Rear Panel

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • LED Indicators Color Function System LED POWER Green Lit when +5V DC power is on and good CPU LED Green Blinks when CPU is activity 10/100/1000Ethernet TP Port 1 to 8 LED...

  • Page 13: View Of The Optional Modules

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 1-5. View of the Optional Modules In the switch, Port 7~8 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function.

  • Page 14: Chapter 2. Installation

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2. Installation 2-1. Starting 8 Port Gigabit Ethernet Switch Up This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1.
  • Page 15 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight- through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.

  • Page 16: Installing Chassis To A 19-Inch Wiring Closet Rail

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail Fig. 2-2 Caution: Allow a proper spacing and proper air ventilation for the cooling fan at both sides of the chassis. ⇒ Wear a grounding device for electrostatic discharge.

  • Page 17: Cabling Requirements For Tp Ports

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-3-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters.

  • Page 18: Switch Cascading In Topology

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-3-3. Switch Cascading in Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels &...
  • Page 19 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-3). Fig. 2-3 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
  • Page 20 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Case 2b: Port-based VLAN (See Fig.2-5). Fig. 2-5 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.

  • Page 21: Configuring The Management Agent Of 8 Port Gigabit Ethernet Switch

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-4. Configuring the Management Agent of 8 Port Gigabit Ethernet Switch We offer you three ways to startup the switch management function. They are RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures.

  • Page 22: Configuring The Management Agent Of 8 Port Gigabit Ethernet Switch Through The Serial Rs-232 Port

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-4-1. Configuring the Management Agent of 8 Port Gigabit Ethernet Switch through the Serial RS-232 Port To perform the configuration through RS-232 console port, the switch’s serial port must be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9 connector.
  • Page 23 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • Set IP Address, Subnet Mask and Default Gateway IP Address Please refer to Fig. 2-7 CLI Management for details about the ex-factory setting. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.

  • Page 24: Configuring The Management Agent Of 8 Port Gigabit Ethernet Switch Through The Ethernet Port

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-1-4-2. Configuring the Management Agent of 8 Port Gigabit Ethernet Switch through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here.

  • Page 25: Ip Address Assignment

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 2-10 the Login Screen for Web 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.
  • Page 26 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
  • Page 27 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
  • Page 28 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched.
  • Page 29 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.

  • Page 30: Typical Applications

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 2-2. Typical Applications The 8 Port Gigabit Ethernet Switch implements 8 Gigabit Ethernet TP ports with auto MDIX and two slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. For more details on the specification of the switch, please refer to Appendix A.
  • Page 31 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection...

  • Page 32: Chapter 3. Operation Of Web-Based Management

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3. Operation of Web-based Management This chapter instructs you how to configure and manage the switch through the web user interface it supports, to access and manage the 6-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch.
  • Page 33 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual In the switch, it supports a simple user management function allowing only one administrator to configure the system at the same time. If there are two or more users using administrator’s identity, the switch will allow the only one who logins first to configure the system.

  • Page 34: Web Management Home Overview

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1. Web Management Home Overview After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up Time”, “Current Time”, “BIOS...
  • Page 35 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual • The Information of Page Layout ⎯ On the top side, it shows the front panel of the switch. In the front panel, the linked ports will display green; as to the ports, which are link off, they will be dark. For the optional modules, the slot will show only a cover plate if no module exists and will show a module if a module is present.
  • Page 36 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Root System Port Mirror Bandwidth SNMP IGMP Snooping Max. Packet Length DHCP Boot VLAN MAC Table GVRP Trunk 802.1X Alarm Configuration Diagnostics TFTP Server Firmware Upgrade Reboot Logout...

  • Page 37: System Information

    You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is MICROSENS. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
  • Page 38 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch.

  • Page 39: Ip Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
  • Page 40 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
  • Page 41 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet. User can specify a DNS IP address for the switch.

  • Page 42: Time Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second”...
  • Page 43 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
  • Page 44 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31.

  • Page 45: Account Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity. Guest-equivalent identity can modify his password only.

  • Page 46: Management Policy

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1-5. Management Policy Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
  • Page 47 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
  • Page 48 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that ”Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255.

  • Page 49: Virtual Stack

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-1-6. Virtual Stack Function name: Virtual Stack Function description: Virtual Stack Management(VSM) is the group management function. Through the proper configuration of this function, switches in the same LAN will be grouped automatically.
  • Page 50 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 3-8 Parameter description: State: It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option.

  • Page 51: Port Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
  • Page 52 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
  • Page 53 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Speed / Duplex Mode: Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex.
  • Page 54 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 3-11 Parameter description of Port 7 and Port 8: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so on. Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode.
  • Page 55 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Vendor SN (Serial Number): Show the serial number assigned by the manufacturer. Date Code: Show the date this SFP module was made. Temperature: Show the current temperature of SFP module. Vcc: Show the working DC voltage of SFP module.

  • Page 56: Port Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-2-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below.
  • Page 57 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Mode: Set the speed and duplex of the port. In speed, if the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.

  • Page 58: Simple Counter

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.

  • Page 59: Detail Counter

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-14, the window can show only one port counter information at the same time.
  • Page 60 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Rx Low Priority Packets: Number of Rx packets classified as low priority. Rx Broadcast: Show the counting number of the received broadcast packet. Rx Multicast: Show the counting number of the received multicast packet.
  • Page 61 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Tx 65-127 Bytes: Number of 65 ~ 126-byte frames in good and bad packets transmitted. Tx 128-255 Bytes: Number of 127 ~ 255-byte frames in good and bad packets transmitted. Tx 256-511 Bytes: Number of 256 ~ 511-byte frames in good and bad packets transmitted.

  • Page 62: Mirror

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-3. Mirror Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.

  • Page 63: Bandwidth Management

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-4. Bandwidth Management Function name: Bandwidth Management Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Note: Each port of the switch owns 16KB packet buffer. The packet buffer size will be reduced when the bandwidth rate limitation is enabled, which may cause that jumbo frame cannot be forwarded.
  • Page 64 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Broadcast & Multicast for Ingress Rate Limiting (Policing): Set up the limit of Ingress bandwidth for the port you choose. Incoming traffic will be discarded if the rate exceeds the value you set up in Data Rate field. The format of the packet limits to broadcast and multicast.

  • Page 65: Qos (Quality Of Service) Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-5. QoS (Quality of Service) Configuration offers powerful 5 kinds of QoS functions. There are Per Port Priority that you switch can assign each port to different precedence, VLAN Tag priority that can make precedence of 8 priorities, IP TOS Classification, IP TCP/UDP Port Classification and IP DiffServe Classification.
  • Page 66 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Per Port Priority Function description: We can assign QoS Priority, including High and Low for each port. For example, if we transmit IP packets from Port 2 and Port 3 at the speed of 1Gbps to Port 1, and set the Class of Port 2 as High and Port 3 as Low, then the packets of Port 3 will be dropped when the congestion happens because Port 2 owns higher precedence of transmitting packets.
  • Page 67 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: VLAN Tag Priority Function description: In vlan tag, there are 3 bits belonging to priority. According to these 3 bits, we could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0, 0 1 1, 1 0 0, 1 0 1, 1 1 0, 1 1 1. We can set High priority or Low priority for each traffic class.
  • Page 68 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Bit 0, Bit 1, Bit 2: According to the arrangement of VLAN-tagged priority, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 1, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
  • Page 69 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: IP ToS Classification Function description: Another QoS function is the application of Layer 3 on network framework. We focus on TOS field of IP header. There are three bits in TOS field. We means bit 5~7 of TOS field that we will use.
  • Page 70 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Bit 0, Bit 1, Bit 2: According to the arrangement of Bit 5 ~ Bit 7 in TOS Field of IP Header, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 1, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
  • Page 71 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: IP TCP/UDP Port Classification Function description: In L4 QoS Configuration, you can enter one of these special network transmission events, for example we use” Down prioritize web browsing, e-mail, FTP and news “L4 QoS Configuration and click <Apply>...
  • Page 72 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Prioritize Streaming Audio/Video: Belong to the QoS in L4. Just tick the option button and press <Apply> button to < have this function taken affect. Then, click Advance >>> button set up Special TCP/UDP port for QoS.
  • Page 73 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Advanced Mode Fig. 3-21 Simple Mode Fig. 3-22 Simple Mode: Press <Simple<<> button is to return to the screen that all L4 port number will disappear (See Fig. 3-22).
  • Page 74 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: IP Diffserv Classification Function description: In the late 1990s, the IETF redefined the meaning of the 8-bit SERVICE TYPE field to accommodate a set of differentiated services (DS). Under the differentiated services interpretation, the first six bits comprise a codepoint, which is sometimes abbreviated DSCP, and the last two bits are left unused.

  • Page 75: Snmp Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-6. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. The...
  • Page 76 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Default SNMP function : Enable Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function : Enable Default trap host IP address: 0.0.0.0...

  • Page 77: Igmp Snooping

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-7. IGMP Snooping The function, IGMP Snooping, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network.
  • Page 78 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including “Passive”, “Active” and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable Active:...

  • Page 79: Max. Packet Length

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-8. Max. Packet Length Function name: Max. Packet Length Function description: The switch is capable of dealing with 9k Jumbo Frames, which suits the transmission for a large amount of data in the network environment.

  • Page 80: Dhcp Boot

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-9. DHCP Boot The DHCP Boot function is used to spread the request broadcast packet into a bigger time frame to prevent the traffic congestion due to broadcast packets from many network devices which may seek its NMS, boot server, DHCP server and many connections predefined when the whole building or block lose the power and then reboot and recover.

  • Page 81: Vlan

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-10. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
  • Page 82 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Metro Mode: The Metro Mode is a quick configuration VLAN environment method on Port- based VLAN. It will create 6 or 7 Port-based VLAN groups. Double-tag: Double-tag mode belongs to the tag-based mode, however, it would treat all frames as the untagged ones, which means that tag with PVID will be added into all packets.
  • Page 83 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Up-link Port: This function is enabled only when metro mode is chosen in VLAN mode. Except Port 7, each port of the switch cannot transmit packets with each other. Each port groups a VLAN with Port 7, thus, total 7 groups consisting of 2 members are formed.

  • Page 84: Tag-Based Group

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-10-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups, You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons.
  • Page 85 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Add Group: Create a new Tag-based VLAN. Input the VLAN name as well as VID, configure the SYM-VLAN function and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.

  • Page 86: Port-Based Group

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-10-3. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons.
  • Page 87 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.

  • Page 88: Tag Rule

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-10-4. Tag Rule Function name: Tag Rule Function description: In VLAN Tag Rule Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rules to each port. There are two ingress filtering rules which can be applied to the switch.
  • Page 89 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Role: This is an egress rule of the port. Here you can choose Access, Trunk or Hybrid. Trunk means the outgoing packets must carry VLAN tag header. Access means the outgoing packets carry no VLAN tag header. If packets have double VLAN tags, one will be dropped and the other will still be left.

  • Page 90: Mac Table

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-11. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static Forward, Static Filter and MAC Alias, which cannot be categorized to some function type. They are described below.
  • Page 91 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC” or “Static MAC”.
  • Page 92 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function Name: MAC Table Maintenance Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table.
  • Page 93 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function Name: Static Forward Function Description: Static Forward is a function that allows the user in the static forward table to access a specified port of the switch. Static Forward table associated with a specified port of a switch is set up by manually inputting MAC address and its alias name.
  • Page 94 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Static Filter Function Description: Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is listed in the filtering Static Filter table. User can very easily maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields individually.
  • Page 95 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report. At the initial time, it shows all pairs of the existed alias name and MAC address.
  • Page 96 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 60 - A7 - D6 – 00 - 01 Alias: MAC alias name you assign.

  • Page 97: Gvrp Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-12. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application.
  • Page 98 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below.
  • Page 99 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state.
  • Page 100 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-43...
  • Page 101 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application.
  • Page 102 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID.

  • Page 103: Stp Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-13. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time.
  • Page 104 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time.

  • Page 105: Stp Configuration

    It decides how long a bridge should send this message to other bridge to tell I am alive. When the MICROSENS is the root bridge of the LAN, for example, all other bridges will use the hello time assigned by this switch to communicate with each other.
  • Page 106 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.

  • Page 107: Stp Port Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-13-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item. User also can set “Path Cost”...
  • Page 108 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID.
  • Page 109 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port.

  • Page 110: Trunking Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-14. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
  • Page 111 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Per Trunking Group supports a maximum of 12 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Some configuration examples are listed below: a) 12 ports have already used Static Trunk Group ID 1, the 13th port willing to use the same Static Trunk Group ID will be automatically set to use the “None”...
  • Page 112 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports.
  • Page 113 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group.
  • Page 114 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 8) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
  • Page 115 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view.
  • Page 116 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: LACP System Priority Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system. Each system supports LACP will be assigned a globally unique System Identifier for this purpose.

  • Page 117: Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-15. 802.1X Configuration 802.1X port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1X-enabled port without authentication. If a user wishes to touch the network through a port under 802.1X control, he (she) must firstly input his...
  • Page 118 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual The overview of operation flow for the Fig. 3-52 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify.
  • Page 119 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Authentication server Fig. 3-53 Authenticator Supplicant A The Fig. 3-54 shows the procedure of 802.1X authentication. There are steps for the login based on 802.1X port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
  • Page 120 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual If user ID and password is correct, the authentication server will send a Radius- Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP- Success to the supplicant.
  • Page 121 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
  • Page 122 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: 802.1X State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1X port security application. Parameter description: Radius Server: RADIUS server IP address for authentication.
  • Page 123 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: 802.1X Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1X operation mode.
  • Page 124 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X...
  • Page 125 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1X port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1X parameters...
  • Page 126 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.

  • Page 127: Alarm Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-16. Alarm Configuration Alarm Configuration Events Configuration Email/SMS Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 24 different trap events to users for switch management.
  • Page 128 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 3-59 Function name: Email/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings. An email address or a mobile phone number has to be set in the web page of alarm configuration (See Fig.
  • Page 129 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server. Email Address 1 – 6: email address that would like to receive the alarm message.

  • Page 130: Configuration

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-17. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is the ex-factory setting and cannot be altered.

  • Page 131: Save/Restore

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-17-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-62 Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory.
  • Page 132 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve the ex-factory setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1.
  • Page 133 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system.

  • Page 134: Config File

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-17-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description:...

  • Page 135: Diagnostics

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-18. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections.
  • Page 136 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box.
  • Page 137 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.

  • Page 138: Tftp Server

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-19. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply>...

  • Page 139: Log

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-20. Log This function shows the log data. The switch provides system log data for users. There are 19 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.

  • Page 140: Firmware Upgrade

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-21. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet.

  • Page 141: Reboot

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-22. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.

  • Page 142: Logout

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 3-23. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.

  • Page 143: Chapter 4. Operation Of Cli Management

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
  • Page 144 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Fig. 4-1 Fig. 4-2...

  • Page 145: Commands Of Cli

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands.

  • Page 146: Global Commands Of Cli

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
  • Page 147 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
  • Page 148 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before.
  • Page 149 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.
  • Page 150 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately;...
  • Page 151 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user- defined configuration.

  • Page 152: Local Commands Of Cli

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 4-2-2. Local Commands of CLI 802.1X set max-request Syntax: set max-request <port-range> <times> Description: The maximum number of times that the state machine will retransmit an EAP Request packet to the Supplicant before it times out the authentication session.
  • Page 153 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set port-control Syntax: set port-control <port-range> <authorized> Description: To set up 802.1X status of each port. Argument: <port range> : syntax 1,5-7, available from 1 to 8 <authorized> : Set up the status of each port...
  • Page 154 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual <port range> : syntax 1,5-7, available from 1 to 8 <max> : max. value , range 1-10 Possible value: <port range> : 1 to 8 <max> : 1-10, default is 2 Example: MICROSENS(802.1X)# set reAuthMax 2 2...
  • Page 155 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Syntax: set suppTimeout <port-range> <sec> Description: A timer used by the Backend Authentication state machine in order to determine timeout conditions in the exchanges between the Authenticator and the Supplicant or Authentication Server.
  • Page 156 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show parameter Description: To display the parameter settings of each port. Argument: None Possible value: None Example: MICROSENS(802.1X)# show parameter port 1) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60...
  • Page 157 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual port 2) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60 reAuthEnabled : ON reAuthPeriod : 3600 max. Request : 2 suppTimeout : 30 serverTimeout : 30 show security...
  • Page 158 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual account Syntax: add <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: A string must be at least 5 character.
  • Page 159 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual modify Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: MICROSENS(account)# modify aaaaa username/password: the length is from 5 to 15.
  • Page 160 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual alarm <<email>> del mail-address Syntax: del mail-address <#> Description: To remove the configuration of E-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6 Example:...
  • Page 161 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set server Syntax: set server <ip> Description: To set up the IP address of the email server. Argument: <ip>:email server ip address or domain name Possible value: None. Example: MICROSENS(alarm-email)# set server 192.168.1.6...
  • Page 162 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual <<events>> del all Syntax: del all <range> Description: To disable email, sms and trap of events. Argument: <range>:del the range of events, syntax 1,5-7 Possible value: <range>: 1~24 Example: MICROSENS(alarm-events)# del all 1-3...
  • Page 163 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual del trap Syntax: del trap <range> Description: To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7 Possible value: <range>: 1~24 Example: MICROSENS(alarm-events)# del trap 1-3 set all Syntax: set all <range>...
  • Page 164 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set sms Syntax: set sms <range> Description: To enable the sms of the events. Argument: <range>:set the range of sms, syntax 1,5-7 Possible value: <range>: 1~24 Example: MICROSENS(alarm-events)# set sms 1-3 set trap Syntax: set trap <range>...
  • Page 165 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Example: MICROSENS(alarm-events)# show Events Email SMS Trap ------------------------------------------------ 1 Cold Start 2 Warm Start 3 Link Down 4 Link Up 5 Authentication Failure 6 User Login 7 User Logout 8 STP Topology Changed...
  • Page 166 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show (alarm) Syntax: show Description: The Show for alarm here is used to display the configuration of Trap, SMS or E-mail. Argument: None. Possible value: None. Example: MICROSENS(alarm)# show events MICROSENS(alarm)# show email MICROSENS(alarm)# show sms <<sms>>...
  • Page 167 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set phone-number Syntax: set phone-number <#> <phone-number> Description: To add sms phone number. Argument: <#>: mobile phone number, range: 1 to 6 <phone-number>: phone number Possible value: <#>: 1 to 6 Example:...
  • Page 168 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To display the configuration of SMS trap event. Argument: None. Possible value: None. Example: MICROSENS(alarm-sms)# show SMS Server : 192.168.1.7 Username : ABC Password : **************** Mobile Phone 1: 0968777777...
  • Page 169 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual bandwidth disable egress-rate Syntax: disable egress-rate <range> Description: To cancel the egress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 to 8 Possible value: <range>: 1 to 8 Example: MICROSENS(bandwidth)# disable egress-rate 1-8...
  • Page 170 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual enable egress-rate Syntax: enable egress-rate <range> <data_rate> Description: To set up the egress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 to 8 <data_rate>: 0-1000 Possible value: <range>: 1 to 8 <data_rate>: 0-1000...
  • Page 171 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To display all current settings of the bandwidth. Argument: None. Possible value: None. Example: MICROSENS(bandwidth)# show Ingress Egress Port ================================================= ====================== All State All Rate Storm State Storm Rate...
  • Page 172 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual config-file export start Syntax: export start Description: To run the export start function. Argument: None. Possible value: None. Example: MICROSENS(config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: To run the export user-conf function.
  • Page 173 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual import user-conf Syntax: import user-conf Description: To run the import user-conf function. Argument: None. Possible value: None. Example: MICROSENS(config-file)# import user-conf Import successful. set export-path Syntax: set export-path <filepath> Description: To set up the filepath and filename that will be exported.
  • Page 174 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual dhcp-boot set dhcp-boot Syntax: set dhcp-boot <sec> Description: To set up the delay time for DHCP Boot. Argument: <sec>:range syntax: 0, 1-30. The value “0” is to disable dhcp-boot delay Possible value: <sec>:0-30...
  • Page 175 To confirm that whether the remote end-station or switch itself is alive or not. Argument: <ip> : ip address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. microsens.com Example: MICROSENS(diag)# ping 192.168.1.115 Gateway : 192.168.1.253...
  • Page 176 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual firmware set upgrade-path Syntax: set upgrade-path <filepath> Description: To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path Possible value: <filepath>: upgrade file path Example: MICROSENS(firmware)# set upgrade-path gs2108c_MICROSENS_v2.03.img...
  • Page 177 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual gvrp disable Syntax: disable Description: To disable the gvrp function. Argument: None. Possible value: None. Example: MICROSENS(gvrp)# disable enable Syntax: enable Description: To enable the gvrp function. Argument: None. Possible value: None.
  • Page 178 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual MICROSENS(gvrp)# group 2 MICROSENS(gvrp-group-2)# set applicant 1-6 non-participant MICROSENS(gvrp-group-2)# show GVRP group VID: 2 Port Applicant Registrar ------ ------------------------- --------- Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal...
  • Page 179 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set applicant Syntax: set applicant <range> <normal|non-participant> Description: To set default applicant mode for each port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 8 <normal>: set applicant as normal mode <non-participant>: set applicant as non-participant mode...
  • Page 180 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set restricted Syntax: set restricted <range> <enable|disable> Description: To set the restricted mode for each port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 8 <enable>: set restricted enabled <disable>: set restricted disabled Possible value: <range>: 1 to 8...
  • Page 181 Leave Time must equal double Join Time at least. Possible value: <range> : 1 to 8 <join>: 20 to 100 <leave>: 60 to 300 <leaveall>: 1000 to 5000 Example: MICROSENS(gvrp)# set timer 2-8 25 80 2000 show config Syntax: show config Description: To display the gvrp configuration. Argument: None.
  • Page 182 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show counter Syntax: show counter <port> Description: To display the counter number of the port. Argument: <port>: port number Possible value: <port>: available from 1 to 8 Example: MICROSENS(gvrp)# show counter 2...
  • Page 183 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual hostname hostname Syntax: hostname <name> Description: To set up the hostname of the switch. Argument: <name>: hostname, max. 40 characters. Possible value: <name>: hostname, max. 40 characters. Example: MICROSENS# hostname Company Company#...
  • Page 184 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual disable dhcp Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None. Possible value: None. Example: MICROSENS(ip)# disable dhcp enable dhcp Syntax: enable dhcp <manual|auto> Description: To enable the system DHCP function and set DNS server via manual or auto mode.
  • Page 185 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set ip Syntax: set ip <ip> <mask> <gateway> Description: To set the system IP address, subnet mask and gateway. Argument: <ip> : ip address <mask> : subnet mask <gateway> : default gateway Possible value: <ip>...
  • Page 186 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: MICROSENS(log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None.
  • Page 187 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported.
  • Page 188 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual mac-table <<alias>> Syntax: del <mac> Description: To delete the mac alias entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 Possible value: <mac> : mac address Example: MICROSENS(mac-table-alias)# del 00-44-33-44-55-44 Syntax: set <mac> <alias>...
  • Page 189 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual <<information>> search Syntax: search <port> <mac> <vid> Description: To look for the relative mac information in mac table. Argument: <port> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 8 <mac>...
  • Page 190 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual <<maintain>> set aging Syntax: set aging <#> Description: To set up the age out time of dynamic learning mac. Argument: <#>: age-timer in seconds, 0, 10 to 65535. The value “0” means to disable aging Possible value: <#>: 0, 10 to 65535.
  • Page 191 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual <<static-mac>> Syntax: add <mac> <port> <vid> [alias] Description: To add the static mac entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 <port> : 0-8. The value “0” means this entry is filtering entry <vid>...
  • Page 192 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show filter Syntax: show filter Description: To display the static filter table. Argument: None Possible value: None Example: MICROSENS(mac-table-static-mac)# show filter Static Filtering Etnry: (Total 1 item(s)) 1) mac: 00-33-03-04-05-06, vid: -, alias: ccc...
  • Page 193 [<type> <value>] For example, h(ttp),s(nmp),t(elnet) or any. <action> <value> No default and it must be set. Example: MICROSENS(management-add)# set name Mary vid 20 ip 192.168.1.1-192.168.1.90 port 2-5,8 type h,s action a MICROSENS(management-add)# show #: 1 Name : Mary VlanID : 20 IP : 192.168.1.1-192.168.1.90...
  • Page 194 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual delete Syntax: delete # Description: To delete a specific record or range. Argument: <#>: a specific or range management security entry(s) Possible value: None. Example: MICROSENS(management)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80...
  • Page 195 For example, h(ttp),s(nmp),t(elnet) or any <action> <value> No default and it must be set. Example: MICROSENS(management)# edit 1 MICROSENS(management-edit-1)# set name Tom vid 2 ip 192.168.1.30- 192.168.1.80 port 1-2 type s action d MICROSENS(management-edit-1)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80...
  • Page 196 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To show the specific management policy record. Argument: None. Possible value: None. Example: MICROSENS(management)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80 Type : SNMP...
  • Page 197 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual max-pkt-len set len Syntax: set len <range> <length> Description: To set up the maximum length of the packet that each port of the switch can accept. Argument: <range>: port range, syntax 1,5-7, available from 1 to 8 <length (bytes)>: maximum packet length...
  • Page 198 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual mirror set mirror-mode Syntax: set mirror-mode <rx|disable> Description: To set up the mode of mirror (rx mode or disable). Argument: <rx | disable>: rx : enable the mode of mirror(Only mirror the packets that is received)
  • Page 199 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To display the setting status of Mirror function. Argument: None. Possible value: None. Example: MICROSENS(mirror)# show Mirror Mode : rx Monitoring Port : 2 Monitored Port : 3 4 5 8...
  • Page 200 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual port clear counter Syntax: clear counter Description: To clear all ports’ counter (include simple and detail port counter) information. Argument: None. Possible value: None. Example: MICROSENS (port)# clear counter disable flow-control Syntax: disable flow-control <range>...
  • Page 201 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual enable flow-control Syntax: enable flow-control <range> Description: To enable the flow control function of the port. Argument: <range>: syntax 1,5-7, available from 1 to 8 Possible value: <range>: 1 ~ 8 Example:...
  • Page 202 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show conf Syntax: show conf Description: To display the each port’s configuration about state, speed-duplex and flow control. Argument: None. Possible value: None. Example: MICROSENS (port)# show conf show detail-counter Syntax: show detail-counter <#>...
  • Page 203 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Port 7 SFP information --------------------------------------------------------------------- Connector Type : SFP - LC Fiber Type : Multi-mode (MM) Tx Central Wavelength : 850 Baud Rate : 1G Vendor OUI : 00:60:A7 Vendor Name : MICROSENS...
  • Page 204 <#>: 1-10 <tcp/udp port range>: 0-65535 <default>: 1 or 0 <match>: 1 or 0 Example: MICROSENS(qos)# set advance-layer4 5 2 80 1 0 set default Syntax: set default <class> Description: To set priority class of the packets that qos won’t affect.
  • Page 205 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set diffserv Syntax: set diffserv <ds-range> <class> Description: To set class of ports on IP DiffServe qos. Argument: <ds-range>: dscp field, syntax 1,5-7, available from 0 to 63 <class>: class of service setting. 1: high, 0: low Possible value: <ds-range>: 0 to 63...
  • Page 206 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set pri-tag Syntax: set pri_tag <port-range> <tag-range> <class> Description: To set class of ports on vlan tag-based qos. Argument: <port-range>: port range, syntax 1,5-7, available from 1 to 8 <tag-range>: tag priority level, syntax: 1,5-7, available from 0 to 7 <class>: class of service setting.
  • Page 207 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set tos Syntax: set tos <port-range> <tos-range> <class> Description: To set class of ports on IP TOS qos. Argument: <port-range>: port range, syntax: 1,5-7, available from 1 to 8 <tos-range>: tos precedence field, syntax 1,5-7, available from 0 to 7 <class>: class of service setting.
  • Page 208 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: MICROSENS# reboot snmp disable Syntax: disable set-ability disable snmp Description: The Disable here is used for the de-activation of snmp or set-community.
  • Page 209 <community>:trap community name Possible value: <#>: 1 to 6 <port>:1~65535 Example: MICROSENS(snmp)# set get-community public MICROSENS(snmp)# set set-community private MICROSENS(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP. Argument: None.
  • Page 210 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual MCheck Syntax: MCheck <range> Description: To force the port to transmit RST BPDUs. Argument: <range>: syntax 1,5-7, available from 1 to 8 Possible value: <range>: 1 to 8 Example: MICROSENS(stp)# Mcheck 1-8...
  • Page 211 <admin p2p>: Admin point to point, <auto|true|false> Possible value: <range>:1 to 8 <path cost>: 0, 1-200000000 <priority>: 0 to 240 <edge_port>: yes / no <admin p2p>: auto / true / false Example: MICROSENS(stp)# set port 1-8 0 128 yes auto...
  • Page 212 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set version Syntax: set version <stp|rstp> Description: To set up the version of STP. Argument: <stp|rstp>:stp / rstp Possible value: <stp|rstp>:stp / rstp Example: MICROSENS(stp)# set version rstp show config Syntax: show config Description: To display the configuration of STP.
  • Page 213 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show port Syntax: show port Description: To display the port information of STP. Argument: None. Possible value: None. Example: MICROSENS# stp MICROSENS(stp)# show port Port Port Status Path Cost Priority Admin Edge Port...
  • Page 214 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show status Syntax: show status Description: To display the status of STP. Argument: None. Possible value: None. Example: MICROSENS(stp)# show status STP Status : STP State : Enabled Bridge ID : 00:60:A7:D8:09:1D...
  • Page 215 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual system set contact Syntax: set contact <contact string> Description: To set the contact description of the switch. Argument: <contact>:string length up to 40 characters. Possible value: <contact>: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
  • Page 216 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show Syntax: show Description: To display the basic information of the switch. Argument: None Possible value: None Example: MICROSENS(system)# show Model Name : MICROSENS System Description : L2 Managed Switch Location Contact...
  • Page 217 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual tftp set server Syntax: set server <ip> Description: To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value: <ip>: tftp server ip Example: MICROSENS(tftp)# set server 192.168.3.111...
  • Page 218 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual time set daylightsaving Syntax: set daylightsaving <hr> <MM/DD/HH> <mm/dd/hh> Description: To set up the daylight saving. Argument: : daylight saving hour, range: -5 to +5 MM : daylight saving start Month (01-12)
  • Page 219 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set ntp Syntax: set ntp <ip> <timezone> Description: To set up the current time via NTP server. Argument: <ip>: ntp server ip address or domain name <timezone>: time zone (GMT), range: -12 to +13 Possible value: <timezone>: -12,-11…,0,1…,13...
  • Page 220 : set the LACP to active mode passive : set the LACP to passive mode Possible value: <port-range> : 1 to 8 <method>: static / lacp <group>: 1-8. <active LACP>: active / passive Example: MICROSENS(trunk)# set trunk 1-4 lacp 1 active...
  • Page 221 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show aggtr-view Syntax: show aggtr-view Description: To display the aggregator list. Argument: None Possible value: None Example: MICROSENS(trunk)# show aggtr-view Aggregator 1) Method: None Member Ports: 1 Ready Ports:1 Aggregator 2) Method: LACP...
  • Page 222 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show lacp-priority Syntax: show lacp-priority Description: To display the value of LACP Priority. Argument: None Possible value: None Example: MICROSENS(trunk)# show lacp-priority LACP System Priority : 32768 show status Syntax: show status Description: To display the aggregator status and the settings of each port.
  • Page 223 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual vlan del port-group Syntax: del port-group <name> Description: To delete the port-based vlan group. Argument: <name>: which vlan group you want to delete. Possible value: <name>: port-vlan name Example: MICROSENS(vlan)# del port-group VLAN-2...
  • Page 224 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual disable sym-vlan Syntax: disable sym-vlan <range> Description: To drop frames from the non-member port. Argument: <range>: which port(s) you want to set, syntax 1,5-7, available from 1 to 8 Possible value: <range>: 1 to 8...
  • Page 225 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set mode Syntax: set mode <disable|port|tag|metro|double-tag> [up-link] Description: To switch VLAN mode, including disable, port-based, tag-based, metro and double-tag modes. Argument: <disable>: vlan disable <tag>: set tag-based vlan <port>: set port-based vlan <metro>: set metro mode vlan...
  • Page 226 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set port-role Syntax: set port-role <range> <access|trunk|hybrid> [vid] Description: To set egress rule: configure the port roles. Argument: <range> :which port(s) you want to set, syntax 1,5-7, available from 1 to 8 <access>: Do not tag frames...
  • Page 227 <#>: sym/asym vlan setting. 1: symmetric vlan, 0: asymmetric vlan Possible value: <vid>: 1 to 4094 <range>: 1 to 8 <#>: 0 or 1 Example: MICROSENS(vlan)# set tag-group 2 VLAN-2 2-5,6,8 0 show group Syntax: show group Description: To display the vlan mode and vlan group.
  • Page 228 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual show pvid Syntax: show pvid Description: To display pvid, ingress/egress rule. Argument: None. Possible value: None. Example: MICROSENS(vlan)# show pvid Port PVID Rule1 Rule2 Port Rule Untag Vid ------------------------------------------------------------------------------------------ Disable Disable Access...
  • Page 229 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual disable Syntax: disable Description: To disable the virtual stack. Argument: None. Possible value: None. Example: MICROSENS(vs)# disable enable Syntax: enable Description: To enable the virtual stack. Argument: None. Possible value: None. Example:...
  • Page 230 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual set role Syntax: set role <master|slave> Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: MICROSENS(vs)# set role master...

  • Page 231: Chapter 5. Maintenance

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...

  • Page 232: Appendix A Technical Specifications

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Appendix A Technical Specifications Features • 6 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab. • 2 Gigabit TP/SFP fiber are dual media ports with auto detected function.
  • Page 233 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Hardware Specifications Standard Compliance: IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x Network Interface: Configuration Mode Connector Port 10/100/1000Mbps Gigabit TP 1 - 8 NWay TP (RJ-45) 1000Base-SX Gigabit Fiber 7, 8(Option) 1000 FDX...
  • Page 234 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Diagnostic LED: System LED : Power, CPU Per Port LED: 10/100/1000M TP Port 1 to 8 : LINK/ACT, 10/100/1000Mbps 1000M SFP Fiber Port 7,8 : SFP(LINK/ACT) Power Requirement: AC Line 100 ∼ 240 V Voltage 50 ∼...

  • Page 235: Management Software Specifications

    MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual Management Software Specifications Auto-negotiation support on 10/100/1000 Base- TX ports, Web browser or console interface can set transmission speed (10/100/1000Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection.

  • Page 236: Appendix B Null Modem Cable Specifications

    Reserve Reserve MICROSENS reserves the right to make any changes without further notice to any product to improve reliability, function or design. MICROSENS does not assume any liability arising out of the application or use of any product. FR 4706...
  • Page 237 MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual ©2006 MICROSENS GmbH & Co. KG · Kueferstr. 16 · D-59067 Hamm/Germany · Tel. +49 (0)2381/9452-0 · Fax -100 · www.microsens.com...
