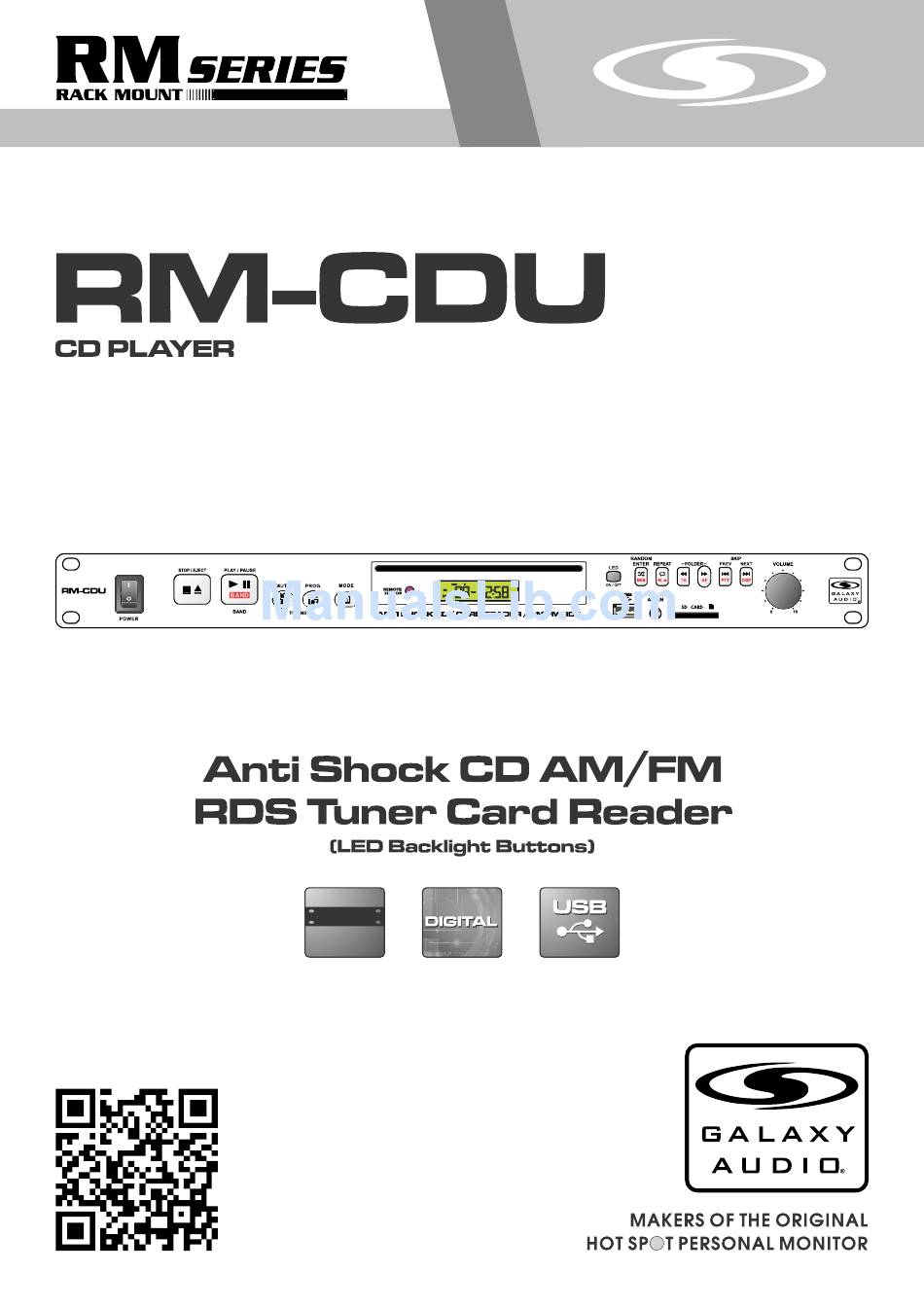

- Page 1 USER’S MANUAL 19" (482mm)
-
Page 2: Table Of Contents
4. Specifications.................10 Introduction Introduction Thank you for choosing the Galaxy Audio CD Player/Recorder. You have joined hundreds of thousands of other satisfied Galaxy customers. Since 1977 Galaxy Audio’s professional experience in design and manufacturing ensure our products’ quality, performance and reliability. -
Page 3: Safety Instructions
Safety Instructions Safety Instructions This symbol indicates that dangerous voltage This symbol indicates that there are important Constituting a risk of electric shock is present Operating and maintenance instructions in the within this unit. Literature Accompanying This Unit ! IMPORTANT SAFETY INSTRUCTIONS ! USE only with a cart, stand, tripod, bracket, or table READ these instructions. -
Page 4: Overview
1. Overview Accessories: AM Antenna Set FM Antenna Wire AV Cable AC Power Cord Remote Controller x 1 Installation: 1. Connect AV Cable to OUTPUT Terminal. 2. Connect AC Power Cable in between Socket and AC power resource in AC 110V. 3. -
Page 5: Using The Cd/Usb/Reader
2. Using the CD/USB/Reader 2.1 Main Controls and Operations BUTTON FUNCTIONS For switching the system On and Off. POWER For adjusting the volume. VOLUME AUX IN Connect iPod or other audio source. LED ON/OFF To switch the LED On or Off. PLAY/PAUSE Press to Start and Pause playing. - Page 6 BUTTON FUNCTIONS FOLDER Forward to next Folder. FOLDER Backward to last Folder. - Press to go Backwards to the previous track. PREV - Press for 2 seconds for a faster rewind. - Press to Fast Forward to the next track. NEXT - Press for 2 seconds for a faster forwarding.
-
Page 7: Radio Operation
2.2 Radio Operation Press [MODE] button to select Radio mode. BAND: For switching between FM1, FM2, and AM. Stations in FM1 and FM2 are exactly the same. Provisions are made for storing up to 10 memory presets. TUN ▲ / TUN ▼: Press ▲ or ▼ to search stations. Press for over 3 seconds to enter into automatic scan searching. -
Page 8: Using The Remote Control
3. Using the Remote Control 3.1 Main Controls and Operations EJECT PROG REPEAT STOP PLAY/ FOLDER REV. F.WD ENTER MODE DISP TUNING BAND MEMORY AUTO SCAN BUTTON FUNCTIONS Press to Eject or Insert the disk. Press to select CD, USB, SD Card, or RADIO Mode. MODE PLAY / PAUSE. - Page 9 BUTTON FUNCTIONS Repeat Play: - To play the standard format CD: 1. Press once to repeat current track. The LCD display will show “REP 1”. 2. Press again to repeat whole CD. The LCD display shows “ALL”. 3. Then press again to cancel the repeat function. REPEAT - To play MP3 format of CD, USB, or SD Card: 1.
-
Page 10: Radio Operation
3.2 Radio Operation Press the [MODE] button to select Radio mode. BAND: Switching between FM1, FM2, and AM. TUN ▲ / TUN ▼: Press ▲ or ▼ for searching stations. AUTO SCAN - +: Automatic Scan Searching. Scanning stops when unit receives the station. MEMORY: Memorizing radio stations: Up to 10 stations can be stored. - Page 11 4. Specications Connections: FM Ant: 75 Ohm AM Ant: Push Terminals Outputs: Unbalanced: 2 x RCA Inputs: Line In: 1/8" Stereo 13.2VDC Input: Screw Terminal 110-120 VAC Input: IEC C14 USB Type: A Accessories: AM and FM Antenna Power Cord Remote Control Dimensions: 19"...
-
Page 12: Specifications
WARRANTY Information can be viewed online at http://www.galaxyaudio.com/warranty.php Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2014 V20140605 Printed in China...
