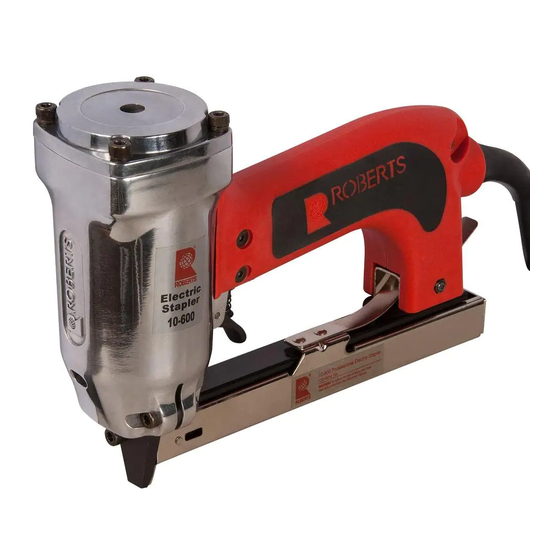

3/16" crown electric stapler
Table of Contents

Advertisement

Available languages

Available languages

3/16" Crown Electric Stapler
OWNER'S MANUAL
Agrafeuse Èlectrique pour
Agrafes Crown 3/16"
MANUEL D'UTILISATION
Grapadora Électrica para
Grapas Corona de 3/16"
MANUAL DE OPERACIÓN
10-600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3/16" Crown Electric Stapler and is the answer not in the manual?

Questions and answers

Summary of Contents for Roberts 3/16" Crown Electric Stapler

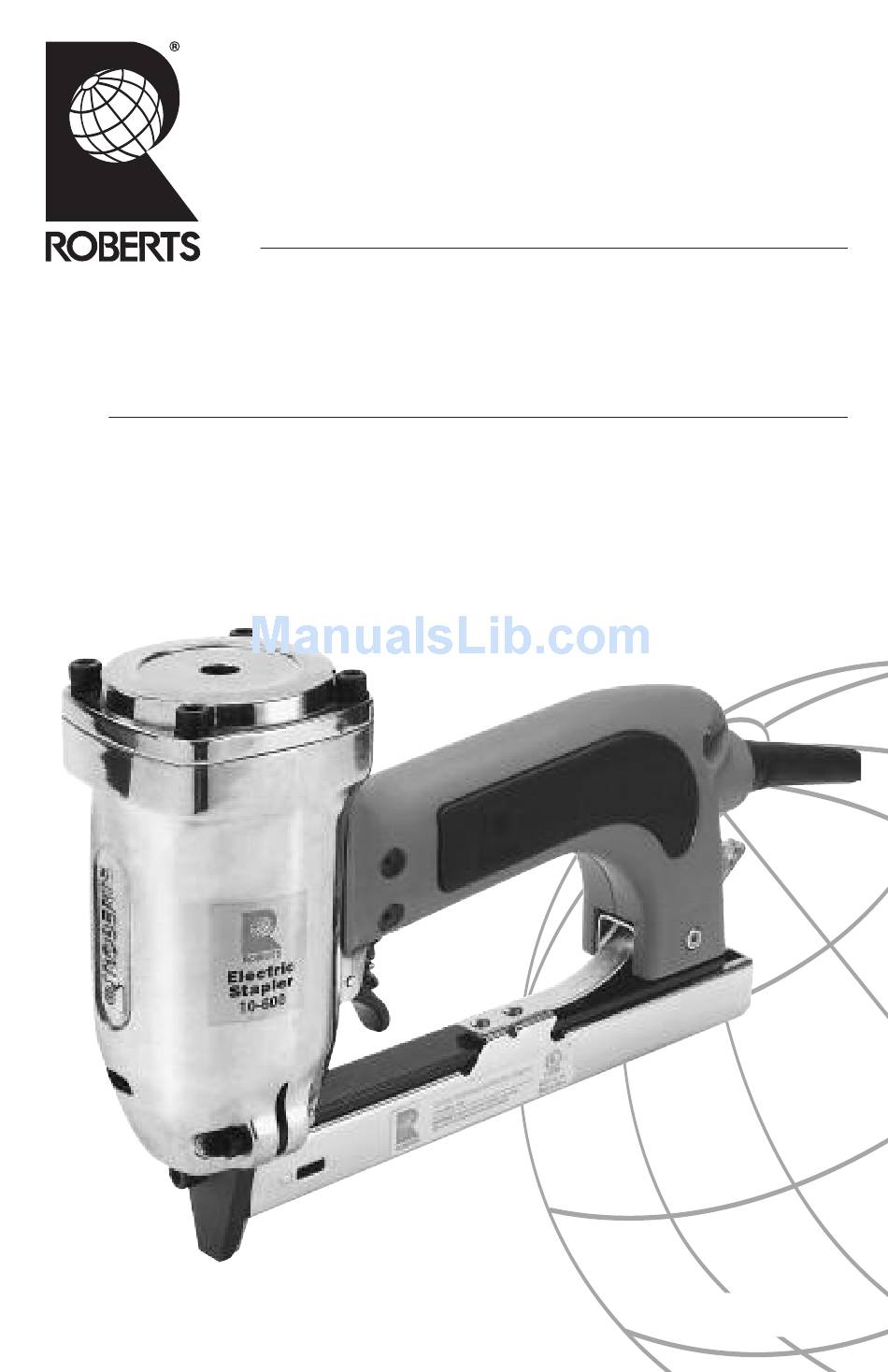

  • Page 1 3/16" Crown Electric Stapler OWNER’S MANUAL Agrafeuse Èlectrique pour Agrafes Crown 3/16" MANUEL D’UTILISATION Grapadora Électrica para Grapas Corona de 3/16" MANUAL DE OPERACIÓN 10-600...
  • Page 2: General Safety Instructions

    PLEASE READ THIS • Ensure proper dress by NOT wearing clothing or jewelry that may get MANUAL CAREFULLY caught in moving parts. Wear rubber BEFORE USING TOOL. gloves and non-skid footwear, especially when working outdoors. WARNING Protect and contain long hair with It is important to read and proper coverings.
  • Page 3: Safety Instructions

    Safety Instructions: accessories not recommended for the tool. Alterations, modifications or misuse could result in serious • Only hold plastic handle when tool personal injury. is in use. DO NOT touch tool’s metal parts. • Never point driving tool with operational fasteners at yourself or •...
  • Page 4: Operating Instructions

    Operating Instructions Extension Cords Use only 12 or 14 gauge extension cords with the 10-600 Electric Stapler. For maximum performance, use the shortest length extension cord possible. Loading Staples Disconnect the power supply. Depress the magazine latch. Pull back on the magazine cover. Insert a strip of fasteners into the magazine.
  • Page 5: Maintenance And Inspection

    Never soak tool, for such solutions may damage tool parts and electrical components. 4. Keep fastener discharge area clean at all times. Any residues could cause jamming. SERVICE: Return your stapler to your Roberts dealer or distributor for servicing of any problem.
  • Page 6: Replacement Parts List

    ROBERTS 10-600 3/16" CROWN ELECTRIC STAPLER 120 Volt Wiring Diagram White Power Supply Black Line Green Cord Trigger Blue Plug Switch Coil Ground Clip REPLACEMENT PARTS LIST Contents of Kit SKU# Description Part # Description 10-600-01 Cap Assembly Hex Bolt (4)
  • Page 7 REPLACEMENT PARTS LIST (continued) Contents of Kit SKU # Description Part # Description 10-600-05 Trigger Assembly Switch Plunger Switch Housing Switch Plunger Trigger Trigger Pin 10-600-06 Handle Assembly Screws (2) Handle (Right) Grip Insert (Right) Handle (Left) Bolts Grip Insert (Left) Bolt 10-600-07 Fuse Holder Assembly...
  • Page 8: Technical Specifications

    Technical Specifications Model: 10-600 Current: 120 V, AC 60Hz single phase Drive Solonoid: 15 Amps, 1,500 Watts Size: 9"L x 6.875"H x 2.75"W Weight: 7.6 lbs. Fastener: 20 gauge 3/16" crown staples ® (Recommended DUO-FAST Brand) Fastener Capacity: 85 Fastener Length: 3/16", 1/4", 5/16", 3/8", 1/2", 9/16" Uses: •...
  • Page 9 VEUILLEZ LIRE AVEC SOIN l’outil ou la rallonge. CE MANUEL AVANT • Entreposez les outils dont vous ne vous servez pas dans un endroit élevé, D’UTILISER L’OUTIL. sec et verrouillé, hors de la portée MISE EN GARDE des enfants. Il est important de lire et de •...
  • Page 10: Instructions De Sécurité

    source (outlet, receptacle, etc.), be • Débranchez l’outil lorsqu’il n’est pas sure that the power supply is of the utilisé, avant d’effectuer un entretien et same voltage as specified on the tool. lorsque vous changez les accessoires. Use of a higher voltage then specified •...
  • Page 11 • N’enfoncez pas d’agrafes par-dessus • Ne branchez jamais l’outil à une d’autres agrafes ou avec un outil si source d’alimentation à c.c. l’angle est trop abrupt. Les agrafes • Durant le fonctionnement, la tête de peuvent ricocher et blesser quelqu’un. l’agrafeuse peut être tiède au toucher.
  • Page 12: Entretien Et Inspection

    électriques de l’outil. 4. Gardez la zone de décharge des agrafes propre en tout temps. Tout résidu pourrait entraîner des obstructions. SERVICE: Retournez votre agrafeuse chez votre concessionnaire ou distributeur Roberts pour l’entretien et la réparation.
  • Page 13 ROBERTS 10-600 AGRAFEUSE ÈLECTRIQUE POUR AGRAFES CROWN 3/16" Diagramme de Connexion de 120 Volts Rouge Blanc Alimentation Électrique Noir Rouge Prise de Rouge Vert Cordon Interrupteur Bleu d'Alimentation Serpentin Terre Déclencheur Clip LISTE DES PIÈCES DE REMPLACEMENT Contenu de la Trousse N°...
  • Page 14 LISTE DES PIÈCES DE REMPLACEMENT (suite) Contenu de la Trousse N° de SKU Description N° de Pièce Description 10-600-05 Montage du Déclencheur Piston de l’Interrupteur Boîtier d’Interrupteur Interrupteur Piston Déclencheur Goupille du Déclencheur 10-600-06 Montage de Poignée Vis (2) Poignée (droite) Écrou Poignée de saisie (droite) Poignée (gauche)
  • Page 15: Spécifications Techniques

    Spécifications Techniques Modèle: 10-600 Courant: 120 V, monophase c.a. 60 Hz Solénoïde d’Entraînement: 15 A, 1 500 watts Dimensions: 228mm(L) x 175mm(H) x 70mm(L) Poids: 3 kg (7,6 lb) Agrafes: Agrafes à Couronne de Calibre 20 de 3/16 po ® (marque recommandée: DUO-FAST Capacité...
  • Page 16: Instrucciones Generales De Seguridad

    ANTES DE USAR LA No permita que los visitantes tomen contacto con la herramienta o con el HERRAMIENTA, LEA cable de extensión eléctrica. CUIDADOSAMENTE • Cuando no utilice las herramientas, ESTE MANUAL. guárdelas en un lugar seco, bajo llave, elevado y fuera del alcance de los niños. ADVERTENCIA •...
  • Page 17: Instrucciones De Seguridad

    • Utilice únicamente grapas de corona • Cuando accione la herramienta, NO calibre 20 de 5 MM (3/16 pulg.) en sobrepase los límites de trabajo longitudes de 6 mm (1/4 pulg.), 8 mm indicados. Procure siempre un apoyo (5/16 pulg.), 9 mm (3/8 pulg.), 1.3 cm adecuado y conserve el equilibrio.
  • Page 18 Además, verifique que el cable de la • Nunca conecte la herramienta en una extensión eléctrica tenga los hilos fuente de alimentación de CC. apropiados, esté en buenas • Durante el funcionamiento de la condiciones y que el tamaño del hilo engrapadora, puede suceder que la sea suficiente como para soportar la cabeza se caliente, no la toque.
  • Page 19: Instrucciones De Operación

    Instrucciones de Operación Cables de Extensión Eléctrica Utilice únicamente extensiones eléctricas calibre 12 ó 14 con la Engrapadora eléctrica 10-600. Para un mejor desempeño, utilice la extensión eléctrica de menor longitud posible. Cómo Cargar las Grapas Desconecte la herramienta de la fuente de alimentación.
  • Page 20 ROBERTS 10-600 GRAPADORA ÉLECTRICA PARA GRAPAS CORONA DE 3/16" Diagrama del Cableado a 120 Voltios Rojo Blanca Fuente de Alimentación Negro Rojo Rojo Conductor Verde Interruptor Azul del Cable de Gatillo Bobina Polo a Tierra Broche LISTA DE PARTES DE REEMPLAZO...
  • Page 21 LISTA DE PARTES DE REEMPLAZO (continuación) Contenido del Kit SKU # Descripción Parte # Descripción 10-600-05 Ensamblado del Gatillo Embolo del Interruptor Carcasa del Interruptor Interruptor Émbolo Gatillo Percutor del Gatillo 10-600-06 Handle Assembly Tornillos (2) Mango (Derecha) Tuerca Inserto de la Empuñadura (Derecha) Mango (Izquierda) Pernos...
  • Page 22: Mantenimiento E Inspección

    4. Mantenga siempre limpia el área de descarga de los sujetadores. Los residuos pueden ocasionar un atasque. SERVICIO: para solucionar los problemas de servicios, debe devolver la engrapadora a su proveedor o distribuidor Roberts.
  • Page 23: Especificaciones Técnicas

    Especificaciones Técnicas Model: 10-600 Corriente: 120 V, CA 60 Hz, monofásica Solenoide de Impulsión: 15 A, 1,500 W Tamaño: 228 x 175 x 70 mm (L x H x An.) Peso: 3 kg (7,6 lb) Grapas: Grapas de corona calibre 20 de 5 mm (Se recomienda el uso de grapas marca DUO-FAST ®...
  • Page 24 Made in China Fabriqué en Chine Hecho en China Roberts Consolidated Industries, Inc. A Q.E.P. Company Boca Raton, FL 33487 www.qep.com O202...
