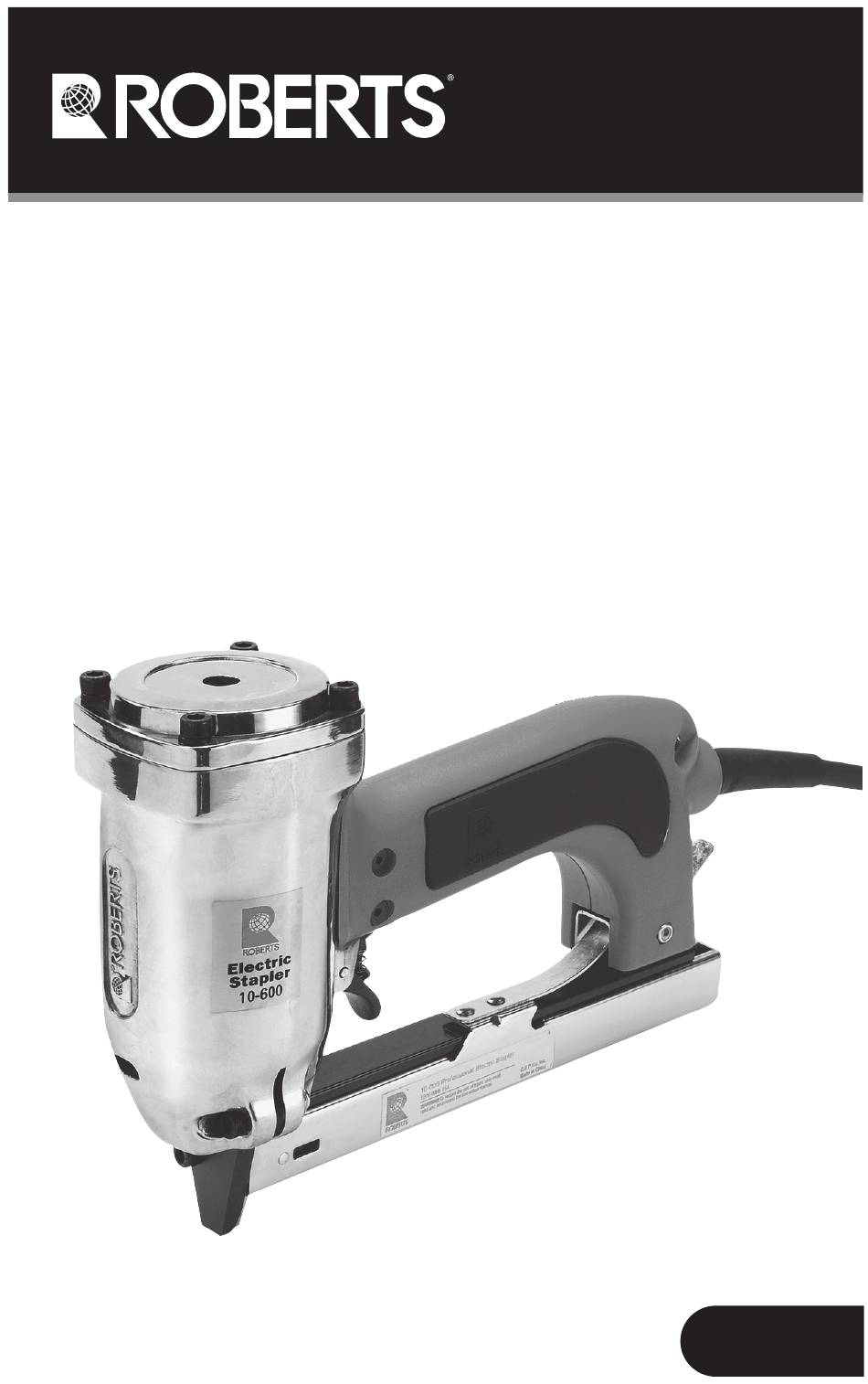

  • Page 1 4.76mm Crown Electric Stapler OWNER’S MANUAL 10-600...
  • Page 2 PLEASE READ THIS or medication. • Ensure proper dress by NOT wearing MANUAL CAREFULLY clothing or jewelry that may get BEFORE USING TOOL. caught in moving parts. Wear rubber gloves and non-skid footwear, WARNING especially when working outdoors. It is important to read Protect and contain long hair with and understand these proper coverings.
  • Page 3 Use only 12 IN USE. gauge or 14 gauge extension cords • use Roberts Staples 88-4115 15mm with this tool. An undersized cord will with 4.76 crown or similar. Use of cause a drop in tool voltage resulting accessories that are not designed for in loss of power and overheating.
  • Page 4 Operating Instructions Extension Cords Use only 12 or 14 gauge extension cords with the 10-600 Electric Stapler. For maximum performance, use the shortest length extension cord possible. Loading Staples Disconnect the power supply. Depress the magazine latch. Pull back on the magazine cover.
  • Page 5 Never soak tool, for such solutions may damage tool parts and electrical components. 4. Keep fastener discharge area clean at all times. Any residues could cause jamming. SERVICE: Return your stapler to your Roberts dealer or distributor for servicing of any problem.
  • Page 6 Switch Coil Ground Clip REPLACEMENT PARTS LIST Contents of Kit SKU# Description Part # Description 10-600-01 Cap Assembly Hex Bolt (4) Washers (4) Cap Casting 10-600-02 Driver Assembly Retainer Drive Plunger Roll Pin Driver Blade 10-600-03 Solenoid Assembly Retaining Washer...
  • Page 7 Power Cord - 14 gauge Connector Jacket 10-600-09 Power Supply Power Supply 10-600-10 Nose Casting Nose Casting 10-600-11 Magazine Assembly Plate Bolt Magazine Support Rack Spring Pusher Magazine Base 10-600-12 Staple “Pusher” & Spring Spring Staple Pusher 10-600-14 Spare Fuses Set of 3 Fuses...
  • Page 8 Made in China Roberts Consolidated, Inc. Boca Raton, FL 33487 www.robertsconsolidated.com www.qep.com F2717-10392...
