Summary of Contents for Octet Matrix Audio BA21

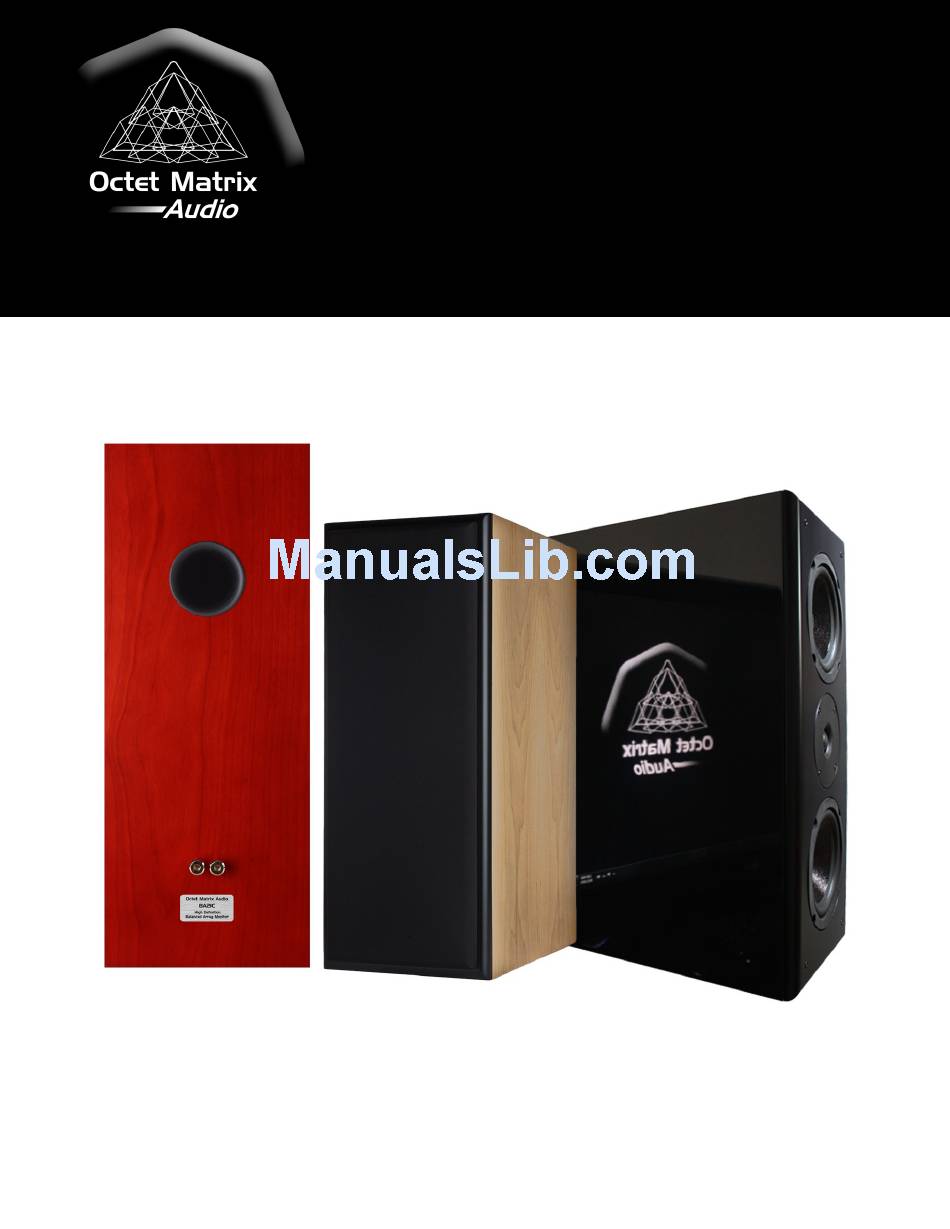

- Page 1 Octet Matrix Audio BA21 High Definition Balanced Array User’s Guide...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................3 Features ......................3 Specifications ...................... 4 BA21 Speaker Placement/Mounting ..............6 Final Verification & Optimization ................ 7 Channel & Phase Verification ..................... 7 Warranty ......................8 Resources ......................8 Page 2 Copyright© 2011 Octet Matrix Audio... -
Page 3: Introduction
Introduction Thank you for purchasing the Octet Matrix Audio BA21 high definition speaker. The information in this User’s Guide, along with the audio tracks on the CD, will help you optimize your new speaker set up so that your will obtain the highest level of performance from them. -
Page 4: Specifications
Specifications BA21 Electrical/ Acoustic Specifications Impedance 4 ohms Sound Pressure Level 87 dB SPL (2.83 volts, 1 meter) Continuous Power Rating 90 watts Crossover 4 kHz, 4th order acoustic slopes Enclosure Type Tuned Port Port Tuning Frequency 35 Hz Frequency Response (recommended placement) + 2.3 dB, - 3.1 dB, 68 Hz - 20 kHz... - Page 5 Page 5 Copyright© 2011 Octet Matrix Audio...
-
Page 6: Ba21 Speaker Placement/Mounting
All components in the BA21 models are mounted symmetrically and centered so each speaker can be used for either the left or the right channel. The BA21 high definition balanced array speakers should be mounted on speaker stands so that the tweeters are at ear level when seated in the primary listening position. -
Page 7: Final Verification & Optimization
2) Insert the Octet Matrix Audio set up CD into a CD player, DVD player, or Blu-ray player. If the CD doesn’t start playing automatically, point the player to track 1 and then hit play. -
Page 8: Warranty
Octet Matrix Audio products are guaranteed to be free from defects in materials and workmanship for a period of 2 years from the original date of purchase. Octet Matrix Audio will repair or replace defective products during this period at no cost to the original end user.
