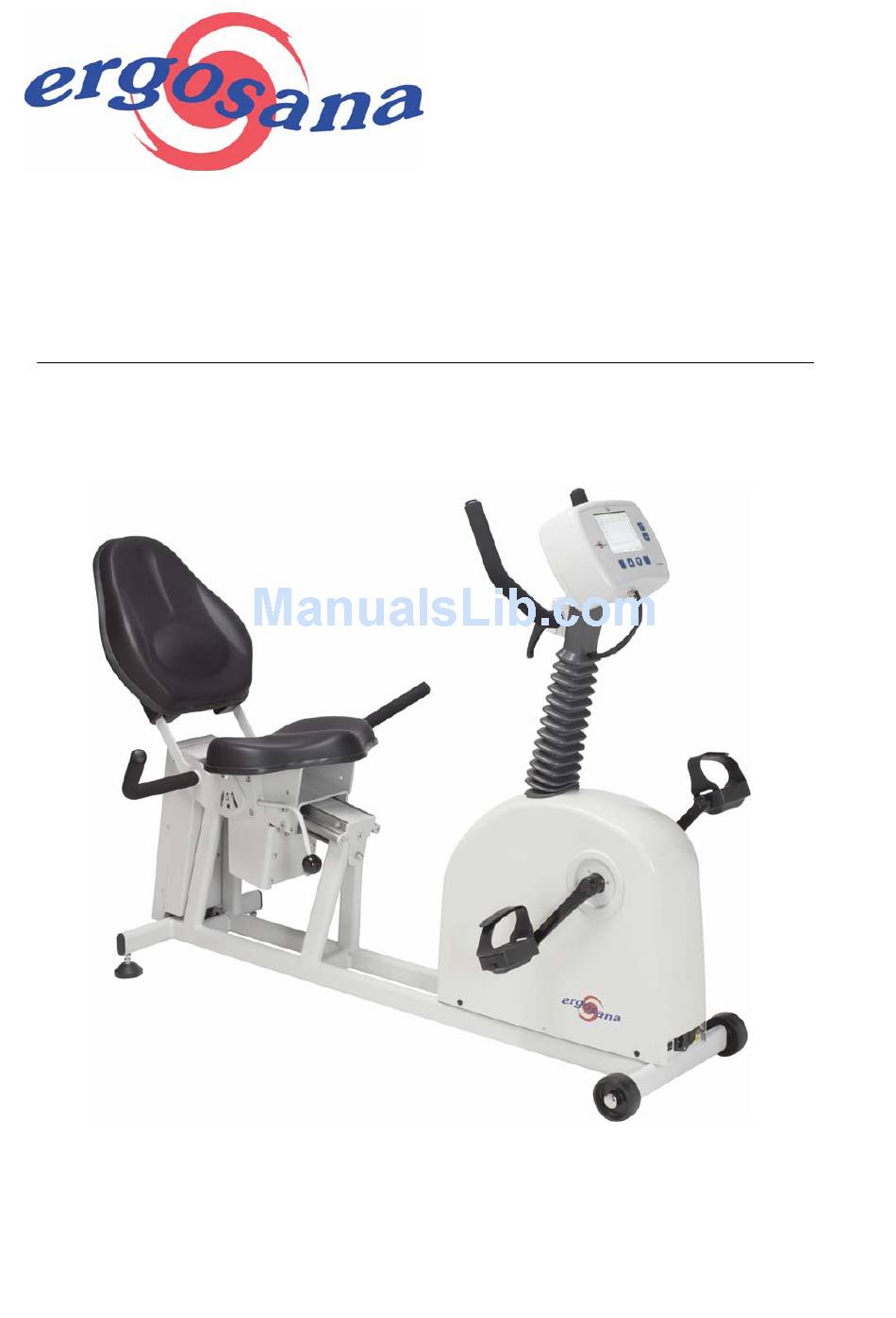

- Page 1 Seat ergometer Sana comfort 150/250/REHA User Guide Article no.: 2.520064 rev.: b...
- Page 2 Sana comfort 150 and 250 REHA CE Conformity Declaration ergosana GmbH herein declare that the products of the ergometer system Sana comfort 150/250/REHA have been designed and manufactured in accordance with the relevant requirements of the EC directive 93/42/EEC. This declaration loses its validity if the above devices are modified without ergosana‘s consent.
-
Page 3: Table Of Contents
Sana comfort 150 and 250 REHA Table of Contents General......................4 1.1 Intended use ..................4 1.2 Contra-indication.................. 4 1.3 Features ..................... 4 1.4 Instruction ..................4 1.5 Maintenance ..................4 Product description ...................5 2.1 Unit Components.................. 5 2.2 Accessories..................5 2.3 Potential equalisation ................ -
Page 4: General
Sana comfort 150 and 250 REHA General The Sana comfort 15/ 250/REHAa seat ergometers are high-performance, state-of-the-art ergometers. Sana comfort 250 is equipped with a blood pressure measurement module, located in the ergometer's control console. The devices meet the highest quality standards for accurate physical exertion tests to conduct measure- ments in cardiovascular and pulmonary function diagnostics. -
Page 5: Product Description
Sana comfort 150 and 250 REHA Product description Unit Components 1. Handlebar 2. Control console 3. Locking lever to adjust the back rest 4. Handlebar on the seat 5. Arrow keys for horizontal seat adjustment 6. Back rest 7. Base adjuster for height adjustment 8. -
Page 6: Technical Data
Sana comfort 150 and 250 REHA Technical data Bicycle ergometer with blood pressure measurement in accordance with DIN 13405 /DIN VDE 0750-238. Braking principle Computer-controlled brakes with permanent measurement of torque. Braking performance is independent of revolutions per min- ute. Power range 1 to 999 watts Load range independent rpm range 20 till 999 Watts Range of revolutions 30 to 130 rpm for pedals... -
Page 7: Safety Notes
Sana comfort 150 and 250 REHA Safety notes Safety precautions when operating with other devices Portable communication devices, HF radios and devices labelled with the symbol (non-ionic elec- tromagnetic radiation) can affect the operation of this device (see section 2.7). Eliminating electromagnetic interferences 1. -
Page 8: Installation
Sana comfort 150 and 250 REHA Installation Location Install the device in a suitable position (refer to safety instructions in section 5). The unit should not be stored or operated in wet, moist or dusty surroundings. Nor should the unit be exposed to direct sunlight or other sources of warmth. -
Page 9: Unit Components
Sana comfort 150 and 250 REHA Unit components Control panel The control panel is mounted on the upper side of the control panel carrier with two plug-in tabs. During normal operation, the display should be facing the examiner. It is possible to turn the console 180 de- grees for special applications such as patient training, etc., so that the patient can reach the control ele- ments and see the display. -
Page 10: Keys And Display
Sana comfort 150 and 250 REHA 4.2.2 Keys and display The LCD with graphics capability, 320 x 240 pixels and a surface of 100 mm x 75 mm is located on the front of the control panel. It is covered by a foil keyboard with a see-through window. The display shows all configuration and operating procedures. -
Page 11: Setting The Language
Sana comfort 150 and 250 REHA 4.2.3 Setting the language The preset menu language is “deutsch”. To change the language, highlight the “Einstellungen” menu option using the "ab” arrow, and confirm with “OK”. In the “Einstellungen” menu, select the “Sprache” option and confirm with “OK”. Then select the desired language using the “auf”... -
Page 12: Safety Notes
Interface RS 232, which can be used for communication with other devices, is isolated to ensure the pa- tient’s safety. External devices may only be connected with the interface cables supplied by ergosana. Maintenance safety precautions The device must be turned off and the power plug disconnected before cleaning with liquid cleaning agents. -
Page 13: Start-Up And Initial Preparation
For this purpose, ergosana has developed an extremely accurate blood pressure measuring system that is not susceptible to interference. It has been integrated into this ergometer and uses a so-called indirect method of blood pressure measurement. -
Page 14: Ergometry
Sana comfort 150 and 250 REHA Ergometry This section describes ergometry with the internal ergometer software. Defining the automatic load programs The following text field appears in the ergometer after it is switched on: The menu item “Start ergometry” is highlighted with a black bar. This means the item is activated. It is possible to select an exercise program directly from here and begin ergometry. - Page 15 Sana comfort 150 and 250 REHA The program selection menu appears. The exercise programs 1–5 are set according to the parameters of standardised ergometry or according to individual parameters in such a manner that the correct programs for the different patient groups can be called up at the touch of a button.
-
Page 16: Recommended Settings
Sana comfort 150 and 250 REHA Recommended settings An unlimited number of values can be saved in the programs 1 to 5, as shown in the examples below: Program Initial load Increase in Stage time BP interval Recovery load load number [watts] [min]... -
Page 17: Remote Operation
“Instruction Set“. The so-called "ergoline operating mode" is stored under the setting P 10. Our own transmission protocol is located un- der “ergosana”. Information on interface and instruction set can be obtained from the operating data of the master unit. -
Page 18: Training Program (Option)
Sana comfort 150 and 250 REHA Training program (option) The use of the training program requires a pulse signal receiver (Polar system), which is integrated in the control panel. The receiver can be ordered together with the device or added later on. The patient wears a transmitter belt, which is positioned on the skin below the chest. - Page 19 Sana comfort 150 and 250 REHA Starting the Training Program in the Menu Start program > Training. Heart rate progress. The HR is kept on the preset level dur- ing the training phase (TP). Load increase by 10 watts/min up to the target HR or until the set time has elapsed Warming-up phase 1 with...
-
Page 20: Rehabilitation Version
Sana comfort 150 and 250 REHA Rehabilitation version Ergometer systems Sana comfort 150 and 250 can be upgraded under the following type designation: Sana comfort 150 (without blood pressure measurement device) or Sana comfort 250 (including blood pressure measurement device) in order to be used in combination with a number of rehabilitation systems. -
Page 21: Options For The Data Transfer
Sana comfort 150 and 250 REHA 7.5.2 Options for the data transfer In contrast to the standard version, the rehabilitation ergometer is equipped with a USB bus. If several ergometers are in use, the data transfer for the rehabilitation control program “Sana Sprint“ (remote operation) is performed via the USB bus only. -
Page 22: Maintenance And Fault Clearing
Sana comfort 150 and 250 REHA Maintenance and fault clearing Checking the measuring technology The unit’s measuring technology should be checked every 24 months. The following checks should be performed in the process: 1. Check of the ergometer's overall mechanical condition 2. -
Page 23: Changing A Mains Fuse
Replace fuses only with other fuses of the same type with the same specification: 2 x 1.25 AT for 230 V, or 2 x 2.5 AT for 110 V. Disposal information Devices that are no longer usable can be returned to ergosana for disposal. Alternatively, the device can be taken to an approved disposal location. ... -
Page 24: Appendix
Performance in watts Technical Customer Service and Sales Locations ergosana products are also sold as OEM products with other brand names. These devices are exclusively sold by authorised agents. The agents are trained in the service of our devices. Please contact one of these specialist dealers if your unit requires servicing.
