Summary of Contents for PRESIDENT HARRY II Classic
- Page 1 Manuel d'utilisation / Manual del usuario Owner's manual / Handbuch...

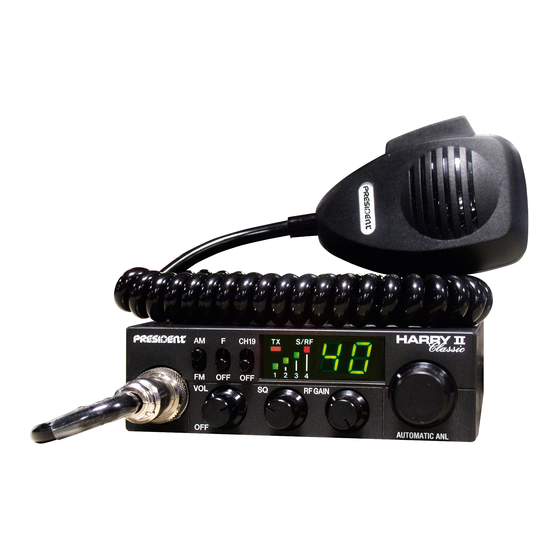

- Page 2 Votre PRESIDENT HARRY II Classic en un coup d'œil Un vistazo a vuestro PRESIDENT HARRY II Classic Your PRESIDENT HARRY II Classic at a glance Ihr PRESIDENT HARRY II Classic auf einen Blick...
- Page 3 SOMMAIRE SUMARIO INSTALLATION INSTALACIÓN UTILISATION UTILIZACIÓN CARACTÉRISTIQUES TECHNIQUES CARACTERÍSTICAS TÉCNICAS GUIDE DE DÉPANNAGE GUÍA DE PROBLEMAS COMMENT ÉMETTRE/RECEVOIR UN MESSAGE COMO EMITIR O RECIBIR UN MENSAJE GLOSSAIRE LÉXICO DÉCLARATION DE CONFORMITÉ DECLARACIÓN CE DE CONFORMIDAD GARANTIE GARANTÍA TABLEAUX DES FRÉQUENCES 47 ~ 49 TABLAS DE FRECUENCIAS 47 ~ 49...
- Page 4 WARNING ! Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio) ! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.
- Page 5 Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guar- antees unprecedented quality, your PRESIDENT HARRY II Classic is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users.
- Page 6 3) POWER CONNECTION: a) Choosing your antenna: Your PRESIDENT HARRY II Classic is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your For CB radios, the longer the antenna, the better its results. Your dealer will be equipment must be supplied with a continued current of 12 volts (A).
- Page 7 Connect the SWR meter between the CB radio and the antenna as close as possible disappears. This adjustment should be done with precision as, if set to maximum, (i.e. to the CB (use a maximum of 40 cm cable, type President CA 2C). fully clockwise) only the strongest signals will be received.
- Page 8 5) DISPLAY: 8) CH 19: The display shows all the different functions. The bargraph shows the level of Channel 19 is automatically selected when you activate this switch. To activate this reception and the level of power emitted. The TX LED lights up when the set goes into function, move the switch to CH19 position, and to return to the previous channel transmission mode.
- Page 9 C) TECHNICAL CHARACTERISTICS: D) TROUBLE SHOOTING: 1) GENERAL: 1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION - Channels : 40 - Modulation modes : AM/FM IS OF POOR QUALITY: - Frequency ranges : from 26.965 MHz to 27.405 MHz - Antenna impedance : 50 ohms Check that the antenna is correctly connected and that the SWR is properly...
- Page 10 Choose your mode (AM/FM) which must be the same as that of your correspondent. : Long Distance Liaison Press the «push-to-talk» switch and announce your message «Attention stations, : Dual Watch transmission testing» which will allow you to check the clearness and the power of : Frequency Modulation your signal.
- Page 11 Big 10-4 : Absolutely Man with a gun : Police radar Bleeding : Signal from an adjacent channel interfering with Mayday : SOS the transmission Meat wagon : Ambulance Blocking the channel : Pressing the PTT switch without talking Midnight shopper : Thief Blue boys : Police...
- Page 13 TABLEAU DES FRÉQUENCES pour EU / E / EC / U (CEPT) TABLEAU DES FRÉQUENCES pour U (ENG) TABLA DE FRECUENCIAS para EU / E / EC / U (CEPT) TABLA DE FRECUENCIAS para U (ENG) FREQUENCY TABLE for EU / E / EC / U (CEPT) FREQUENCY TABLE for U (ENG) CB-KANÄLE UND IHRE FREQUENZEN für U (ENG) CB-KANÄLE UND IHRE FREQUENZEN für EU / E / EC / U (CEPT)
- Page 14 TABLEAU DES FRÉQUENCES pour d / TABLA DE FRECUENCIAS para d FREQUENCY TABLE for d / CB-KANÄLE UND IHRE FREQUENZEN für d N° du canal Fréquences N° du canal Fréquences N° du canal Fréquences N° du canal Fréquences Nº Canal Frecuencia Nº...
- Page 15 TABLEAU DES FRÉQUENCES PRISE MICRO 6 BROCHES TABLA DE FRECUENCIAS CONEXIÓN DEL MICRO 6 PINS FREQUENCY TABLES 6-PIN MICROPHONE PLUG BELEGUNG DER MIKRO-FONBUCHSE (sechspolig) CB-KANÄLE UND IHRE FREQUENZEN N° du canal Fréquences N° du canal Fréquences N° Canal Frecuencia N°Canal Frecuencia Channel Frequency...
- Page 16 NORMES EUROPÉENNES - NORMAS EUROPEAS - EUROPEAN NORMS - EUROPÄISCH NORMEN La bande de fréquence et la puissance d’émission de votre appareil doivent correspondre à la configuration autorisée dans le pays où il est utilisé. La banda de frecuencias y la potencia de emisión de su aparato deben corresponder a la configuración autorizada en el país donde él es utilizado. The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.
- Page 18 SIEGE SOCIAL/HEAD OFFICE - FRANCE - Route de SèteBP 100 - 34540 BALARUC Site Internet : http://www.president-electronics.com E-mail : groupe@president-electronics.com UTZZ01370AA(0)
