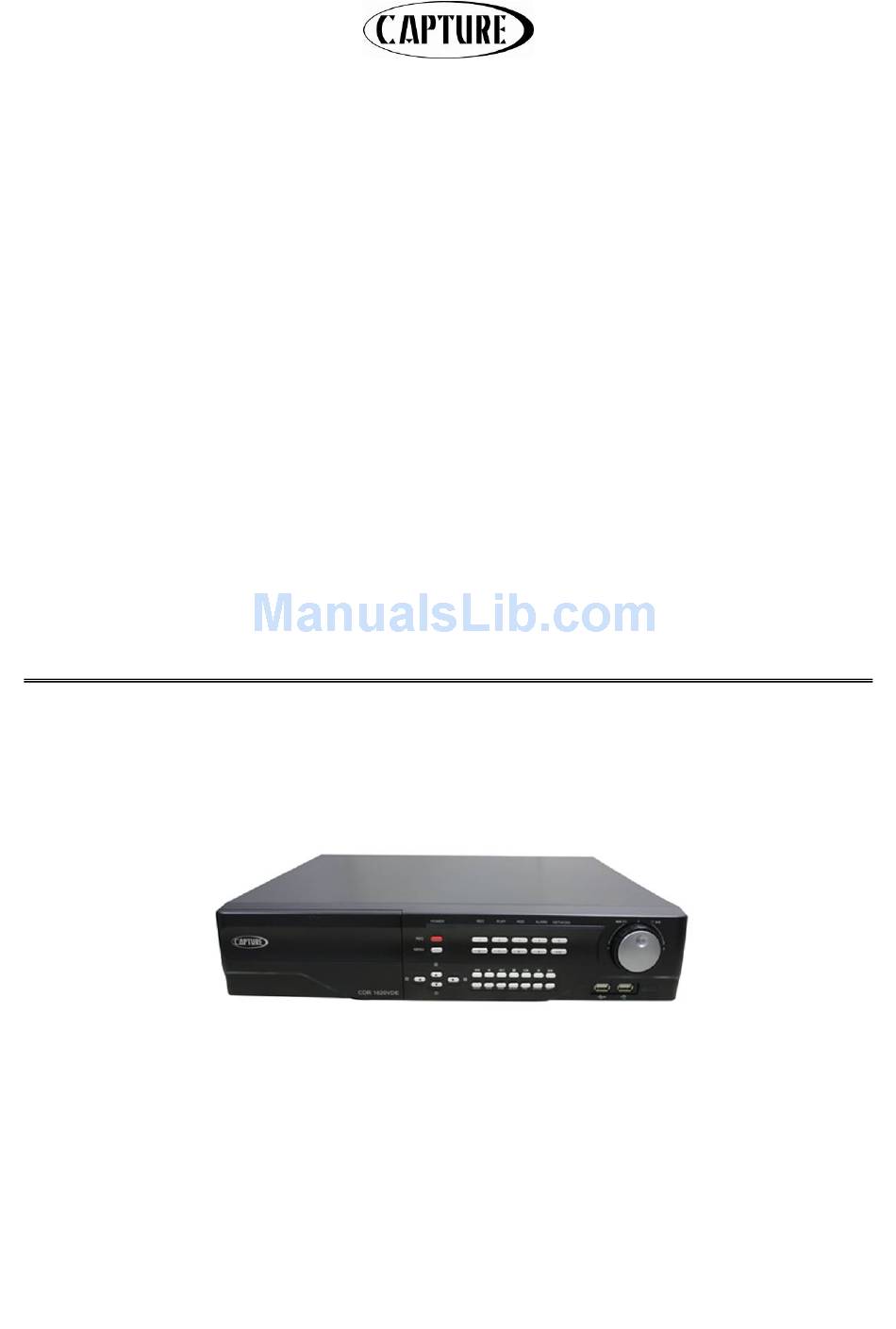

USER MANUAL

CDR 0410VDE / CDR 0820VDE / CDR 1620VDE

DIGITAL VIDEO RECORDERS

Picture: CDR 1620VDE
To obtain the best performance and ensure device functions correctly, please read this User Manual
carefully and completely.
Version 1.1
CDR 0410VE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR 0410VE and is the answer not in the manual?

Questions and answers

Related Manuals for Capture CDR 0410VE

Summary of Contents for Capture CDR 0410VE

  • Page 1: User Manual

    USER MANUAL Version 1.1 CDR 0410VE CDR 0410VDE / CDR 0820VDE / CDR 1620VDE DIGITAL VIDEO RECORDERS Picture: CDR 1620VDE To obtain the best performance and ensure device functions correctly, please read this User Manual carefully and completely.
  • Page 2 USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND COMPLYING WITH ALL FEDERAL, STATE, AND LOCAL LAWS AND STATUTES CONCERNING THE MONITORING AND RECORDING OF VIDEO AND AUDIO SIGNALS. CAPTURE AND ASSOCIATED COMPANIES SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES. COPYRIGHT THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO THEIR RESPECTIVE COMPANIES.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION........................5 FEATURES ........................5 SPECIFICATIONS......................6 HARDWARE OVERVIEW...................... 9 FRONT PANEL ......................9 BACK PANEL......................12 ADVANCED AUTO SWITCH ZOOM, PTZ, COPY KEY CONTROL & USB INFORMATION ........................14 CAMERA & MONITOR LOOPING...............14 ALARM........................14 IR REMOTE CONTROL ..................16 PTZ (PAN, TILT AND ZOOM) CAMERA .............17 SYSTEM SETUP ........................
  • Page 4 APPENDIX A: RECORDING TIME LAPSE (HOURS)............. 73 Full D1-720x576 ..........................73 Half D1- 720x288..........................75 CIF-360x288 ............................. 77 APPENDIX B: HDD COMPATIBLE TABLE ................79 APPENDIX C: USB DEVICE COMPATIBLE TABLE .............. 79 APPENDIX E: MOBILE VIEWER USER MANUAL ..............82 APPENDIX F: HDD INSTALLATION GUIDE ................

  • Page 5: Introduction

    INTRODUCTION FEATURES H.264 video compression. 200 PPS (PAL) / 240 PPS (NTSC) or 100 PPS (PAL) / 120 PPS (NTSC)* Recording quality/ rate adjustment per channel available*. User friendly Central Management System (CMS) 3GPP. Audio Backup / Audio Streaming. Graphic User Interface (GUI). Support time-point backup function under Ethernet remote control mode.

  • Page 6: Specifications

    SPECIFICATIONS Model No. CDR 0410VE CDR 0410VDE CDR 0820VDE CDR 1620VDE MODE Multiplex VIDEO DISPLAY NTSC:720*480 NTSC:720*480 NTSC:720*480 NTSC:720*480 RESOLUTION PAL:720*576 PAL:720*576 PAL:720*576 PAL:720*576 DISPLAY RATE NTSC: 04 x 30 NTSC: 04 x 30 NTSC: 08 x 30 NTSC: 16 x 30...
  • Page 7 PLAYBACK Fast Forward: X 2 X 4 X 8 Fast Backward: X 2 X 4 X 8 PLAYBACK SPEED Image by Image / Pause TIME SEARCH EVENT SEARCH EVENT LIST 3000 records per H.D.D (Maximum) OSD & CONTROL INTERFACE TITLE 8 Characters ON SCREEN Time / Date / Setup Menu...
  • Page 8 MOTION 30 (h) x 24 (v) grids DETECTION AREA MOTION DETECTION 1 ~ 99 SENSITIVITY VIDEO LOSS DETECTION ALARM RECORDING BUZZER SETUP & OTHER FUNCTIONS DAYLIGHT SAVING TIME PTZ CONTROL RS-232 RS-485 / RS-422 Yes/NO Yes/NO DIGITAL ZOOM Three levels, one for system, one for HDD format and the other for Network PASSWORD CONTROL Password.

  • Page 9: Hardware Overview

    HARDWARE OVERVIEW 2.1 FRONT PANEL CDR 0410VE DVR OPERATION LABEL OPERATION IR Sensor For Remote Control. Led Indicator LED REC CONTROL Record, Playback And Control Button. PANEL Press the Button to Display No.1~No.4 Camera Images 1-4 & Quad on Full Screen and Quad for Multi Channel Screen DOWN, ▲▼◄►...
  • Page 10 CDR 0410VDE CDR 0820VDE CDR 1620VDE DVR OPERATION LABEL OPERATION DVD RW Slot for DVD RW. REC & MENU Button for Recording and Menu Setup. Led Indicator Press to display full screen per channel. 1-10 Shuttle: SHUTTLE SHUTTLE Fast Forward ×2 ×4 ×8 SHUTTLE Fast Backward ×2 ×4 ×8 &...
  • Page 11 RIGHT CONTROL Record, Playback And Control Button. PANEL USB Connector. Port for USB Mouse (Use only mouse supplied in the package). IR Sensor For Remote Control. Note: 1. User can select camera by using the channel keys on DVR front panel. For example, user can press “+10”...

  • Page 12: Back Panel

    BACK PANEL CDR 0410VE DVR OPERATION LABEL OPERATION USB Mouse (Use only mouse supplied in the package). Video input with BNC connector. VIDEO INPUT Video output with BNC connector. MONITOR OUT AUDIO OUT/ IN Audio output/ input. ETHERNET RJ-45 connector for network.
  • Page 13 ETHERNET RJ-45 connector for network. 4 pin connector for external control unit, 5 pin connector for RS-485/ ALARM/ RELAY Alarm input and 3 pin connector for relay Cooling fan. POWER Power Connector: DC 12V 5A / 50-60 Hz input. CDR 0820VDE CDR 1620VDE LABEL OPERATION...

  • Page 14: Advanced Auto Switch Zoom, Ptz, Copy Key Control & Usb Information

    Single Full Screen mode, press ►► button on the front panel will enter to PTZ control. Press ►► button again will come out from PTZ control. (Only in CDR 0410VE) COPY : Within the playback mode, press COPY button to start backup record and press “COPY”...
  • Page 15 C.25 PIN D-Sub Interface connector is used for external alarm input. The alarm input accepts voltage free contact devices. Alarm input pins : 1~16 to one side of the trigger devices contacts and the other side to ground pins 20 or 21. The connectors pin 22 connected to Alarm Reset.

  • Page 16: Ir Remote Control

    Play video forward Fast forward Picture by picture forward play CHANNEL 1 (Only in CDR 0410VE Remote Controller) CHANNEL 2 (Only in CDR 0410VE Remote Controller) CHANNEL 3 (Only in CDR 0410VE Remote Controller) CHANNEL 4 (Only in CDR 0410VE Remote Controller)

  • Page 17: Ptz (Pan, Tilt And Zoom) Camera

    PTZ (PAN, TILT AND ZOOM) CAMERA DVR can connect between PTZ camera and joystick controller. For DVR to control PTZ camera, please make sure the CAMERA ID, PROTOCOL, BAUDRATE (default is 9600 bps) and RS-485 cable. Moreover, there are two connecting methods of RS-485 cable. The two sorts of connection diagrams are shown in the following.
  • Page 18 TWO CORE RS485: D+/D- RS485: R+/R- B. DVR...

  • Page 19: System Setup

    SYSTEM SETUP MENU SETUP INTERFACE(GUI) CAMERA SET MOTION SETUP RECORD SETUP ALARM SETUP...
  • Page 20 HARD DISK MANAGEMENT SETUP NETWORK SETUP BACKUP SETUP* SYSTEM SETUP * CD/DVD-RW BACKUP option not available in CDR-0410VE * Only DVD Can be used in DVD RW drives not CD’s...

  • Page 21: Live Viewing And Pop-Up Menu

    LIVE VIEWING AND POP-UP MENU NOTE：The pop-up menu can be activated by moving the mouse cruise to the bottom of the live viewing screen. GUI MENU BAR With live viewing mode, press this icon to get into the GUI menu. DISK INFORMATION With live viewing mode, press this icon to display disk information.
  • Page 22 PTZ CONTROLLER Within live-viewing mode, click this button to get into the PTZ setup menu. User can also use PTZ key on the front panel to perform this function. Moreover, user can right-click the button of the mouse or press the PTZ key on the front panel again to exit PTZ Setup.
  • Page 23 AUTOPAN Setup Press button to entry AUTOPAN setup menu. AUTOPAN START POINT SET: Press SET to save the start point of AUTOPAN. AUTOPAN END POINT SET: Press SET to save the end point of AUTOPAN . AUTOPAN SPEED: Press the ◄ or ►/ mouse wheel to change the autopan speed. RUN AUTOPAN: Press SET to start AUTOPAN.
  • Page 24 PTZ SETUP ID: Use the mouse wheel to change speed dome camera ID. LEFT-RIGHT SPEED: Use the mouse wheel to change the left-right speed. UP-DOWN SPEED: Use the mouse wheel to change the up-down speed. AUTO SPEED: Use the mouse wheel to change the auto patrol speed. BAUD RATE: Use the mouse wheel to change the BAUD rate.

  • Page 25: Camera Setup

    CAMERA SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A. CAMERA Press ◄ or ►/ mouse wheel to switch channels. B. VIDEO ADJUST B-1. CONTRAST Press ◄ or ►/ mouse wheel to change contrast level. B-2.
  • Page 26 C. CAMERA TITLE Use mouse to select and change character. D. COVERT Press ◄ or ► / mouse wheel to change value for the corresponding camera would be displayed on the screen or not. E. DWELL TIME Press ◄ or ►/ mouse wheel to ON/OFF auto switch and the switch sec. F.

  • Page 27: Motion Setup

    MOTION SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A. CAMERA Press ◄ or ►/ mouse wheel to switch channels. B. MOTION DETECT Press ◄ or ►/ mouse wheel to change value for motion detect function. C.

  • Page 28: Record Setup

    ON: Activate by removing green shaded area. OFF: Disable by highlighting green shaded area. EXIT: Exit the motion detection setup grid. RECORD SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A.
  • Page 29 Record Resolution: CIF: 360 × 288 ( PAL ) / 360 × 240 ( NTSC ) Note: When recording resolution selected is CIF, parameters can be set/changed for 2 cameras (factory defined) together only. C. ALARM RECORD PPS Press SET to change the PPS in alarm recording. Click “AVERAGE” to set PPS automatically by system or change the PPS for each channel manually.
  • Page 30 Record Resolution: Full D1: 720 x 576 (PAL)/ 720 x 480 (NTSC) Half D1:720 × 240 ( NTSC ) / 720 × 288 ( PAL ) Note: In Half D1 and D1 mode, parameters can be set/changed individually for all cameras Record Resolution: CIF: 360 ×...
  • Page 31 Note: When recording resolution selected is CIF, parameters can be set/changed for 2 cameras (factory defined) together only. G. RECORD MODE Press ◄ or ► to switch record mode to MANUAL/ SCHEDULE 1/ SCHEDULE 2/ SCHEDULE 3/ SCHEDULE 4/ SCHEDULE 5. H.

  • Page 32: Alarm Setup

    ALARM SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A. ALARM INPUT TRIGGER Select N.C for “normal close” alarm input, or select N.O for “normal open” alarm input.
  • Page 33 C. HDD INFORMATION Press SET to display/view HDD information. D. HDD FORMAT SETUP D-1. HDD PASSWORD PROTECT Press ◄ or ►/ mouse wheel to change value for hard disk format password protection. D-2. HDD PASSWORD SETUP Press SET then use mouse to change password. Default password：...

  • Page 34: Network Setup

    NETWORK SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A. IP MODE Press ▲ or ▼ to select items and ◄ or ►/ mouse wheel to change to STATIC IP or DHCP.
  • Page 35 I. DDNS SETUP I-1. DDNS SETTING：Press◄ or ►/ mouse wheel to set DDNS ENABLE / DISABLE. I-2. PROVIDER：Press◄ or ►/ mouse wheel to select DDNS provider. I-3. USER NAME：Press SET to setup user name. I-4. UPDATE SCHEDULE： Use SET to dwell time of updating schedule. I-5.
  • Page 36 K. MAIL SETUP K-1. MOTION SETTING: Press◄ or ►/ mouse wheel to enable or disable motion setting. K-2. ALARM SETTING: Press◄ or ►/ mouse wheel to enable or disable alarm setting. K-3. MAIL SERVER: Press SET to fill in the IP address of Mail Server. K-4.

  • Page 37: Backup Setup

    BACKUP SETUP NOTE: *For function stability, Ethernet remote control function (IE) will be stopped when processing backup function. *USB DEVICE BACKUP : 3.2MB/ per sec. A. USB BACKUP Due to each USB device with different USB driver ICs, their compatibilities will differ. This system is compatible with most of USB flash memory.
  • Page 38 Remove the USB only after 2 Sec of DVR displaying “Backup OK”, which denotes end of backup. B. CD/DVD BACKUP (not applicable for CDR 0410VE) BEFORE BACKUP Please insert a blank CD or DVD into the CD or DVD /RW respectively.
  • Page 39 CD DVD R/W BACKUP MENU User can use the mouse wheel to change the backup Start/ End time. Click to start backup. BACKUP FILE NAME Each backup file will be named as START TIME. EXAMPLE: 12231008.264 is December 23 10:08 AFTER BACKUP After complete the backup, the system will copy “...

  • Page 40: System Setup

    3.10 SYSTEM SETUP Press ▲ or ▼ to select items. Press ◄ or ► to change values. Press SET to see more options. A. DATE / TIME SETUP Press SET to set DATE / TIME. A-1. TIME Use mouse wheel to change DATE/ TIME. A-2.
  • Page 41 B. SPOT MONITOR SETUP There are FULL SWITCH, QUAD SWITCH and OFF options for spot monitor display. FULL SWITCH MODE QUAD SWITCH MODE Also set the time frame after which the switching will happen between windows. C. SYSTEM TYPE Press ◄ or ►/ mouse wheel to change the system type. D.
  • Page 42 E. ID NUMBER Press ◄ or ►/ mouse wheel to change values. ID NUMBER is set to define/differentiate between DVR’s, while using same IR Remote Control for multiple DVR’s. F. DISPLAY SETUP Press SET to ENABLE or DISABLE display of CAMERA TITLE / DVR STATUS / DATE / TIME.
  • Page 43 J-3. BACKUP SETUP TO USB: Press SET button to backup the current DVR setting into pen drive. K. DAYLIGHT SAVING TIME SETUP Press ◄ or ►/ mouse wheel to change the DAYLIGHT MODE option: Disable, Manual and Auto. K-1. MANUAL MODE Use SET to change the Day Light Saving start and end time.

  • Page 44: Dvr Playback

    DVR PLAYBACK Click the playback button on the pop-up menu. Note: the pop-up menu can be activated by moving the mouse cruise to the bottom of the live viewing screen. Note: Under playback mode, it will output sound when switch to full screen mode. Live-Time Image Note: Under 13 split screen mode(in CDR 1620VDE Only), user can see the live-time image from the middle channel and can change the channel number by using...

  • Page 45: Time Search

    4.D. DISPLAY CONTROL Within playback mode, use display control to switch the camera channel. 4.E. RECORD AND PLAYBACK CONTROL Same as front panel controller and remote controller. TIME SEARCH Double click left button of the mouse to trigger play search and select play time search. Please set the start and end time to search.
  • Page 46 Please select the event to playback。 Moreover, use TYPE and CHANNEL, two options to perform the advanced search. As the following image,...

  • Page 47: Backup Playback

    Play about all the data from the Hard disk of DVR or perform the specific Time and Event Search to play. Note: Remove the DVR HDD and connect it to the PC to play the HDD. Capture Player 06 can be collected from USB Playback, DVD-RW Playback. Capture Player 06 can be downloaded from DVR through webserver also.
  • Page 48 B-1. TIME SEARCH Insert search Date and Time and then click to play all the searched files.
  • Page 49 (Shown in the following) and double click left button of mouse to trigger event. Capture Player 06 can play not only DVR H.D.D. but also the *.264 and *.Y42 files which are reserved within the data storage devices. (i.e. CD/DVD disc, pen drive and PC H.D.D which has data backup from DVR H.D.D)

  • Page 50: Cd/Dvd Backup Playback

    A. Insert the CD/DVD disk into CD/DVD ROM, the software will auto pop out, and press "Open File" button and select the file. If Player doesn’t pop up by itself, double click on the Capture Player 06 application available in the CD/DVD to run the software. Then with “Open” file option, browse the *.264 in the CD/DVD and select the same.

  • Page 51: Usb & Local Backup File Playback

    USB & LOCAL BACKUP FILE PLAYBACK A. Plug the USB disk into PC or check the local backup folder. If using USB mode, please double click Capture PLAYER 06.exe from the pop-up window of USB B. The play backup program would appear on the screen, select "Open".
  • Page 52 D. Press the play icon to play the video.

  • Page 53: Backup File To Avi

    BACKUP FILE TO AVI A. Please select specific channel, from the drag down option, of which video need to be converted into avi format to suite general media players. B. During video playback mode please press AVI Conversion button to initiate conversion.

  • Page 54: Network Viewing & Playback

    6 NETWORK VIEWING & PLAYBACK SYSTEM REQUIREMENT CPU: Intel Celeron 1.6G MEMORY: 256MB. VGA: 32MB VGA RESOLUTION: 1024 x 768. OS: Windows XP / 2000 SUGGESTED REQUIREMENT CPU: Intel P4 2.8G MEMORY:512MB or above VGA:64MB or above VGA RESOLUTION:1024 x 768 OS: Windows XP / 2000 NETWORK BANDWIDTH: Upload Speed is 512kbps or above 6.1 IP ADDRESS SETUP ON DESK-TOP SITE...

  • Page 55: Optional Microsoft Internet Explorer Setup

    On the Device Lists, it lists all servers. Click on one server and then its IP setting will show on the right side. After editing the parameters and clicking on Submit, the following dialogue box will popup. And, it will reboot the device with new parameters.
  • Page 56 Above three options are all based on select as the prompt. As indicated in the dialogue box. Please select "YES." OPTION 2: ADD TO TRUSTED SITES Tools Internet Options Security Trusted sites Sites...

  • Page 57: Login

    6.3 LOGIN Enter the IP address of the DVR that you wish to Login to, on the address bar of IE on the Computer, which is in network with the DVR. ACCOUNT & PASSWORD LOGIN The following User name & Password Login window will popup. Default user name: admin Default password: admin Initially the DVR web server window may initiate Activex installation.

  • Page 58: Remote Control

    6.4 REMOTE CONTROL LIVE VIEWING DVR Configuration PTZ Control Screen Format System Time Play Back Time Point Backup Full Screen A. DVR Configuration Get into DVR network menu. B. PTZ Control PTZ control function panel Direction Keys PTZ Zoom in/out Auto Pan Function Preset Point Setup...
  • Page 59 Switch screen format and click twice to switch different channels with full screen. Full Screen. Click again to return. REC. Recorded images are saved as H.264 file format which can be viewed using Capture player 06. Playback Time-Point Backup Click...
  • Page 60 PLAYBACK by TIME SEARCH & EVENT SEARCH. If HDD of the DVR is connected to the PC where browser is open, use Time search or Event search to view the data available on the disc. Playback Time Time Search Event Search HDD Select A.
  • Page 61 TIME-POINT BACKUP Click to operate Time-Point backup. First, select Start and End backup times which have to be among the Record Time. Then, click Save button to select the position on PC where the user is going to backup the data. After that, press OK button to start the backup.
  • Page 62 OTHER FUNCTIONS User can use other functions by clicking the left of mouse A. Snapshot: User can save any single picture from image. Click on the channel for which snapshot is required. Later right click on the mouse and select snapshot. B.

  • Page 63: Dvr Configuration Through Ie Window

    6.5 DVR CONFIGURATION through IE Window A. System - System Information A-1 SYSTEM INFORMATION SERVER NAME: This is the name of the DVR and this name will be shown on the IE Browser for the DVR. A-2 NTP Setting NTP SERVER: Revise the time of DVR via different NTP Server. Note: Time zone and Interval cannot adjust in here (User can adjust both in DATE and TIME SETUP option of DVR Menu).
  • Page 64 B-1 ANONYMOUS USER LOGIN: YES: Accept anonymous user login without password as guest login. NO: Anonymous login unacceptable. B-2 USER MANAGEMENT: Add: Input Username and Password and then click on Add/Set to save. Modify: Click on “Edit” to modify Users login details. On completion click on OK.
  • Page 65 D. NETWORK – IP SETTING of the DVR through IE Browser. IP ASSIGNMENT DHCP: In Dynamic Host Configuration Protocol (DHCP) mode, DHCP server will get setting done automatically. STATIC IP: Please input IP address, Subnet Mask, and Gateway based on network environment.
  • Page 66 F.NETWORK / DDNS SETTING Click on “Enabled” to enable DDNS function and provide the server details to use the function. F-1 DYNDNS.ORG DDNS SETTING - DYNDNS.ORG PROVIDER: Select dyndns.org HOSTNAME: The registered hostname in DYNDNS.ORG. USERNAME: The registered username in DYNDNS.ORG. PASSWORD: The registered password in DYNDNS.ORG.
  • Page 67 STATE 1. Updating: Information update. 2. Idle: Stop service. 3. DDNS registered successfully, now log by http://<username>.ddns.camddns.com: Registered successfully. 4. Updating Failed, the name is already registered. 5. Updating Failed, please check your internet connection. F-2 DDNS.CAMDDNS.COM DDNS SETTING – DDNS.CAMDDNS.COM PROVIDER: Select ddns.camddns.com USERNAME: The registered username in DDNS.CAMDDNS.COM.
  • Page 68 Finally, the DVR domain name (http://DVR_GODDNS.ddns.camddns.com) will be shown on the state block (5). NOTE: 1. If other provider such as ddns2.ydsdvr.com is selected, all of the setting steps are the same as ddns.camddns.com setting. 2. However, if dyndns.org provider is selected, please go to www.dyndns.org website to register the account first.
  • Page 69 G.NETWORK / Mail & FTP Click on “Motion” or “Alarm” option to enable Mail Setting and FTP Setting function. Mail Server: The IP address of Mail Server Username: The username while log in to the mail server. Password: The password while log in to the mail server. Sender’s Mail: The sender’s account when send the mail via this mail server.
  • Page 70 H. OTHERS / Player After choosing to download player, user can click “Run” button to run the player at the local PC. OTHERS / Mobile Viewer Click the drop down list of connection mode to select the sort of mobile viewer connection.

  • Page 71: Gpp Application & Setting

    3GPP APPLICATION & SETTING 3GPP (also known as 3 Generation Partnership Project) is a corporation which formulate -generation communication standard specification. Via this wireless communication protocol, the 3G mobile can perform the remote control. The following example is operated by Sony Ericsson 3G mobile phone: 1.
  • Page 72 “Connected to media server” will 8. Success with vivid image appear * 1. 3GPP BANDWIDTH: Minimum 30kbit /sec. per channel. 2. CONNECTION NUMBERS: Maximum 16 people per channel. 3. 3GPP does not work when DVR is setup in D1 resolution...

  • Page 73: Appendix A: Recording Time Lapse (Hours)

    APPENDIX A: RECORDING TIME LAPSE (HOURS) Full D1-720x576 160 GB Hard Disk Unit: Hour PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average simple complex average simple complex average simple complex average (PPS) 1.00 7.04 3.52 5.10 12.98 6.78 4.56 16.79...
  • Page 74 500 GB Hard Disk Unit: Hour PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average simple complex average simple complex average simple complex average (PPS) 1.00 7.04 3.52 5.10 12.98 6.78 4.56 16.79 8.98 7.00 21.35 19.58 2912 1662 5825 3326...

  • Page 75: Half D1- 720X288

    Half D1- 720x288 160 GB Hard Disk Unit: Hour PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average Simple complex average simple complex average simple complex average (PPS) 1.00 3.80 2.40 2.00 6.00 4.00 5.00 10.00 7.50 6.00 17.00 11.50 1864...
  • Page 76 PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average Simple complex average simple complex average simple complex average (PPS) 1.00 3.80 2.40 2.00 6.00 4.00 5.00 10.00 7.50 6.00 17.00 11.50 1456 2912 1839 1456 5825 1533 3679 2912 1941 1165...

  • Page 77: Cif-360X288

    CIF-360x288 160 GB Hard Disk Unit: Hour PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average Simple complex average simple complex average simple complex average (PPS) 0.50 1.90 1.20 1.00 3.00 2.00 2.50 5.00 3.75 3.00 8.75 5.88 1864 1177 3728...
  • Page 78 500 GB Hard Disk Unit: Hour PICTURE QUALITY (KB) Recording MEDIUM HIGH BEST Speed simple complex average Simple complex average simple complex average simple complex average (PPS) 0.50 1.90 1.20 1.00 3.00 2.00 2.50 5.00 3.75 3.00 8.75 5.88 1456 2912 1839 1456...

  • Page 79: Appendix B: Hdd Compatible Table

    APPENDIX B: HDD COMPATIBLE TABLE Brand Model Capacity Speed (RPM) SEAGATE STM3250820AS 250G 7200 10 ST3250310SV 250GB SV35.3 ST3320620SV 320GB SV35.2/3 ST3400620AS 400G 7200 10 ST3500320SV 500GB SV35.2/3 ST3500320AS 500GB 7200 11 ST3500418AS 500GB 7200 12 ST3750330SV 750GB SV35.3 ST3750640AS 750G 7200 10 ST3750330AS...
  • Page 80 Capture Calculator 06 is a program which separates in “Day to GB” and “GB to Day” two modes. Click shortcut on the desktop to enable the program. In “Day To GB” mode, the program will reveal the quantity of the hard disk according to the number of days that inserted.
  • Page 81 APPENDIX D: MESSAGE LIST MESSAGE STATUS & INDICATION NOTE DISK ACCESS ERROR! H.D.D. Data structure Un-normal. Data does not record into DVR or bad sector on DVR H.D.D. Please install another H.D.D. and perform the record again. UPDATE FILE ERROR! Please re-download the update file and update again.

  • Page 82: Appendix E: Mobile Viewer User Manual

    MOBILE VIEWER USER MANUAL APPENDIX E: SYSTEM REQUIREMENTS. 1. STORAGE SPACE : At least 1MB 2. MEMORY︰At least 6 MB; suggest 10MB 3. SMART PHONE or PDA︰Support Microsoft Windows Mobile or WinCE as following. Windows Mobile 5 Windows Mobile 6 Windows Mobile 2003 SE Windows Mobile 2003 WinCE 4.0 or above.
  • Page 83 Site Management: 1. Click “Site” 2. Select site on the site list 3. Click “Manage” 4. Edit Name, IP, Port, Account, Password, etc 5. Click “OK” MAIN MENU There are 3 main menus, including Live View, Site List, and Site Data. 1.
  • Page 84 Menu : In the bottom of each main menu, there are two Submenus. Each main menu can call another submenu or screen. 1. Live view screen Operate : Click on to enter submenu NOTE: As the smart phone /PDA specifications/resolution may not match with a regular monitor resolution, image may be larger than the screen size of smart phone /PDA, the user can operate navigation key to move the image to different directions to view the whole image or press the central button of navigation key to adjust the...
  • Page 85 a. Snapshot (save the picture as .jpeg files) b. Start (Enable the image transmissions methods, including USB Link, WIFI, Bluetooth, and Infrared). c. Stop (Disable the image transmission methods, including USB Link, WIFI, Bluetooth, and Infrared). d. GPRS / 3G (Enable the image transmission method of GPRS or 3G). e.
  • Page 86 g. PTZ Control (Call PTZ control interface) h. Info (Click to show IO control) Show (show the information) Hide (hide the information) Exit Site(Go to Site List)
  • Page 87 2. Site list screen: Select (Get back to Live view by click on a selected site). Manage(Call submenu to configure) a. New (Add a new site and it will switch to “Site Data” menu. b. Edit (Switch to “Site Data”. The user can edit the information). c.
  • Page 88 3. Site data OK (Save the information and it will switch to Site List). Cancel (Switch to Site List without saving the information). Name: Site Name. IP Address or Domain Name. Port: Internet Port. Account: User Name. Password: Password. Video Size: The size of the video.
  • Page 89 Based on Sony Ericsson K608i *NOTE: Before carrying out settings, please make sure DVR uploaded with the latest firmware. Connect the mobile to PC to download Then, install the mobile software by click the mobile software. Moreover, select the “install” and press “Yes” to implement the storage path, such as “Other”...
  • Page 90 Select the setup machine and press Press “More” and select “Connect”. “More” to select the machine. (i.e. “dvr” Finally, click “Yes” to allow the application “More” “Select” in here.) to send to the internet. Success with vivid image.
  • Page 91 Based on Nokia 6220C (OS- Symbian S60 3 Edition) *NOTE: Before carrying out settings, please make sure DVR uploaded with the latest firmware. 1. Connect the mobile to PC to download the mobile software. Moreover, select the storage path. (i.e. “Menu” “Settings”...
  • Page 92 4. Select the setup machine and click “Connect”. 5. Select “Yes” to allow application mobile viewer to use the internet. Finally, Success with vivid image. Based on iPhone 1. Before using iPhone to monitor the live view of DVR or IP-CAM, please confirm iPhone can connect to the Internet or Wi-Fi.
  • Page 93 3. Moreover, while the user wants to change the DVR channel, please follow by the following steps. (i.e. “CH1 ▼ ”button Select the channel “Done” ) *Note: Above information is for reference only. For other mobile device settings, please refer to mobile device specifications and seek advice from manufacturer before carrying out settings.

  • Page 94: Appendix F: Hdd Installation Guide

    APPENDIX F: HDD INSTALLATION GUIDE WARNING: The end user should NOT attempt to install/change the hard disks. Please consult your distributor/installer. CDR 1620VDE / CDR 0820VDE Remove the top cover by unscrewing 4 screws located at the rear and 3 located on both sides. Remove the 4 mountings screws to the HDD holder Insert HDD(s) and tighten using the 4 HDD screws (not supplied) Connect the power and data cable (s).
  • Page 95 Refit the HDD holder by aligning the mount hole and screwing down firmly Refit the top cover and screwing back the 4 screws located at the rear and 3 located on both sides. CDR 0410VDE Remove the top cover by unscrewing 3 screws located at the rear and 1 located on both sides. Remove the 4 mountings screws holding down the HDD holder Insert HDD(s) and tighten using the 4 HDD screws (not supplied)
  • Page 96 Refit the top cover and screwing back the 3 screws located at the rear and 1 located on both sides. CDR 0410VE Remove the top cover by unscrewing 3 screws located at the rear and 1 located on both sides.

  • Page 97: Appendix G: Accessory Package Details

    2. Utility CD 3. Optical Mouse 4. Remote Controller 5. DC Power Pack (Applicable for CDR 0410VE/ CDR 0410VDE Only) 6. Ext Boards for Alarm / RS232/485 (Applicable for CDR 0820VDE/ CDR 1620VDE Only) 7. Plug Adaptor / Screw Kit 8.
