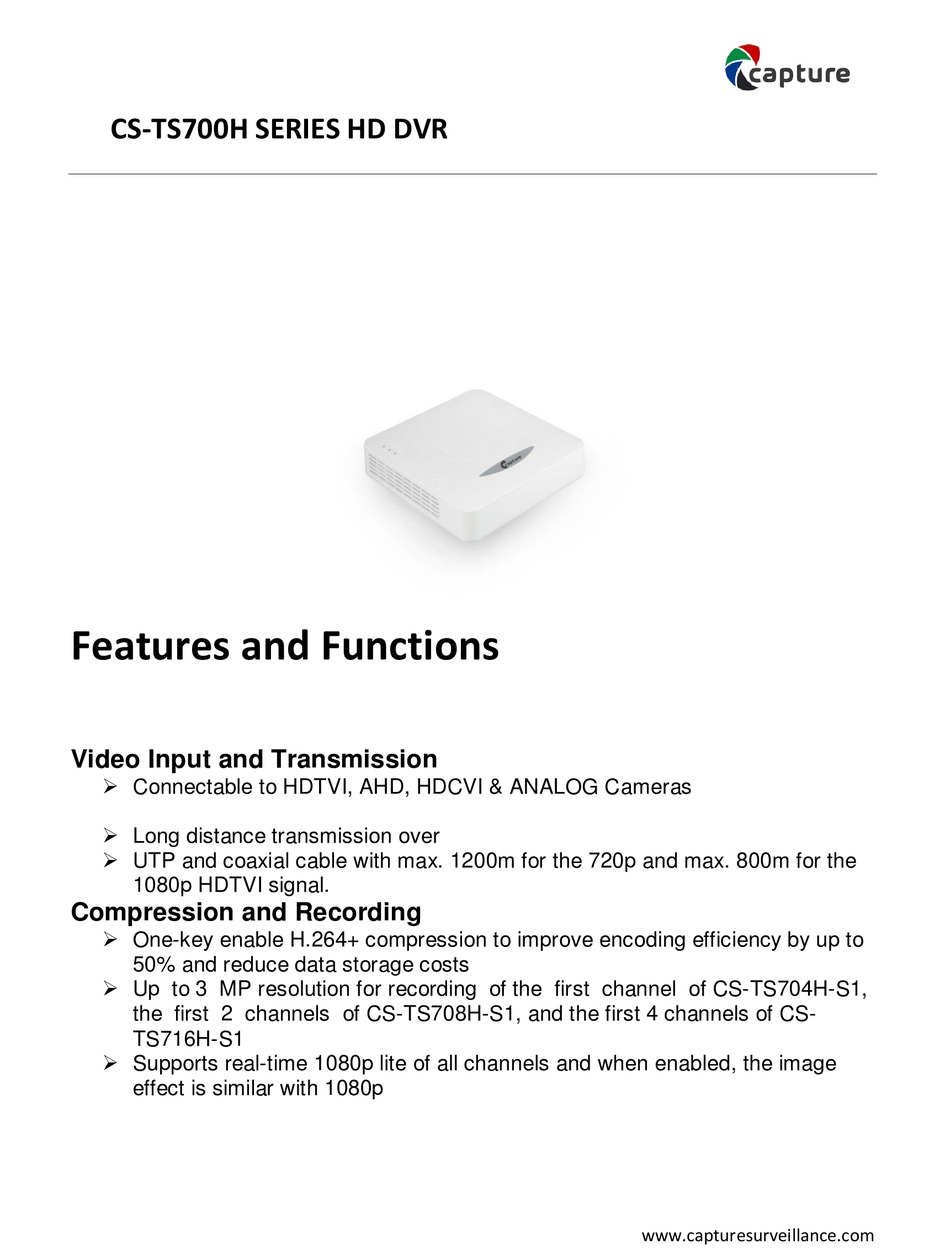

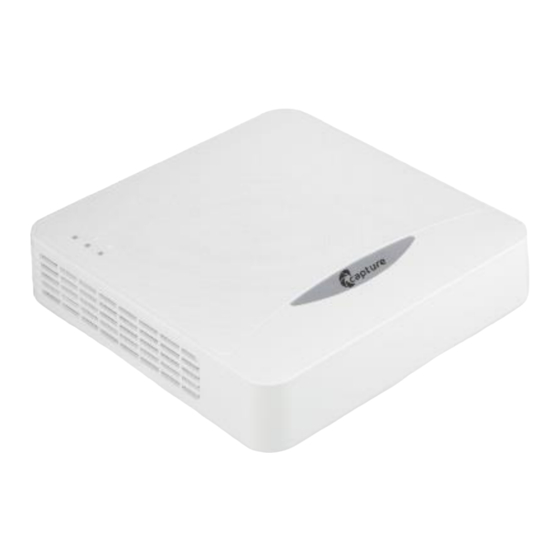

CS-TS700H SERIES HD DVR
Features and Functions
Video Input and Transmission
Connectable to HDTVI, AHD, HDCVI & ANALOG Cameras
Long distance transmission over
UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the
1080p HDTVI signal.
Compression and Recording
One-key enable H.264+ compression to improve encoding efficiency by up to
50% and reduce data storage costs
Up to 3 MP resolution for recording of the first channel of CS-TS704H-S1,
the first 2 channels of CS-TS708H-S1, and the first 4 channels of CS-
TS716H-S1
Supports real-time 1080p lite of all channels and when enabled, the image
effect is similar with 1080p
www.capturesurveillance.com
Advertisement
Table of Contents
Related Manuals for Capture CS-TS700H SERIES
Summary of Contents for Capture CS-TS700H SERIES
-
Page 1: Features And Functions
CS-TS700H SERIES HD DVR Features and Functions Video Input and Transmission Connectable to HDTVI, AHD, HDCVI & ANALOG Cameras Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI signal. - Page 2 Supports PTZ control via Omni cast VMS of Genetic protocol Network & Ethernet Access Capture Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management One self-adaptive 10/100Mbps network interface for CS-TS 704/708H-S1and one self-adaptive 10/100/1000Mbps network interface for CS-TS716H-S1 ...
-
Page 3: Technical Specifications
CS-TS700H SERIES HD DVR Technical Specifications Model CS-TS704H-S1 CS-TS708H-S1 CS-TS716H-S1 Video/Audio Input Video compression H.264+/H.264 Analog video input 16ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection Supported camera types Support HDTVI inpu: 3MP 1080p25, 1080p30, 720p, 720p30 Support AHD input:... -
Page 4: Network Management
Synchronous Playback: 16ch Network Management Remote connections: Network protocols: TCP/IP, PPPoE, DHCP, Capture Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS,ONVIF Hard Disk Driver Interface Type: 1 SATA Interface Capacity Up to 6 TB capacity for each disk... - Page 5 CS-TS700H SERIES HD DVR Network Interface: 1; 10M / 100M self-adaptive Ethernet interface 1; 10M / 100M / 1000M self- adaptive Ethernet interface USB Interface: 2 USB 2.0 Interfaces General Power Supply: 12V DC ≤ 8W ≤ 12W ≤ 20W...
