Summary of Contents for Bazooka NOS6

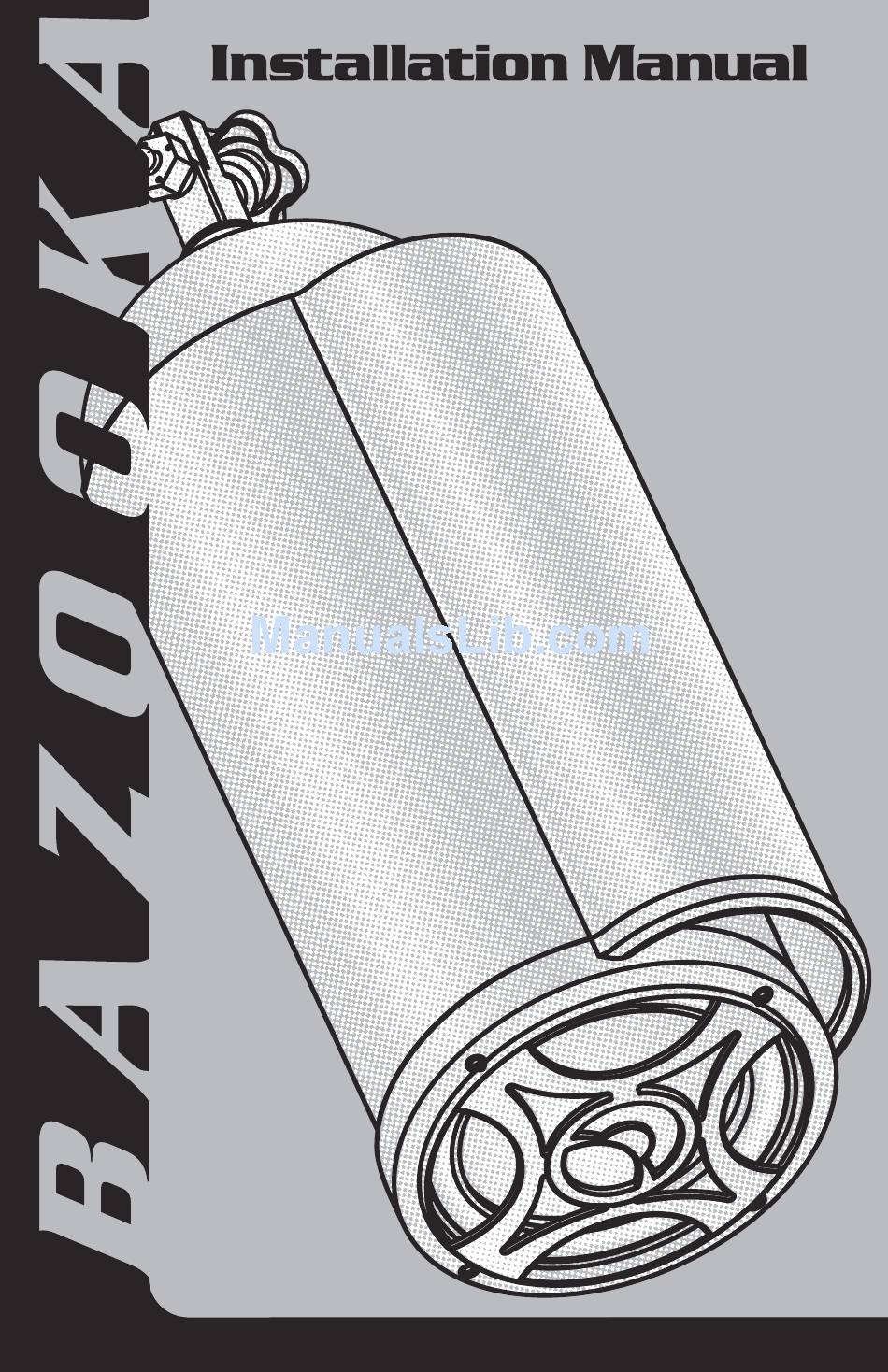

- Page 1 Models: NOS6, NOS8, NOS8A, NOS8P, NOS8W, SCUBA8...
- Page 2 Dear Friend, Thank you for selecting Bazooka ® Mobile Audio for your car stereo system. This Bazooka subwoofer represents our continued commitment to efficiency and design. An innovative manufacturing process we developed for the Bazooka provides consumers with state-of-the-art speaker system design. At Bazooka Mobile Audio, we take pride manufacturing the most revolutionary bass speaker systems ever created, featuring our patented Bass Tubes ®...
-
Page 3: Table Of Contents
® year from the date of purchase. Terms and conditions of the warranty are as stated on the warranty card included in the box with the product. SAS recommends that you use only authorized BAZOOKA dealers to ® install this product. Improper or incorrectly performed installation voids this warranty. -
Page 4: Warranty
150 watts Dimensions 18.325" x 8.5" x 10" Weight 20 lbs. Impedance 4 ohms * The efficiency levels of all Bazooka subwoofer speaker systems are measured in the typical environment: In the low bass region with one watt of power. - Page 5 Locate an area in the rear of the vehicle where you would like to place the Bazooka speaker systems. The location you have selected must meet the following requirements in order for the Bazooka to be properly installed in the vehicle: 1.) The woofer (grill end) should be facing into a corner. (See vehicle placement recommendations on page 5) 2.) Ideally, there should be 2 to 4 inches between the woofer and the corner it...
- Page 6 “click”. On the NOS8A, the amount of wiring and small area of the nozzle can make this difficult. To make this easier, Bazooka recommends twisting the nozzle assembly around to make the wiring coil up inside the nozzle and take up less space.
- Page 7 FINISHING THE LOOK (Step 2) Next, install the wire loom by pushing the loom onto the wire, as shown in below. Starting from the free end and working your way up to the nozzle. (Note: Pulling the wire loom will result in binding, making it more difficult to put the loom in place.) Remove the locking nut from the nozzle by turning counter-clockwise ¼...
-
Page 8: Vehicle Placement
VEHICLE PLACEMENT RECOMMENDATIONS TRUCK INSTALLATION tube size is exaggerated for emphasis HATCHBACK INSTALLATION tube size is exaggerated for emphasis SEDAN INSTALLATION tube size is exaggerated for emphasis... - Page 9 Mounting the NOS Tube: Once you have found a suitable location, you need to mount the NOS Tube. Mounting the unit ensures that it will give you years of trouble- free performance, and also guarantees that your unit is correctly oriented for it to operate properly.
-
Page 10: Wiring
WIRING DIAGRAM (NOS8A Only) Black Green/White Brown/Grey Orange RED 12 GAuge + 12 Volt Battery BLACK 12 Gauge Chassis Ground Orange 16 Gauge Remote Turn-On Green/White RCA Right RCA Input Brown/Grey RCA Left RCA Input POWER WIRE (NOS8A only) The power wire must be fused and connected directly to the positive terminal of the battery to provide a power source with a low voltage drop and low noise. - Page 11 INPUT WIRING (NOS8A only) Connect the low-level RCA phono jack inputs of the Amplified Bazooka subwoofer to the source with a high quality, shielded RCA patch cord. Right and Left RCA’s do not matter; they are summed together internally anyway, but both RCA connections need to be made.
- Page 12 In Canada: (604) 988 2966 Email - tech@bazooka.com • Website - www.bazooka.com 15049 Florida Blvd., Baton Rouge, LA. 70819 SAS, BAZOOKA, BASS TUBES, and LISTEN TO YOUR EARS are registered trademarks of Southern Audio Services, Inc. PAT. NO. 4,567,959 Other design patents pending...
