Page 1: User Manual

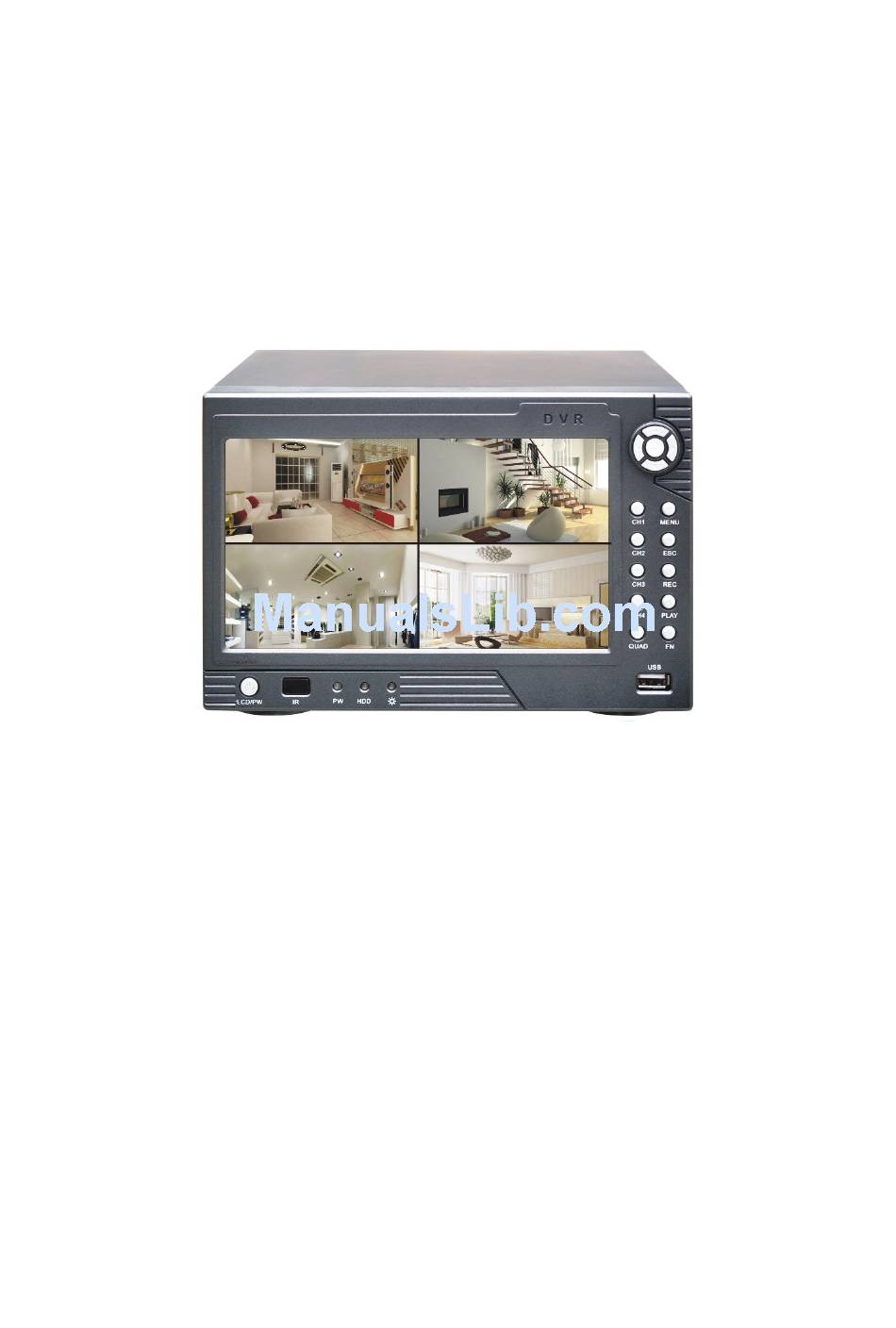

7"LCD 4channel H.264 DVR COMBO H.264 DVR USER MANUAL 7"LCD 4channel H.264 DVR COMBO Page 1 of 24... -
Page 2: Table Of Contents
7"LCD 4channel H.264 DVR COMBO Contents Chapter One Product Description......................2 1.1 General ............................2 1.2 Technical Parameters ......................... 2 Chapter Two Structure Appearance Description ..................3 2.1 Panel Description ........................3 2.2 Product Interface Description ....................4 2.3 Remote Control Description ...................... 5 Chapter Three Description for Operation System .................. -
Page 3: Chapter One Product Description
It applies to bank, telecommunications, electric power, justice, transportation,residential area,factory,warehouses,water conservancy facilities and other areas and departments of the safety precautions 1.2 Technical Parametres 7"LCD 4channel H.264 DVR COMBO MD8704 Model liquid crystal 7"color LCD,800x480,400:1, Visual angle:160°,4:3,CCFL... - Page 4 7"LCD 4channel H.264 DVR COMBO JPEG capture function Support,3M Pixels@10fps Privacy mask Support RS485 HardDisk Interface 1 SATA Network interface RJ45 10M/100M self-adaptive Ethernet each channel of the detection area (16 × 16), multi-level Motion Detection sensitivity can be set IE browser Support Client software...
-
Page 5: Chapter Two Structure Appearance Description
7"LCD 4channel H.264 DVR COMBO Besides checking obvious damage,also need to check if there is any loose of front panel data cable,connect between power and mother board Chapter Two: Structure Appearance Description 2.1 Panel Description 4 channel DVR Front Panel Description： 1．POW：Power States LED 8 PTZ：PTZ control 2．CH1~CH4：Single-Screen Switch... -
Page 6: Remote Control Description
7"LCD 4channel H.264 DVR COMBO 1、AUDIO OUT：Audio Output Connector 7、AUDIO IN:Audio Input Connecor 2、 VIDEO IN： Video Input Connector 8、 NET:RJ-45 Standard Network Connector 3、VIDEO OUT：Video Output Connector 9、RS485：RS-485 interface 4、USB：Standard USB Connector 10、DC12V：12V(DC) Power Connector 5、VGA：Video Output Connector 6、POWER：Power switch 2.3 Remote Control Description POWER Power switch... -
Page 7: Chapter Three Description For Operation System
7"LCD 4channel H.264 DVR COMBO downwards In menu mode:left；in PTZ mode，control the PTZ camera revolve left In menu mode: right；in PTZ mode，control the PTZ camera revolve right ENTER Select key PLAY Video playback Subsidiary key Recording key VIEW Multi-screen key Note: If many devices in same place,remote control should select a device according to device number.So each device needs a unique device number,unless remote control may effect to multi devices with the same number. -
Page 8: Main Menu Introduction
7"LCD 4channel H.264 DVR COMBO For example: "channel" and "code stream" in the encode setup menu （3） List Box: Displays the research information in the list, you can try one option for operation 】 button in the video backup file. or the left mouse button. For example: Press【... -
Page 9: Video Playback
7"LCD 4channel H.264 DVR COMBO 3.5 Video Playback Click "setup" menu and turn into "video playback" interface. 3.5.1 Video Search Chanel：to choose the target channel by clicking the check box. Record mode：to choose the recode mode by clicking the check box Search time：input the Starting and finishing time into edit box Search：After setup the above search condition, click "search"... -
Page 10: Ptz Control
7"LCD 4channel H.264 DVR COMBO 3.5.2 Playback toolbar Select the playback file or time playback file, it will turn into video playback interface. Playback toolbar : it will show below the playback interface. Each channel can magnify or narrow by clicking the left mouse . - Page 11 7"LCD 4channel H.264 DVR COMBO PTZ control menu including: direction control; auto pan scan；zoom;focus ;Iris;speed. 3.8 Setup Click"Setup" in the shortcut menu, the first class menu including: video playback , video backup ,system setup ,system tools ,system info, system logout. 3.8.1video playback That is the playback interface in shortcut menu 3.8.2Video back up...
-
Page 12: System Setup
7"LCD 4channel H.264 DVR COMBO 3.8.3 System setup In the setup menu,Choose “system setup” and turn into it's sub menu. It includes:General setup,Encode setup,Record setup,Network setup,Screen setup,Video detection,PTZ setup,Sensor setup. 3.8.3.1 General setup Choose the "General setup" and turn into it's setup interface. Time：... -
Page 13: Encode Setup
7"LCD 4channel H.264 DVR COMBO saving. 3.8.3.2 Encode setup Select “encond setup” in system setup. Channel ：chose the right CH you like by clicking the select box Stream： chose the right stream : "main stream" or "sub stream " Encode mode：chose the right encode model you need : "video only "means only encoding for video ;... -
Page 14: Network Setu
7"LCD 4channel H.264 DVR COMBO 3.8.3.3 Recode setup Select “recond setup” in system setup. Channel ：chose the right CH as needed by clicking the inverted triangle Weekday : chose the right day as user's need, "ALL" means all days in a week. Image mode and time ：... - Page 15 7"LCD 4channel H.264 DVR COMBO Select “recond setup” in “system setup”. MAC address：showing the device's MAC address DH CP： select whether to start up DHCP to automatically obtain IP 。 “☑ ”means works ； “□” means non-work IP address ：the IP address must be unique and can not be in conflict with the host or workstation on the same network segment Subnet Mask ：subnet for the network segment.
-
Page 16: Screen Setup
7"LCD 4channel H.264 DVR COMBO 3.8.3.5 Screen setup Select “screen setup” in “system setup” Channel ：chose the right CH as needed by clicking select box title ：edit any channel title as needed OSD title : “☑ ” means display channel title, “□”means non-display OSD Alpha：... -
Page 17: Motion Detection
7"LCD 4channel H.264 DVR COMBO Sensor ：chose the right CH as needed by clicking the inverted triangle Sensitivity ： chose the trigger video detection sensitivity Detection type：select detection type --motion, video loss ,“keep out" alarm Alarm duration: after chose the trigger video detection, the time alarm last Area edit : set motion detection area ;move by choosing left of mouse. -
Page 18: User Management
7"LCD 4channel H.264 DVR COMBO 3.8.3 8 Sensor setup In system setup , choose "PTZ setup",enter setting interface Channel: choose the right channel, click the select box to choose Work mode: setting to start alarm or not Alarm duration: set up alarm duration time Recording channel:When alarm is triggered,channel needed to be recorded Alarm: “☑... -
Page 19: Hdd Management
7"LCD 4channel H.264 DVR COMBO In the management tool, click" user management ". Add user: input a new user name in the edit box and set up the operational authority. Choosing in the right check box, “☑ ” users can use it, “□” users can not use it. Click the "password setup" to set the new password, or it can be the default password. -
Page 20: Factory Setting
7"LCD 4channel H.264 DVR COMBO In the " management tool", click "HD management",enter setting interface Auto reboot: setting automatic reboot time, it can set" Saturday to Sunday" . "Never" means do not reboot automatically. Firmware upgrade: copy firmware to the root directory of USB drive,insert USB,select the USB storage device, then click "start"... -
Page 21: System Information
7"LCD 4channel H.264 DVR COMBO The listbox shows the HDD status information 3.9.2 system information Device name,device model,H/W version, S/W version could be checked here. 3.9.3 system log Choose the log type which need to check from listbox, and input the time period in the editbox, then click"... -
Page 22: System Logout
7"LCD 4channel H.264 DVR COMBO 3.10 system logout In the main menu, click"system logout",popup setting interface User logout: apply for logging users. After logout, if you want to use the device continue,need to login again System reboot: It will reboot after "OK". Esee Operation Instruction Do the following setup before you log in Esee on pc IE setting, if use it for the first time, the software can't load,then need to make the following... - Page 23 7"LCD 4channel H.264 DVR COMBO Login:open IE browser and input www.e-seenet.com , enter log in webpage.Look at following picture,input esee ID,user name and password,this user name and password is same with DVR log in user name and password,.Input correct info,then can login 1.1 video monitoring homepage: Monitoring homepage including: preview window, PTZ control,preview mode, code stream selection, channel opening,setting,playback, user logout, as below :...
- Page 24 7"LCD 4channel H.264 DVR COMBO Open preview：click the target channel with mouse left, red color means select already. Double click the channel can open or close the correspond preview channel, such as: open; close Preview mode：can click to choose the mode, or double click preview window to switchover into multi-channel mode http://www.global-export-import.eu Page 24 of 24...
