SMK-Link Wireless Stopwatch Presenter User Manual

Wireless stopwatch presenter with laser pointer
Hide thumbs Also See for Wireless Stopwatch Presenter:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User's Manual
Wireless Stopwatch Presenter with
Laser Pointer
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Stopwatch Presenter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMK-Link Wireless Stopwatch Presenter

Summary of Contents for SMK-Link Wireless Stopwatch Presenter

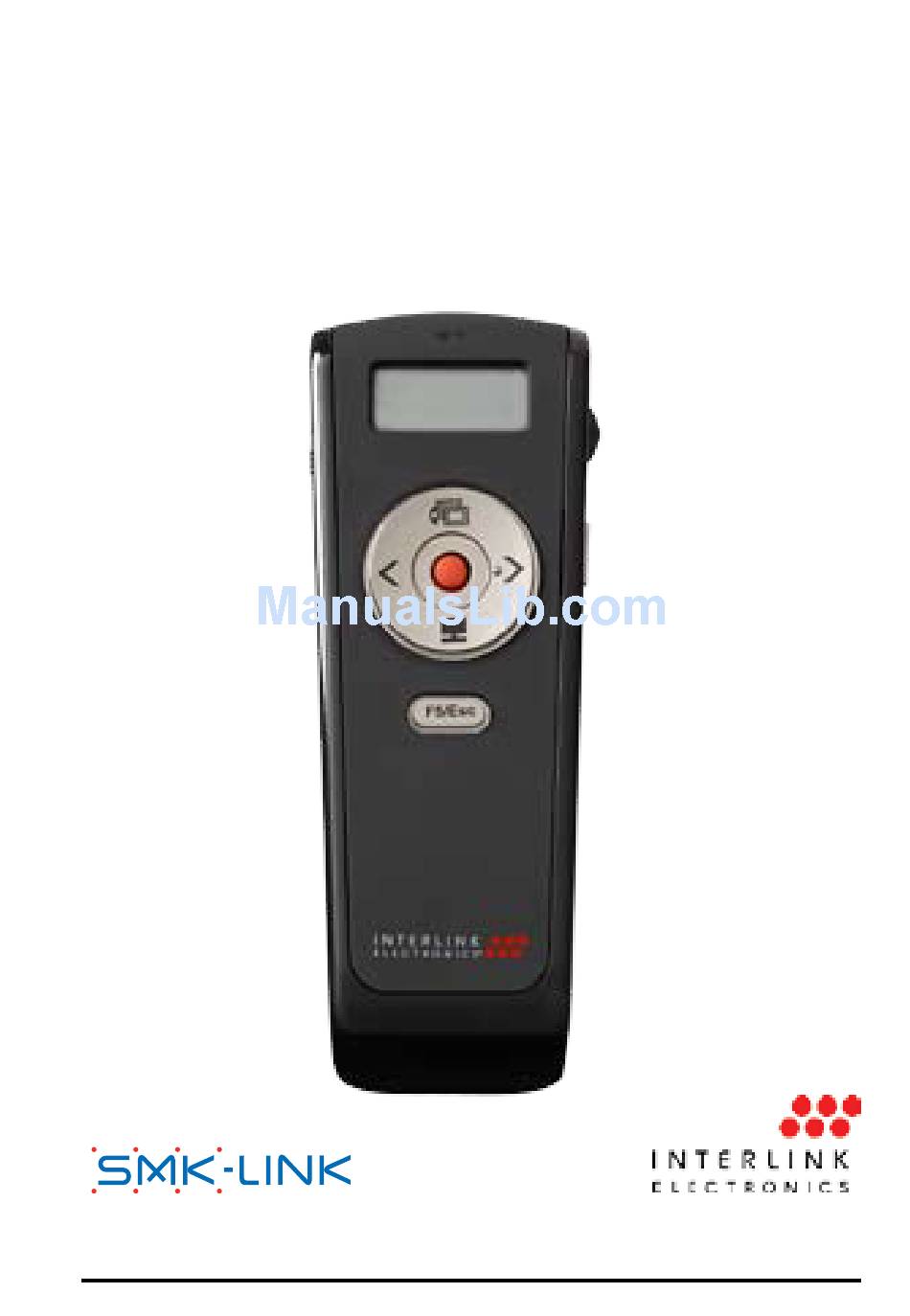

  • Page 1 User’s Manual Wireless Stopwatch Presenter with Laser Pointer Page ...

  • Page 2: Regulatory Compliance

    Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Declaration Of Conformity

    The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Declaration of conformity Hereby, SMK-LINK Electronics Corporation, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 4: System Requirements

    System Requirements Hardware: 1 available USB port Operating System: Windows 2000, XP or Vista Macintosh OS X or above (F5 SlideShow and Alt-Tab Application Switch not supported) Package Contents • Wireless 2.4 GHz stopwatch presenter • Micro USB receiver dongle (stored inside presenter) •...
  • Page 5 • Open the battery compartment by pressing down the cover latch and sliding the door off the presenter. • Insert the two supplied AAA batteries (included in the package) to the battery slots. Make sure the positive (+) and negative (-) ends of the batteries match the polarity markings inside the battery compartment.
  • Page 6 • Connect the micro USB receiver dongle to an available USB port on your computer. Wait for the computer to go through its default process of recognizing the new hardware and installing the built-in native driver. You don’t need to do anything while your computer is going through the installation of a new device.
  • Page 7 • The radio frequency (RF) codes are factory preset for your convenience; the presenter should be functional at this point. • If for any reason the presenter does not function correctly, i.e. the presentation slides do not advance to the next page, there may be other wireless devices in the vicinity operating in the same radio frequency channel.

  • Page 8: Using The Presenter

    Connect Button (1) Press the connect button on the receiver (2) Press the connect button on the presenter Using the Presenter Laser Beam Dongle Storage LCD Time Display Scroller/LCD Display Backlit On/off Stopwatch Application Switch Previous Page Next Page Dark Screen Laser Pointer Slideshow/Esc Page ...
  • Page 9 Slideshow toggle key starts a • F5/Esc slideshow (F5) and exits from a slideshow (Esc). Note: in PowerPoint slideshow starts with page 1 when resumed in the middle of a presentation. • Next Page key to advance to the next slide. •...
  • Page 10 up or down on the scroller for more than 1 second at a time. In PowerPoint the scroller serves as an alternative key for Next Page and Previous Page. • Stopwatch control and LCD display (H:MM) • When presenter power is turned on: stopwatch on standby and LCD display turns on (the Hour and Minute separator “:”...
  • Page 11 advances. • To power off the stopwatch function, hold down the stopwatch button for 3 seconds and the LCD display shuts down. • When timer is on, hold down the scroller towards the presenter to activate the backlit on the LCD display for better visibility of time advanced.

  • Page 12: Warranty

    (90) days from the date of service or return shipping, whichever is longer. If the Product becomes defective in materials or workmanship during the warranty period, SMK-LINK Electronics will, at its option, either repair or replace it with a more current or upgraded model if the originally purchased model is not available.

  • Page 13: Product Support

    SMK-LINK Electronics has been informed of such possibility. If your Product requires warranty service, you must first contact SMK-LINK Electronics Product Support to receive an RMA Number.
  • Page 14 Stopwatch Presenter. We know you had other choices and we appreciate that you chose Interlink Electronics Wireless Presenter by SMK-LINK for your product needs. So that we may better serve you in the future, please register online at www.smklink.com/register. © 2008 SMK-LINK Electronics...
