Summary of Contents for SMK-Link Bluetooth Stopwatch Presenter

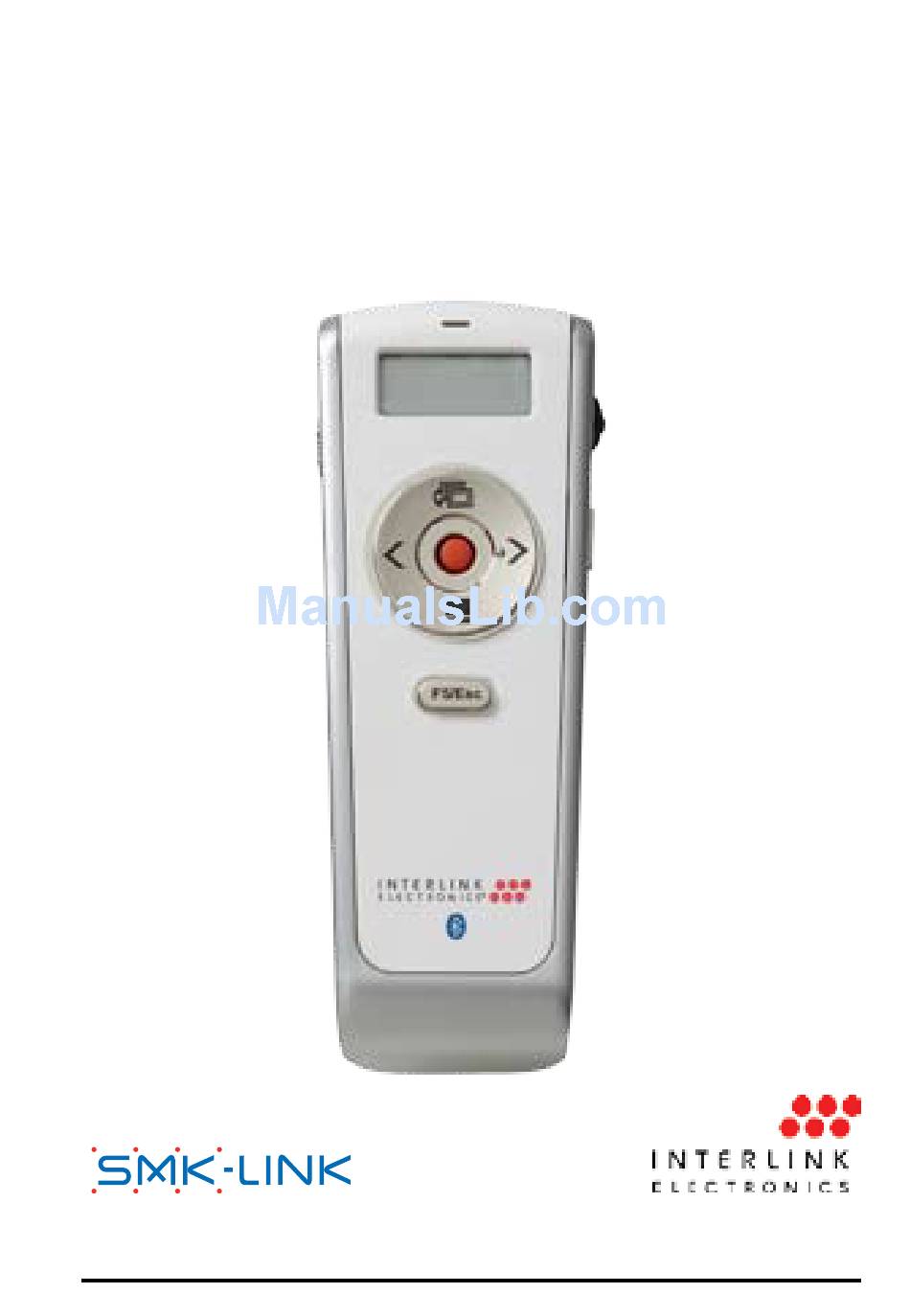

- Page 1 User’s Manual Bluetooth Stopwatch Presenter with Laser Pointer Page ...
-
Page 2: Regulatory Compliance
Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Declaration Of Conformity
The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Declaration of conformity Hereby, SMK-LINK Electronics Corporation, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 4: System Requirements
Bluetooth capability or external Bluetooth adapter) Operating System: Windows 2000, XP or Vista Macintosh OS X or above (F5 SlideShow and Alt-Tab Application Switch not supported) Package Contents • Bluetooth stopwatch presenter • 2 x AAA batteries • User’s manual • Carrying case... - Page 5 • Open the battery compartment by pressing down the cover latch and sliding the door off the presenter. • Insert the two supplied AAA batteries (included in the package) to the battery slots. Make sure the positive (+) and negative (-) ends of the batteries match the polarity markings inside the battery compartment.
- Page 6 Connecting with Your Bluetooth Computer Before you can use Bluetooth devices for the first time you must connect your devices through a standard discovery and pairing process. Microsoft Windows Bluetooth Stack Make sure your computer’s Bluetooth radio is turned on. Make sure your Bluetooth presenter is turned on (check the on/off switch located on the left-hand side of the presenter.
- Page 7 A list of connected Bluetooth devices is presented on the screen. Select Add…; click OK. At this point, the presenter must be placed in discovery mode. Press the Connect button located above the battery cover at the back of the presenter. The LED Page ...
- Page 8 light on the top of the presenter will flash, indicating the presenter is in discovery mode ready to be connected to the computer. Connect Button Check My device is setup and ready to be found and click Next. This must be performed within 20 seconds to avoid expiration of the discovery signal.
- Page 9 The Interlink Bluetooth Presenter will be discovered and listed on the screen. Highlight the name of the device and click Next. Page ...
- Page 10 The Wizard will ask you whether you like to add a passkey. Select Don’t use a passkey as this product is not a keyboard product and does not support passkey. Click Next. Click Finish on the Wizard to complete the process. Page 0...
- Page 11 OS will install the driver automatically. No other steps are necessary. The Bluetooth icon will turn to green. Your Bluetooth Stopwatch Presenter is ready to use. Macintosh Bluetooth Software Make sure your computer’s Bluetooth radio is turned on.
- Page 12 Make sure your presenter is turned on (check the on/off switch located on the left-hand side of the presenter.) Click the Bluetooth icon located on your desktop or in the system bar. Or, click the Apple icon and click System Preferences, then click on the Bluetooth icon.
- Page 13 Select Set Up New Device. Bluetooth Setup Assistant screen will show up. Click Continue. At this point, the presenter must be placed in discovery mode. Press the Connect Page ...
- Page 14 button located above the battery cover on the back of the presenter. The LED light on the top of the presenter will flash, indicating the presenter is in discovery mode ready to be connected to the computer. Connect Button The screen will ask you for the device type.
- Page 15 The computer will search for Bluetooth devices in the range (within 33 feet or 10 meters) and list each device on the screen. Select Interlink Bluetooth Presenter and click Continue. Page ...
-
Page 16: Using The Presenter
On the Conclusion screen, click Quit to exit setup. Your Bluetooth presenter is successfully installed. Using the Presenter Laser Beam LCD Time Display Scroller/LCD Display Backlit On/off Stopwatch Application Switch Previous Page Next Page Dark Screen Laser Pointer Slideshow/Esc Page ... - Page 17 • Slideshow toggle key starts a F5/Esc slideshow (F5) and exits from a slideshow (Esc). Note: in PowerPoint slideshow starts with page 1 when resumed in the middle of a presentation. • Next Page key to advance to the next slide. •...
- Page 18 • Scroller on the side allows the presentation of a long document such as an Excel file. Scrolling one notch up or down advances one line at a time. To advance in rapid mode press up or down on the scroller for more than 1 second at a time.
-
Page 19: Operating Tips & Trouble Shooting
LCD display shows time advancing by 1 minute increment. • To pause the stopwatch, press the stopwatch button once; the Hour and Minute separator “:” stops flashing. • To resume the stopwatch, press the stopwatch button once more; the Hour and Minute separator flashes again and the time advances. - Page 20 side of the presenter before using it. • Conserve the battery power by switching the on/off switch to “OFF” position while traveling. If you will not use the presenter for a long period of time remove the batteries from the battery compartment. •...
-
Page 21: Warranty
SMK-LINK Electronics has been informed of such possibility. If your Product requires warranty service, you must... -
Page 22: Product Support
SMK-LINK Electronics Product Support to receive an RMA Number. The contact information can be found on SMK-LINK Electronics website: http://www.smklink.com/support/contactsupport. html. This warranty does not affect your statutory right and you may also have other rights which vary from state to state. Unless modified in... - Page 23 Presenter with Laser Pointer. We know you had other choices and we appreciate that you chose Interlink Electronics Bluetooth Calculator Keypad by SMK-LINK for your product needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
