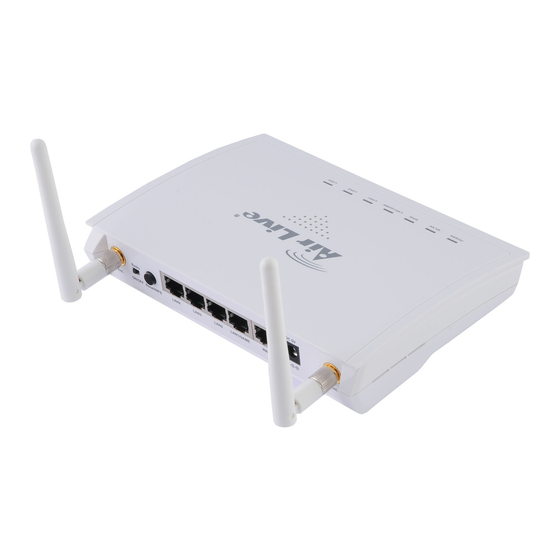

Air Live WN-350R User Manual

Wireless b/g/n 2t2r 300 mbps router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright & Disclaimer
WN-350R
Wireless b/g/n 2T2R 300 Mbps
Router
User's Manual
WN-350R User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WN-350R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Air Live WN-350R

Summary of Contents for Air Live WN-350R

  • Page 1 Copyright & Disclaimer WN-350R Wireless b/g/n 2T2R 300 Mbps Router User’s Manual WN-350R User’s Manual...
  • Page 2 Further, this company reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes. WN-350R User’s Manual...
  • Page 3 This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. WN-350R User’s Manual...
  • Page 4 Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. WN-350R User’s Manual...
  • Page 5 Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. WN-350R User’s Manual...

  • Page 6: Table Of Contents

    Time Zone and Time Auto-synchronization ....... 39 2.4.2. Change Management Password ........40 2.4.3. Remote Management ............... 43 2.5. Setup Internet Connection (WAN Setup) ........46 2.5.1. Setup Procedure for ‘Dynamic IP’ ........48 2.5.2. Setup Procedure for ‘Static IP’ ........... 50 WN-350R User’s Manual...
  • Page 7 Basic NAT Settings (Enable or Disable NAT Function) ..113 3.2.2. Port Forwarding ............... 115 3.2.3. Virtual Server ..............118 3.2.4. Port Mapping for Special Applications ......121 3.2.5. UPnP Setting ..............124 3.2.6. ALG Settings ..............125 WN-350R User’s Manual...
  • Page 8 3.4.7. Statistics ................152 3.5. Configuration Backup and Restore ..........153 3.6. Firmware Upgrade ..............155 3.7. System Reset ................157 Appendix ......................158 4.1. Hardware Specification .............. 158 4.2. Troubleshooting ................. 159 4.3. Glossary ..................163 WN-350R User’s Manual...

  • Page 10: Product Information

    - within minutes, even inexperienced. When the number of your computers and network-enabled devices grow, you can also expand the number of network slot by simple attach a hub or switch, to extend the scope of your network! WN-350R User’s Manual...
  • Page 11 Easy to use Web-based GUI for network configuration and management purposes Ÿ Remote management function allows configuration and upgrades from a remote computer (over the Internet) Ÿ Auto MDI / MDI-X function for all wired Ethernet ports. WN-350R User’s Manual...

  • Page 12: Safety Information

    7. There’s no user-serviceable part inside the router. If you found that the router is not working properly, please contact your dealer of purchase and ask for help. DO NOT disassemble the router, warranty will be void. WN-350R User’s Manual...

  • Page 13: System Requirements

    Ÿ Broadband router (main body, 1 pcs) Ÿ Quick installation guide and User manual CDROM (1 pcs) Ÿ A/C power adapter (1 pcs) WN-350R User’s Manual...

  • Page 14: Familiar With Your New Wireless Broadband Router

    WAN port is connected. WAN port is not connected. LNK/ACT Flashing WAN activity (transferring or receiving data). LAN port is connected. LAN 1-4 LAN port is not connected. LNK/ACT Flashing LAN activity (transferring or receiving data). WN-350R User’s Manual...
  • Page 15 5 seconds to start WPS function. 1 - 4 Local Area Network (LAN) ports 1 to 4. Wide Area Network (WAN / Internet) port. Power Power connector, connects to A/C power adapter. WN-350R User’s Manual...

  • Page 16: System And Network Setup

    2.1. Build Network Connection Please follow the following instruction to build the network connection between your new WIRELESS router and your computers, network devices: Connect your xDSL / cable modem to the WAN port of router by Ethernet cable. WN-350R User’s Manual...
  • Page 17 2. System and Network Setup Connect all your computers, network devices (network-enabled consumer devices other than computers, like game console, or switch / hub) to the LAN port of the router. WN-350R User’s Manual...
  • Page 18 If PWD LED is not on, or any LED you expected is not on, please recheck the cabling, or jump to ‘4.2. Troubleshooting’ for possible reasons and solution. WN-350R User’s Manual...

  • Page 19: Connecting To Wireless Broadband Router By Web Browser

    If the operating system of your computer is…. Windows 95/98/Me - please go to section 2.2.1. Windows 2000 - please go to section 2.2.2. Windows XP - please go to section 2.2.3. Windows Vista - please go to section 2.2.4. WN-350R User’s Manual...

  • Page 20: Windows 95/98/Me Ip Address Setup

    2. System and Network Setup 2.2.1. Windows 95/98/Me IP Address Setup Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network icon, and Network window will appear. Select ‘TCP/IP’, then click ‘Properties’. WN-350R User’s Manual...
  • Page 21 2. System and Network Setup Select ‘Obtain an IP address from a DHCP server’ and then click ‘OK’. WN-350R User’s Manual...

  • Page 22: Windows 2000 Ip Address Setup

    1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Dial-up Connections icon; click Local Area Connection, and Local Area Connection Properties window will appear. Select ‘Internet Protocol (TCP/IP)’ and then click ‘Properties’ WN-350R User’s Manual...
  • Page 23 2. System and Network Setup 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’. WN-350R User’s Manual...

  • Page 24: Windows Xp Ip Address Setup

    1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click ‘Properties’ WN-350R User’s Manual...
  • Page 25 2. System and Network Setup 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’. WN-350R User’s Manual...

  • Page 26: Windows Vista Ip Address Setup

    Click View Network Status and Tasks, and then click Manage Network Connections. Right-click Local Area Network, then select ‘Properties’. Local Area Connection Properties window will appear, select ‘Internet Protocol Version 4 (TCP / IPv4), and then click ‘Properties’ WN-350R User’s Manual...
  • Page 27 2. System and Network Setup 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’. WN-350R User’s Manual...

  • Page 28: Router Ip Address Lookup

    2. System and Network Setup 2.2.5. Router IP Address Lookup After the IP address setup is complete, please click ‘start’ -> ‘run’ at the bottom-lower corner of your desktop. WN-350R User’s Manual...
  • Page 29 Input ‘cmd’, and then click ‘OK’ Input ‘ipconfig’, then press ‘Enter’ key. Please check the IP address followed by ‘Default Gateway’ (In this example, the IP address of router is 192.168.1.254, please note that this value may be different.) WN-350R User’s Manual...
  • Page 30 Please input user name and password in the field respectively, default user name is ‘admin’, and default password is ‘airlive’, then press ‘OK’ button, and you can see the web management interface of this router: WN-350R User’s Manual...
  • Page 31 General Setup, Status, and Tools. You can find the shortcut which leads to these setting categories at the upper-right corner of every page, and you can jump to another category directly by clicking the link, and don’t have to go back to the first page. WN-350R User’s Manual...

  • Page 32: Using 'Quick Setup

    This router provides a ‘Quick Setup’ procedure, which will help you to complete all required settings you need to access the Internet in very short time. Please follow the following instructions to complete the ‘Quick Setup’: Please go to QuickSetup menu by clicking ‘QuickSetup’ button. HERE! WN-350R User’s Manual...
  • Page 33 After you finish with all settings, please click ‘Apply’ (4) button. NOTE: There are several time servers available on internet: 129.6.15.28 (time-a.nist.gov) 132.163.4.101 (time-a.timefreq.bldrdoc.gov) 131.107.1.10 (time-nw.nist.gov) If you found that the time of router is incorrect, try another time server. WN-350R User’s Manual...
  • Page 34 - Please go to section 2.3.2. PPPoE xDSL - Please go to section 2.3.3. PPTP xDSL - Please go to section 2.3.4. L2TP xDSL - Please go to section 2.3.5. Telstra Big Pond - Please go to section 2.3.6. WN-350R User’s Manual...
  • Page 35 ‘Cable Modem’ as Internet connection type, even you’re using another connection type, like xDSL. Also, some cable modem uses PPPoE, so you can choose ‘PPPoE xDSL’ for such cable modem connection, even you’re using a cable modem. WN-350R User’s Manual...

  • Page 36: Setup Procedure For 'Cable Modem

    ‘Clone Mac address’ button to fill the MAC address field with the MAC address of your computer. After you finish with all settings, please click ‘OK’ (3) button; if you want to go back to previous menu, click ‘Back’. WN-350R User’s Manual...

  • Page 37: Setup Procedure For 'Fixed-Ip Xdsl

    Please input subnet mask assigned by your service provider DNS address (3): Please input the IP address of DNS server provided by your service provider. Service Provider Please input the IP address of DNS server Gateway Address (4): provided by your service provider. WN-350R User’s Manual...

  • Page 38: Setup Procedure For 'Pppoe Xdsl

    NOTE: You can choose this Internet connection method if your service provider assigns a fixed IP address (also know as static address) to you, and not using DHCP or PPPoE protocol. Please contact your service provider for further information. 2.3.3. Setup Procedure for ‘PPPoE xDSL’ WN-350R User’s Manual...
  • Page 39 ‘Disconnect button is pressed. Idle Time Out: Specify the time to shutdown internet connect after no internet activity is detected by minute. This option is only available when connection type is ‘Connect on Demand’. WN-350R User’s Manual...

  • Page 40: Setup Procedure For 'Pptp Xdsl

    WAN interface settings must be correctly set, or the Internet connection will fail even those settings of PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. WN-350R User’s Manual...
  • Page 41 Connection ID (4): Please input the connection ID here, this is optional and you can leave it blank. MTU (5): Please input the MTU value of your network connection here. If you don’t know, you can use default value. WN-350R User’s Manual...

  • Page 42: Setup Procedure For 'L2Tp Xdsl

    L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same with PPTP connection. Like PPTP, there are two kinds of required setting, we’ll start from ‘WAN Interface Settings’: WN-350R User’s Manual...
  • Page 43 WAN interface settings must be correctly set, or the Internet connection will fail even those settings of PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to L2TP settings section: WN-350R User’s Manual...
  • Page 44 Please input the idle time out of Internet connection you wish to use, and refer to last section for detailed descriptions. When you finish with all settings, please click ‘OK (7); if you want to go back to previous menu, click ‘Back’. WN-350R User’s Manual...

  • Page 45: Setup Procedure For 'Telstra Big Pond

    Check this box to choose login server by yourself. server manually (3): Login Server(4): Please input the IP address of login server here. When you finish with all settings, click ‘OK (5); if you want to go back to previous menu, click ‘Back’. WN-350R User’s Manual...
  • Page 46 Please click ‘Apply’ button to prepare to restart the router, and you’ll see this message: Please wait for about 30 seconds, then click ‘OK!’ button. You’ll be back to router management interface again, and the router is ready with new settings. WN-350R User’s Manual...

  • Page 47: Basic Setup

    Please start your web browser and log onto router web management interface, then click ‘General Setup’ button on the left, or click ‘General Setup’ link at the upper-right corner of web management interface. HERE! WN-350R User’s Manual...

  • Page 48: Time Zone And Time Auto-Synchronization

    If you want to enable daylight savings setting, please check ‘Enable Function’ box, and set the duration of daylight setting. When you finish, click ‘Apply’. You’ll see the following message displayed on web browser: WN-350R User’s Manual...

  • Page 49: Change Management Password

    To change password, please follow the following instructions: Please click ‘System’ menu on the left of web management interface, then click ‘Password Settings’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 50 ‘Cancel’. If the password you typed in ‘New Password’ (2) and ‘Confirmed Password’ (3) field are not the same, you’ll see the following message: Please retype the new password again when you see above message. WN-350R User’s Manual...
  • Page 51 If the current and new passwords are correctly entered, after you click ‘Apply’, you’ll be prompted to input your new password: Please use new password to enter web management interface again, and you should be able to login with new password. WN-350R User’s Manual...

  • Page 52: Remote Management

    IP address by enabling the ‘Remote Management’ Function. To do so, please follow the following instructions: Please click ‘System’ menu on the left of web management interface, then click ‘Remote Management’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 53 Press ‘Continue’ to save the settings made and back to web management interface; press ‘Apply’ to save the settings made and restart the router so the settings will take effect after it reboots. WN-350R User’s Manual...
  • Page 54 For example, if the IP address of this router is 1.2.3.4, and the port number you set is 8888, you have to input following address in the address bar of web browser: http://1.2.3.4:8888 WN-350R User’s Manual...

  • Page 55: Setup Internet Connection (Wan Setup)

    Please select an Internet connection method depend on the type of connection you’re using. You can either click the connection method on the left (1) or right (2). If you select the connection method on the right, please click ‘More Configuration’ button after a method is selected. WN-350R User’s Manual...
  • Page 56 - Please go to section 2.5.4. L2TP - Please go to section 2.5.5. Telstra Big Pond - Please go to section 2.5.6. - Please go to section 2.5.7. DDNS - Please go to section 2.5.8. WISP - Please go to section 2.5.9. WN-350R User’s Manual...

  • Page 57: Setup Procedure For 'Dynamic Ip

    ‘Clone Mac address’ button to fill the MAC address field with the MAC address of your computer, After you finish with all settings, please click ‘Apply’ (3); if you want to remove and value you entered, please click ‘Cancel’. WN-350R User’s Manual...
  • Page 58 Please click ‘Continue’ (1) to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 59: Setup Procedure For 'Static Ip

    Please input the IP address of DNS server Gateway Address (3): provided by your service provider. After you finish with all settings, please click ‘Apply’ (4) button and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 60 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 61: Setup Procedure For 'Pppoe

    Service Name (3): Please give a name to this Internet service, this is optional MTU (4): Please input the MTU value of your network connection here. If you don’t know, you can use default value. WN-350R User’s Manual...
  • Page 62 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 63: Setup Procedure For 'Pptp

    Select the type of how you obtain IP address from your service provider here. You can choose ‘Obtain an IP address automatically’ (equal to DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the following IP address’ (i.e. static IP address) WN-350R User’s Manual...
  • Page 64 PPTP Gateway (3): Please input the IP address of PPTP gateway assigned by your Internet service provider here. Connection ID (4): Please input the connection ID here, this is optional and you can leave it blank. WN-350R User’s Manual...
  • Page 65 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 66: Setup Procedure For 'L2Tp

    Please input the MTU value of your network connection here. If you don’t know, you can use default value. Connection type (5): Please select the connection type of Internet connection you wish to use, please refer to section 2-5-3 for detailed descriptions. WN-350R User’s Manual...
  • Page 67 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 68: Setup Procedure For 'Telstra Big Pond

    (3): Server IP Address (4): Please input the IP address of login server here. When you finish with all settings, click ‘Apply’ (5) button and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 69: Setup Procedure For 'Dns

    DNS server’s IP address should be assigned automatically. However, if you have preferred DNS server, or your service provider didn’t assign the IP address of DNS server because of any reason, you can input the IP address of DNS server here. WN-350R User’s Manual...
  • Page 70 DNS server! (i.e. only numeric characters and dots are accepted) 10.20.30.40……………………………………………………………… Correct dns.serviceprovider.com…………………………………………... Incorrect After you finish with all settings, please click ‘Apply’ (3) button and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 71: Setup Procedure For 'Ddns

    Internet, because their IP address will vary every time when connected to Internet, and other user will not be able to know the IP address they’re using at a certain time. WN-350R User’s Manual...
  • Page 72 Dynamic DNS (1): If you want to enable DDNS function, please select ‘Enabled’; otherwise please select ‘Disabled’. Provider (2): Select your DDNS service provider here. Domain Name (3): Input the domain name you’ve obtained from DDNS service provider. WN-350R User’s Manual...

  • Page 73: Setup Procedure For 'Wisp

    If your network service provided by your service provider is through wireless network, please select this mode. After you have connected the router to the access point of service provider wirelessly, please setup the WAN connection type in WAN page. WN-350R User’s Manual...
  • Page 74 Disable: disable this function. Enable: enable this function and the router can connect to the access points installed by your wireless service provider. Any clients associated to the router can access the Internet service through the wireless network. WN-350R User’s Manual...
  • Page 75 Click to set security settings for this connection (Please go to section ‘2-7-3 Wireless Security’ for detailed instructions). After you finish with all settings, please click ‘Apply’ (6) button and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 76 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 77: Wired Lan Configurations

    Internet, static IP address should be used, so other computes can locate the server. WN-350R User’s Manual...
  • Page 78 Please follow the following instructions to set wired LAN parameters. Please click ‘LAN’ menu on the left of web management interface, there are three setup groups here: ‘LAN IP’, ‘DHCP Server’, and ‘Static DHCP Leases Table’. Here are setup instructions for each of them. WN-350R User’s Manual...

  • Page 79: Lan Ip Section

    If you want to activate DHCP server function of this router, select ‘Enabled’, or set it to ‘Disabled’. Recommended Value if you don’t know what to fill: IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 802.1d Spanning Tree: Disabled DHCP Server: Enabled WN-350R User’s Manual...

  • Page 80: Dhcp Server

    This is optional. Recommended Value if you don’t know what to fill: Lease Time: Two Weeks (or ‘Forever’, if you have less than 20 computers) Start IP: 192.168.1.25400 End IP: 192.168.2.200 Domain Name: (leave it blank) WN-350R User’s Manual...

  • Page 81: Static Dhcp Leases Table

    IP address to a specific computer permanently, however, you will not be able to assign a certain IP address to a specific computer, since IP addresses will be assigned in random order by this way). WN-350R User’s Manual...
  • Page 82 DHCP leases table. If you want to remove all characters you just entered, click ‘Clear’. After you clicked ‘Add’, the MAC address and IP address mapping will be added to ‘Static DHCP Leases Table’ section. WN-350R User’s Manual...
  • Page 83 Please click ‘Continue’ to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 84: Wireless Lan Configurations

    Please select ‘Enable’ (1), then click ‘Apply’ (2) button. If you’re coming here because you want to disable wireless function, please select ‘Disable’ (3), then click ‘Apply’ (2) button. WN-350R User’s Manual...
  • Page 85 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 86: Basic Wireless Settings

    AP Bridge-Point to Point: Connect this router with another wireless router, to expand the scope of network. AP Bridge-Point to Multi-Point: Connect this router with up to four other wireless routers, to expand the scope of network. WN-350R User’s Manual...
  • Page 87 - Please go to section 2.7.1.2. AP Bridge-Point to Point - Please go to section 2.7.1.3. AP Bridge-Point to Multi-Point - Please go to section 2.7.1.4. AP Bridge-WDS - Please go to section 2.7.1.5. Universal Repeater - Please go to section 2.7.1.6. WN-350R User’s Manual...
  • Page 88 54Mbps). 2.4 GHz (B+G+N) 2.4GHz band, allows 802.11b, 802.11g, and 802.11n wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, maximum 54Mbps for 802.11g clients, and maximum 300Mbps for 802.11n clients). WN-350R User’s Manual...
  • Page 89 Associated Clients (5): Click ‘Show Active Clients’ button, then an “Active Wireless Client Table” will pop up. You can see the status of all active wireless stations that are connecting to the access point. WN-350R User’s Manual...
  • Page 90 In this mode, you can connect the router to Ethernet device such us TV, Game player, HDD&DVD to enable the Ethernet device be a wireless station and join to a wireless network through an access point or AP router. WN-350R User’s Manual...
  • Page 91 (wired only – AP will not accept wireless clients in this mode) of two wireless routers will think they’re on the same physical network. This function is very convenient when you need to connect two networks between two buildings. Here are instructions about how to connect two wireless routers together: WN-350R User’s Manual...
  • Page 92 MAC address 1(4): Input the MAC address of another wireless router. Security Settings (5) Click to setting security for this connection (Please go to section ‘2.7.3. Wireless Security’ for detailed instructions). WN-350R User’s Manual...
  • Page 93 MAC address Input the MAC address of other wireless routers. 1 to 4 (4 - 7): Security Setting (8): Click to set security settings for this connection (Please go to section ‘2-7-3 Wireless Security’ for detailed instructions). WN-350R User’s Manual...
  • Page 94 Select the band you want to use, all the wireless routers must use the same setting. SSID (3): Input the SSID of your wireless router, the setting should be the same with other wireless routers for the convenience of roaming. WN-350R User’s Manual...
  • Page 95 NOTE: For Repeater Mode, this router will demodulate the received signal, checking if this signal is noise for the operating network then have the signal modulated and amplified again. The output power of this mode is the same as that of WDS and normal AP mode. WN-350R User’s Manual...
  • Page 96 Associated Clients (5): Click ‘Show Active Clients’ button, then an “Active Wireless Client Table” will pop up. You can see the status of all active wireless stations that are connecting to the access point. WN-350R User’s Manual...
  • Page 97 Please click ‘Continue’ to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 98: Advanced Wireless Settings

    Here are descriptions of every setup items: Fragment Threshold (1): Set the Fragment threshold of wireless radio. not modify default value if you don’t know what it is, default value is 2346. WN-350R User’s Manual...
  • Page 99 Decide if the wireless router will broadcast its own ESSID or not. You can hide the ESSID of your wireless router (set the option to ‘Disable’), so only people those who know the ESSID of your wireless router can get connected. WN-350R User’s Manual...
  • Page 100 Please click ‘Continue’ to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 101: Wireless Security

    2.7.4., or disable ESSID broadcast). Only use this option when you really want to allow everyone to use your wireless router, and you don’t care if there’s someone reads the data you transfer over network without your consent. WN-350R User’s Manual...
  • Page 102 Default Tx Key (4): You can set up to four sets of WEP key, and you can decide which key is being used by default here. If you don’t know which one you should use, select ‘Key 1’. WN-350R User’s Manual...
  • Page 103 Please input the IP address of radius server here. IP address (7): RADIUS Server Please input the port number of radius server here. Port (8): RADIUS Server Please input the port number of radius password Password (9): here. WN-350R User’s Manual...
  • Page 104 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...
  • Page 105 It’s not recommended to use a word that can be found in a dictionary due to security reason. After you finish WPA Pre-shared key setting, please click ‘Apply’ button (5) and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 106 2003) only support WEP or WPA (TKIP) cipher. A driver upgrade would be needed for those clients to use WPA and WPA2 encryption. 2.7.3.4. WPA RADIUS If you have a RADIUS server, this router can work with it and provide safer wireless authentication. WN-350R User’s Manual...
  • Page 107 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 108: Wireless Access Control

    Up to 20 MAC addresses can be assigned by using this function. Please click ‘Wireless’ menu on the left of web management interface, then click ‘Access Control’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 109 You can input up to 16 alphanumerical characters here. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC addresses as a memory aid. WN-350R User’s Manual...
  • Page 110 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 111: Wi-Fi Protected Setup (Wps)

    WPS mode, then provide the PIN code of the wireless client you wish to connect to this wireless router. The detailed instructions are listed follow: Please click ‘Wireless’ menu on the left of web management interface, then click ‘WPS’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 112 PinCode Self: This is the WPS PIN code of this wireless router. This code is useful when you need to build wireless connection by WPS with other WPS-enabled wireless devices. SSID: The SSID of this wireless router will be displayed here. WN-350R User’s Manual...
  • Page 113 Please input the PIN code of the wireless client you client PinCode (4): wish to connect, and click ‘Start PIN’ button. The ‘WLAN’ LED on the wireless router will be steady on when this wireless router is waiting for incoming WPS request. WN-350R User’s Manual...

  • Page 114: Security Tips For Wireless Network

    AP scanning function of their wireless client, and this can reduce the chance of being intruded. Use ‘Access Control’ function described in section 2.7.4., so those people who are not in your list will not be able to connect to your network. WN-350R User’s Manual...

  • Page 115: Advanced Functions

    / audio transfer. With this function, you can limit the maximum bandwidth or give a guaranteed bandwidth for a specific computer, to avoid said unpleasing result from happening. WN-350R User’s Manual...

  • Page 116: Basic Qos Settings

    To disable download bandwidth limitation, input ‘0’ here. Total Upload You can set the limit of total upload bandwidth in kbits. Bandwidth (3): To disable upload bandwidth limitation, input ‘0’ here. Current QoS All existing QoS rules will be displayed here. Table (4): WN-350R User’s Manual...
  • Page 117 You can lower the priority of the QoS rule you selected by clicking this button. After you finish with all settings, please click ‘Apply’ (11) button and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 118 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 119: Add A New Qos Rule

    (Upload of Download), and the speed of bandwidth limitation in Kbps, then select the type of QoS: ‘guarantee’ (guaranteed usable bandwidth for this rule) or ‘max’ (set the maximum bandwidth for the application allowed by this rule). WN-350R User’s Manual...
  • Page 120 IP address based rule (apply the limitation on all traffics from / to the specified IP address / port number), select ‘None’. WN-350R User’s Manual...
  • Page 121 ‘Save’ button, please correct your input by the instructions given by the error message. If you want to erase all values you just entered. Click ‘Reset’ WN-350R User’s Manual...

  • Page 122: Network Address Translation (Nat)

    Please follow the following instructions to set NAT parameters: 3.2.1. Basic NAT Settings (Enable or Disable NAT Function) Please click ‘NAT’ menu on the left of web management interface, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 123 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...

  • Page 124: Port Forwarding

    IP address is different, please use ‘Virtual Server’ function, described in next section. Please click ‘NAT’ menu on the left of web management interface, then click ‘Port Forwarding’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 125 Please input any text to describe this mapping, up to 16 alphanumerical characters. Add (7): Add the mapping to port forwarding table. Reset (8): Remove all inputted values. Port Forwarding All existing port forwarding mappings will Table (9): be displayed here. WN-350R User’s Manual...
  • Page 126 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 127: Virtual Server

    Internet services on different local computers via a single Internet IP address. Please click ‘NAT’ menu on the left of web management interface, then click ‘Virtual Server’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 128 Please input any text to describe this mapping, up to 16 alphanumerical characters. Add (8): Add the mapping to virtual server table. Reset (9): Remove all inputted values. Virtual Server All existing virtual server mappings will be displayed Table (10): here. WN-350R User’s Manual...
  • Page 129 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 130: Port Mapping For Special Applications

    Computer Name (3): Pull down the menu and all the computers connected to the router will be listed here. You can easily to select the computer name without checking the IP address of the computer. WN-350R User’s Manual...
  • Page 131 "Reset" will clear your current selections. Delete (11): Please select a special application by clicking the ‘Select’ box of the mapping, then click ‘Delete Selected’ button to remove the setting. If there’s no setting here, this button will be grayed out. WN-350R User’s Manual...
  • Page 132 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while the router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 133: Upnp Setting

    ‘UPnP’, and the following message will be displayed on your web browser: There is only one option in this page, please select ‘Enable’ or ‘Disable’ to enable or disable UPnP function, then click ‘Apply’ button, and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 134: Alg Settings

    With these supports, those applications which required special support will be able to work with NAT architecture. Please click ‘NAT’ menu on the left of web management interface, then click ‘ALG Settings’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 135 3. Advanced Functions There are many applications listed here. Please check the box of the special support for applications you need, and then click ‘Apply’ button and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 136 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 137: Firewall

    Please follow the following instructions to enable or disable firewall function: Please click ‘Firewall’ menu on the left of web management interface, and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 138: Access Control

    IP address, protocol, or port. Please click ‘Firewall’ menu on the left of web management interface, then click ‘Access Control’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 139 ‘aabbccddeeff’ Computer Name (3): Pull down the menu and all the computers connected to the router will be listed here. You can easily to select the computer name without checking the IP address of the computer. WN-350R User’s Manual...
  • Page 140 IP addresses listed in filtering table will be able to connect to the network, and rejecting all other network devices. WN-350R User’s Manual...
  • Page 141 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...
  • Page 142 3. Advanced Functions 3.3.1.1. Add PC After button is clicked, the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 143 When you finish with all settings, please click ‘Add’ to save settings, you’ll be brought back to previous menu, and the rule you just set will appear in current IP filtering table. If you want to remove all settings in this page, click ‘Reset’ button. WN-350R User’s Manual...

  • Page 144: Url Blocking

    This function is useful for parents and company managers. Please follow the following instructions to set URL blocking parameters: Please click ‘Firewall’ menu on the left of web management interface, then click ‘URL Blocking’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 145 ‘Delete All’ button. Reset (8): You can also click ‘Reset’ button to unselect all URL/Keywords. After you finish with all settings, please click ‘Apply’ (9) button and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 146: Dos Attack Prevention

    This router has a built-in DoS attack prevention mechanism; when you activate it, the router will stop the DoS attack for you. WN-350R User’s Manual...
  • Page 147 Check this box and the router will ignore all inbound PING request, but when you activate this function, you will not be able to ping your own router from internet, too. WN-350R User’s Manual...
  • Page 148 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). WN-350R User’s Manual...
  • Page 149 If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. 3.3.3.1. DoS - Advanced Settings When you click ‘Advanced’ button in DoS menu, the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 150 Like Ping of Death, you can set the threshold of when this DoS prevention mechanism will be activated. After you finish with all settings, please click ‘Apply’ (e) button and the following message will be displayed on your web browser: WN-350R User’s Manual...

  • Page 151: Demilitarized Zone (Dmz)

    IP address, so other people on Internet can fully access those computers in DMZ. Please follow the following instructions to set DMZ parameters: Please click ‘Firewall’ menu on the left of web management interface, then click ‘DMZ’, and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 152 Computer Name (4): Pull down the menu and all the computers connected to the router will be listed here. You can easily to select the computer name without checking the IP address of the computer. WN-350R User’s Manual...
  • Page 153 ‘Delete All’ button. Reset (10): You can also click ‘Reset’ button to unselect all DMZ entries. After you finish with all settings, please click ‘Apply’ (11) button and the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 154 ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. WN-350R User’s Manual...

  • Page 155: System Status

    You can use this function to know the system information and firmware version of this router. Please click ‘Status’ link located at the upper-right corner of web management interface, and the following message will be displayed on your web browser NOTE: Information displayed here may vary. WN-350R User’s Manual...

  • Page 156: Internet Connection Status

    You can use this function to know the status of current Internet connection. Please click ‘Internet Connection’ menu on the left of web management interface, and the following message will be displayed on your web browser: This information will vary depending on the connection status. WN-350R User’s Manual...

  • Page 157: Device Status

    You can use this function to know the status of your router. Please click ‘Device Status’ menu on the left of web management interface, and the following message will be displayed on your web browser: This information will vary depending on the device status. WN-350R User’s Manual...

  • Page 158: System Log

    The system events will be displayed in this page, and here are descriptions of every buttons: Save (1): Save current event log to a text file. Clear (2): Delete all event logs displayed here. Refresh (3): Refresh the event log display. WN-350R User’s Manual...

  • Page 159: Security Log

    The system events will be displayed in this page, and here are descriptions of every buttons: Save (1): Save current event log to a text file. Clear (2): Delete all event logs displayed here. Refresh (3): Refresh the event log display. WN-350R User’s Manual...

  • Page 160: Active Dhcp Client List

    Please click ‘Active DHCP client’ menu on the left of web management interface, and the following message will be displayed on your web browser: All information about active DHCP leases issued by this router will be displayed here. You can click ‘Refresh’ button to display latest information. WN-350R User’s Manual...

  • Page 161: Statistics

    You can use this function to check the statistics of wireless, LAN, and WAN interface of this router. Please click ‘Statistics’ menu on the left of web management interface, and the following message will be displayed on your web browser: You can click ‘Refresh’ button to display latest information. WN-350R User’s Manual...

  • Page 162: Configuration Backup And Restore

    To backup or restore router configuration, please follow the following instructions: Please click ‘Tool’ located at the upper-right corner of web management interface, then click ‘Configuration Tools’ on the left of web management interface, then the following message will be displayed on your web browser: WN-350R User’s Manual...
  • Page 163 Restore to Click this button to remove all settings Factory Default (3): you made, and restore the configuration of this router back to factory default settings. WN-350R User’s Manual...

  • Page 164: Firmware Upgrade

    Please click ‘Tool’ located at the upper-right corner of web management interface, then click ‘Firmware Upgrade’ on the left of web management interface, then the following message will be displayed on your web browser: Please click ‘Next’, and the following message will be displayed: WN-350R User’s Manual...
  • Page 165 If the firmware you uploaded is corrupt, the firmware upgrade will fail, and you may have to return this router to the dealer of purchase to ask for help. (Warranty voids if you interrupted the upgrade procedure). WN-350R User’s Manual...

  • Page 166: System Reset

    ‘Reset’ on the left of web management interface, then the following message will be displayed on your web browser: Please click ‘Apply’ to reset your router, and it will be available again after few minutes, please be patient. WN-350R User’s Manual...

  • Page 167: Appendix

    Power: 5VDC, 1A Switching Power Adapter Ÿ Dimension: 30(H) x 157(W) x 127(D) mm Ÿ Transmit Power : Ÿ 11n: 13dBm±1.5dBm, 11g: 14dBm±1.5dBm, 11b: 17dBm±1.5dBm Ÿ Temperature: 32~104°F (0 ~ 40°C) Ÿ Humidity: 10-90% (NonCondensing) Ÿ Certification: FCC, CE WN-350R User’s Manual...

  • Page 168: Troubleshooting

    (DHCP), and see if your computer can get an IP address. 6. If you did a firmware upgrade and this happens, contact your dealer of purchase for help. 7. If all above solutions don’t work, contact the dealer of purchase for help. WN-350R User’s Manual...
  • Page 169 9. Reset the device provided by your Internet service provider too. 10. Try to use IP address instead of hostname. If you can use IP address to communicate with a remote server, but can’t use hostname, please check DNS setting. WN-350R User’s Manual...
  • Page 170 1. Make sure you’re connecting to the correct IP management interface: address of the router! password is wrong 2. Password is case-sensitive. Make sure the ‘Caps Lock’ light is not illuminated. 3. If you really forget the password, do a hard reset. WN-350R User’s Manual...
  • Page 171 A/C power adapter from utility power (make sure it’s safe before you’re doing this!), and call your dealer of purchase for help. The date and time of all Adjust the internal clock of router. event logs are wrong WN-350R User’s Manual...

  • Page 172: Glossary

    10/100 million bits per second (Mbps). Idle Timeout: Idle Timeout is designed so that after there is no traffic to the Internet for a pre-configured amount of time, the connection will automatically be disconnected. WN-350R User’s Manual...
  • Page 173 11011001.10110000.10010000.00000111, and if its network mask is, 11111111.11111111.11110000.00000000 It means the device’s network address is 11011001.10110000.10010000.00000000, and its host ID is, 00000000.00000000.00000000.00000111. This is a convenient and efficient method for routers to route IP packets to their destination. WN-350R User’s Manual...
  • Page 174 Port: Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers: Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere TCP 5631 PC Anywhere UDP 5632 WN-350R User’s Manual...
  • Page 175 Internet. Both TCP and UDP are transport layer protocol. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol. WN-350R User’s Manual...
  • Page 176 Web-based Management Graphical User Interface (GUI): Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed. WN-350R User’s Manual...

Table of Contents
