Liko LikoScale 350 User Manual

Calibration
For calibration, see manufacturer's instruction guide or contact Liko.

Technical Data

Accuracy class: Class III according to the requirements of the
NAWI 90/384 EEC Directive.
Readout: Sensitive to 0.2 kg
Tolerance: 10 -99.9 kg +/- 0.2 kg
100-350 kg +/- 0.4 kg
Max. load: 350 kg (772 lbs)
Min. load: 10 kg (22 lbs)
Reset: One button reset ( )
Power supply: Battery 9 V
Battery: 9 V Alkaline (PP3, MN1604, 6LR61, E-block).
Battery life: about 3000 readings
Display: Digital, liquid crystal (LCD)
Size:
76 x 76 x 134 mm (3 x 3 x 5.3 in.) (W x L x H)
Weight: 0.575 kg (1.3 lbs)
Temperature range: +5 C to +35
o
Humidity range: 0 % - 95 %
Manufacturer:
Distributor:
SR Instruments, Inc
Liko AB
600 Young Street
SE-975 92 Luleå
Tonawanda, NY 14150
Sweden
USA
info@liko.se
0
C (+41 F to +95 F)
o o o
w w w . l i k o . com

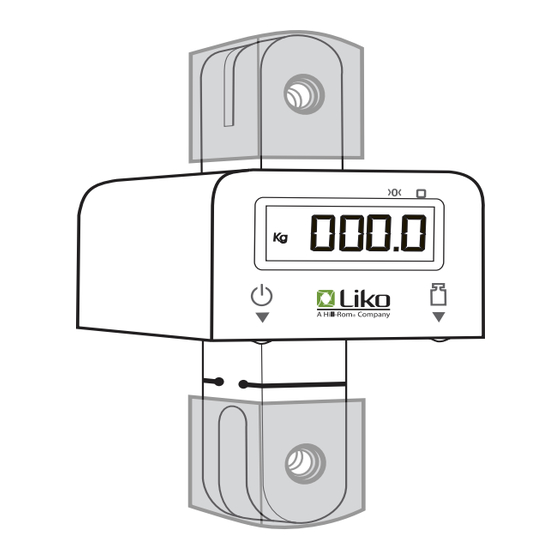

LikoScale 350
Prod. No. 3156228
LikoScale 350 is a convenient, easy-to-use scale that is intended for weighing patients
in Liko mobile or stationary lifts. Together with Liko's lifts and lifting accessories,
LikoScale 350 enables safe and easy weighing.
The weight is shown on the scale's digital display in kg.
LikoScale 350 is certified according to the European directive NAWI 90/384 (Non Automatic
Weighing Instruments). The scale should only be used in combination with approved lifts
and accessories in accordance with the instructions in this guide.
LikoScale 350 can be used with the following Liko lifts:
Viking (S, M, L, XL)
- require Adapter 12 mm, Prod. No. 2016504.
Uno (all models)
- Uno models with serial numbers from 31825 require
Adapter 12 mm, Prod. No. 2016504.
- Uno models with serial numbers up to 31824 require
Adapter 8 mm, Prod. No. 2016502.
As the lifting height is limited when LikoScale is used in combination with LikoLight or Viking XS, we
do not recommend these alternatives.
* This user guide is a complement to the complete documentation issued by the manufacturer of the
scale. The intention with this document is to make it easier for our customers to use LikoScale in com-
bination with Liko's products. For detailed information regarding the scale we refer you to the manufac-
turer's instruction guide (attached).

User Guide*

7EN160175-04
2009-08-10
Golvo (all models)
Likorall (all models)
Multirall (all models)
Liko MasterLift (all models)
