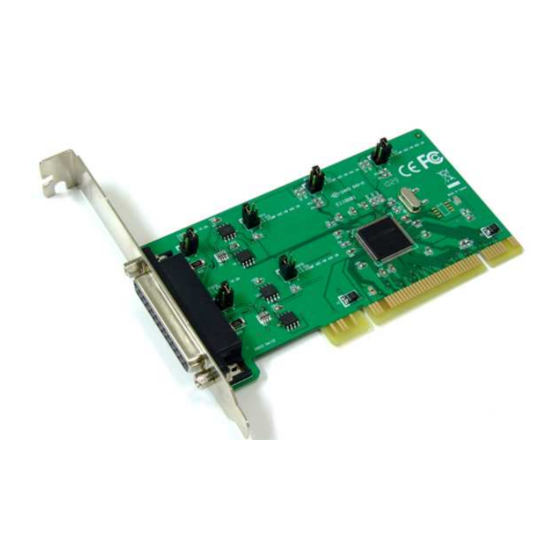

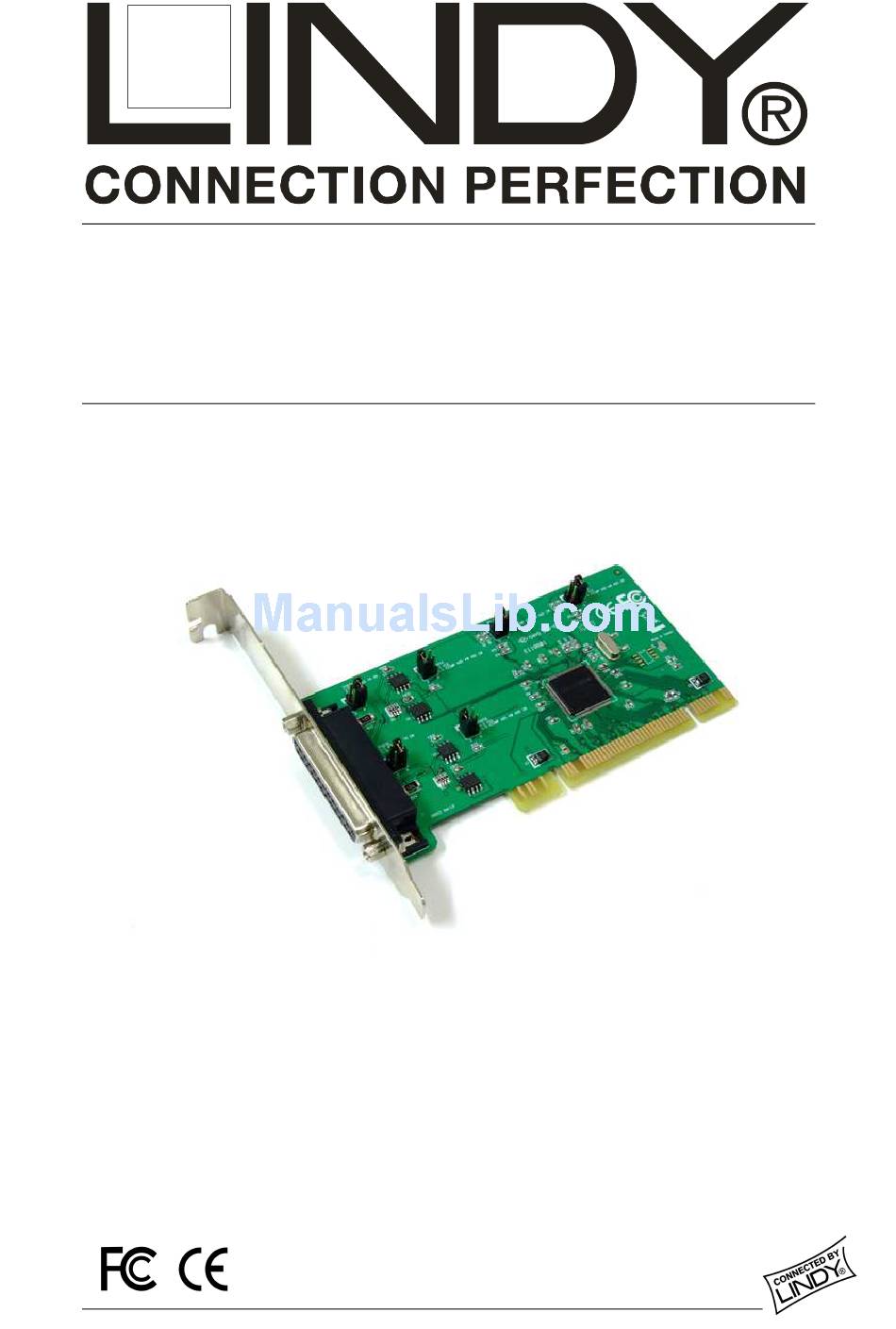

- Page 1 RS-422/485 PCI Card User Manual English LINDY No. 51215 (2 Port) www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (Aug 2010)
-
Page 2: Packing List
1.0 Introduction Thank you for purchasing the LINDY RS-422/485 Controller. This PCI serial card enables your computer to support serial RS-422/485 ports with 256Kbyte FIFO. 2.0 Packing List Please check if the following items are present and in good condition upon opening the packaging. - Page 3 JP3 – When this port set us as “Host” or “last devices” please set up jump as pin1, and 2. Other set up as pin 3 and 4. JP4 – pin 1 and pin 2 – RS-422 p2p, RS-422 multi drop, and RS-485 4 wire pin 3 and pin 4 – RS-485 2 wire JP1 –...
- Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
