Summary of Contents for TheraSauna TS7552

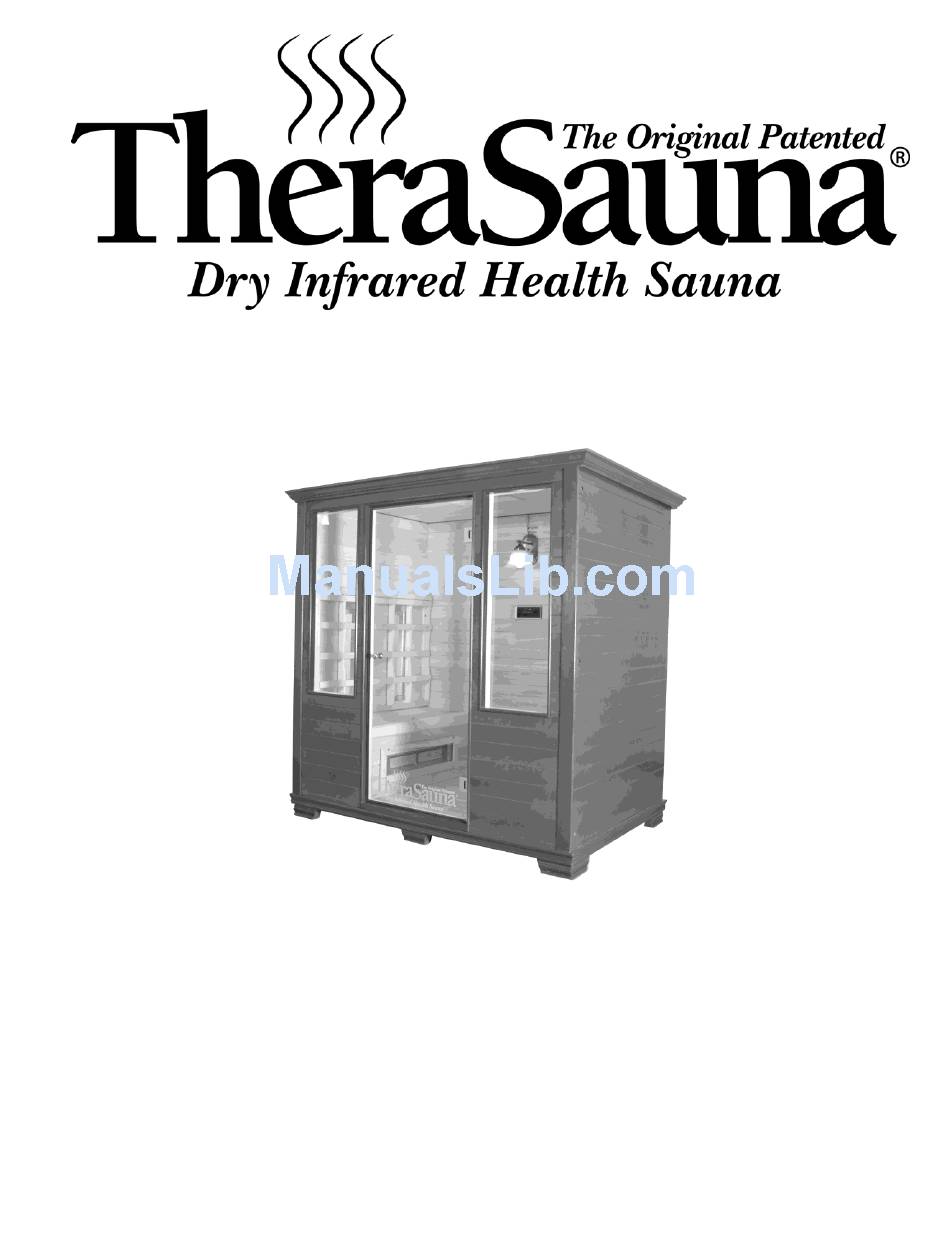

- Page 1 Owners Manual and Assembly for Model TS7552 CONGRATULATIONS! FacetoFace TheraManual 01.21.13...
-
Page 2: Table Of Contents
Your recent purchase of a TheraSauna® is a step towards a lifetime of better health and well-being. Health and medical experts agree TheraSauna® is one of the finest products of its kind worldwide. We welcome you to the TheraSauna® family and wish you many years of enjoyment. -
Page 3: Saunas
TS4544 Straight Bench TS5651 Straight Bench TS7951 Straight Bench TS7552 Opposite Facing TS6238 Corner Unit... -
Page 4: Parts List
Before assembling your TheraSauna® please check the parts you have with the enclosed parts list. Parts List Figure 1 Figure 2 Sauna control box will Face Up face out. Bottom Back Wall Part # SB4 – TS7951 Part # BW4 – TS7951 SB2 –... - Page 5 Figure 5 Figure 5 Front Wall Part # FW4 – TS7951 FW2 – TS5651 / FW1 – TS4544 FW3 – TS6238 / FW5 – TS7552 Quantity 1 TheraSauna® front wall pictured will differ slightly from TS4544, TS5651, TS7951 & TS6238 models.
- Page 6 Figure 10 Figure 11 Light Fixture Light Mounting Screw Part # 67331 Part # LMS24 Quantity 1 Quantity 1 Figure 12 Figure 13 Bolts 5/16 Hex Part # 11887-01629 Wrench Quantity 14 Part # 26520 Quantity 1...
-
Page 7: Sauna Location
SAUNA LOCATION The TheraSauna® should be installed only inside a home or other enclosed structure with a flat leveled floor and a 20 Amp dedicated outlet in close proximity. Saunas must be directly plugged into outlets, no extension cords should be used. Select a location that will be convenient for you and will provide you with maximum accessibility. -
Page 8: Assembly Tips
1. Electrical and/or Light Receptacles shall not be installed inside the TheraSauna® room. 2. Do not add any locking or latching systems to the door of your TheraSauna®. Malfunction of which could cause entrapment inside the sauna. 3. The TheraSauna® comes with a sliding roof vent to provide proper ventilation to allow in fresh air if so desired. -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS FOR THERASAUNA® 1. Place bottom (Figure 1, page 4) on a solid flat surface with 5 supporting blocks down. Note: Two blocks on the top of the base go towards the back. 2. Stand back wall (Figure 2, page 4) on base with channeled edge up, make sure to center wall along back edge of base. - Page 10 ¼ turn. 12. Install light plug connector on light (Figure 10, page 6) into connector coming out of front wall. Screw securely to the wall with light mounting screw (Figure 11, page 6). Fully Assembled TheraSauna. Fully Assembled Th.
-
Page 11: Elect Pwr Rqrmnts
Always consult a physician before beginning a sauna program. You may wish to begin with shorter sessions, 10 – 20 minutes, in the TheraSauna® and work up to 30 – 60 minutes per session, as you feel more comfortable and familiar with the effects. -
Page 12: Diagnostic Codes
135 F and 60 minutes, you will have to reset your settings. On powering up the sauna the panel will display sauna internal temperature. Once the TheraSauna® reaches the set temperature, the heat indicator light will turn off letting you know the sauna has reached your desired temperature. This does not mean that the sauna is no longer emitting infrared. -
Page 13: Wood Characteristics
We have used a uniform finish on the natural woods in this TheraSauna® and we hope that you will appreciate and enjoy its beauty. -
Page 14: Helpful Hints
HELPFUL HINTS Drink liquids prior to, during and after your sauna session. Water works just fine. Use the best quality water available to you. Eating a piece of fruit is helpful to replace potassium. The typical American diet can replace phosphorous which is lost through perspiration. -
Page 15: Troubleshooting
HELPFUL TROUBLESHOOTING HINTS *CAUTION DISCONNECT POWER SUPPLY BEFORE SERVICING* PROBLEM CAUSE TIPS Sauna light not Light not plugged Remove light mounting screw and light will come off the working wall. Check light plug to be sure it is plugged in securely. Sauna light not Bad light bulb Check light bulb in separate light socket. -
Page 16: Therasauna® Disclaimer
THERASAUNA® DISCLAIMER Disclaimer QCA Spas, Inc. (manufacturer of TheraSauna®) and its affiliates do not provide medical advice, education or treatment. The information contained in this manual is for general information purposes and is not intended to address individual medical conditions. Infrared heat may not be right for you and the information herein should not be relied upon in making decisions about your health. -
Page 17: Warranty
Any products which are claimed to be defective and which are not repaired or replaced by an authorized service agent must be shipped freight prepaid to TheraSauna® and the repaired or replaced product will be returned to the sender freight collect. When sent to TheraSauna®, the product must be accompanied by the sales receipt or other proof of purchase date, as well as the sender’s name, mailing... - Page 18 PREPAID registration card within THIRTY days of delivery. You will find your serial # located underneath the TheraSauna® bench. You must include your serial # on your warranty registration card in order to receive your free gift.
- Page 20 These symbols designate that this sauna is listed by the Canadian Standards Association for use in the United States and Canada.
