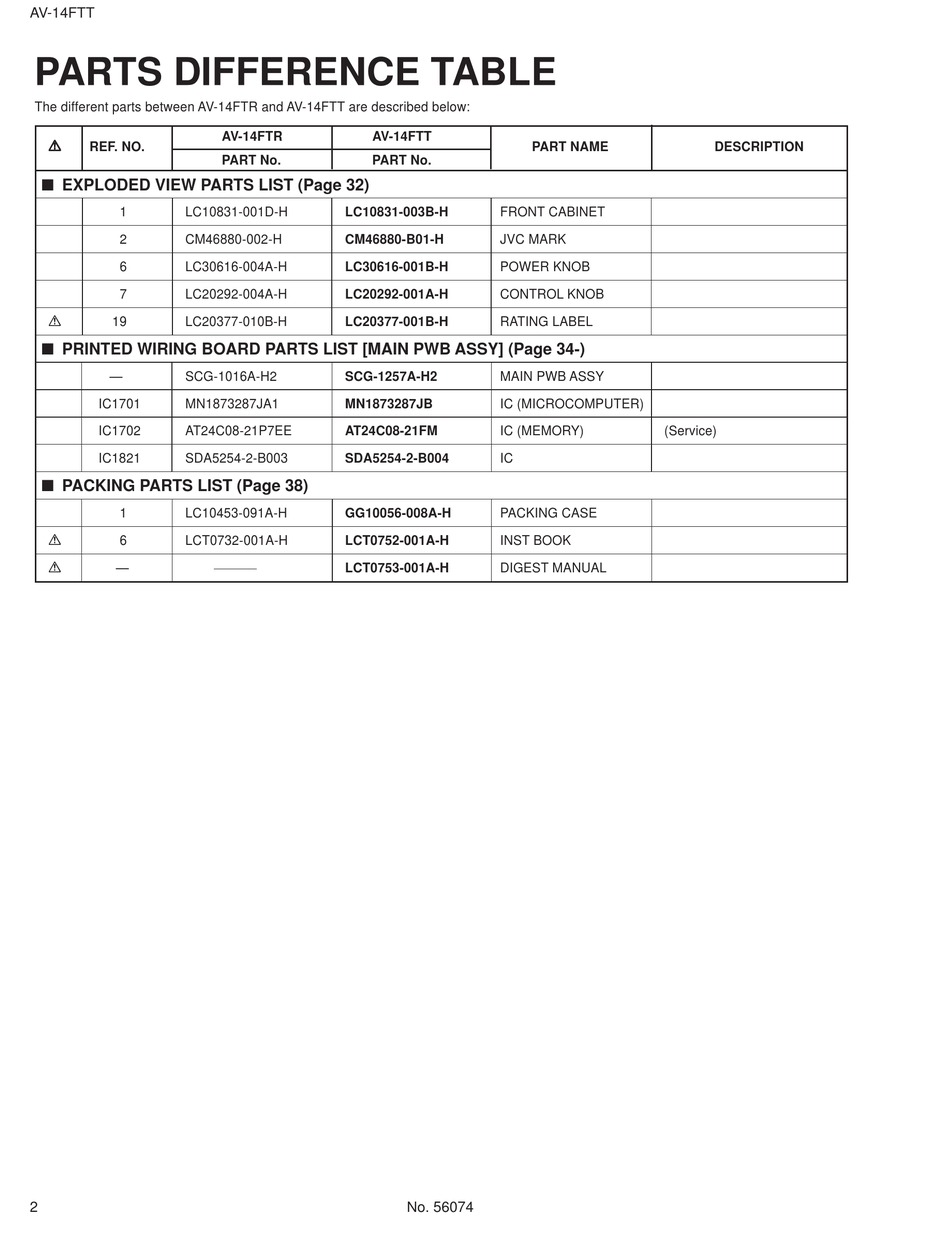

PARTS DIFFERENCE TABLE

The different parts between AV-14FTR and AV-14FTT are described below:
REF. NO.
! ! ! ! !
EXPLODED VIEW PARTS LIST (Page 32)
1 LC10831-001D-H
2 CM46880-002-H
6 LC30616-004A-H
7 LC20292-004A-H
19 LC20377-010B-H
!
PRINTED WIRING BOARD PARTS LIST [MAIN PWB ASSY] (Page 34-)
— SCG-1016A-H2
IC1701 MN1873287JA1
IC1702 AT24C08-21P7EE
IC1821 SDA5254-2-B003
PACKING PARTS LIST (Page 38)
1 LC10453-091A-H
6 LCT0732-001A-H
!
—
!
2
AV-14FTR AV-14FTT
PART No. PART No.
LC10831-003B-H
CM46880-B01-H
LC30616-001B-H
LC20292-001A-H
LC20377-001B-H
SCG-1257A-H2
MN1873287JB
AT24C08-21FM
SDA5254-2-B004
GG10056-008A-H
LCT0752-001A-H
LCT0753-001A-H
PART NAME
FRONT CABINET
JVC MARK
POWER KNOB
CONTROL KNOB
RATING LABEL
MAIN PWB ASSY
IC (MICROCOMPUTER)
IC (MEMORY)
IC
PACKING CASE
INST BOOK
DIGEST MANUAL
