  6. Owner's operation and instruction manual

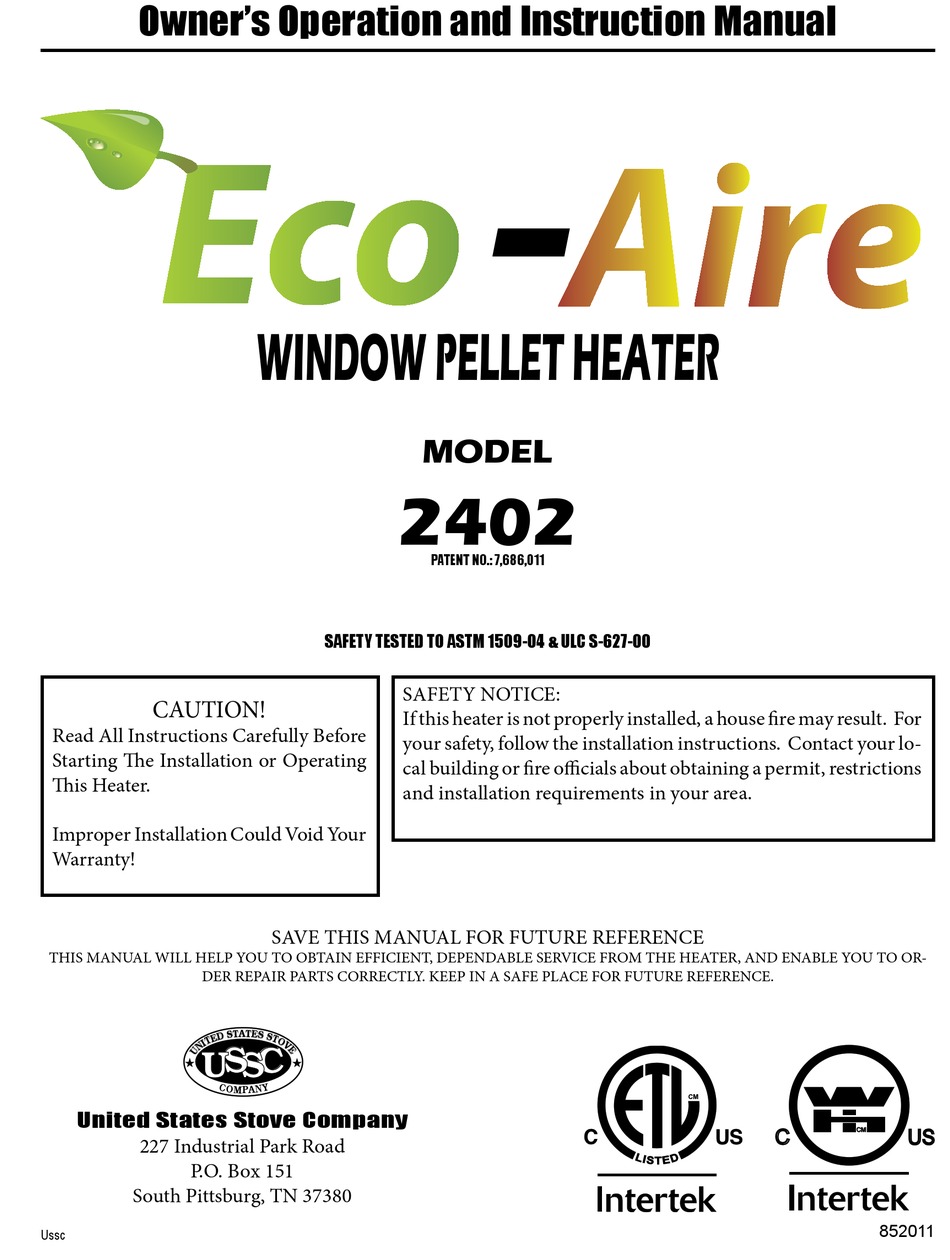

Eco-Aire 2402 Owner's Operation And Instruction Manual

Window pellet heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Operation and Instruction Manual
Window Pellet Unit
CAUTION!
Read All Instructions Carefully Before
Starting The Installation or Operating
This Heater.
Improper Installation Could Void Your
Warranty!
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-
DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
U
United States Stove Company
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
Ussc
WINDOW PELLET HEATER
2402
SAFETY TESTED TO ASTM 1509-04 & ULC S-627-00
SAVE THIS MANUAL FOR FUTURE REFERENCE
S
C
S
-
MODEL
PATENT NO.: 7,686,011
SAFETY NOTICE:
If this heater is not properly installed, a house fire may result. For
your safety, follow the installation instructions. Contact your lo-
cal building or fire officials about obtaining a permit, restrictions
and installation requirements in your area.
C
US
CM
852011
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2402 and is the answer not in the manual?

Questions and answers

Related Manuals for Eco-Aire 2402

Summary of Contents for Eco-Aire 2402

  • Page 1 Owner’s Operation and Instruction Manual WINDOW PELLET HEATER Window Pellet Unit MODEL 2402 PATENT NO.: 7,686,011 SAFETY TESTED TO ASTM 1509-04 & ULC S-627-00 SAFETY NOTICE: CAUTION! If this heater is not properly installed, a house fire may result. For Read All Instructions Carefully Before your safety, follow the installation instructions.
  • Page 2 Safety Precautions WARRANTY INFORMATION CARD  IMPORTANT: Read this entire manual before installing  The exhaust system should be checked bi- monthly during the and operating this product. Failure to do so may result burning season for any build-up of flyash, soot or creosote. Name__________________________________________ Telephone #: (_____)_____________ in property damage, bodily injury, or even death.

  • Page 3: Fuel Considerations

    Specifications Heating Specifications BTU output will vary depending on the quality of fuel. Use PFI listed Heat Output 16,400 BTU/hr. fuels for the best results. Heating Capacity 500 - 1,000 sq. ft. Heating capacity will vary depending on floor plan layout of your home, degree of insulation, and the outside temperature.

  • Page 4: Installation

     Before installing your heater, you must perform an initial burn in an OUTSIDE environment. Follow the Start-Up Procedure in the Operation section of this manual. 6” Your Eco-Aire heater may be installed to code in either a conventional or mobile home (see SPECIAL MOBILE HOME [152mm] REQUIREMENTS).
  • Page 5 Window Installation Window Installation When Installing your heater in a window TWO-SIDED TAPE • Select a window of adequate size and with the appropriate clearances needed for a safe installation. The mounting hardware supplied is designed for the appliance to be installed in the approximate center WINDOW Sill MOUNT- of the window. You will need to provide the attaching hardware, (i.e. ING BRACKETS screws, wall anchors, etc.) of which should be suitable for mounting to the outside surface of your home or structure.
  • Page 6 [648mm] • Select a wall to the exterior of the building. This wall should have the re- Your Eco-Aire pellet heater operates on a timer based auger fuel feed system, that is controlled by a digital circuit board. The fuel is quired clearance to combustibles inside and out mentioned earlier in this delivered from the auger into a burn pot, which is the vessel where the combustion process takes place. Based upon the heat ranges manual.

  • Page 7: Operation

     Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up” a fire in Your Eco-Aire incorporates safety switches that helps ensure that everything is in proper working order before feeding fuel to the burn this heater.

  • Page 8: Spring Shutdown

    YEARLY SERVICING PROBLEM CAUSE: Heater has reached the 2nd over temperature limit. A yearly servicing and cleaning by your Authorized Eco-Aire Dealer is recommended. A fee may be charged for this service. Heater enters shut-down mode • To much fuel in the burn pot. Restart heater after heater has cooled. • RTD sensor in the room discharge air may be faulty causing the room fan not to come on.
  • Page 9 Parts Diagram Parts List 2402 Item Part No. Title Qty. 88033 3/8” Rope Gasket 3 FT 891544 Glass, Combustion Chamber 891951 Latch, Door 83339 1/4-20 Bolt 83261 1/4-20 Lock Nut 88144 Gasket, Cleanout 891952 Draw Latch 891542 Latch, Push-to-Close/Microswicth 80573...
  • Page 10 Wiring Diagram Notes Ussc Ussc...

  • Page 11: How To Order Repair Parts

    How to order repair parts This manUal will help yoU obTain efficienT, dependable service from yoUr eco-aire, and enable yoU To order repair parTs correcTly. Keep This manUal in a safe place for fUTUre reference. when wriTing, always give The fUll model nUmber which is on The nameplaTe aTTached To The heaTer.
