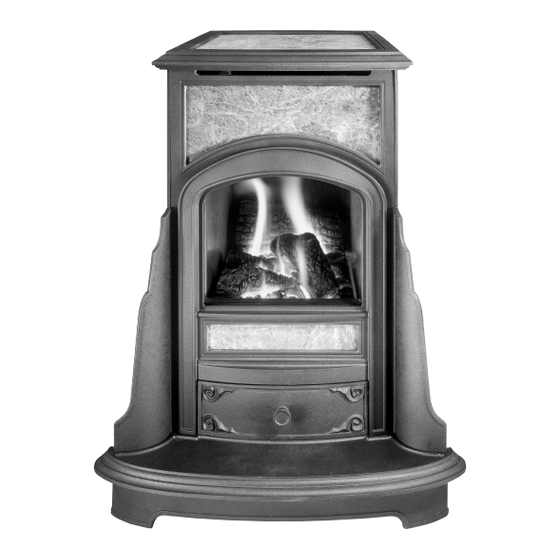

Cottage franklin gas stove
Hide thumbs Also See for Cottage Franklin 207:

Advertisement

Cottage Franklin Gas Stove
CERTIFIED TO AMERICAN NATIONAL STANDARD Z21.88b-2001
This appliance may be installed in an
aftermarket permanently located,
manufactured (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
66 Airpark Road, West Lebanon, NH 03784
email: info@gasstove.com
Model 207
AND APPLICABLE PORTIONS OF UL307b
OWNER'S MANUAL
WARNING:
instructions are not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
If the information in these
Tel: 800-866-4344
Fax: 603-298-5958
Rev5 (0505)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cottage Franklin 207 and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodstock Soapstone Cottage Franklin 207

  • Page 1 Cottage Franklin Gas Stove Model 207 CERTIFIED TO AMERICAN NATIONAL STANDARD Z21.88b-2001 AND APPLICABLE PORTIONS OF UL307b OWNER’S MANUAL WARNING: If the information in these This appliance may be installed in an instructions are not followed exactly, a fire or...
  • Page 2: Safety Precautions

    The installation of the Franklin Gas Fireplace SAFETY PRECAUTIONS must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, This appliance is only for use with the type of gas ANSI Z233.1. indicated on the rating plate.
  • Page 3: Table Of Contents

    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Table Of Contents TO THE INSTALLING TECHNICIAN: QUESTIONS: First, thank you from all of us at Woodstock Soapstone Co. for installing this 800-866-4344 Franklin Fireplace for one of our customers. If you have any questions about 9:00 AM to 5:00 PM installation, please call us at 800-866-4344.
  • Page 4: Code Approvals

    --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Specifications NOTE: Diagrams include 1. CODE APPROVALS • Direct Vent • Natural Gas • LPG optional 90° elbow. The Woodstock Cottage Franklin Gas Stove is listed as a direct vent appliance. This type of appliance draws all of its air for combustion from outside of the dwelling through specially designed pipe.
  • Page 5: Tools Needed To Install The Fireplace

    All approved direct vent components bring fresh air into the Stove and vent exhaust gasses at the same time (see illustration 4.1). Approved venting materials are available from Simpson Dura-Vent Dealers or direct from Woodstock Soapstone Company. Approved components are listed below. Dura-Vent No. Description...
  • Page 6: Approved Clearances For Inside Locations

    ---------------------------------------------------------------------------------------------------------------------------------Approved Clearances for Inside Locations Other Available Pipe: " x 6" Straight Pipe 908B " x 9" Straight Pipe 907B " x 12" Straight Pipe 906B " x 24" Straight Pipe 904B " x 36" Straight Pipe 903B " x 48" Straight Pipe 902B "...
  • Page 7 ---------------------------------------------------------------------------------------------------------------------------------Approved Clearances for Inside Locations The surface of the Cottage Franklin Gas Stove is hot when the appliance is in use. A safe installation requires that there be adequate clearances between the Cottage Franklin Gas Stove and nearby combustible materials, so that the combustible materials are not overheated.
  • Page 8: Approved Venting/Chimney Configurations

    --------------------------------------------------------------------------------------------------------------------------------Approved Venting/Chimney Configurations Combustible Ceiling in Alcove Installation 6" Min. Minimum Clearances to Ceilings in Alcove Installation 24" Min. Min. Clearance from top of pipe to ceiling/mantle ......6" 54" Min. 13" Illustration 5.4 Minimum Clearances to Ceiling in Alcove Installation 6.
  • Page 9 --------------------------------------------------------------------------------------------------------------------------------Approved Venting/Chimney Configurations A. Side Wall Venting In this venting configuration, the pipe rises directly from the back of the Stove. The exhaust travels up, through two elbows, and out through a side wall. See illustration on previous page. MINIMUM AND MAXIMUM DISTANCES •...
  • Page 10 --------------------------------------------------------------------------------------------------------------------------------Approved Venting/Chimney Configurations B. Side Wall Venting (straight back through wall) In this venting configuration, the pipe runs directly out the back of the Stove, through an outside wall and then up with a snorkel termination cap. See illustration at left. MINIMUM AND MAXIMUM DISTANCES 11"Min.
  • Page 11 --------------------------------------------------------------------------------------------------------------------------------Approved Venting/Chimney Configurations MINIMUM AND MAXIMUM DISTANCES • Maximum vertical rise ...........24'* Height of termination above roof must conform to chart below Roof Pitch A Minimum height from roof to lowest discharge opening Flat to 6/12 1.0 feet 6/12 to 8/12 2.0 feet 8/12 to 10/12 3.0 feet...
  • Page 12 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 10 D. Venting Into an Existing Fireplace and Chimney You can vent your Cottage Franklin Gas Stove into an open fireplace by running two flexible ducts up the length of the chimney. One duct will carry the exhaust gases to the top of the chimney while the other duct brings fresh air into the stove for combustion.
  • Page 13 The appliance must be securely bolted to the floor with steel existing metal straps secured to the leg bolts and to the floor with minimum chimney using 4" 1/4” lag bolts. Contact Woodstock Soapstone Company for exhaust duct and conversion kit. steel straps.
  • Page 14: Approved Venting/Chimney Terminal Clearances

    --------------------------------------------------------------------------------------------------------------------- Approved Venting/Chimney Terminal Clearances 7. APPROVED VENTING/CHIMNEY TERMINAL CLEARANCES A. Clearance to a permanently closed window....12" B. Clearance to a window or door that may be opened ..12" C. Clearance above grade. Also, clearance over deck, porch, Roof veranda or balcony .....12" D.
  • Page 15: Unpacking The Cottage Franklin Gas Fireplace

    -------------------------------------------------------------------------------------------------------------------- Pre-Installation Inspection Checklist for Installer 8. UNPACKING THE FIREPLACE Remove Packaging 1. There is a corrugated carton packed on the front skirt of the Fireplace. The corrugated box contains the ceramic logset as well as leveling screws and the window clip tool. Remove the carton and set it aside.
  • Page 16: Assembling The Cottage Franklin Gas Fireplace

    ------------------------------------------------------------------------------------------------------------------------------------------------------------- Assembling the Fireplace 7. Check that the piezo wire is connected to the pilot assembly. Push in and turn right gas control knob counterclockwise to test for spark in the Firebox near the pilot. CAUTION: Sheet metal edges are sharp. Please handle carefully Piezo Thermocouple Illustration 9.2 The glass front...
  • Page 17: Connecting The Gas Supply/Testing The Flame

    ---------------------------------------------------------------------------------------------------------------------- Connecting the Gas Supply & Testing the Flame 2. REPLACE GLASS FRONT/FRONT CASTING Once the tile and logset have been assembled the glass panel may be reinstalled. Be sure the bottom edge of panel fits snugly into bottom rail and clips are fastened securely.
  • Page 18 ---------------------------------------------------------------------------------------------------------------------- Connecting the Gas Supply & Testing the Flame 4. TEST PRESSURE THROUGH CONTROL VALUE Test pressure to and through the control valve using a manometer on the test gauge taps on the control valve. The line must be tested as follows: Propane (LPG or LP): 10.5"...
