Replacing Bypass Lift Guide: Keystone Model 204/
Please read all the instructions before you begin the procedure. Confirm that
you have all the necessary tools and parts. Allow about half an hour to
complete. If you have any questions technical support is available toll free
at 1-800-866-4344, Monday – Saturday 9 a.m.- 5 p.m. ET

Tools Needed:

- ½" wrench
- ½" socket
- 5/32" allen wrench
- safety glasses
- WD-40, PB Blaster, FreezeOff, or similar penetrant

Materials:

- W-254 Keystone/ Palladian lift guide
- (2) 5/16"-18 x 1" bolts
- anti seize compound

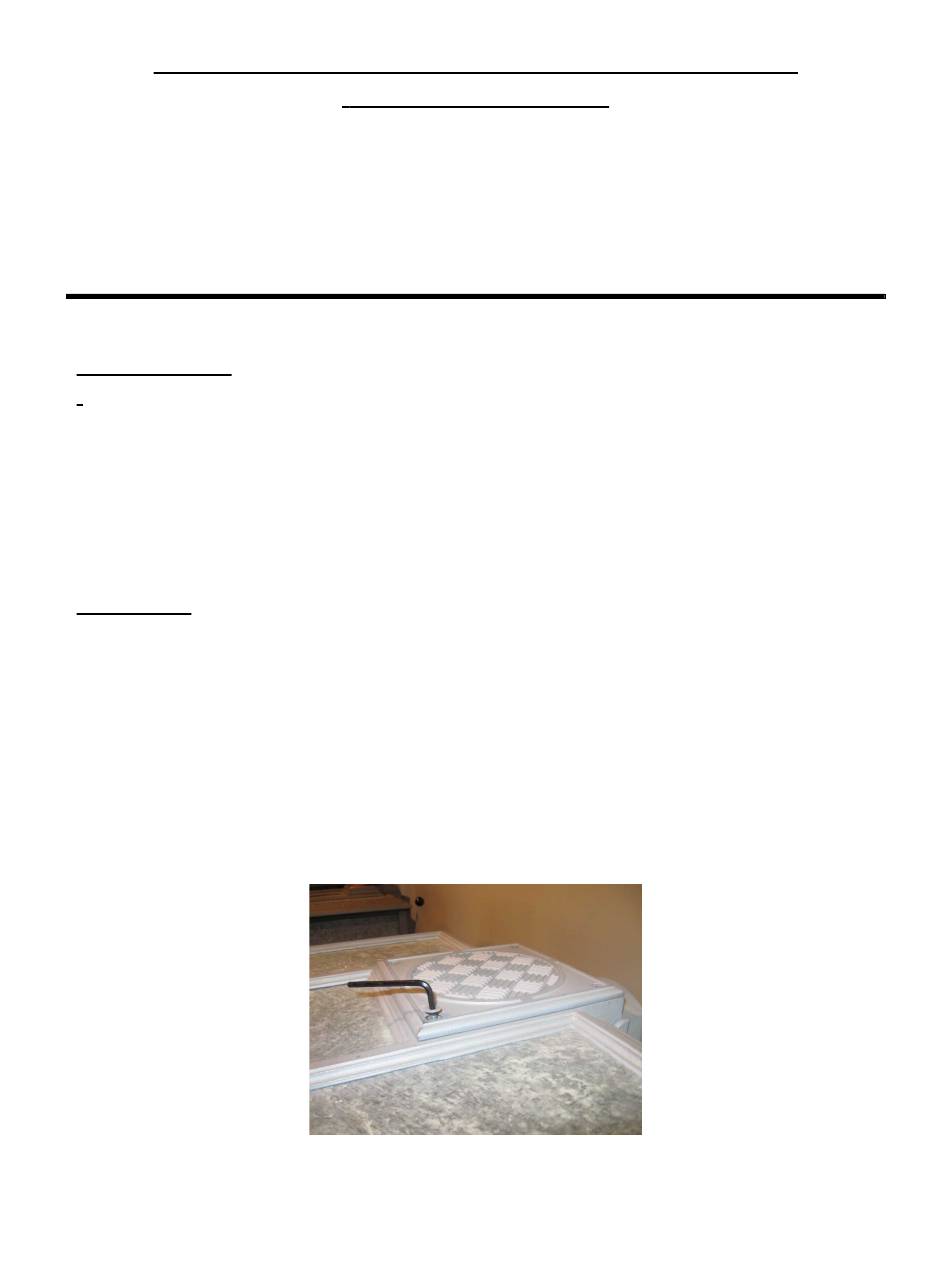

1. Make sure the stove is cool. Remove the cover plate (from either the top
or the back depending on your stove pipe) on the Keystone/ Palladian
using a 5/32" allen wrench.
2. Treat all hardware to be removed with penetrating liquid. Allow it to
stand at least 15 minutes. Use a ½" wrench to remove the nuts that attach
the u-bolt to the bypass shaft and lift guide. Remove the u-bolt. Pay
attention to the direction the u-bolt was installed.
Palladian Model 202
