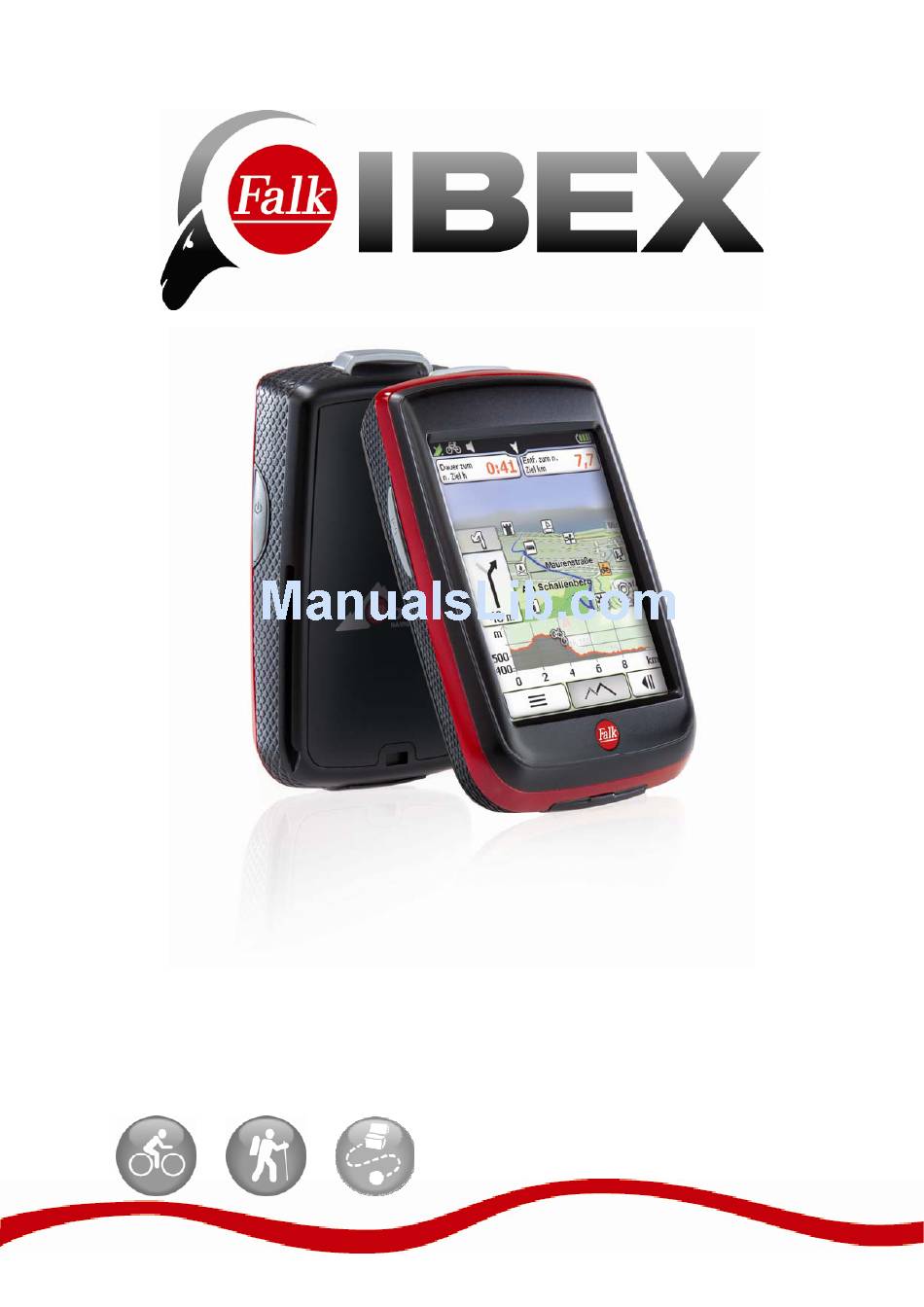

  • Page 1 User Manual...
  • Page 2 Legal information United Navigation GmbH Marco-Polo-Str.1 73760 Ostfildern United Navigation GmbH reserves the right to amend the details and data provided in this manual even without any prior notice being given. No part of these documents may be reproduced or transferred without the explicit written permission of United Navigation GmbH, irrespective of how or by what means this is done.

  • Page 3: Table Of Contents

    Contents Safety instructions and maintenance...................5  Safety instructions......................5  Disposal ..........................5  Introduction ..........................6  Device description .........................7  Device ..........................7  Opening and closing the housing cover ................8  Inserting the battery ......................8  Inserting a micro SD card....................8  Retaining bracket ......................9  Attaching the device to the bracket ................10  1. ...
  • Page 4 6.1.1  Route options (optional)..................26  6.1.2  Set routing ......................27  6.1.3  Stipulate country map ..................27  6.1.4  Speed profile.....................29  6.1.5  Ask about route options ..................29  6.2  Presentation of the map...................30  6.2.1  Map perspective ....................30  6.2.2  Raster maps (optional) ..................30  6.2.3  In direction of movement / map orientated north ..........30  6.2.4 ...
  • Page 5 Create map error on the menu..............54  12.4.2  Create map error while travelling ..............55  12.4.3  Create POI error....................55  12.4.4  Edit map and POI errors ................55  12.5  Help ........................55  13.  Sort menu ........................56  14.  Falk Navi-Manager ......................57  14.1  Introduction to the Falk Navi-Manager ..............57 ...
  • Page 6 Transfer of content ....................60  14.4  Compiling your own tour on the PC..............60  14.5  Import of POIs ......................61  14.6  Falk Online Community "123POI.com" ..............63  14.6.1  Use "Favourite lists" from the Community.............63  14.6.2  Upload new and amended ratings ..............63  14.7  Software .......................63 ...

  • Page 7: Safety Instructions And Maintenance

    60ºC (140ºF). Use only Falk original accessories or Falk-approved adapters. The use of other components may result in malfunctions and/or serious damage.

  • Page 8: Introduction

    (ROHS). The link to the certificates can be called up here: http://www.falk-outdoor.com/de/service/zertifikate.html. Introduction This manual describes the functions of the Falk LUX products. Functions which do not apply to versions of products because they are not included in the standard scope of supply for the product are marked "optional".

  • Page 9: Device Description

    Note: The rubberised cover also provides protection against the ingress of water. Make sure that it is always completely closed when using the device. Speaker: The speaker is located on the back of the device. It emits navigation instructions and system alerts. Falk IBEX User Manual...

  • Page 10: Opening And Closing The Housing Cover

    You can now insert a micro-SD card. Make sure that the contacts on the card are pointing downwards. Then flip the retaining plate back down towards the device and lock it in place by sliding it downwards. Falk IBEX User Manual...

  • Page 11: Retaining Bracket

    Caution: Please make sure the cable ties are fastened tightly to the handlebar, so that the retaining bracket doesn’t move when you are on uneven terrain. The bracket is supplied with a “tire tread” on the inside to ensure that it is not moving. Falk IBEX User Manual...

  • Page 12: Attaching The Device To The Bracket

    The device can be heard to lock in place in the bracket. To release the device from the bracket, press the release lever down and slide the device out of the bracket. Falk IBEX User Manual...

  • Page 13: Navigation View

    If you need to perform several manoeuvres in quick succession, the next-but-one manoeuvre is shown in the form of a directional arrow above the Manoeuvre box (with a grey background). This means you can always see where you are heading in good time. Falk IBEX User Manual...
  • Page 14 (see above) on a large scale on the map, a "Calibrate compass" button appears. Tap on this button to calibrate the compass. Alternatively, you can also calibrate the compass on the settings menu under "Settings > System / General > Calibrate compass". Falk IBEX User Manual...
  • Page 15 Tap on it. The actions mentioned above are now available to you. Tap on Close in the info box or on the red arrow at the bottom edge of the screen to switch back to the map view. Falk IBEX User Manual...

  • Page 16: Main Menu

    Once you have entered a letter, all of the letters which are no longer possible will be blanked out. If you tap on , a list containing all possible city names for your entry will be displayed. Falk IBEX User Manual...

  • Page 17: Home

    You can change the saved address in the settings menu at any time. Points of interest Your Falk LUX contains countless points of interest such as restaurants, viewing points, natural monuments, places to stay, places to visit and lots more.

  • Page 18: Previous Destinations

    Calculate starts the route calculation to this POI. Back switches back to the list of POIs. 3.4 Previous destinations This function allows you to select the previous destinations that you entered very easily. The previous forty destinations are automatically saved. Falk IBEX User Manual...

  • Page 19: Position On Map

    - displays the currently selected waypoint on the map Calculate - starts the route calculation to the selected waypoint Double click - opens the detailed view for a waypoint The further functions in relation to waypoints are explained in Chapter 10. Falk IBEX User Manual...

  • Page 20: Coordinates

    Top Highlights – Shows you the highlights from all categories for the chosen region Places of interest – Buildings or institutions which are particularly worth seeing Museums – Museums and exhibitions Food & Drink – Restaurants, cafés etc. Shopping – Everything you need to know about shopping Falk IBEX User Manual...

  • Page 21: Geocaches (Optional)

    In the Evening – Bars & lounges, cafés, casinos, discos etc. Favourite Lists – Accesses the favourite lists you have created (you can also transfer lists created on the PC to your device via the Falk Navi-Manager) All Categories – Accesses all available points of interest.

  • Page 22: Tours

    Note: The route description is only available in navigation, not in bearing mode (linear line). Bus&Train allows you to calculate a route using public transport (see Chap. 3.13.2) You can start routing via Navigation. Note: The alternatives are also calculated by taking account of the route options entered previously. Falk IBEX User Manual...
  • Page 23 When you click on a point on the graph, it is marked and the distance from the starting point is displayed. By clicking on one of the info boxes, different values which are to be displayed there can be selected. Falk IBEX User Manual...
  • Page 24 GPS signal to be received in buildings and in underground stations, the device may not switch over automatically. In this case, you can switch over manually. To do this, select Active Route > Bus & Train Connection > Get off. Falk IBEX User Manual...

  • Page 25: Trip Computer

    The route is run through virtually here. You will see on the map how the route proceeds and when and how turns are made. To do this, tap after calculation on Demo. For routes with several stations, you can add destinations to the tour by tapping on the "Add Falk IBEX User Manual...

  • Page 26: Plan Circuit (Optional)

    After entering the address, you can specify either the required distance or the duration of the circuit. The Falk Navigator then calculates a circuit which reflects the route options that have been set and takes you back to your starting point.

  • Page 27: Detailed View Of A Tour

    – Here you can reverse the tour. The stations will then be navigated to in reverse order. Edit name – Here you can edit the name of the tour. Delete tour – Here the selected tour can be deleted. Falk IBEX User Manual...

  • Page 28: Settings

    - uses or avoids hiking trails (hiking trails can be preferred in pedestrian mode) Steep gradient – uses or avoids gradients of over 8% (only in bicycle mode) Roads – uses or avoids roads (only in bicycle mode) Falk IBEX User Manual...

  • Page 29: Set Routing

    The coverage of the network of routes is less than that of a quality-tested Falk Premium Outdoor Map. The map shows a simpler representation of the surface area and contains fewer points of interest.
  • Page 30 All maps undergo extensive quality testing before they are used on the navigation devices. Outdoor maps from Falk therefore know (almost) all routes to the destination - on foot or by bike. They are also fully routable. Starting from your chosen location, a suitable route to your destination is therefore automatically determined which is then output with the aid of acoustic and visual commands.

  • Page 31: Speed Profile

    6.1.5 Ask about route options If this function is activated, the route options are asked about before each route calculation. This function is activated as standard. If you do not frequently change the route options, disable this function. Falk IBEX User Manual...

  • Page 32: Presentation Of The Map

    Here you can choose which points of interest should be displayed with small symbols on the map. To do this, select the categories you want. All points of interest in the chosen categories will then be displayed on the map. Falk IBEX User Manual...

  • Page 33: Track Recording

    Select a function and move it to the position you want with the aid of the rectangular arrows. Do not worry - no function will be lost. And even if the functions become mixed up, you can tap on Reset to restore them to the preset order. Falk IBEX User Manual...

  • Page 34: System / General

    The volume option allows you to change the volume of your navigation device or switch it off entirely. Optionally, you can if necessary also make a separate volume adjustment for individual functions in the Falk Navigator. To change the system volume or switch it off entirely, first tap on the Volume button. You can increase the volume by tapping on the plus symbol or reduce the volume by tapping on the minus symbol.

  • Page 35: Calibrate Compass

    Tap on Ok to save the settings. Note: The advanced volume settings are always dependent on the system volume. A change to the system volume therefore also always results in an adjustment to the volume in the individual functions of your Falk Navigator. 6.3.5 Calibrate compass To guarantee precise orientation of the compass, you should recalibrate the compass at regular intervals.

  • Page 36: Screen Auto-Off

    Adapt the rapid access menu on the navigation screen to reflect your individual needs by stipulating which functions and settings of the Falk Navigator you want to have rapid access to. Tap on Settings > System / General > Rapid Access Menu.

  • Page 37: Delete History

    6.3.14 Default settings If you tap on Default settings, you can reset the settings of the Falk Navigator to the factory settings; the navigation device is automatically restarted when you do this. You then have the option via the start wizard of making new settings.

  • Page 38: Sort Menu

    You save the position with Ok. If you want to save a point which is not your current location, you can do this via the waypoint manager (see Chap. 10). Falk IBEX User Manual...

  • Page 39: Geocaching (Optional)

    Geocaching.com on Send to my GPS device. A small window opens up in which you must then click on the Falk tab. You must now first install the Falk Device Plugin. Via a link you are guided through to the product page for installation.

  • Page 40: Cache List

    Terrain – With this filter you can decide how big the terrain to contend with should be, or how physically strenuous it should be, to find this cache. Note: The Falk LUX does not support Wherigo caches (GPS-based adventure games). Falk IBEX User Manual...

  • Page 41: Detailed View

    (see Chap. 9.2.7). You have the option to Show hints to make the search easier for you. These hints are already decrypted and can be used immediately provided that hints are available for the respective caches. Falk IBEX User Manual...
  • Page 42 "rubbish bin" symbol. Change description To edit the description for a geocache, select Change description. You can add additional information and delete or edit information which already exists. To restore the original description, use the Reset button. Falk IBEX User Manual...

  • Page 43: Arrival At The Geocache

    When you call up the profile at Geocaching.com, the function "Manage your fieldnotes" can be called up. There you should call up the function "Upload my fieldnotes". Then call up the "Falk" tab and follow the instructions. Then connect the device to the PC and click on the Falk IBEX User Manual...

  • Page 44: Pocket Query

    Falk Navi-Manager. Note: Your Falk LUX supports a pocket query with no more than 1,000 geocaches, but this must have a file size of no bigger than 5 MB. Choose a smaller number if necessary. Please note that the larger the file, the longer the conversion process when you start up the device.
  • Page 45 Earth Cache sites contain a series of informative notices with cache coordinates. Earth Cache visitors learn how our planet has been shaped by geological processes, how we manage our resources and how scientists are gathering evidence to learn more about the Earth. Falk IBEX User Manual...
  • Page 46 Webcam Cache – Is a cache in which webcams are placed in areas such as parks or other cache territories. The idea behind this is to be photographed by this webcam in order in this way to log the cache in the community. Falk IBEX User Manual...

  • Page 47: Waypoint Manager

    You can change the name by pressing the back button for a long time and entering another name. Confirm the name with Ok and the waypoint is then saved. Falk IBEX User Manual...

  • Page 48: Delete Created Waypoints

    Or you can delete the name line and enter your own name for the track. Note: It is advisable to enter a recognisable name for tracks so that you can find them more easily at a later date if several tracks are saved on the device. Falk IBEX User Manual...

  • Page 49: Detailed View Of A Track

    Switches the direction of travel of the track. This also allows you to find your way back to the starting point of a track. Change name – Here you can change the name of the track. Delete track – Deletes the track from the device. Falk IBEX User Manual...

  • Page 50: Start Track

    You can now decide whether, taking account of your current position, you would like to be guided to the starting point of the track or to the nearest point on the track (see picture on the right). Falk IBEX User Manual...

  • Page 51: Travel Guide (Optional)

    12. Extras 12.1 Travel Guide (optional) The Travel Guide is the multimedia electronic travel guide in your Falk Navigator. With it you can discover romantic squares, cosy cafés, the finest delicatessens and everything else a town or city has to offer. As well as information in lots of different theme categories, you have access to highlights and Insider Tips from the MARCO POLO Travel Guides.

  • Page 52: Travel Guide Theme Category

    Comfort class (for the Overnight accommodation category), the entries are sorted according to the traditional hotel rating system (1 to 5 stars). If you tap on Rating, the entries (POIs) are sorted starting with the highest rating (if ratings exist). Falk IBEX User Manual...

  • Page 53: Detailed View Of A Poi

    Art & Culture – Cultural institutions, galleries etc. Favourite Lists – Accesses the favourite lists you have created (you can also transfer lists created on the PC to your device via the Falk Navi-Manager) All Categories – Accesses all available points of interest.
  • Page 54 With restaurants, if one exists, the price class: €€€ = upmarket price class, €€ = average price class, € = cheap price class. With hotels, if one exists, the comfort class: One star to five stars. Falk IBEX User Manual...

  • Page 55: Public Transport Connection Planner (Optional)

    Note: If you want to integrate a public transport connection into a navigation from a starting point to a destination point, instead of just calculating a connection between two stations/stops, you can do this on the destination entry screen once the route has been calculated (see Chap. 3.13.2). Falk IBEX User Manual...

  • Page 56: Gpx Manager

    GPX file. 12.4 Map errors The Falk Navigator allows you to report map errors and thus help to improve the quality and relevance of the maps and the points of interest.

  • Page 57: Create Map Error While Travelling

    Help section which deals with the corresponding topic. This allows you to find an explanation about the respective function quickly in lots of different contexts. In addition, in the Help section you can select "Demonstrate functions" to get a Falk IBEX User Manual...

  • Page 58: Sort Menu

    Restore to restore them to the preset order. Note: The order of the menu can also be set for destination entry and the settings. To do this, select "Sort menu" in the appropriate submenu (destination entry or settings). Falk IBEX User Manual...

  • Page 59: Falk Navi-Manager

    Creation of a device back-up (optional) 14.1 Introduction to the Falk Navi-Manager You must first install the Falk Navi-Manager on your PC. To do this, you must first download the program from the internet. You will find the Navi-Manager on www.falk-navigation.de under "Service > Navi-Manager".
  • Page 60 3. To find the file you want again on your PC, mark the file and, by clicking the right mouse button, call up the menu item "Show folder". The folder in which the GPX file has been saved is automatically opened. Import GPX files from your PC to the navigation device Falk IBEX User Manual...
  • Page 61 If no actually required time exists, the anticipated required time is calculated based on the average speeds for cyclists and pedestrians which exist in the navigation device. Falk IBEX User Manual...

  • Page 62: Transfer Of Content

    In the opened Falk Navi-Manager, you will find the Service item in the menu bar. Select the subitem Falk Route Planner. You will get directly to the webpages of Falk. There you have the option to plan a route with the route planner. First enter your starting address followed by your destination and then click on Plan route.

  • Page 63: Import Of Pois

    POI has been selected, an info window for the POI appears. Now select the Tool button. A list will open up. Now select Save and For my Falk Navi. The POI is saved as a KML file on your PC.
  • Page 64 The final window once again summarises the information for the POI category which is to be imported. When you press the Complete button, you start the conversion process (the KML file is converted into the Falk format). Note: The conversion may take a little time.

  • Page 65: Falk Online Community "123Poi.com

    You can comment on POIs from other users with your own experiences or simply rate them using up to 5 stars. The Falk Community can of course also be used to expand your own content because you can download countless POIs with pictures, ratings and comments from other users to your device.

  • Page 66: Tips And Tricks

    Save power – You can save power and thus increase the operating life if you switch the device to stand-by mode when you are not actually using it. In addition, you can set the brightness of the screen and the volume to a relatively low level to save power. Falk IBEX User Manual...

  • Page 67: Troubleshooting

    It is recommended that you calibrate the The track includes The barometer was not calibrated prior barometer manually, by entering an jumps in altitude to the start of the track recording. altitude, in particular before recording a track. Falk IBEX User Manual...

  • Page 68: Technical Data

    Screen interface, on-screen keypad Input / output Speaker Built in, 1,5 W micro USB Battery NP 60 Li-Ion battery, 2000 mAh Waterproof rating IPX 7 Environmental conditions Operating temperature -10~+60°C Storage -20~+75°C Atmospheric humidity 20~90% atmospheric humidity Falk IBEX User Manual...

  • Page 69: Service & Support

    18. Service & support To provide optimum support to customers, Falk has set up a service centre which handles all warranty claims and repairs. If you have any questions about the guarantee and warranty, please feel free to contact the technical hotline: +49 1805 –...

  • Page 70: Glossary

    16 GB can be used (including SDHC). To insert the card into the device, see Chap. 1. Data can be transferred to the SD card using the Falk Navi-Manager (see Chap. 15).
  • Page 71 In addition, they have a unique numerical combination for identification. Trip computer: The trip computer is the ingenious information and statistics hub in your Falk LUX. Data relating to the current route but also barometer figures (atmospheric pressure, altitude) as well as astronomical figures (sunrise and sunset, lunar phase) can be called up.

  • Page 72: Index

    Settings6, 7, 23, 25, 28, 30, 31, 40, 55, 63, Circuit .............23 Rapid access menu.11, 33, 40, 45, 54, 63, Disposal..........4, 8 Falk Navi-Manager ..18, 36, 40, 41, 50, 53, Safety instructions ........4 56, 59, 61, 67 Points of interest12, 14, 15, 17, 18, 29, 48, Guarantee ........66, 72, 75...

  • Page 73: Licence Terms And Conditions

    21. Licence terms and conditions Licence terms and conditions for the Falk Navigator and Navi-Manager § 1 Object of the contract 1. The Licensor is United Navigation GmbH, Marco-Polo-Zentrum, 73760 Ostfildern – hereinafter referred to as the "Licensor". In accordance with § 6, the Licensor grants the...
  • Page 74 Licensee, external defective data or other reasons which stem from the Licensee’s area of risk, as well as from improper maintenance, alterations Falk IBEX User Manual...
  • Page 75 End User Terms The data (“Data”) is provided for your personal, internal use only and not for resale. It is protected by copyright, and is subject to the following terms and conditions which are agreed Falk IBEX User Manual...
  • Page 76 All rights reserved. Terms and Conditions Personal Use Only. You agree to use this Data together with Falk Navigator for the solely personal, non-commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in...
  • Page 77 Conditions which were agreed to firstly by the end customer and secondly by United GmbH and its licensors. © 20102 LOGIBALL GmbH, NAVTEQ NV, surveying agencies of the states and the German Federal Agency for Cartography and Geodesy (map of Germany), KOMPASS Karten GmbH Falk IBEX User Manual...
  • Page 78 Karten GmbH, BKG may not be used for commercial purposes without the prior written permission of the respective owners. Export control. You agree not to export any part of the data provided to you and other direct Falk IBEX User Manual...
  • Page 79 You agree without exception to pass on all disputes, demands and claims arising as a result of or in connection with the data provided to you under this agreement to the jurisdiction of the court in Stuttgart. Falk IBEX User Manual...
